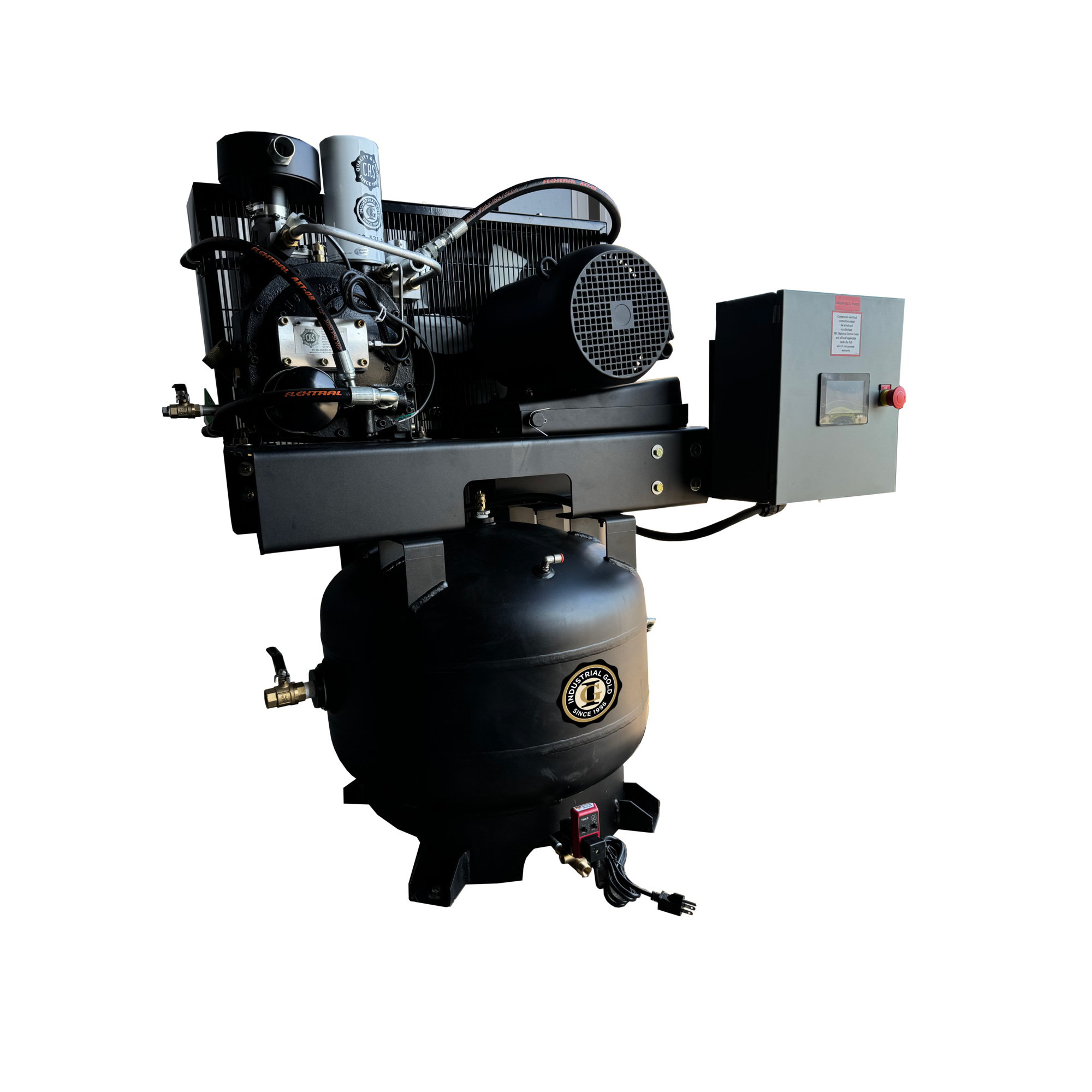

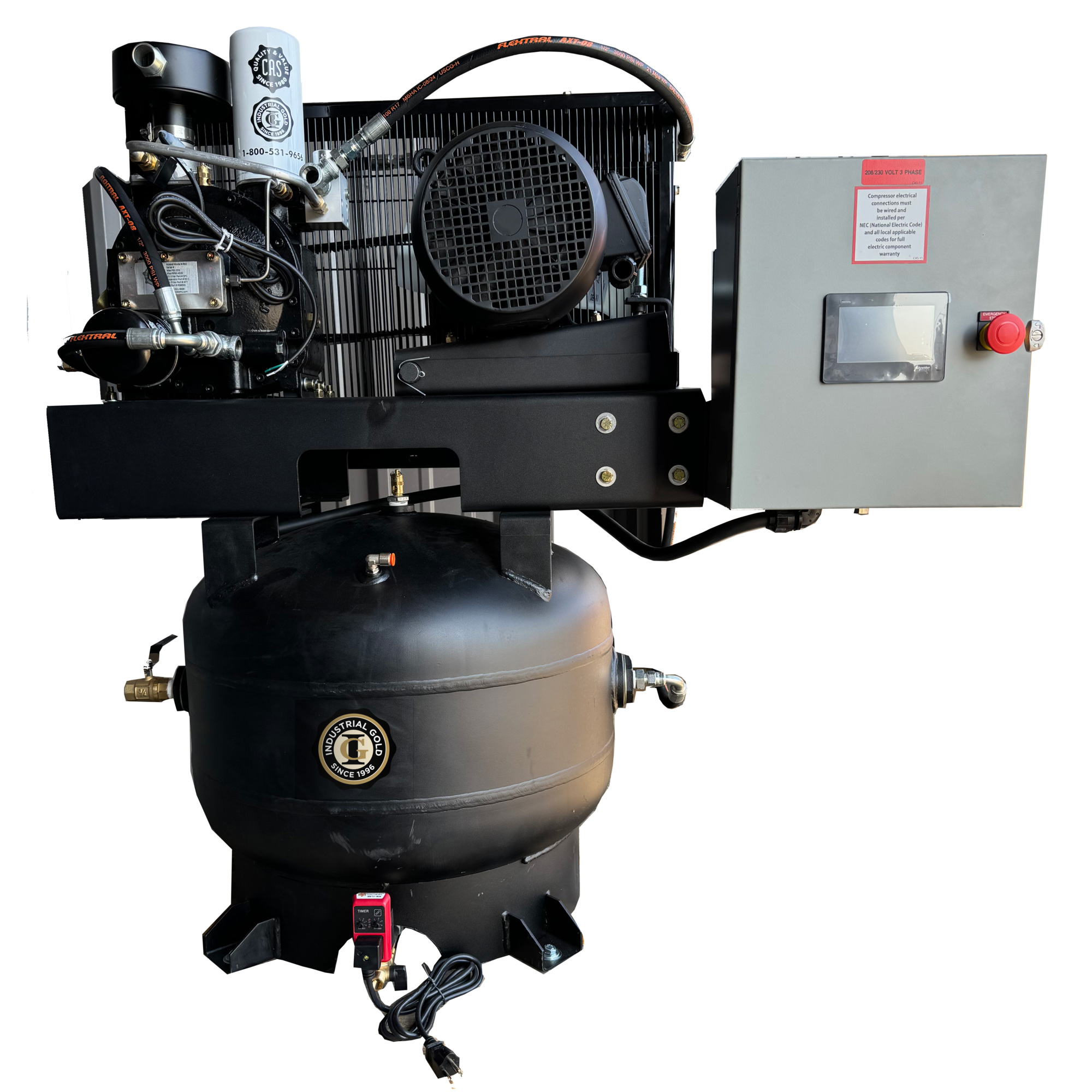

Industrial Gold, 7.5hp 3 phase 208-230V 30 Gallon Tank Mount Rotary, Horsepower 7.5 HP, Air Tank Size 30 Gal, Volts 208-230 Model# R73V33

Item# 6097851
Industrial Gold, 7.5hp 3 phase 208-230V 30 Gallon Tank Mount Rotary, Horsepower 7.5 HP, Air Tank Size 30 Gal, Volts 208-230 Model# R73V33

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Industrial Gold, 7.5hp 3 phase 208-230V 30 Gallon Tank Mount Rotary, Horsepower 7.5 HP, Air Tank Size 30 Gal, Volts 208-230 Model# R73V33

Click or Tap image to Zoom

$6199.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

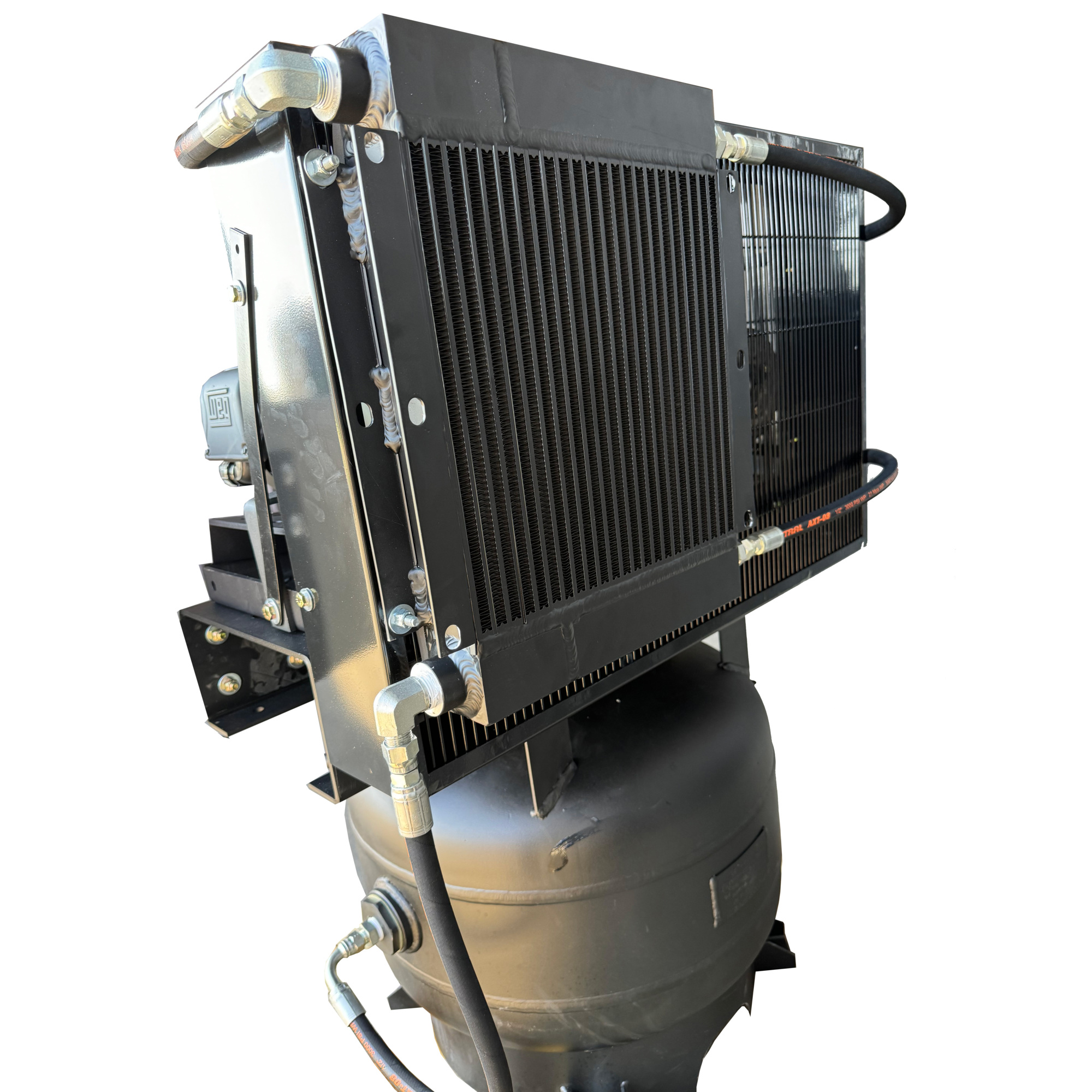

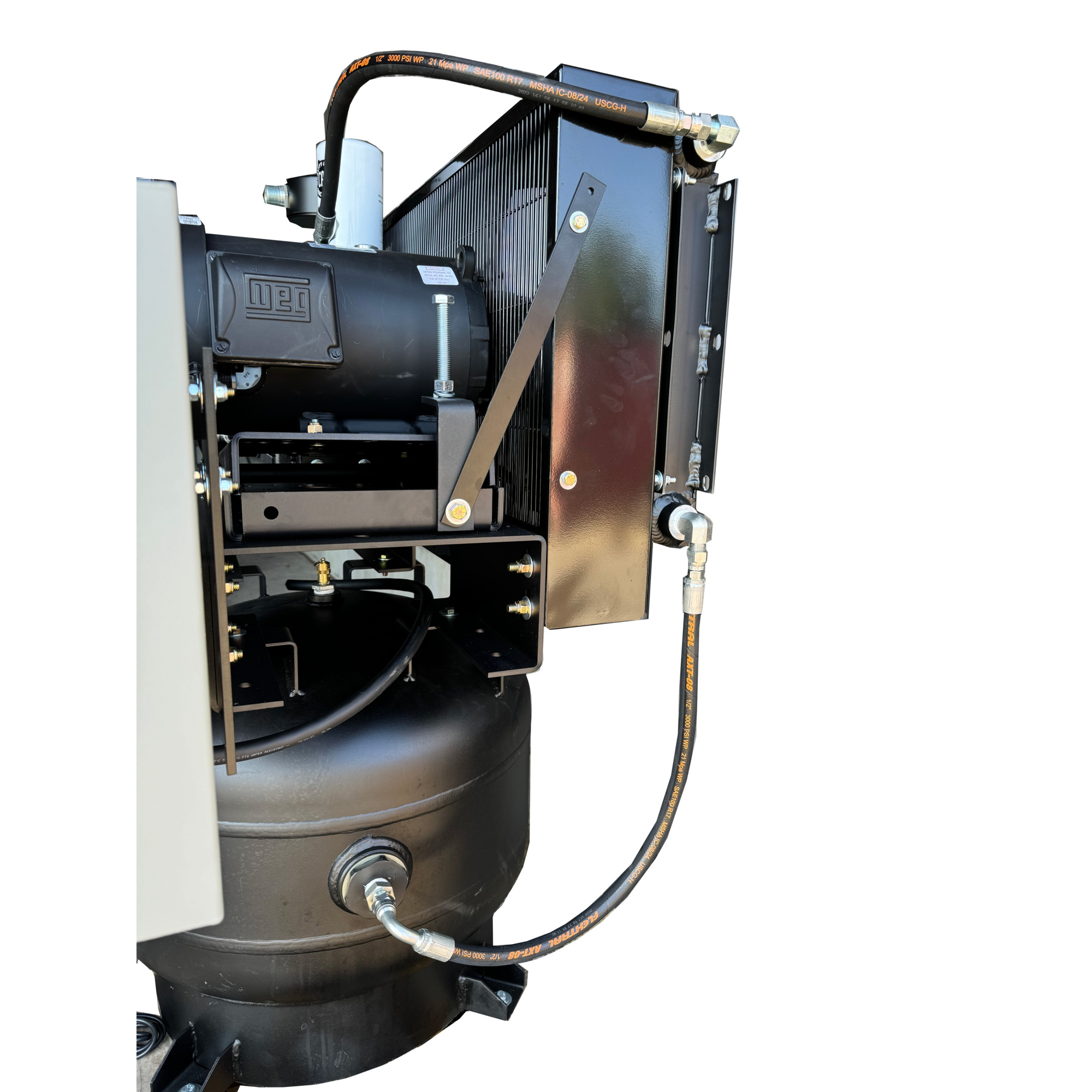

  • 74 dba, 29 cfm @ 125 psi, 28 cfm @ 150 psi, No Start-Up Kit Required, Optional 5-Year Pump Warranty, Airend manufactured with German rotary screw components, Air/oil cooler, ASME Powder coated air receiver, Easy to read and access gauges, Easy to remove bolt on oil cooler for cleaning, Extended oil drain with ball valve for easy service, Factory filled with premium synthetic fluid, Factory filled with premium synthetic fluid, Omega profile rotors, Operating pressures from 100-190 psi available, Simplified operating controls, no complicated micro-processor, Single control solenoid operation, Spin-on oil filter, Spin-on separator, TEFC drive motor (3 phase only), UL control components

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Industrial Gold rotary screw air compressors provide the highest levels of reliability, efficiency and productivity available. A great fit for any mission-critical application, the 100% duty cycle assures the compressor can not be overworked. Quality compomnents, simple controls, easy maintenance and once a year oil changes make this a great solution for high-volume and high productivity environments.

What's Included

    (1) Air Compressor

Features + Benefits

  • 74 dba, 29 cfm @ 125 psi, 28 cfm @ 150 psi, No Start-Up Kit Required, Optional 5-Year Pump Warranty, Airend manufactured with German rotary screw components, Air/oil cooler, ASME Powder coated air receiver, Easy to read and access gauges, Easy to remove bolt on oil cooler for cleaning, Extended oil drain with ball valve for easy service, Factory filled with premium synthetic fluid, Factory filled with premium synthetic fluid, Omega profile rotors, Operating pressures from 100-190 psi available, Simplified operating controls, no complicated micro-processor, Single control solenoid operation, Spin-on oil filter, Spin-on separator, TEFC drive motor (3 phase only), UL control components

Key Specs

AttributeSpecification

item#

6097851

Brand

Industrial Gold

Manufacturer's Warranty

1 year limited warranty

Ship Weight

550.0 LB

Horsepower

7.5 HP

Air Tank Size

30 Gal

Volts

208-230

CFM at 90 PSI

32.2

Max. PSI

150

Air Outlets (qty.)

1

Working Pressure

150 PSI

Motor Phase

3

Pump Material

Cast Iron

Pump Drive

Direct
AttributeSpecification

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

28

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Pressure

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

Yes

Air Dryer

None

Drain Type

Manual

Tank Orientation

Vertical

Product Weight

550.0000 lb

Dimensions L x W x H (in.)

25.0 x 40.0 x 50.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
