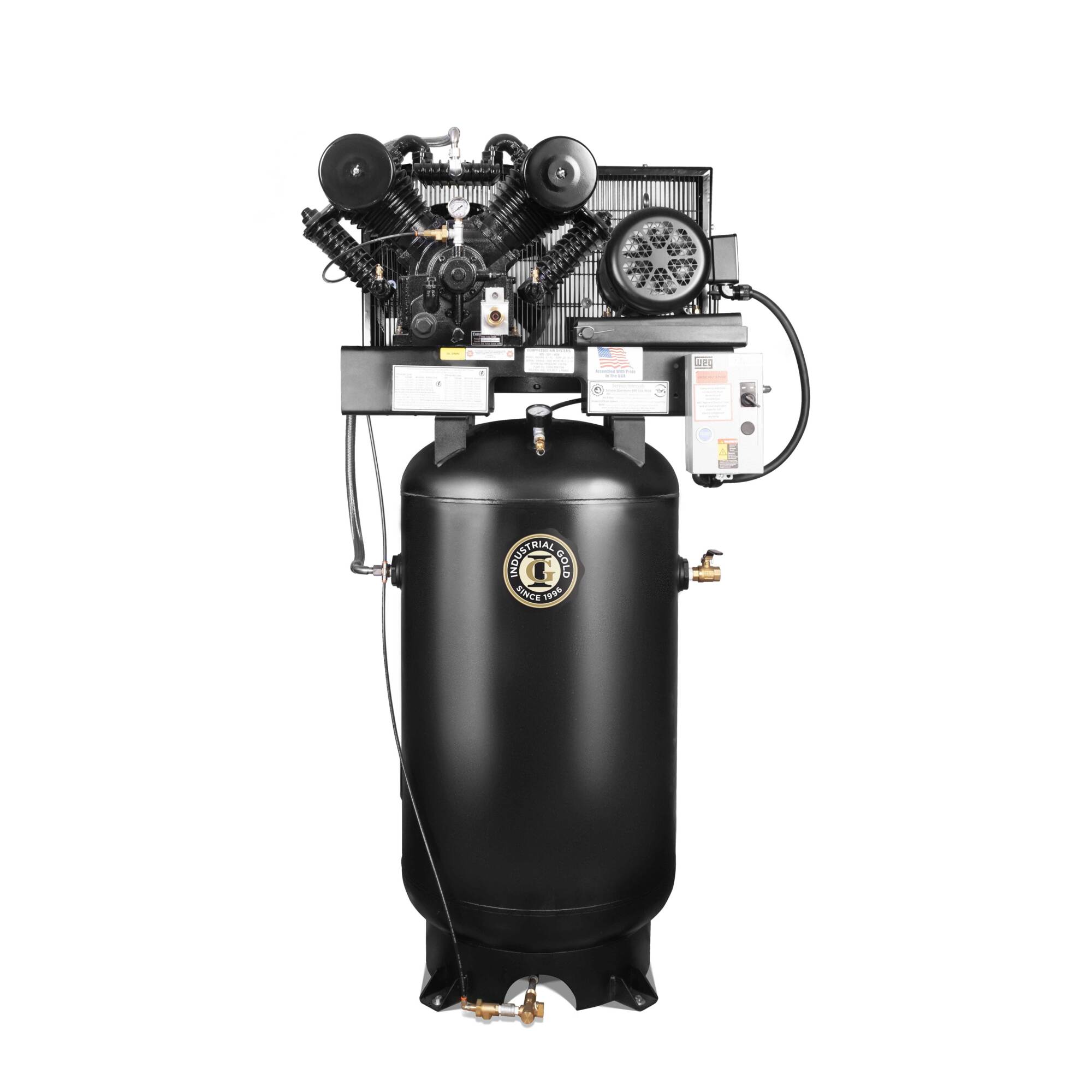

Industrial Gold Pressure-Lubricated Reciprocating Air Compressor — 7.5 HP, Two-Stage, 4 Cylinder V-Pump, 80-Gallon Vertical, 28 CFM @ 175 PSI, 208-230/480 Volt, 3 Phase, Model# CI7523E80V-CI10PL

Item# 7108655
Industrial Gold Pressure-Lubricated Reciprocating Air Compressor — 7.5 HP, Two-Stage, 4 Cylinder V-Pump, 80-Gallon Vertical, 28 CFM @ 175 PSI, 208-230/480 Volt, 3 Phase, Model# CI7523E80V-CI10PL

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Industrial Gold Pressure-Lubricated Reciprocating Air Compressor — 7.5 HP, Two-Stage, 4 Cylinder V-Pump, 80-Gallon Vertical, 28 CFM @ 175 PSI, 208-230/480 Volt, 3 Phase, Model# CI7523E80V-CI10PL

Click or Tap image to Zoom

$4187.50

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Heavy-duty pressure lubricated two-stage solid cast iron pump
  • Disk and spring valves
  • Centrifugal unloader
  • Access to compressor valves without compressor head removal
  • All UL electrical controls

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Heavy-Duty Pressure-Lubricated Cast Iron Pumps Run Smoother Quieter. Works Longer Harder. Industrial Gold classic CA1 and CA2 pumps just got even better. Now available with pressure lubrication for enhanced durability and performance.

What's Included

    (1) Air Compressor

Features + Benefits

  • Heavy-duty pressure lubricated two-stage solid cast iron pump
  • Disk and spring valves
  • Centrifugal unloader
  • Access to compressor valves without compressor head removal
  • All UL electrical controls
  • ASME/CRN certified air receiver
  • Auto start/stop
  • Bearings on both ends of the crank shaft
  • Fully enclosed belt guard
  • Heavy-duty air filter
  • Industrial grade electric motor
  • Needle bearings, and inserts on rods
  • Swedish steel valves
  • TEFC drive motor (3 phase only)
  • Torrington needle bearings
  • 2-grove B width motor pulley
  • 2-piece tank top plate design

Key Specs

AttributeSpecification

item#

7108655

Brand

Industrial Gold

Manufacturer's Warranty

1 year limited warranty

Ship Weight

735.0 LB

Air Tank Size

80 Gal

Volts

208-230/480

CFM at 90 PSI

33.6

Motor Phase

3

Stage

2

Tank Orientation

Vertical

Horsepower

7.5 HP

Max. PSI

175

Air Outlets (qty.)

1

Working Pressure

175 PSI
AttributeSpecification

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

28

Oil Required

Yes

Lubrication System

Pressure

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Air Dryer

None

Drain Type

Manual

Product Weight

735.0000 lb

Dimensions L x W x H (in.)

32.0 x 26.0 x 78.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
