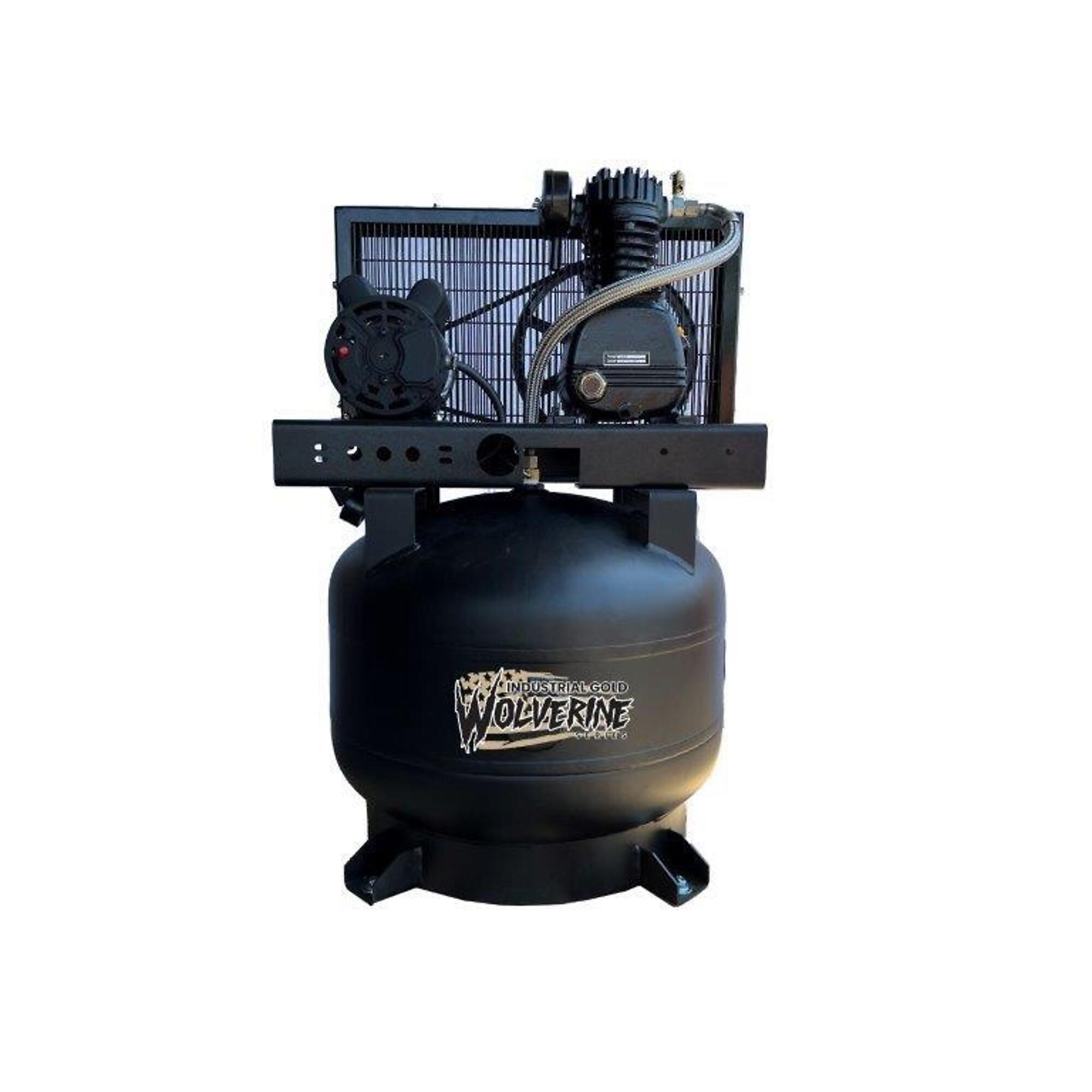

Industrial Gold, 3.5hp, 30 gallon, 12CFM125PSI, Horsepower 3.5 HP, Air Tank Size 30 Gal, Volts 208-230 Model# CI521E31V

Item# 6097886
Industrial Gold, 3.5hp, 30 gallon, 12CFM125PSI, Horsepower 3.5 HP, Air Tank Size 30 Gal, Volts 208-230 Model# CI521E31V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Industrial Gold, 3.5hp, 30 gallon, 12CFM125PSI, Horsepower 3.5 HP, Air Tank Size 30 Gal, Volts 208-230 Model# CI521E31V

Click or Tap image to Zoom

$1429.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • ASME/CRN 200 psi MWP air receiver, Auto start stop, Bearings on both end of the crank shaft, Cast iron two-stage compressor pump, Disk & spring valves, Heavy duty air filter, Motor overload protection built-in, Needle bearings and inserts on compression rod, Stainless steel flexible discharge line, Swedish steel valve components, UL/CSA electric control components

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Industrial Gold Wolverine is a High value compressor for light commercial applications, pro-consumer or heavy home hobbyist. These units have a high cfm per HP ratio with a maximum 50% duty cycle. Designed to power smaller air tools, low volume nail guns, small grinders and cut off tools.

What's Included

    (1) Air Compressor

Features + Benefits

  • ASME/CRN 200 psi MWP air receiver, Auto start stop, Bearings on both end of the crank shaft, Cast iron two-stage compressor pump, Disk & spring valves, Heavy duty air filter, Motor overload protection built-in, Needle bearings and inserts on compression rod, Stainless steel flexible discharge line, Swedish steel valve components, UL/CSA electric control components

Key Specs

AttributeSpecification

item#

6097886

Brand

Industrial Gold

Manufacturer's Warranty

1 year limited warranty

Ship Weight

260.0 LB

Horsepower

3.5 HP

Air Tank Size

30 Gal

Volts

208-230

CFM at 90 PSI

13

Max. PSI

135

Stage

1

Air Outlets (qty.)

1

Working Pressure

125 PSI

Motor Phase

1

Pump Material

Cast Iron
AttributeSpecification

Pump Drive

Belt

Air Outlet Size

1/4 in. NPT

CFM at Max. PSI

12

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Air Dryer

None

Drain Type

Manual

Tank Orientation

Vertical

Product Weight

205.0000 lb

Dimensions L x W x H (in.)

30.0 x 25.0 x 44.0 in

Reviews

Questions & Answers

Questions

  1. Does anyone know how loud this unit is? db.?

    1 answer

    1. The air compressor is rated at about 84 DB.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
