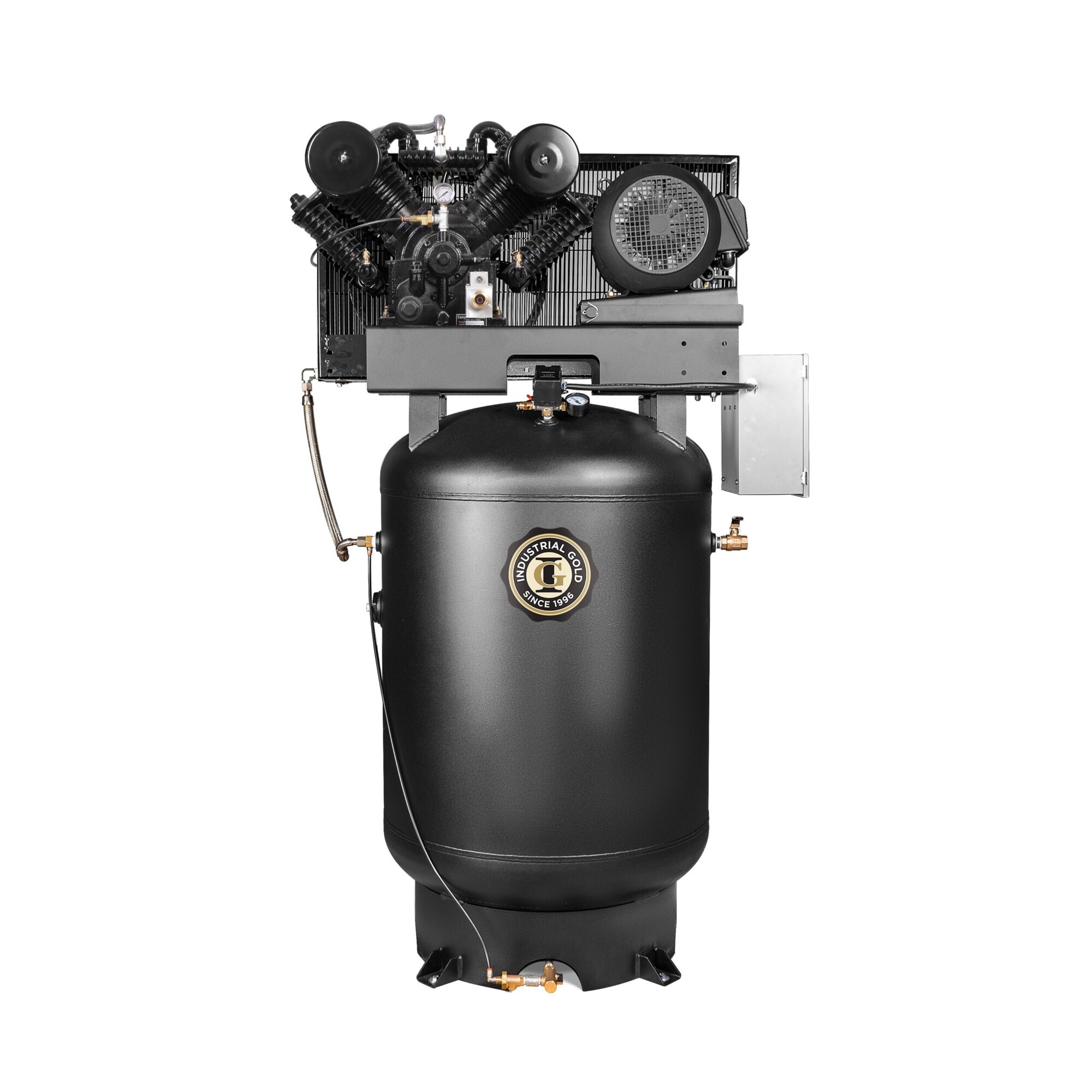

Industrial Gold Two-Stage Air Compressor — 10 HP, 120-Gallon, 35.4 CFM @ 175 PSI, 208-230/480V, 3 Phase, Model# CI1023E120V-PL

Item# 7108591
Industrial Gold Two-Stage Air Compressor — 10 HP, 120-Gallon, 35.4 CFM @ 175 PSI, 208-230/480V, 3 Phase, Model# CI1023E120V-PL

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Industrial Gold Two-Stage Air Compressor — 10 HP, 120-Gallon, 35.4 CFM @ 175 PSI, 208-230/480V, 3 Phase, Model# CI1023E120V-PL

Click or Tap image to Zoom

$5625.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Heavy-duty pressure lubricated two-stage solid cast iron pump
  • Disk and spring valves
  • Centrifugal unloader
  • Access to compressor valves without compressor head removal
  • All UL electrical controls

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Heavy-Duty Pressure-Lubricated Cast Iron Pumps Run Smoother Quieter. Works Longer Harder. Industrial Gold classic CA1 and CA2 pumps just got even better. Now available with pressure lubrication for enhanced durability and performance.

What's Included

    (11) Air Compressor

Features + Benefits

  • Heavy-duty pressure lubricated two-stage solid cast iron pump
  • Disk and spring valves
  • Centrifugal unloader
  • Access to compressor valves without compressor head removal
  • All UL electrical controls
  • ASME/CRN certified air receiver
  • Auto start/stop
  • Bearings on both ends of the crank shaft
  • Fully enclosed belt guard
  • Heavy-duty air filter
  • Industrial grade electric motor
  • Needle bearings, and inserts on rods
  • Swedish steel valves
  • TEFC drive motor (3 phase only)
  • Torrington needle bearings
  • 2-grove B width motor pulley
  • 2-piece tank top plate design

Key Specs

AttributeSpecification

item#

7108591

Brand

Industrial Gold

Manufacturer's Warranty

1 year limited warranty

Ship Weight

750.0 LB

Horsepower

10 HP

Air Tank Size

120 Gal

Volts

208-230/480

CFM at 90 PSI

42.5

Max. PSI

175

Stage

2

Air Outlets (qty.)

1

Working Pressure

175 PSI

Motor Phase

3

Pump Material

Cast Iron
AttributeSpecification

Pump Drive

Belt

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

35.4

Oil Required

Yes

Lubrication System

Pressure

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Air Dryer

None

Drain Type

Manual

Tank Orientation

Vertical

Product Weight

750.0000 lb

Dimensions L x W x H (in.)

42.0 x 34.0 x 84.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
