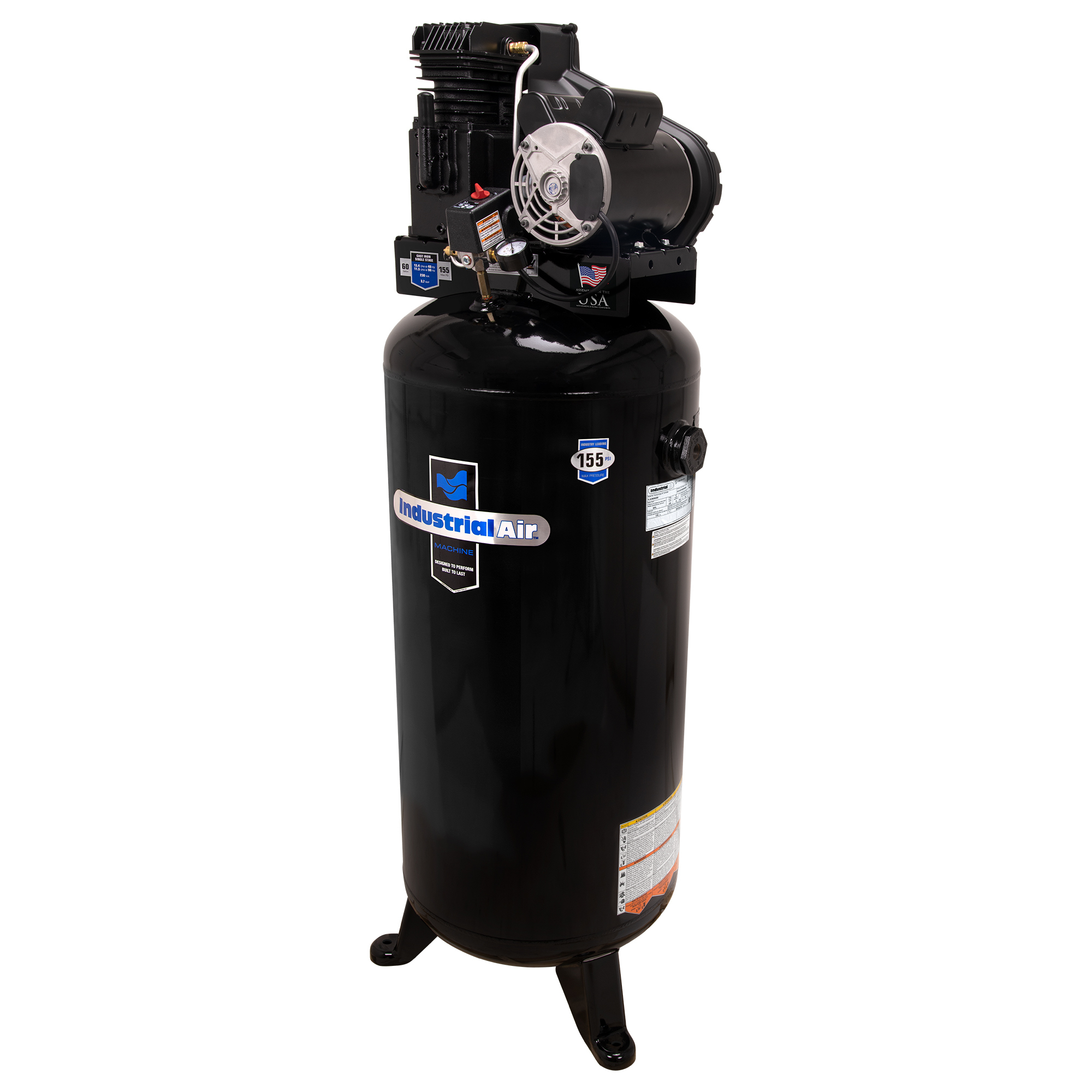

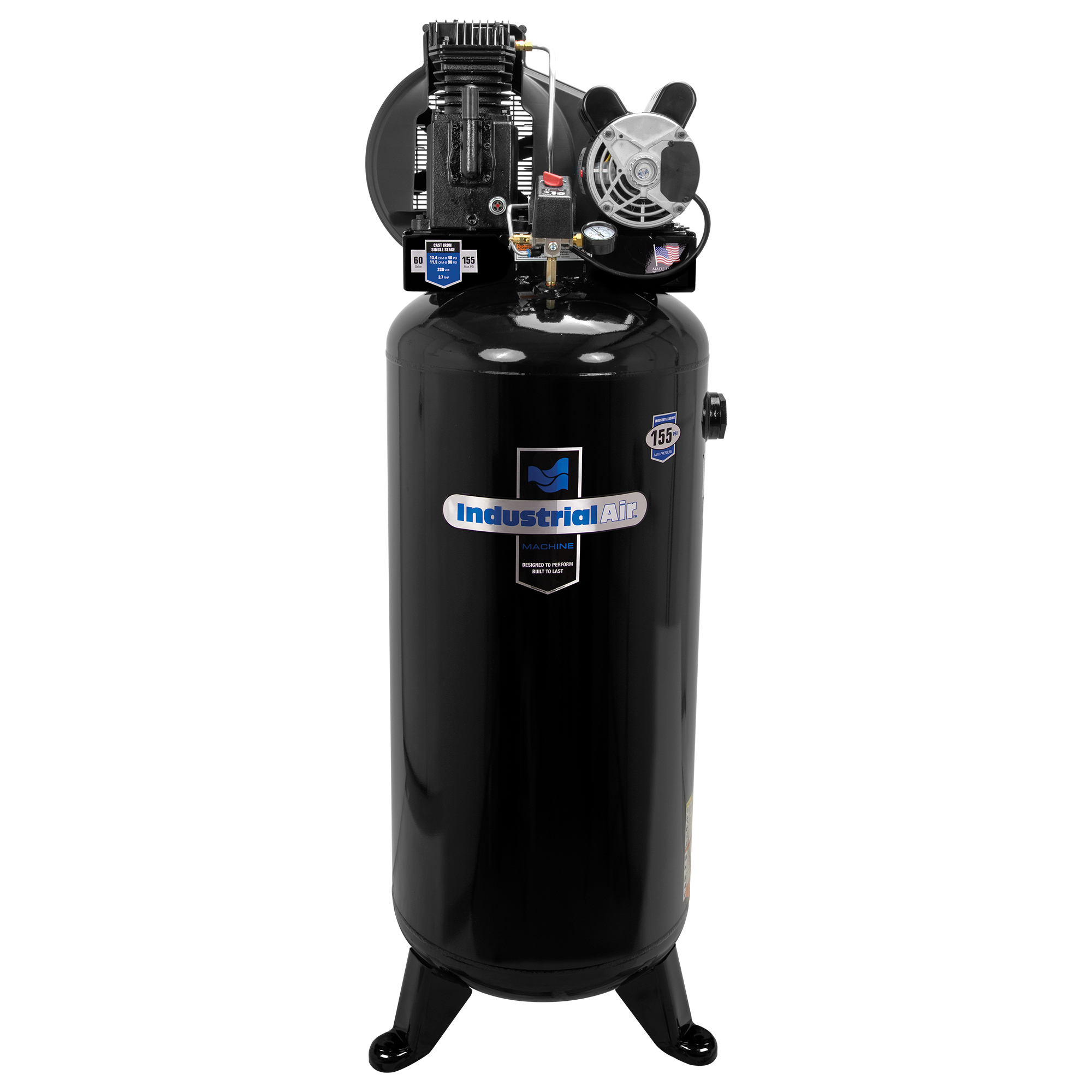

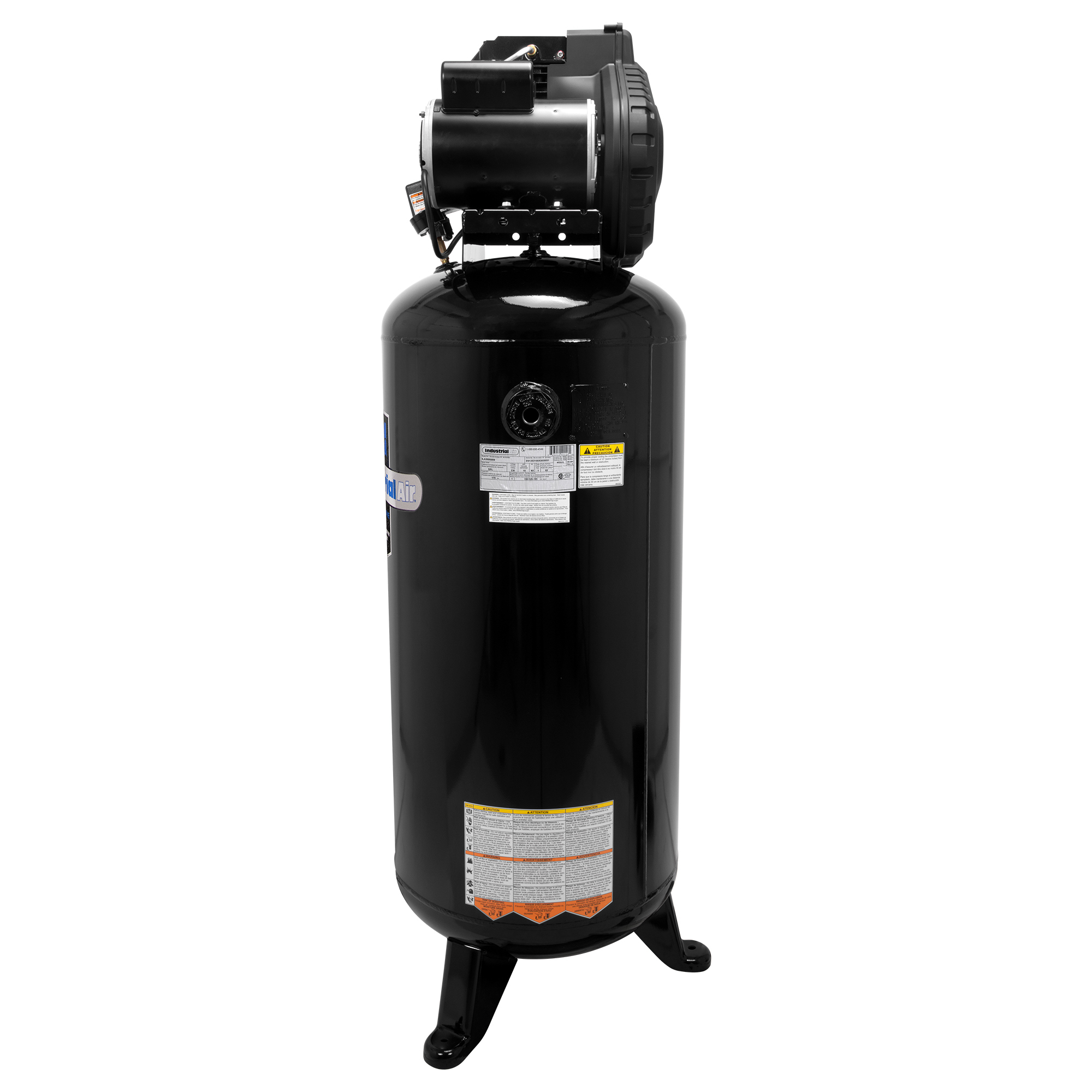

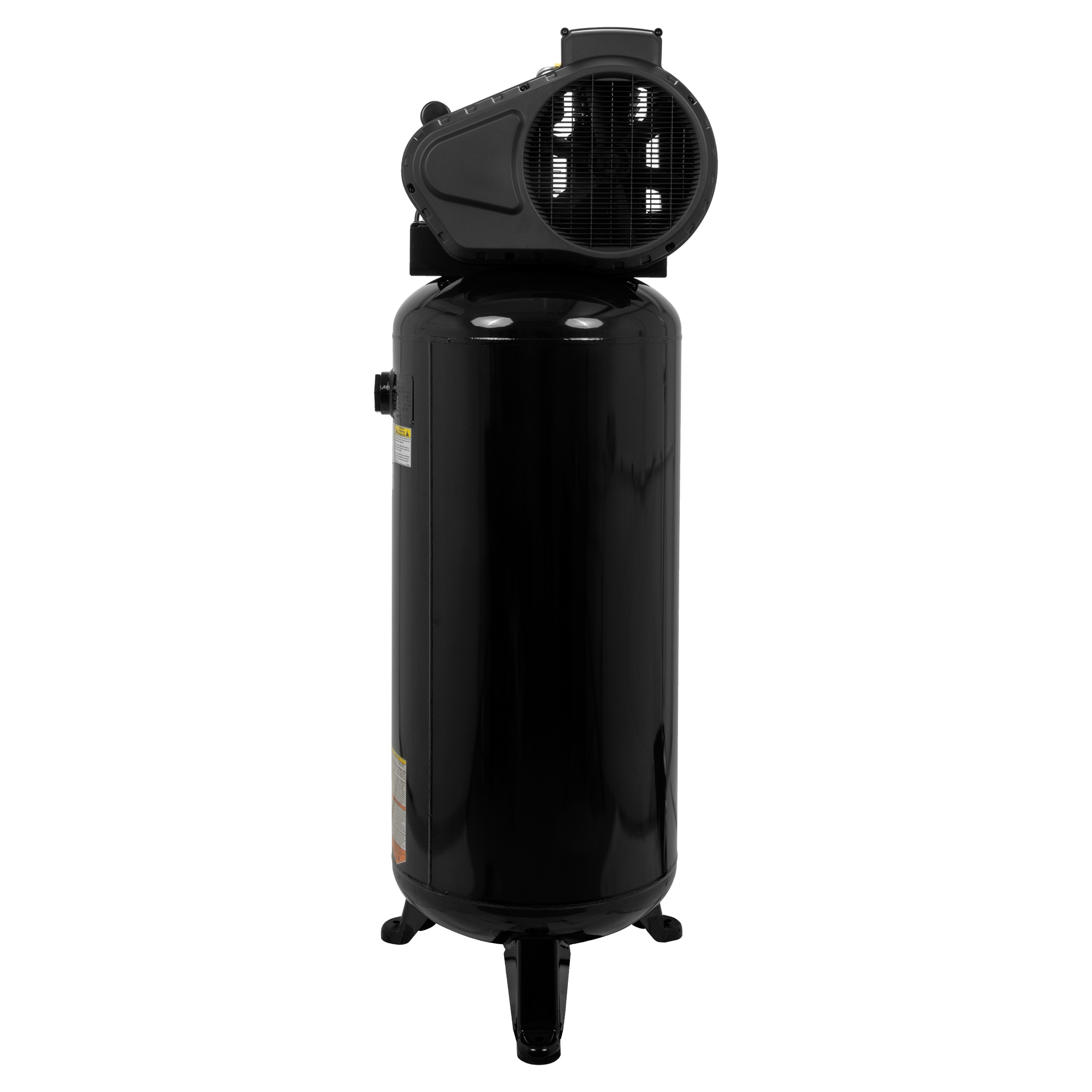

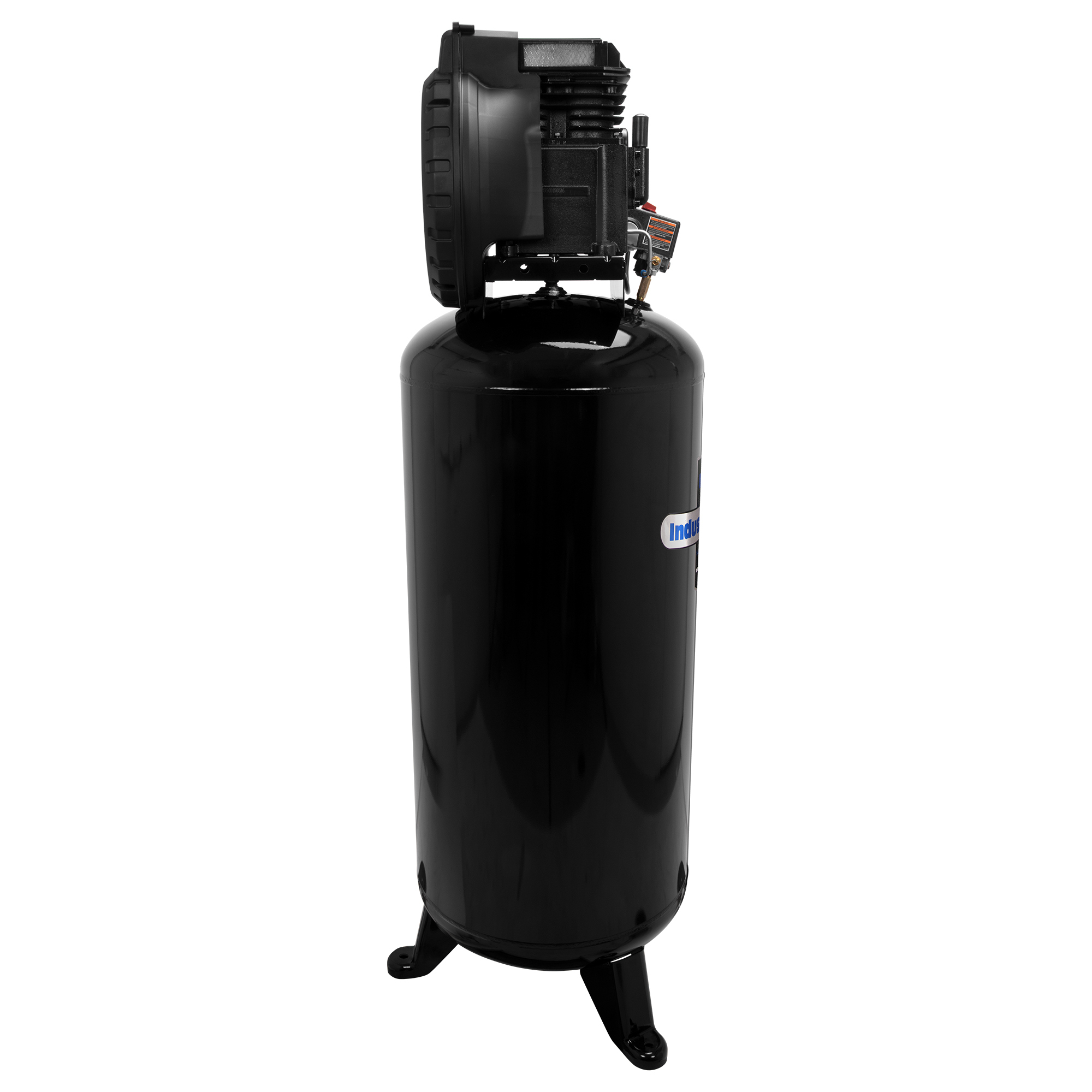

Industrial Air Vertical Stationary Electric Air Compressor, 60 Gallon, 155 PSI, 3.7HP, Model# ILA3606056

Item# 7304381
Industrial Air Vertical Stationary Electric Air Compressor, 60 Gallon, 155 PSI, 3.7HP, Model# ILA3606056

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Industrial Air Vertical Stationary Electric Air Compressor, 60 Gallon, 155 PSI, 3.7HP, Model# ILA3606056

Click or Tap image to Zoom

$899.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 3.7 HP, induction motor
  • 155 max PSI
  • Delivers 13.4 CFM at 40 PSI and 11.5 CFM at 90 PSI
  • Cast-iron, large-capacity, 60 gallon ASME tank for long air tool run times
  • Twin-cylinder, cast-iron, oil-lubricated pump

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Industrial Air 60 Gallon Stationary Air Compressor features a large capacity tank providing longer run times for air tools such as ratchets, spray guns, and hammers. Compressor has a 155 maximum PSI and delivers 11.5 CFM at 90 PSI. It has a 3.7 HP motor with 240-Volt operation. Includes synthetic oil for high performance and longevity.

What's Included

    (1) compressor

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • 3.7 HP, induction motor
  • 155 max PSI
  • Delivers 13.4 CFM at 40 PSI and 11.5 CFM at 90 PSI
  • Cast-iron, large-capacity, 60 gallon ASME tank for long air tool run times
  • Twin-cylinder, cast-iron, oil-lubricated pump
  • UL and CSA certified
  • Includes synthetic oil for high performance and longevity

Key Specs

AttributeSpecification

item#

7304381

Brand

Industrial Air

Manufacturer's Warranty

2 year limited warranty

Ship Weight

228.0 LB

Air Tank Size

60 Gal

Volts

240

CFM at 90 PSI

11.5

Motor Phase

1

Stage

1

Tank Orientation

Vertical
AttributeSpecification

Horsepower

3.7 HP

Max. PSI

155

Amps

15

Pump Material

Cast Iron

Pump Drive

Belt

CFM at 40 PSI

13.4

Noise Level

83 dB

Oil Required

Yes

Product Weight

228.0000 lb

Dimensions L x W x H (in.)

27.0 x 31.0 x 70.0 in

Reviews

Questions & Answers

Questions

  1. is it 120 v?

    1 answer

    1. The compressor is 240 volt 60 Hz single phase.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
