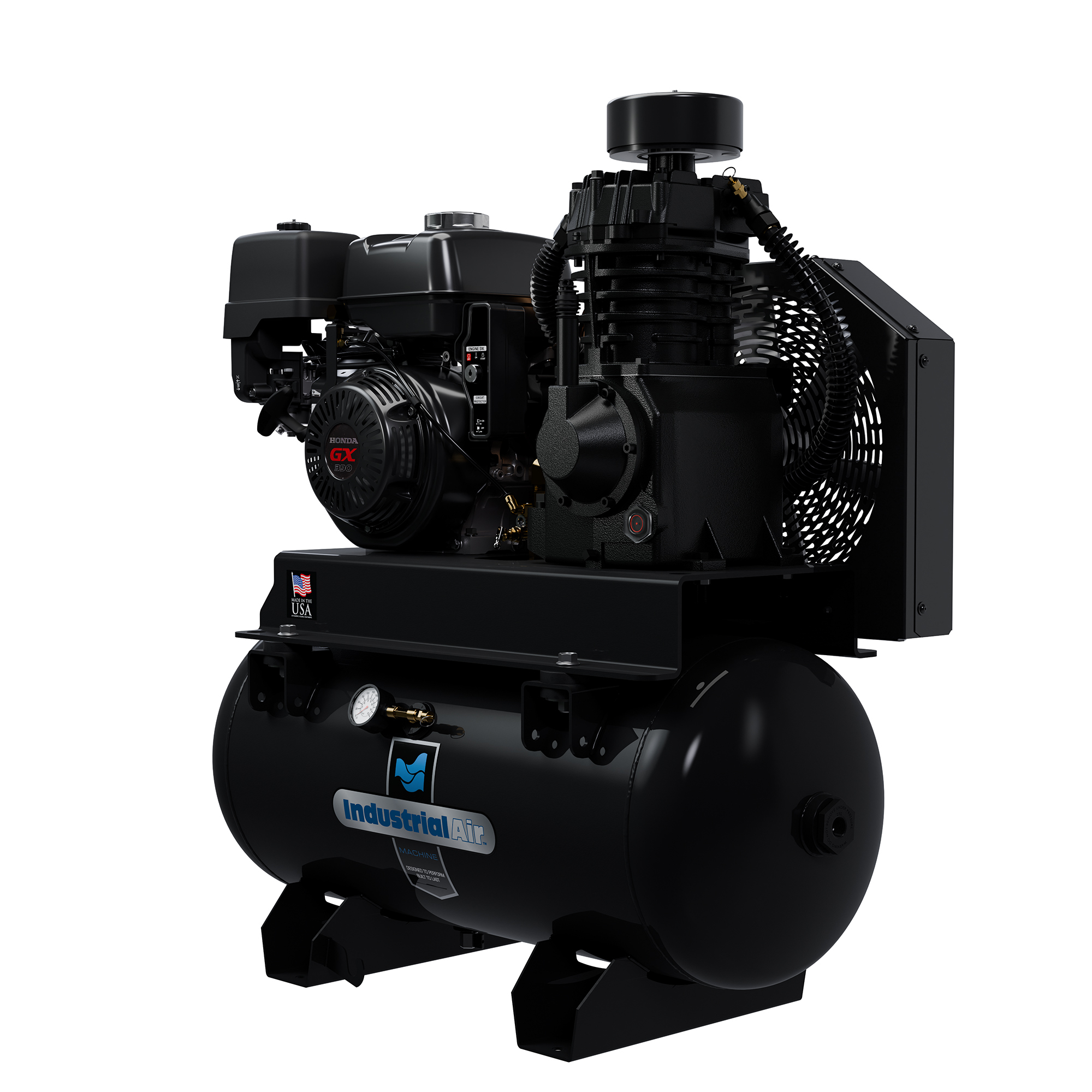

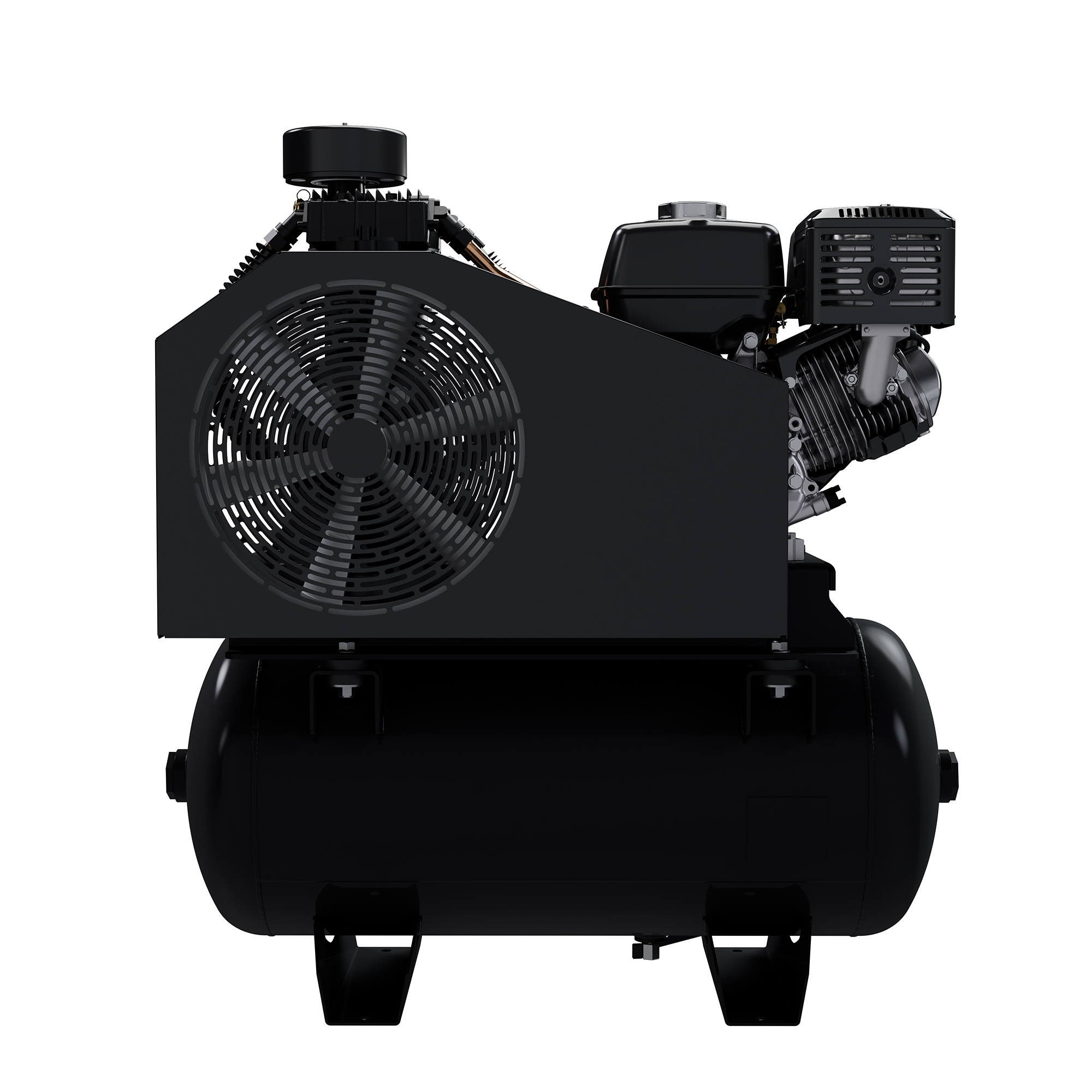

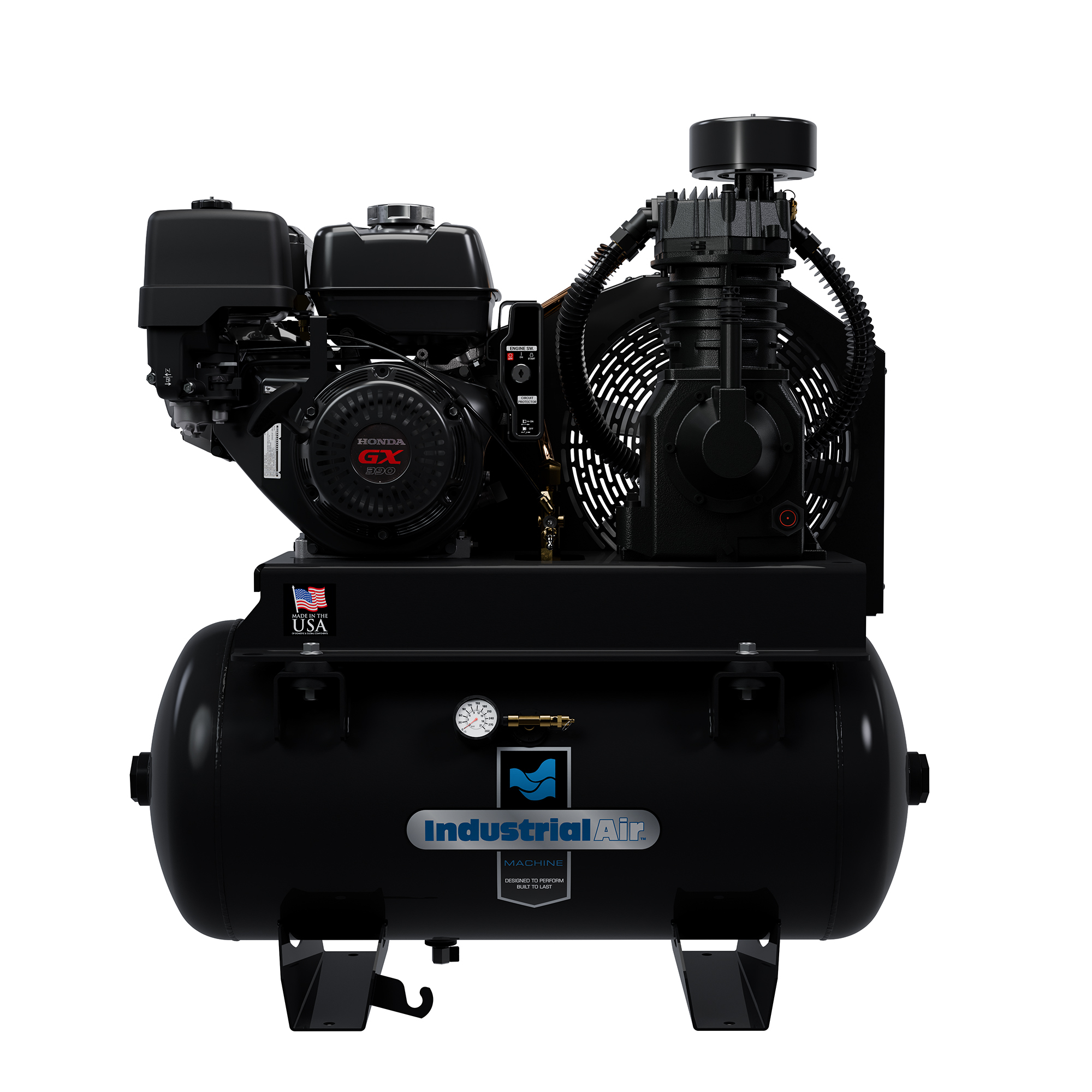

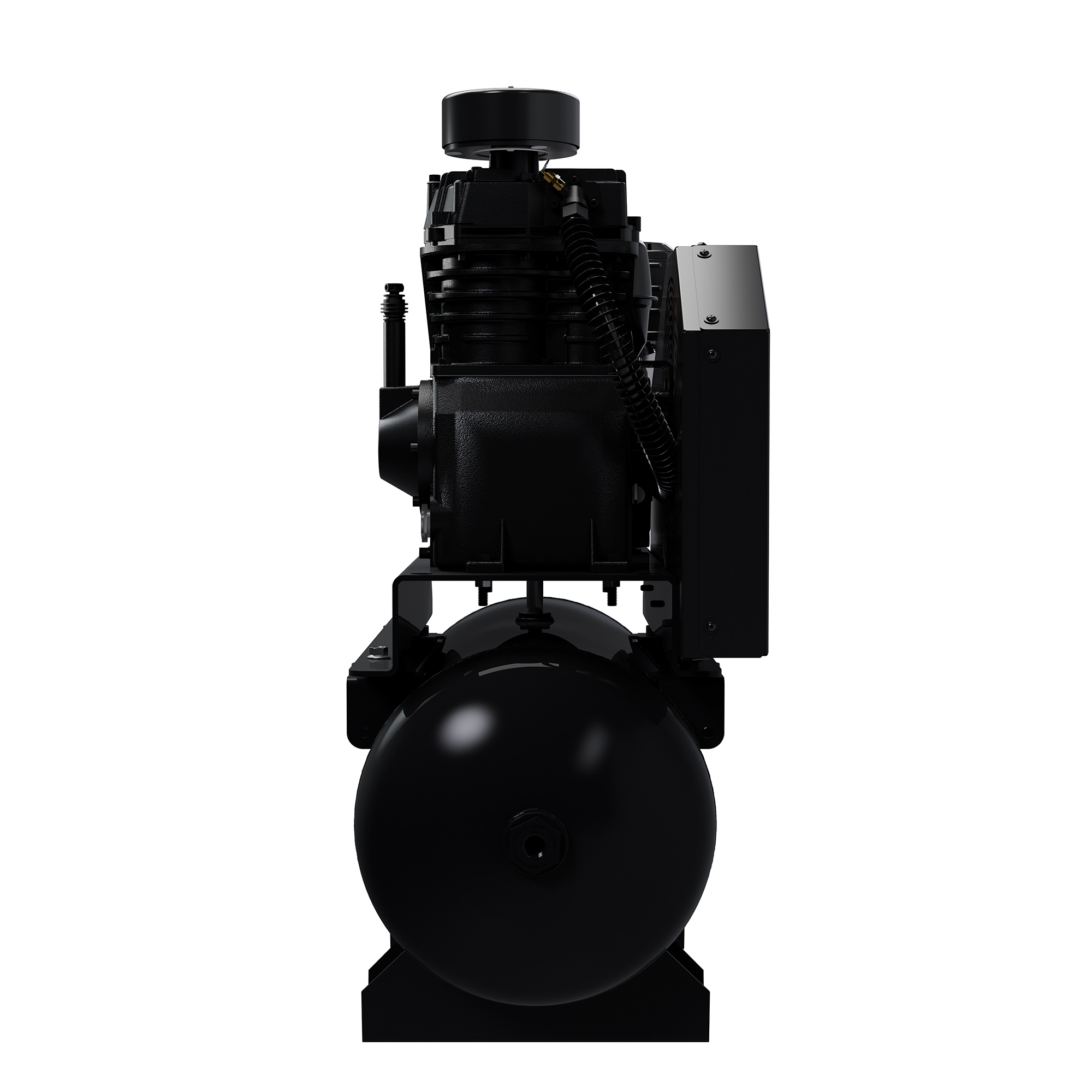

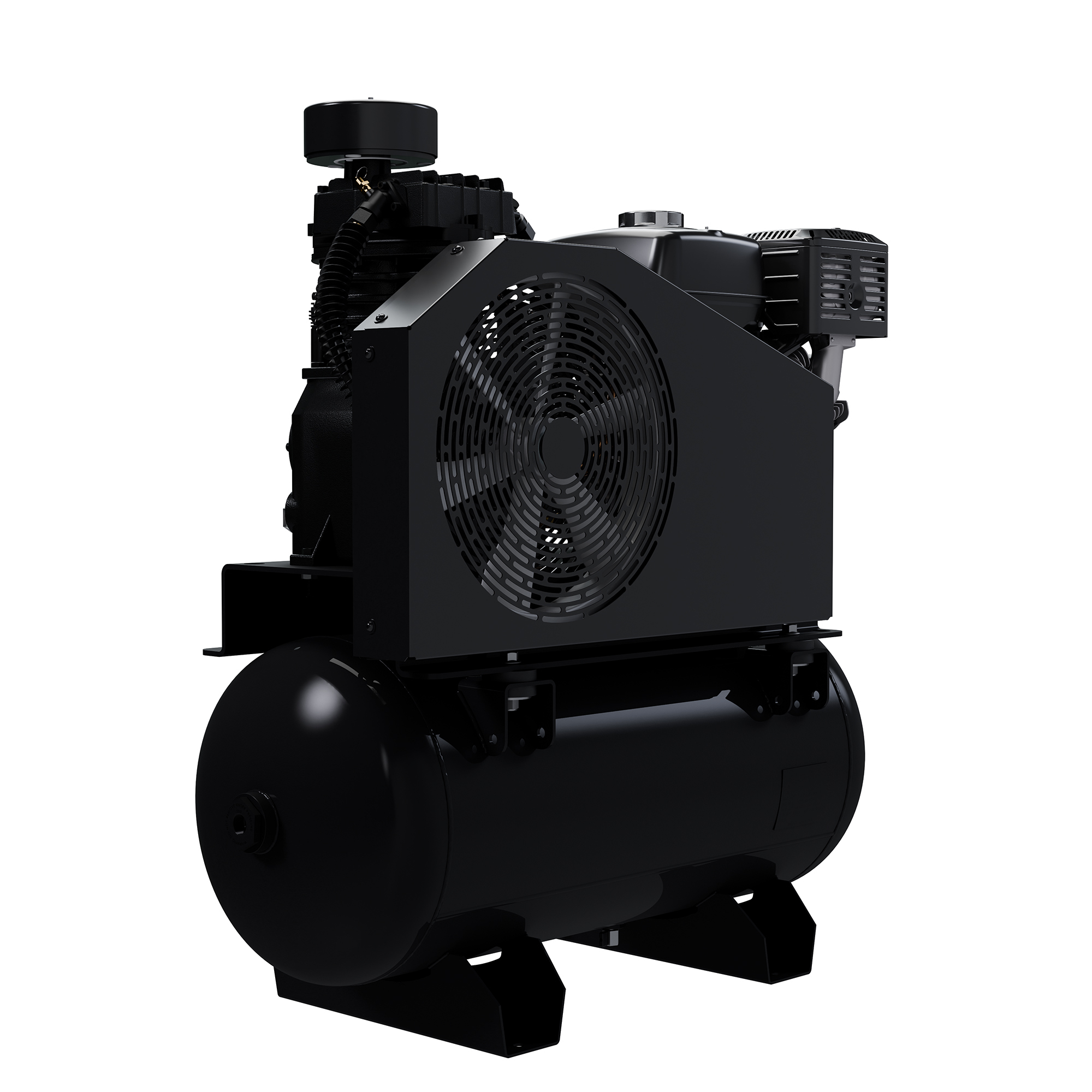

Industrial Air Portable Truck Mount Air Compressor, 30 Gallon, 13HP Honda Engine, Model# IH1393077

Item# 7321624
New
Industrial Air Portable Truck Mount Air Compressor, 30 Gallon, 13HP Honda Engine, Model# IH1393077

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Industrial Air Portable Truck Mount Air Compressor, 30 Gallon, 13HP Honda Engine, Model# IH1393077

Click or Tap image to Zoom

$3549.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 2-Stage Industrial Cast Iron Pump - delivers 24 SCFM at 100 PSI and 22 SCFM at 175 PSI, with a working pressure of 145 - 175 PSI, equipped with high-temperature O-rings for superior high-pressure sealing, a ductile iron optimally balanced crankshaft providing long life, and cast iron construction to hold up through regular use across a range of applications including automotive work, equipment maintenance, construction, and farm/ranch operations
  • Honda GX390 Gas Engine - starts reliably with electric start and runs efficiently with minimal maintenance requirements, automatic low oil shutdown protects the engine if oil levels drop during operation, and automatic idle control reduces RPM when the tank is full, cutting fuel use and noise between cycles
  • 30 Gallon ASME Tank - provides adequate storage for sustained tool operation and is equipped with two large 3/4 inch air outlet ports and wide channel feet with vibration isolators providing additional stability for truck mount use
  • Removable Pump and Engine Platform - the pump and engine base mount assembly lifts off the tank allowing for vehicle mounting options and more convenient access for starting and engine refueling
  • Gas-powered for Off-Grid Operation - operates entirely on gasoline when no electricity is available, making it perfect for property work, farm/ranch use, service vehicles, and any application where electric power source is not readily available

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Industrial Air 30 gallon truck mount compressor delivers high-volume air output when electricity is not available, making it well-suited for service vehicles, farm operations, and remote job sites. Powered by a Honda GX390 OHV gas engine with electric start, it runs efficiently with automatic low oil shutdown and automatic idle control to conserve fuel and reduce noise when the tank is full. The two-stage cast iron pump delivers 24 SCFM 100 PSI and 22 SCFM 175 PSI — enough volume to operate multiple air tools simultaneously without pressure drop. The 30 gallon ASME-certified tank includes an isolated platform that absorbs pump and engine vibration to the tank. The removable platform with engine and pump assembly, making it a base mount, provides flexibility for different vehicle mounting options.

What's Included

    (1) compressor

Downloads

Product Manual

Features + Benefits

  • 2-Stage Industrial Cast Iron Pump - delivers 24 SCFM at 100 PSI and 22 SCFM at 175 PSI, with a working pressure of 145 - 175 PSI, equipped with high-temperature O-rings for superior high-pressure sealing, a ductile iron optimally balanced crankshaft providing long life, and cast iron construction to hold up through regular use across a range of applications including automotive work, equipment maintenance, construction, and farm/ranch operations
  • Honda GX390 Gas Engine - starts reliably with electric start and runs efficiently with minimal maintenance requirements, automatic low oil shutdown protects the engine if oil levels drop during operation, and automatic idle control reduces RPM when the tank is full, cutting fuel use and noise between cycles
  • 30 Gallon ASME Tank - provides adequate storage for sustained tool operation and is equipped with two large 3/4 inch air outlet ports and wide channel feet with vibration isolators providing additional stability for truck mount use
  • Removable Pump and Engine Platform - the pump and engine base mount assembly lifts off the tank allowing for vehicle mounting options and more convenient access for starting and engine refueling
  • Gas-powered for Off-Grid Operation - operates entirely on gasoline when no electricity is available, making it perfect for property work, farm/ranch use, service vehicles, and any application where electric power source is not readily available
  • Flywheel, pulley, and multi-groove flat belt drive system virtually eliminates the need for belt tensioning
  • Unique belt guard design provides for optimum cooling over the pump
  • Liquid filled pressure gauge for a more accurate tank pressure reading
  • Isolated platform designed with 8-durable resilient neoprene vibration isolators to reduce engine and pump vibration to the tank
  • Includes 3/4 inch shut off valve, extended tank drain, and 4 installation vibration isolators

Key Specs

AttributeSpecification

item#

7321624

Brand

Industrial Air

Manufacturer's Warranty

2 year limited warranty

Ship Weight

452.0 LB

Horsepower

13 HP

Air Tank Size

30 Gal

Engine Brand

Honda

CFM at 90 PSI

22

Max. PSI

175

Stage

2

Air Outlets (qty.)

2

Working Pressure

145-175 PSI

Engine Start Type

Electric
AttributeSpecification

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

3/4 in. NPT

CFM at 40 PSI

24

Noise Level

75 dB

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Tank Orientation

Horizontal

Product Weight

452.0000 lb

Dimensions L x W x H (in.)

24.0 x 46.0 x 43.0 in
