The Motor is rated for 4000 hours or 120,000 start/stop cycles. The compressor has an average of 81.6 dBA from nine measurement points in accordance with ISO 3744:2010.
Free Gift Card Details
- The promo code 290259 must be entered on the Shopping Cart page.
- To qualify for this offer, your order subtotal must equal $100 or more. Excludes gift cards, free item offers, warranties, Advantage memberships, tax and shipping.
- Free gift cards will be issued in the form of e-gift cards only, not physical gift cards.
- E-gift cards will be sent to the email address used in your billing address when your order ships or is picked up.
- Free e-gift cards expire 04/01/27.
- Promo code not valid on prior purchases or on Honda and STIHL products and cannot be combined with other promotional offers.
- Valid online and in participating retail stores.
- Limited-time offer. Subject to change without notice.

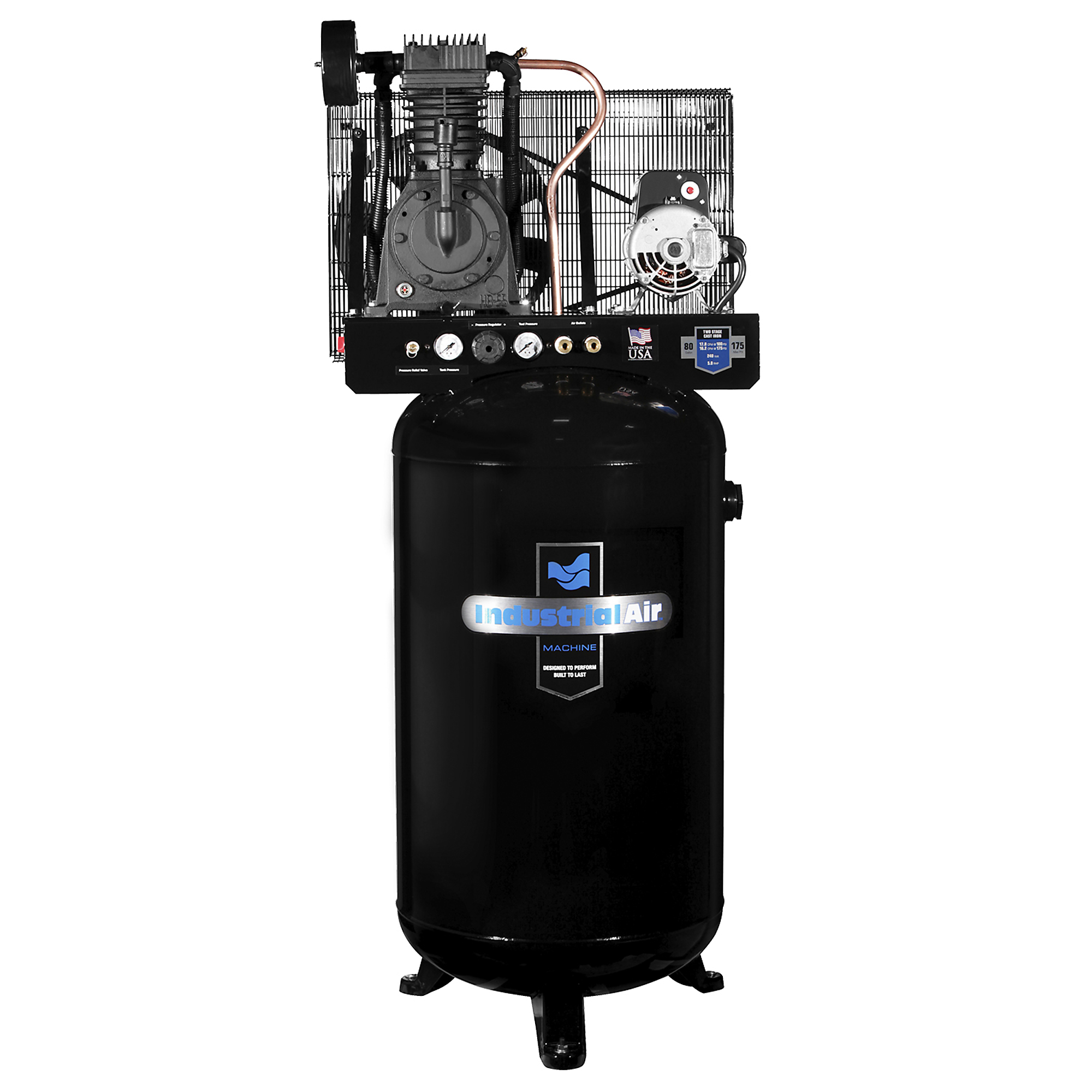

Industrial Air 80 Gallon, Vertical Air Compressor, Model# IV5048055

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Free shipping (lower 48 states) - Factory shippedStore Pickup:
Not available - online only
- 5.2 HP industrial-class motor with pre-wired and mounted magnetic starter to save time
- 175 Max PSI can operate multiple devices at once
- Delivers 15.3 CFM at 100 PSI and 14.6 CFM at 175 PSI
- Cast-iron, large-capacity, 80 Gallon ASME tank
- Uniquely designed metal belt guard improves pump cooling by as much as 60 degrees Fahrenheit over standard belt guards
Prop 65 Warning: See Details
See full description
Description
Key Specs
Reviews
Q & A
Accessories
Warranty
Compare
Product Summary
What's Included
- (1) 80 Gallon Vertical Two Stage Compressor IV5048055
Features + Benefits
- 5.2 HP industrial-class motor with pre-wired and mounted magnetic starter to save time
- 175 Max PSI can operate multiple devices at once
- Delivers 15.3 CFM at 100 PSI and 14.6 CFM at 175 PSI
- Cast-iron, large-capacity, 80 Gallon ASME tank
- Uniquely designed metal belt guard improves pump cooling by as much as 60 degrees Fahrenheit over standard belt guards
Key Specs
| Attribute | Specification |
|---|---|
item# | 4920402 |
Brand | Industrial Air |
Manufacturer's Warranty | 2 year limited warranty |
Ship Weight | 603.0 LB |
Horsepower | 5.2 HP |
Air Tank Size | 80 Gal |
Volts | 230 |
CFM at 90 PSI | 17.9 |
Max. PSI | 175 |
Stage | 2 |
Air Compressor Type | Stationary Electric |
Amps | 24 |
Engine Start Type | Electric |
| Attribute | Specification |
|---|---|
Motor Phase | 1 |
Pump Material | Cast Iron |
Air Outlet Size | 11/32 in. NPT |
CFM at Max. PSI | 17 |
Oil Required | Yes |
Lubrication System | Splash |
Pressure Gauge | Yes |
Air Dryer | None |
Drain Type | Manual |
Tank Orientation | Vertical |
Product Weight | 475.0000 lb |
Dimensions L x W x H (in.) | 38.0 x 29.0 x 76.0 in |
Reviews
Questions & Answers
Questions
-
· 4 years ago
What is the sound level of this compressor and what is the life rating of the electric motor?
1 answer-
ProductExpert31· 4 years ago
Helpful?
-
-
· 5 years ago
It says the tank has a 1/4 inch outlet. Is this factual?
1 answer-
ProductExpert31· 5 years ago
This air compressor comes equipped with quick connect fittings. These will be 1/4" quick connect fittings.
Helpful?
-
