There is no specific minimum or maximum square footage rating given for what size room to install the air compressor in. The industry standards and size of the air compressor would require it to be installed in a space that allows safe and efficient operating conditions. It would require to be placed a minimum of 3ft away from walls or other equipment on all sides. Adequate ceiling height above the unit should be at least 3-5ft above it.

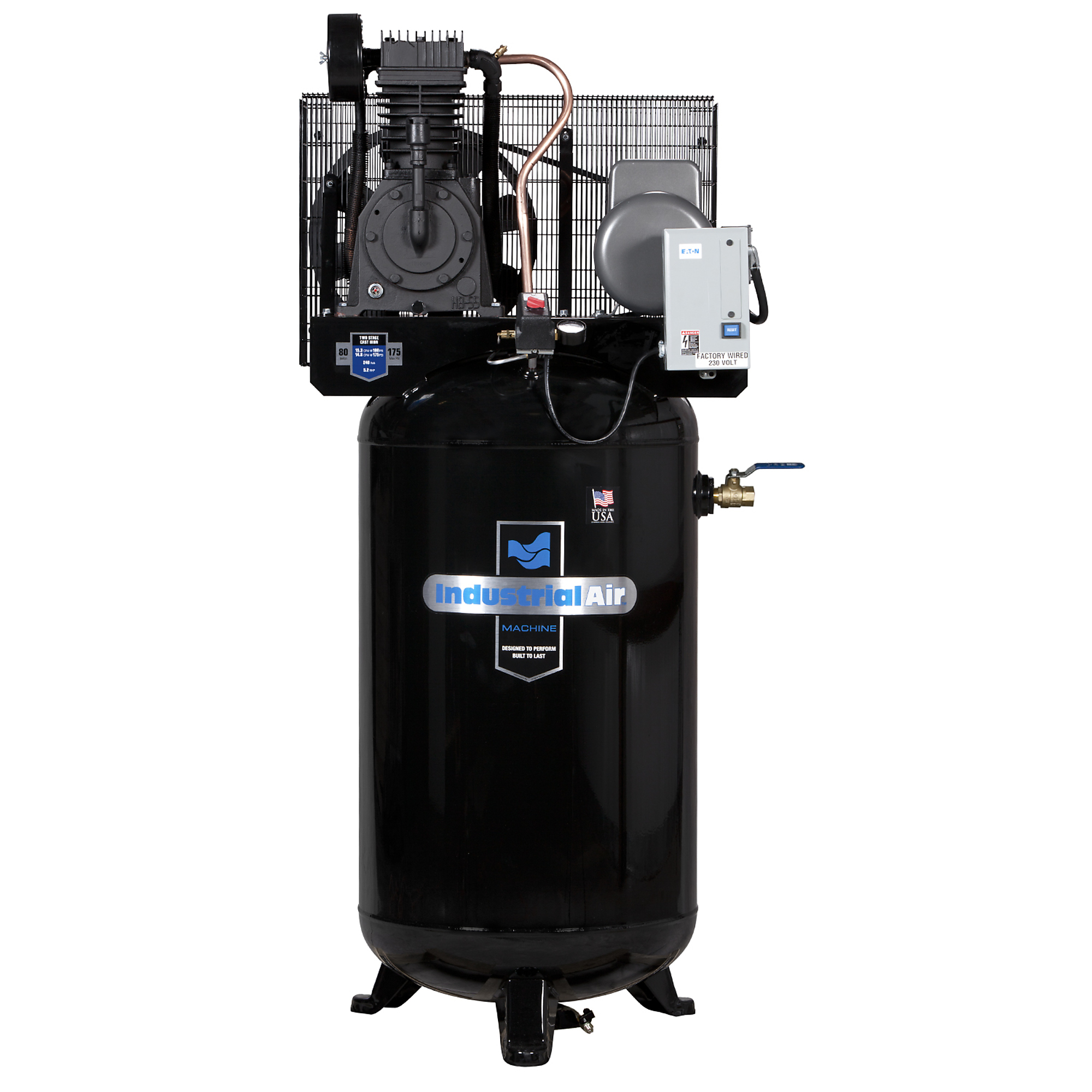

Industrial Air 80 Gallon, Two Stage Vertical Air Compressor, Model# IV5018055
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$2699.99
- 5.2 HP industrial-class motor with pre-wired and mounted magnetic starter to save time
- Delivers 15.3 CFM at 100 PSI and 14.6 CFM 175 Max PSI can operate multiple devices at once at 175 PSI
- Delivers 15.3 CFM at 100 PSI and 14.6 CFM at 175 PSI
- Cast-iron, large-capacity, 80 Gallon ASME tank
- Uniquely designed metal belt guard improves pump cooling by as much as 60 degrees Fahrenheit over standard belt guards
See full description
Price for all two:
$2709.98
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
Milton M-Style Air Coupler and Plug Set, 1/4in. NPT, 5-Pc., Model# S-211
Item # 159622
$9.99
Reg $18.99Save $9.00
Order today to get this price.
See All Stationary Electric Air Compressors
See All Industrial Air Stationary Electric Air Compressors
Currently Viewing This Product
Specifications
Specifications
Industrial Air 80 Gallon, Two Stage Vertical Air Compressor, Model# IV5018055
Campbell Hausfeld Two-Stage Air Compressor, 15 HP, 208-230/460 Volt, 3 Phase, 120 Gallon Horizontal, 50 CFM @ 175 PSI, Model# CE8003
Ingersoll Rand Electric Stationary Air Compressor, 3 HP, 10.3 CFM @ 135 PSI, 230 Volt, Model# SS3L3
Campbell Hausfeld Two-Stage Air Compressor, 10 HP, 34.1 CFM @ 175 PSI, 208-230/460 Volt, 3 Phase, 120 Gallon Horizontal, Model# CE8001
Air Tank Size
Same
80 Gal
120 Gal
60 Gal
120 Gal
Volts
Same
230
460
230
230
CFM at 90 PSI
Same
17
52.4
11.3
36
Motor Phase
Same
1
3
1
3
Stage
Same
2
2
1
2
Tank Orientation
Same
Vertical
Horizontal
Vertical
Horizontal
Air Compressor Type
Same
Stationary Electric
-
-
-
Horsepower
Same
5.2 HP
15 HP
3 HP
10 HP
Max. PSI
Same
175
175
135
175
Amps
Same
20.6
41
14.7
-
Motor RPM
Same
1,725
-
-
-
Engine Start Type
Same
Electric
-
-
-
Pump Material
Same
Cast Iron
Cast Iron
Cast Iron
Cast Iron
Pump Drive
Same
Belt
Belt
-
Belt
Air Outlet Size
Same
1/4 in
1 in. NPT
1/2 in. NPT
-
CFM at Max. PSI
Same
16.2
-
-
-
Oil Required
Same
Yes
-
-
Yes
Lubrication System
Same
Splash
-
-
Splash
Pressure Gauge
Same
Yes
-
-
Yes
Air Dryer
Same
None
-
-
None
Drain Type
Same
Manual
Manual
Manual
Manual
Product Weight
Same
613.0000 lb
895.0000 lb
lb
lb
Dimensions L x W x H (in.)
Same
38.0 x 39.0 x 76.0 in
76.5 x 32.5 x 62.0 in
20.0 x 23.0 x 66.0 in
78.0 x 29.5 x 56.0 in
Duty Cycle
Same
-
80 %
100 %
-
Pump Life
Same
-
15,000 hr
-
-
Air Outlets (qty.)
Same
-
-
-
1
Working Pressure
Same
-
-
-
90 PSI
Electronic Drain Valve
Same
-
-
-
No
After Cooler Included
Same
-
-
-
No
