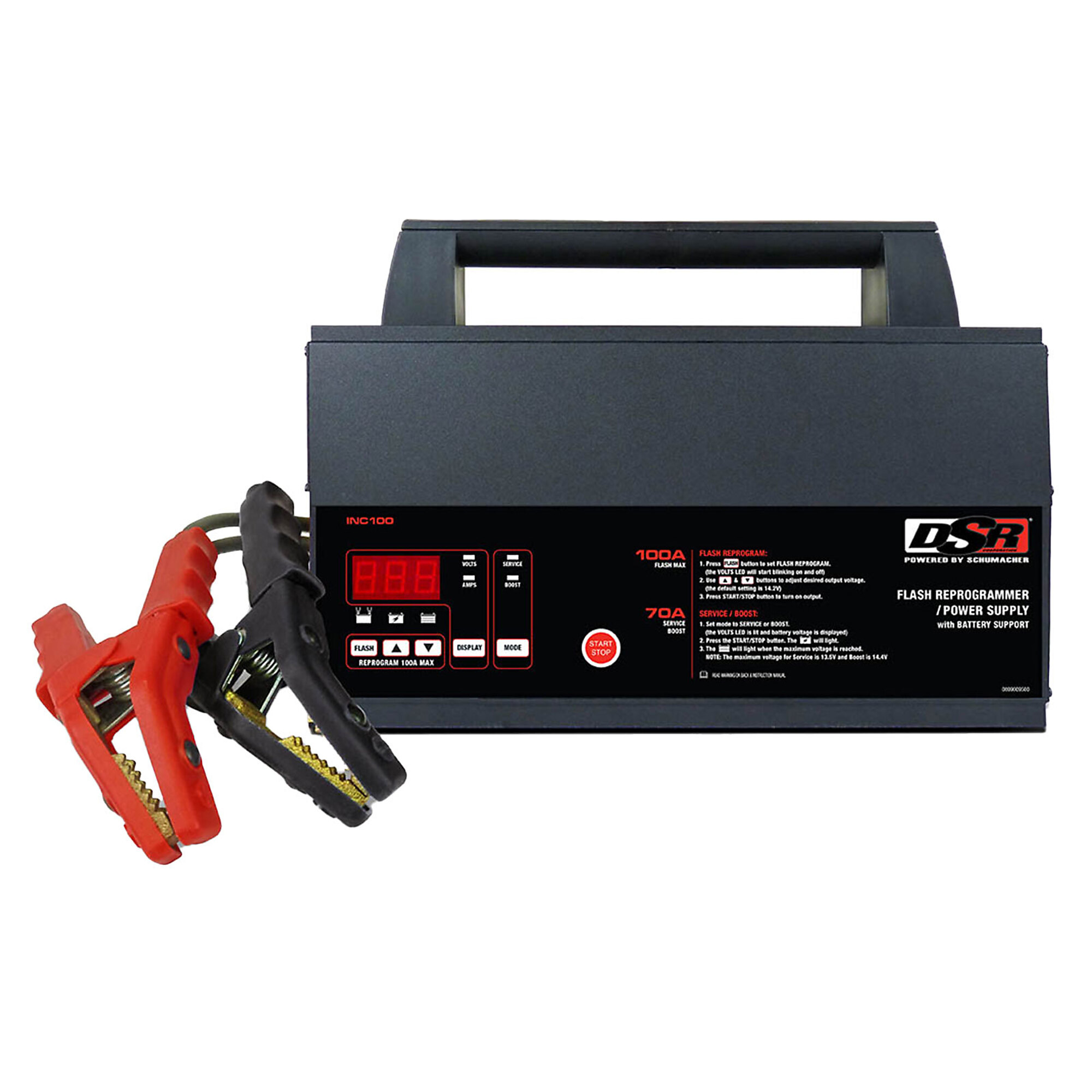

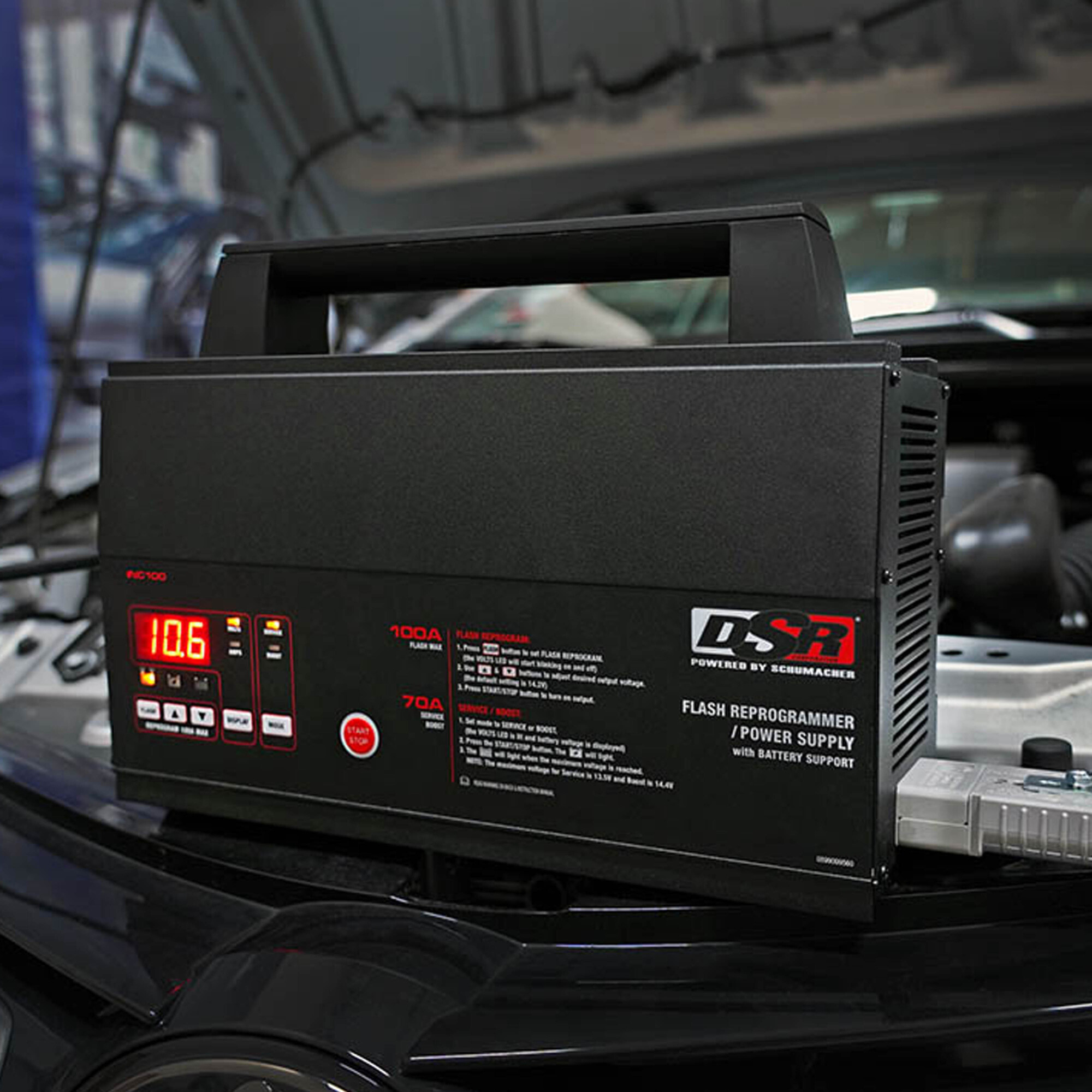

Schumacher DSR INC-100 Flash Reprogrammer/Power Supply — 100A Max Output, 70A Continuous, Microprocessor Controlled, Model# INC100

Item# 6613078
INC-100 100A Flash Reprogrammer/Power Supply with Battery Support
Schumacher DSR INC-100 Flash Reprogrammer/Power Supply — 100A Max Output, 70A Continuous, Microprocessor Controlled, Model# INC100

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Schumacher DSR INC-100 Flash Reprogrammer/Power Supply — 100A Max Output, 70A Continuous, Microprocessor Controlled, Model# INC100

Click or Tap image to Zoom

$499.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 100A Flash Reprogrammer/Power Supply with Battery Support
  • Anderson plug with interchangeable power cords for different regional users
  • Large handle
  • Adjustable mounting brackets for easy permanent installation to most shop vehicle lifts
  • Dual temperature-controlled cooling fans

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

For major vehicle ECU reprogramming or diagnostic work, trust the Schumacher INC100 to provide constant power to standard, calcium, AGM, start-stop, and gel cell batteries. This model has a standard output of 70 continuous amps and a max output of 100 amps, and its power supply is completely microprocessor controlled. Sealed in a durable aluminum case, this power supply features a digital volts and amps display and users can select their desired amperage from 13.0 to 14.8V DC as well as a flash reprogram function. The user can also choose between service mode and boost mode, depending on if they need to prevent battery discharge or add energy to severely discharged or large-capacity batteries. The INC100 also comes with replaceable heavy-duty clamps with multiple output cable selection.

What's Included

    (1) INC100 Flash Reprogrammer and Maunual

Features + Benefits

  • 100A Flash Reprogrammer/Power Supply with Battery Support
  • Anderson plug with interchangeable power cords for different regional users
  • Large handle
  • Adjustable mounting brackets for easy permanent installation to most shop vehicle lifts
  • Dual temperature-controlled cooling fans
  • Service mode prevents battery discharge during service and in the showroom
  • Boost mode for quickly adding energy to severely discharged or large-capacity batteries

Key Specs

AttributeSpecification

item#

6613078

Brand

Schumacher DSR

Manufacturer's Warranty

1 year limited warranty

Ship Weight

19.35 LB

Volts

12/24

Max. Amps

100

Charger Type

Automatic

Cable Length

5 ft
AttributeSpecification

Wheeled

No

Cable Gauge

4

Clamp Material

Copper

Overcharge Protection

Yes

Polarity Reversal Protection

Yes

Product Weight

19.3500 lb

Dimensions L x W x H (in.)

17.88 x 17.76 x 5.55 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
