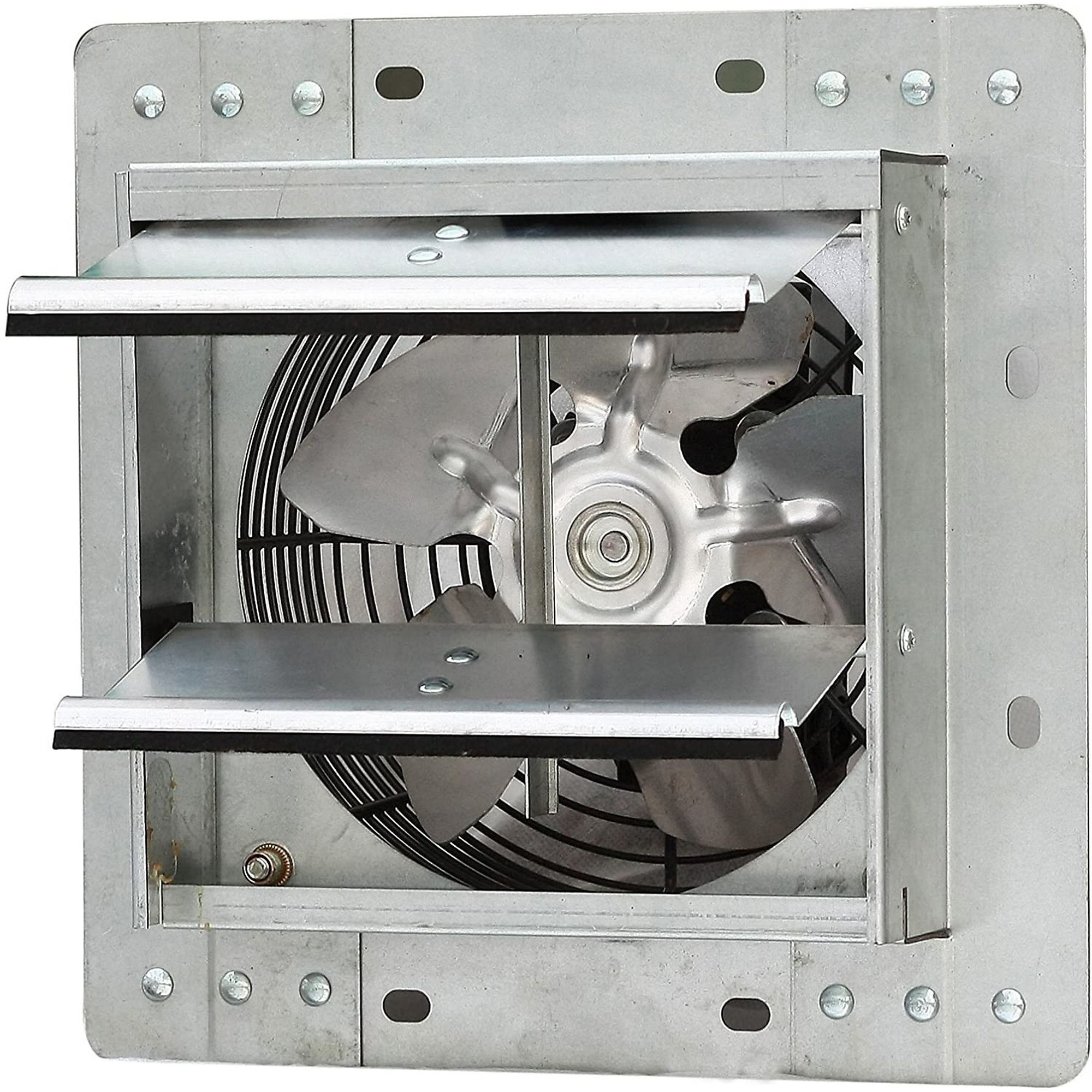

Dr. Infrared Heater iLiving Wall-Mounted Variable Speed Shutter Exhaust Fan — 7in., Aluminum Blades, Crawl Space Ventilator, Model# ILG8SF7V

Item# 7188827
Dr. Infrared Heater iLiving Wall-Mounted Variable Speed Shutter Exhaust Fan — 7in., Aluminum Blades, Crawl Space Ventilator, Model# ILG8SF7V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dr. Infrared Heater iLiving Wall-Mounted Variable Speed Shutter Exhaust Fan — 7in., Aluminum Blades, Crawl Space Ventilator, Model# ILG8SF7V

Click or Tap image to Zoom

$87.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 7 inch variable speed shutter exhaust fan with automatic Shutters
  • UL listed with speed controllable, permanently lubricated motor
  • Corrosion-resistant with OSHA compliant wire guards
  • Variable speed functionality with the purchase of the iLIVING ILG8SFSC speed controller. Speed controller sold separately
  • 120 Volts, 1/25 HP, 0.40 amp, 1550 rpm, 242 CFM

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

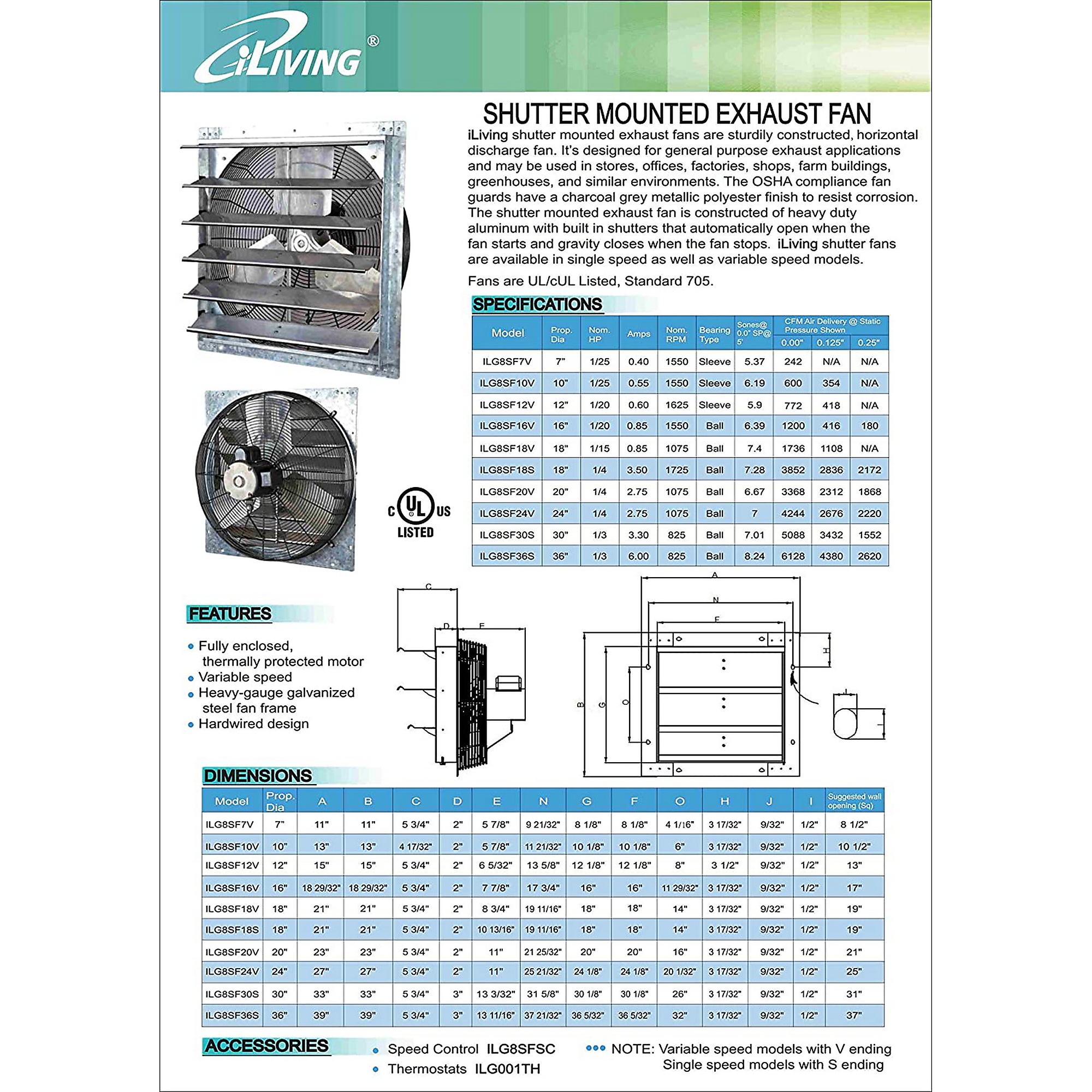

The iLIVING shutter exhaust fan is perfect for removing excess heat, moisture, and unpleasant odors from virtually any commercial location, including restaurants, factories, warehouses, barns, and greenhouses. This fan features aluminum blades, OSHA compliant wire guards, and automatic shutters that open and close in tandem with the operation of the fan. The completely enclosed motor is thermally protected and permanently lubricated. The fan comes fully assembled out of the box; only installation required is the electrical hardwiring. The shutter fan comes in 8 different sizes: 7in., 10in., 12in., 16in., 18in., 20in., 24in., 30in., and 36in.; the 18in. shutter fan has both a variable and a single speed model. The iLIVING 30in. and 36in. shutter fans are only available in single Speed. To use variable speed feature, a variable speed controller, model # ILG8SFSC, is needed and is sold separately.

What's Included

    (1) Exhaust Fan

Features + Benefits

  • 7 inch variable speed shutter exhaust fan with automatic Shutters
  • UL listed with speed controllable, permanently lubricated motor
  • Corrosion-resistant with OSHA compliant wire guards
  • Variable speed functionality with the purchase of the iLIVING ILG8SFSC speed controller. Speed controller sold separately
  • 120 Volts, 1/25 HP, 0.40 amp, 1550 rpm, 242 CFM
  • Wattage at 50W

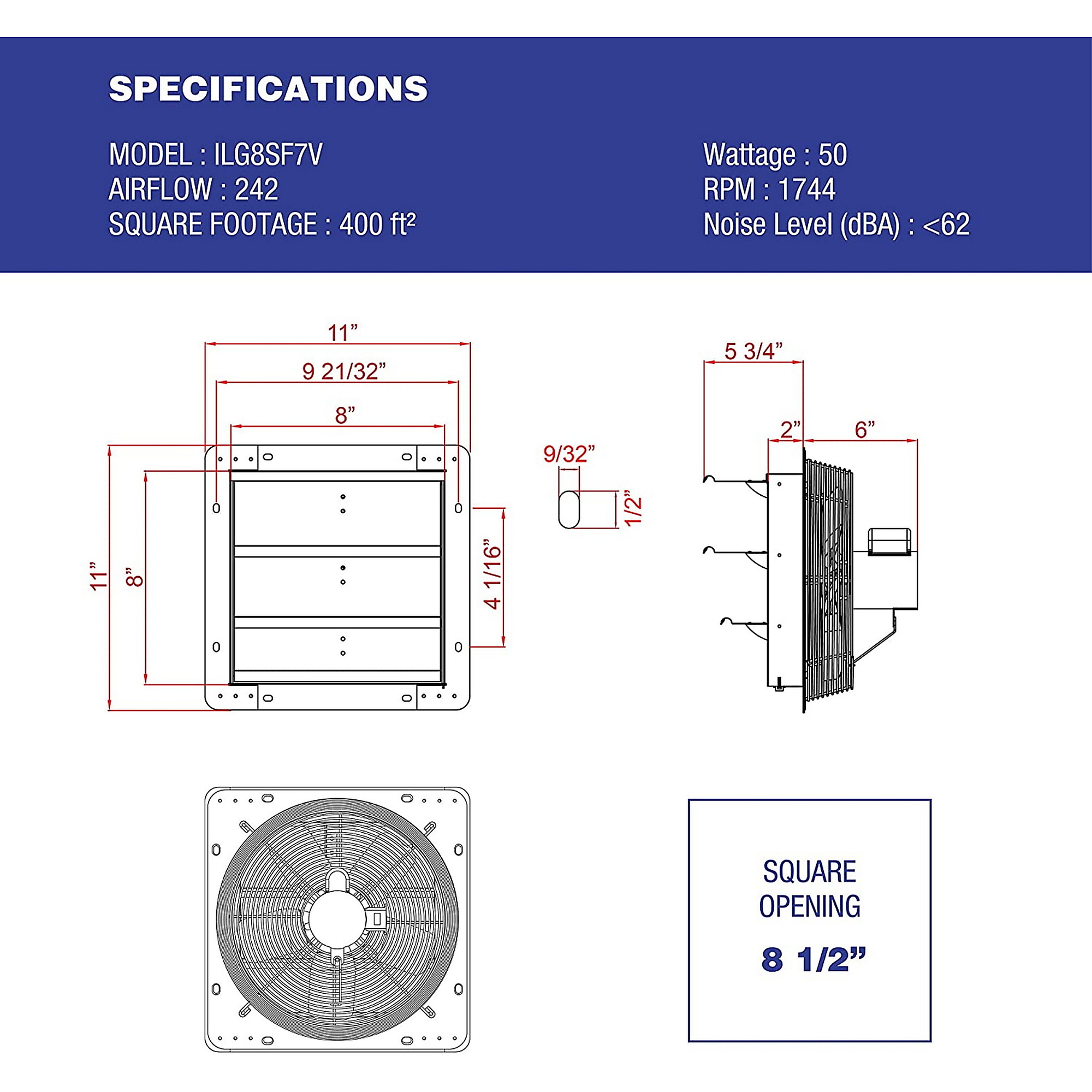

Key Specs

AttributeSpecification

item#

7188827

Brand

Dr. Infrared Heater

Manufacturer's Warranty

1 year limited warranty

Ship Weight

7.9 LB

Drive Type

Direct

Fan Diameter

7 in

Air Delivery

242 cfm
AttributeSpecification

Volts

120

Watts

50

Amps

0.4

Max. Fan Speed

1,550 rpm

Primary Color

Silver

Product Weight

6.5000 lb

Dimensions L x W x H (in.)

11.0 x 11.0 x 7.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
