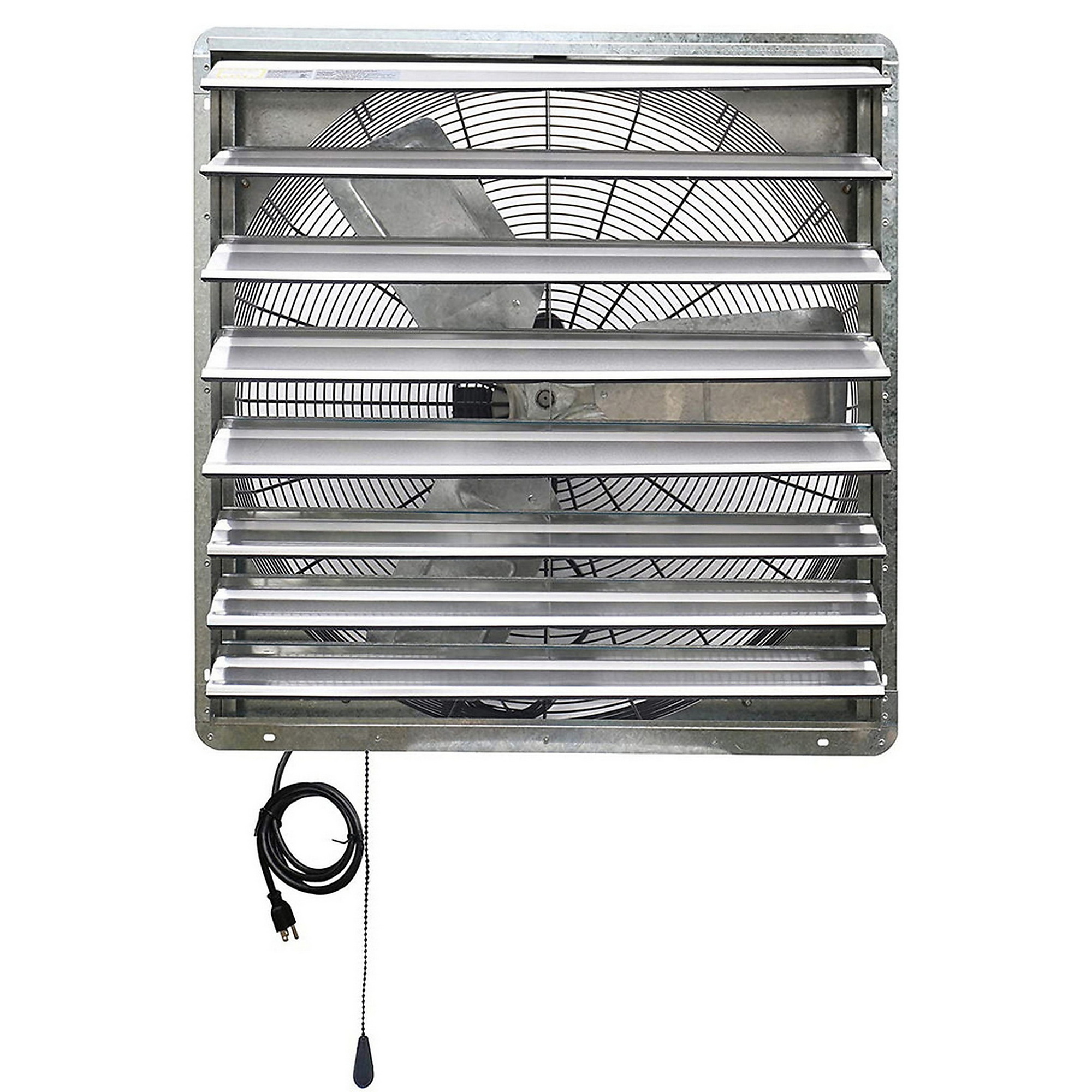

Dr. Infrared Heater iLiving Shutter Exhaust Fan — 30in., 2-Speed, Built-In Thermostat, 6ft. Cord, Aluminum Blades, Model# ILG8SF30V

Item# 7188771
Dr. Infrared Heater iLiving Shutter Exhaust Fan — 30in., 2-Speed, Built-In Thermostat, 6ft. Cord, Aluminum Blades, Model# ILG8SF30V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dr. Infrared Heater iLiving Shutter Exhaust Fan — 30in., 2-Speed, Built-In Thermostat, 6ft. Cord, Aluminum Blades, Model# ILG8SF30V

Click or Tap image to Zoom

$449.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 30 inches, 2 speed shutter exhaust fan, 825/700 RPM, 5100 CFM, 115V/ 60 Hz , 1/3HP, 3.3 Amps
  • Build-in adjustable capillary thermostat 32-130F with Bypass switch
  • Ideal for exhaust extra heat for room, attic, garage, shed, greenhouse or work shop
  • No electrician required when plugged into an approved electrical outlet.
  • Fully assembled with 6 feet long 3 plugs cord

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The iLIVING shutter exhaust fan is a must have for your home or business. Our shutter exhaust fan comes with 2 adjustable speeds and build-in thermostat is a must to have fan for cutting your cooling bills and improving comfort. It is perfect for removing excess heat, moisture, and unpleasant odors from home and commercial location, including garage, attic, restaurants, factories, warehouses, barns, and greenhouses. This fan features aluminum blades, OSHA compliant wire guards, and automatic louvers that open and close in tandem with the operation of the fan. The completely enclosed Class B motor is thermally protected and permanently lubricated. Build-in thermostat enables this fan to intelligently regulate the room temperature. It has a control temperature range of 32-130F, and a double terminals switch to bypass the thermostat allowing the fan to be always on. The fan comes fully assembled with 6ft. long, standard 3 plugs AC cable out of the box. No electrician required when plugged into an approved electrical outlet. The shutter fan comes in 8 different sizes: 10in.-600CFM, 12in.-800CFM, 14in.-850CFM, 16in.-1280CFM, 18in.-1750CFM , 20in. (2 speed)-3300CFM, 24in.(2 Speed)-4200CFM and 30in.(2 Speed)-5100CFM. Engineered in USA, UL listed.

What's Included

    (1) Exhaust Fan

Features + Benefits

  • 30 inches, 2 speed shutter exhaust fan, 825/700 RPM, 5100 CFM, 115V/ 60 Hz , 1/3HP, 3.3 Amps
  • Build-in adjustable capillary thermostat 32-130F with Bypass switch
  • Ideal for exhaust extra heat for room, attic, garage, shed, greenhouse or work shop
  • No electrician required when plugged into an approved electrical outlet.
  • Fully assembled with 6 feet long 3 plugs cord
  • Total enclosed permanently lubricated Class B motor, UL listed
  • Wattage at 345W

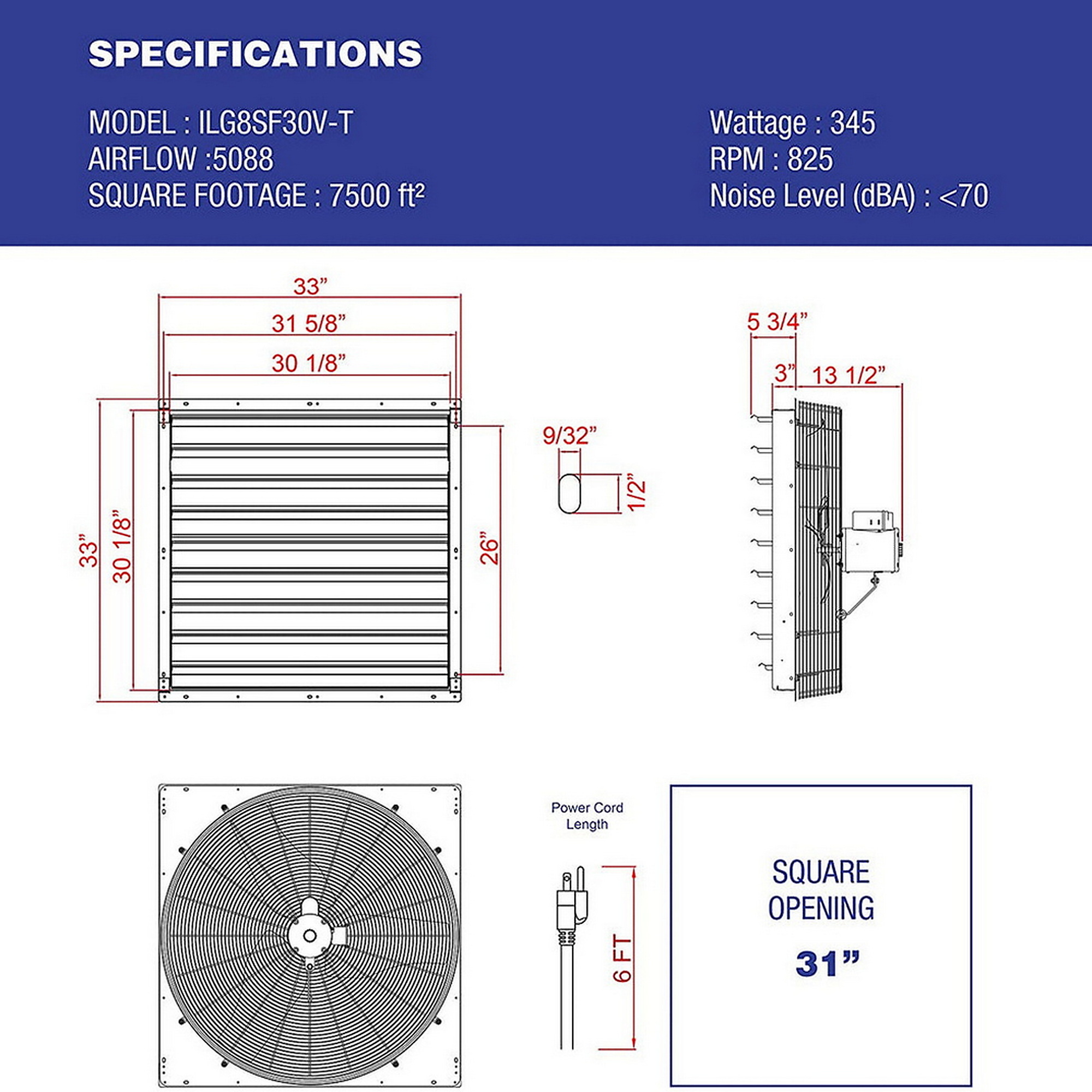

Key Specs

AttributeSpecification

item#

7188771

Brand

Dr. Infrared Heater

Manufacturer's Warranty

1 year limited warranty

Ship Weight

67.5 LB

Drive Type

Direct

Fan Diameter

30 in

Air Delivery

5,100 cfm

Volts

120
AttributeSpecification

Watts

345

Amps

3.3

Hardwired

No

Max. Fan Speed

825 rpm

Primary Color

Silver

Power Cord Length

6 ft

Product Weight

51.5000 lb

Dimensions L x W x H (in.)

33.0 x 5.75 x 33.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
