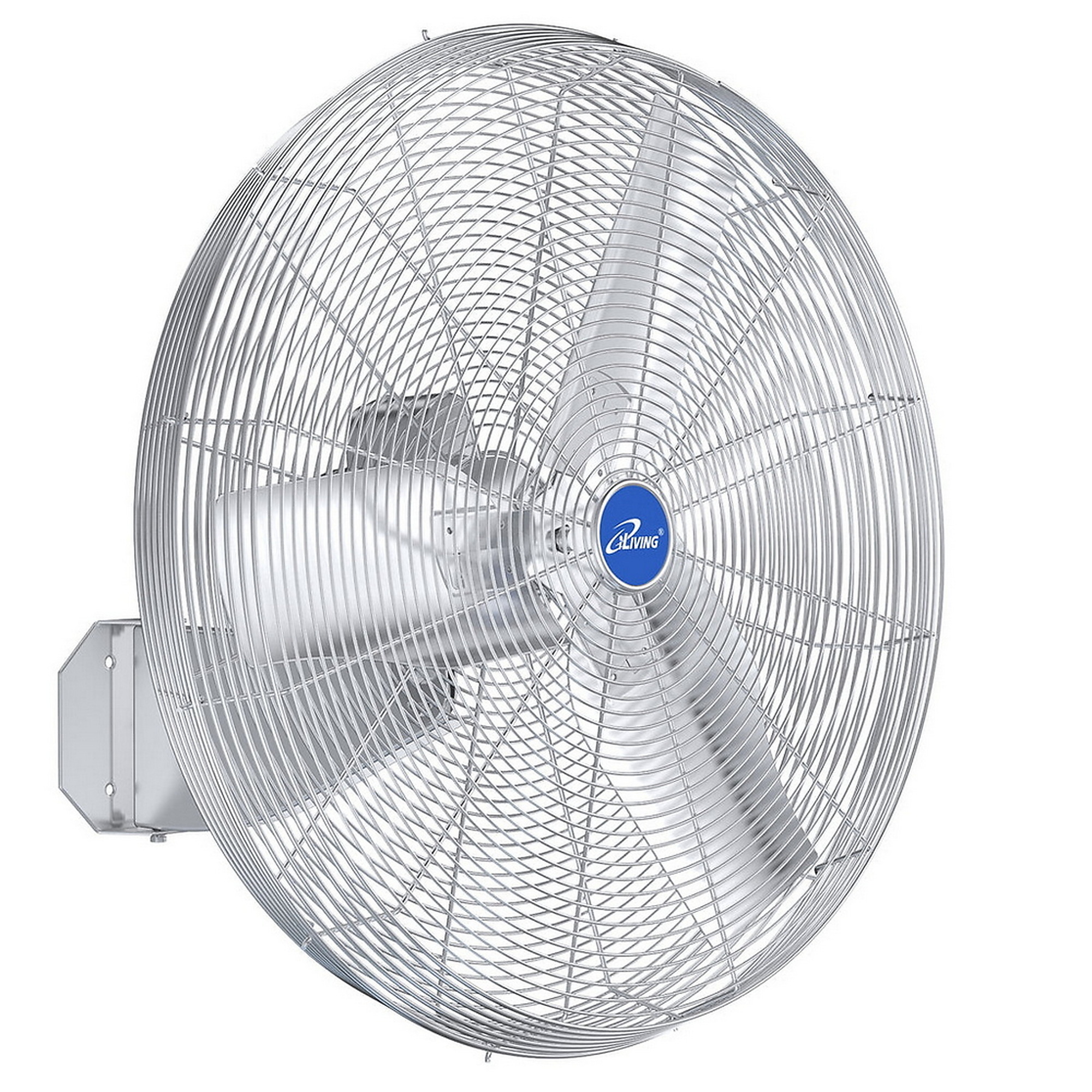

Dr. Infrared Heater iLiving Wall Mounted Washdown Fan — 24in., 7200 CFM, 1/4 HP, Single Phase, 115/230V, Model# ILG8WD24-1W

Item# 7188974
Dr. Infrared Heater iLiving Wall Mounted Washdown Fan — 24in., 7200 CFM, 1/4 HP, Single Phase, 115/230V, Model# ILG8WD24-1W

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dr. Infrared Heater iLiving Wall Mounted Washdown Fan — 24in., 7200 CFM, 1/4 HP, Single Phase, 115/230V, Model# ILG8WD24-1W

Click or Tap image to Zoom

$949.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

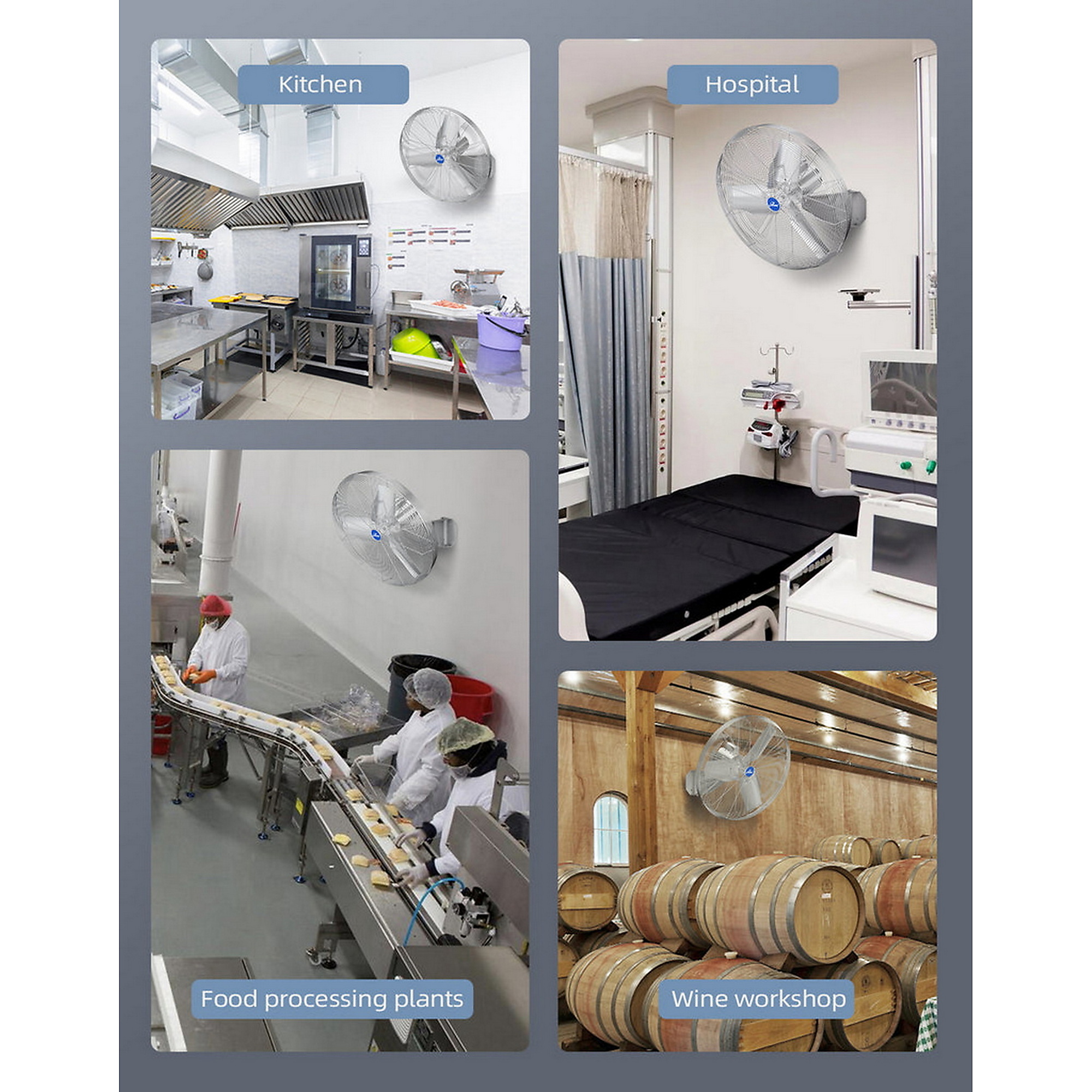

  • STAINLESS STEEL - The fan is construction with 304 electropolished stainless steel and are rated by the USDA and NSF for use in food zones. This fan is ideal solutions in a multitude of applications including kitchens, hospitals, food and beverage plants, processing facilities, and much more.

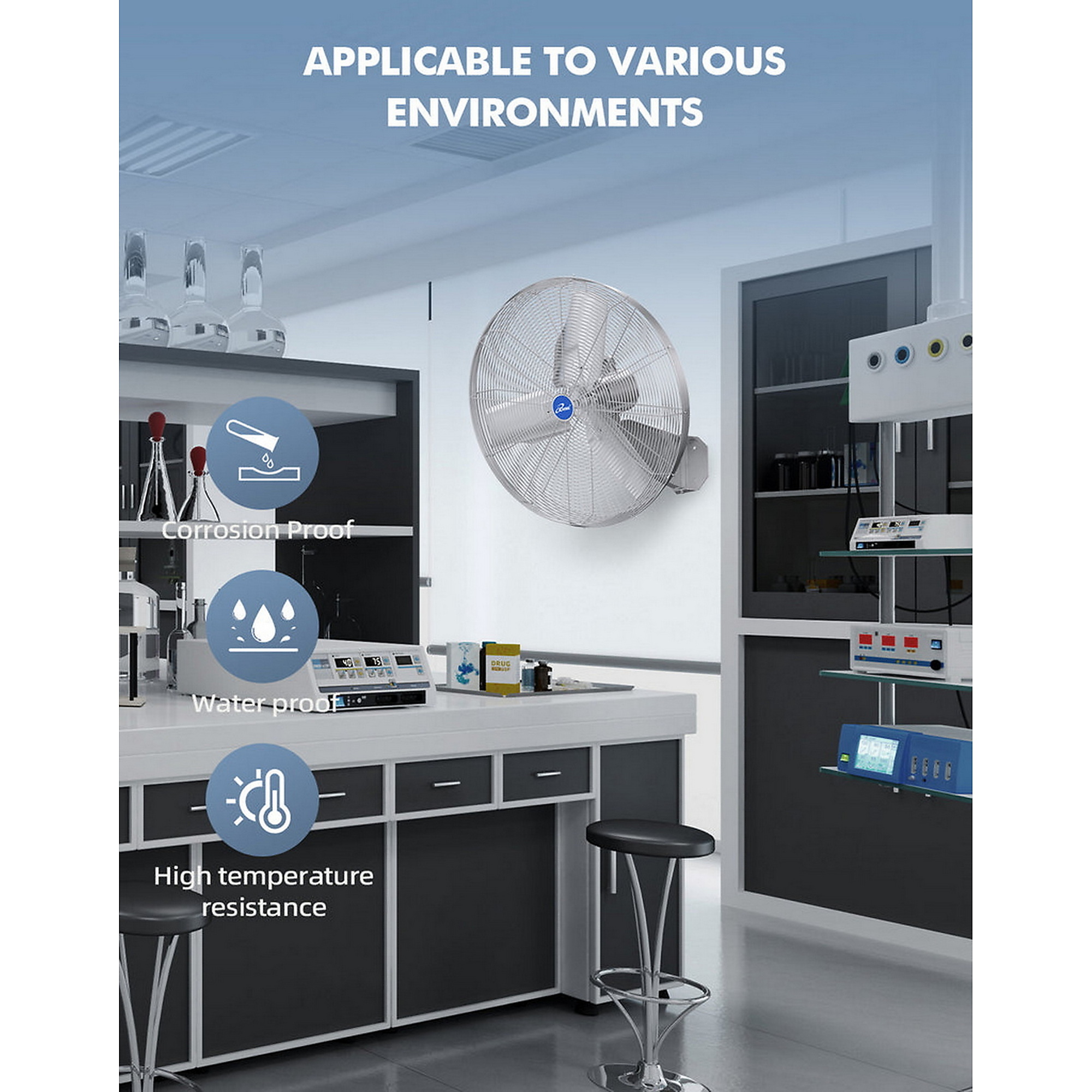

  • WASHDOWN RATED - The washdown rating allows these fans to operate in moist, wet, humid, and corrosive environments. They are able to withstand being washed with hot water and caustic solutions without impacting performance.
  • TOTALLY ENCLOSED MOTOR - The fan is design with a totally enclosed motor with a junction box for hard wiring, rated IP55.
  • POWER SPEC - 1/4 HP motor support input voltage 115/230 VAC single phase. 7200 CFM, 1050 RPM, rated at 310W.
  • CUSTOMER SUPPORT - Local customer support to address all questions and concerns. Product is UL/cUL Listed.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Newly introduced iLIVING 24in. washdown wall mounted fan.Power cord is not included.The fan must be grounded and installed in a GFCI protected branch circuit.Assembly is required.1 Year Limited Component Warranty.

What's Included

    (1) Wall Fan

Features + Benefits

  • STAINLESS STEEL - The fan is construction with 304 electropolished stainless steel and are rated by the USDA and NSF for use in food zones. This fan is ideal solutions in a multitude of applications including kitchens, hospitals, food and beverage plants, processing facilities, and much more.
  • WASHDOWN RATED - The washdown rating allows these fans to operate in moist, wet, humid, and corrosive environments. They are able to withstand being washed with hot water and caustic solutions without impacting performance.
  • TOTALLY ENCLOSED MOTOR - The fan is design with a totally enclosed motor with a junction box for hard wiring, rated IP55.
  • POWER SPEC - 1/4 HP motor support input voltage 115/230 VAC single phase. 7200 CFM, 1050 RPM, rated at 310W.
  • CUSTOMER SUPPORT - Local customer support to address all questions and concerns. Product is UL/cUL Listed.

Key Specs

AttributeSpecification

item#

7188974

Brand

Dr. Infrared Heater

Manufacturer's Warranty

1 year limited warranty

Ship Weight

55.0 LB

Fan Diameter

24 in

Air Delivery

7,200 cfm

Oscillating

Yes

Volts

115/230
AttributeSpecification

Amps

2.85

Outdoor Rated

No

Assembly Required

Yes

Primary Color

Silver

Housing Material

Alloy Steel

Watts

310

Product Weight

45.8000 lb

Dimensions L x W x H (in.)

26.8 x 26.4 x 26.8 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
