IDEAL, Split-Jaw™ TightSight™ Meter 200A AC/DC, UL Certified CAT IV 600V & CAT III 1000V, measures 0-200 Amps AC/DC and 0-1000 Volts AC/DC, Auto Power Off, Backlit Display, Dual LCD Display, Auto Ranging, Audible Continuity, 61&

Item# 7421748
NewTop Seller
IDEAL, Split-Jaw™ TightSight™ Meter 200A AC/DC, UL Certified CAT IV 600V & CAT III 1000V, measures 0-200 Amps AC/DC and 0-1000 Volts AC/DC, Auto Power Off, Backlit Display, Dual LCD Display, Auto Ranging, Audible Continuity, 61&

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

IDEAL, Split-Jaw™ TightSight™ Meter 200A AC/DC, UL Certified CAT IV 600V & CAT III 1000V, measures 0-200 Amps AC/DC and 0-1000 Volts AC/DC, Auto Power Off, Backlit Display, Dual LCD Display, Auto Ranging, Audible Continuity, 61&

Click or Tap image to Zoom

$147.16

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • UL Certified CAT IV 600V & CAT III 1000V, measures 0-200 Amps AC/DC and 0-1000 Volts AC/DC
  • Provides True RMS AC voltage and current for accurate measurements on non-linear signals
  • Measures AC/DC Current, AC/DC Voltage, continuity, resistance, capacitance, diodes, and senses AC voltage
  • Built-in probe tip holder and hanging strap clip allows safer, easier measurement and probe storage
  • Built-in flashlight and dual backlit displays allow for safer/faster work in poorly lit environments

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

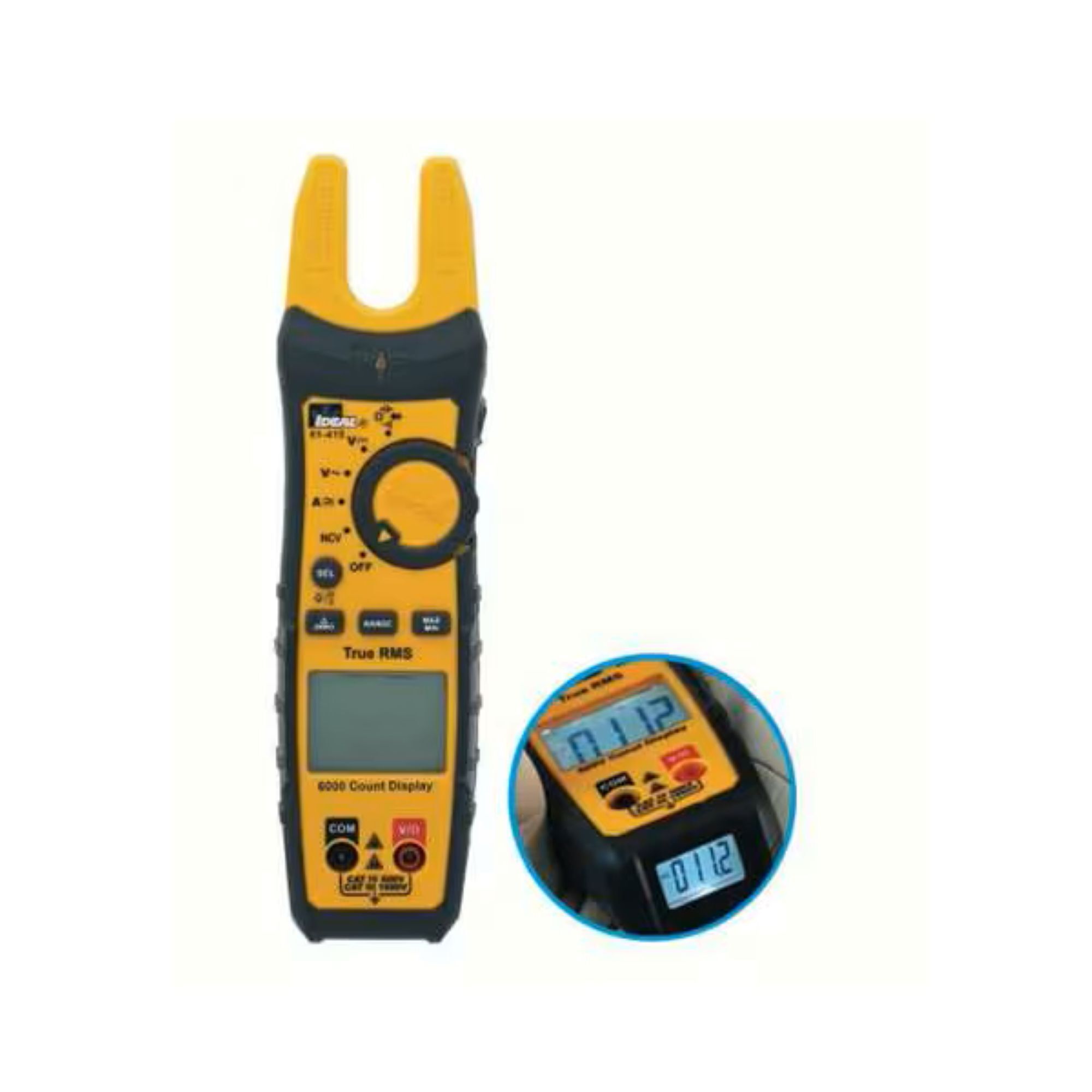

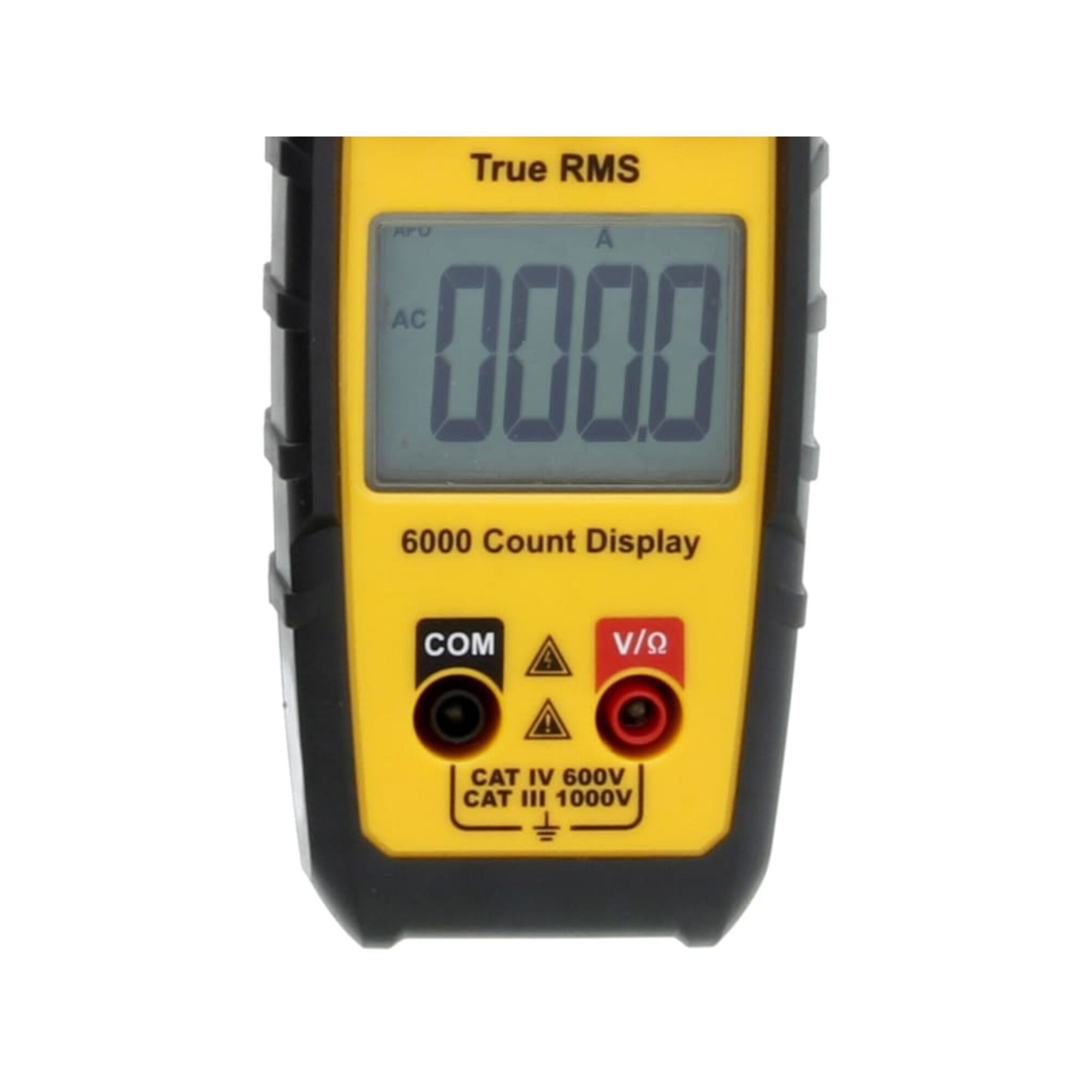

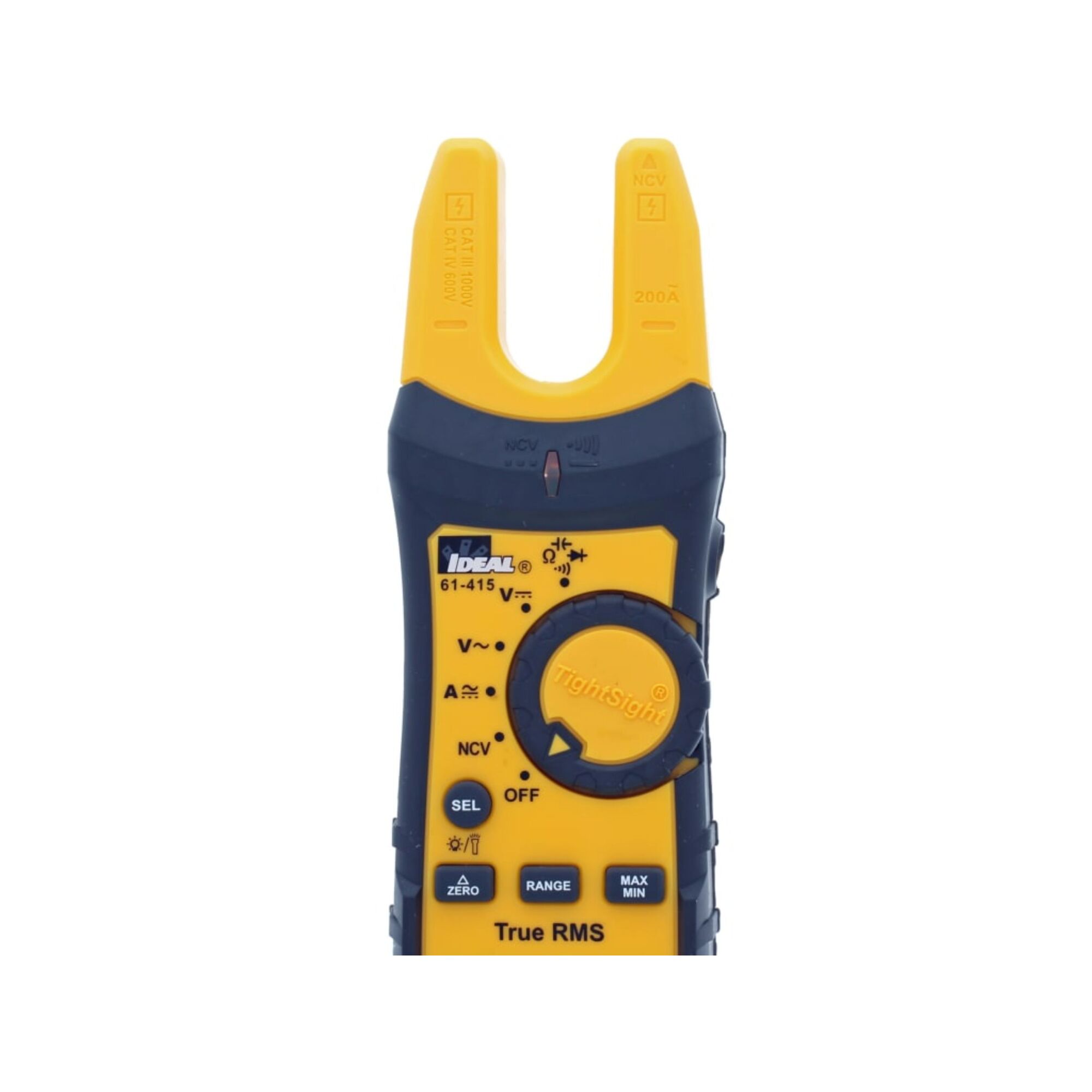

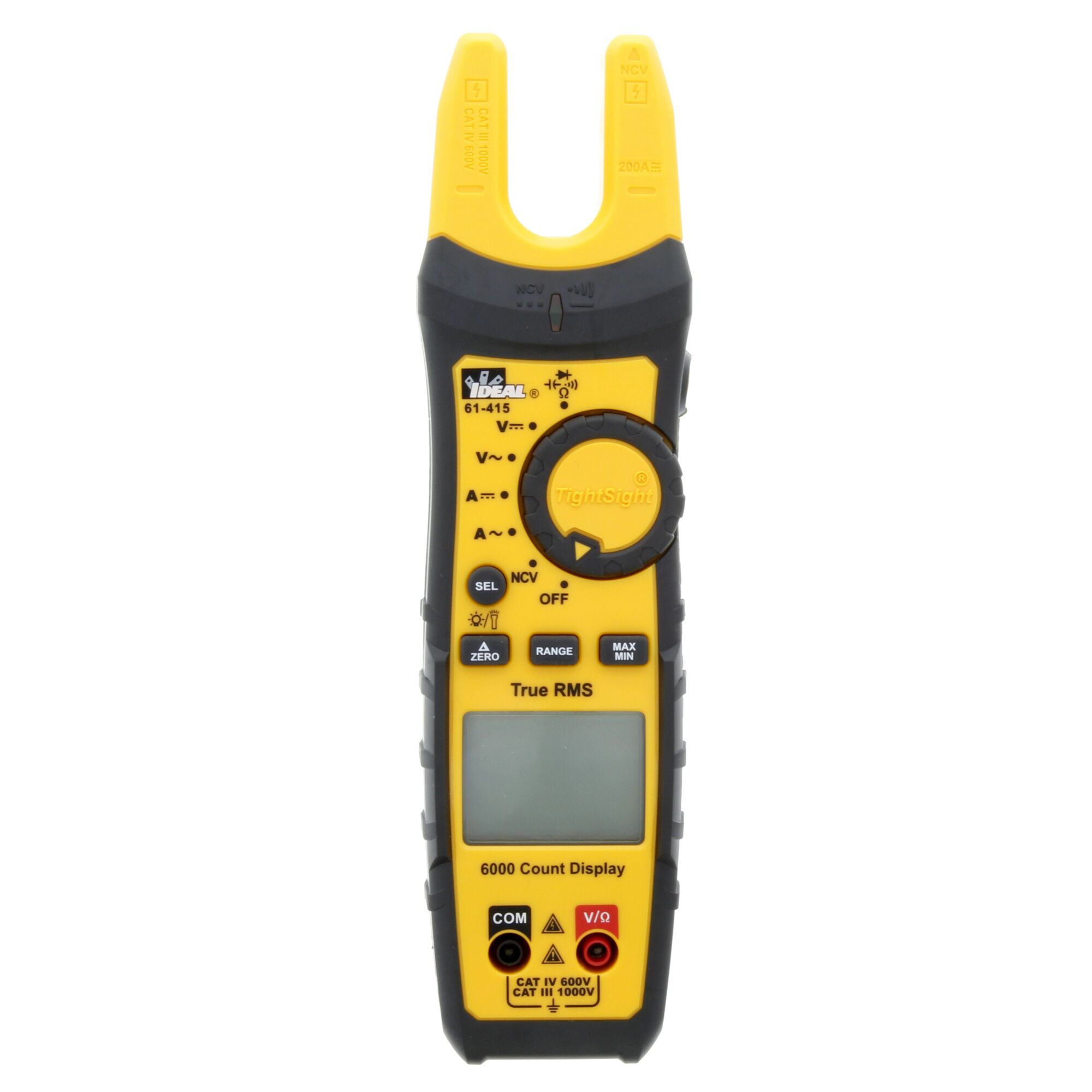

The IDEAL® Tightsight™ Split Jaw Meter (model 61-415) is a versatile and robust tool designed for professionals. It boasts a CAT IV 600V and CAT III 1000V rating, ensuring safety and reliability in demanding environments. This auto-ranging true root mean square (TRMS) digital fork meter has an impressive .75in. (19mm) jaw opening to easily work around large gauge cable. It can measure up to 200 Amps AC or DC between its forks and up to 1000V AC and DC using the included test leads. It also measures continuity, resistance, capacitance, and diodes, and features a non-contact voltage sensor in the right fork that detects voltage between 40V and 600V. One of its standout features is the patented TightSight® display, strategically located at the bottom of the unit. This innovative display enhances safety and productivity by providing a secondary reading at the end of the meter, so you don’t have to bend or twist conductors or place your head near the panel to see the main display. Both displays are backlit, and there’s a built-in flashlight for working in low-light conditions. An illuminated red LED and audible tones alert you to voltage above 30 volts, when continuity is detected, and when the NCV senses voltage within its range. For added convenience, the clamp head includes a dual-position built-in probe tip holder, allowing you to take measurements with one hand, and conveniently store the probes when not in use. The meter can be suspended from a nail, screw, or magnetic surface using the compatible hanging strap mount (Universal Magnetic Hanging Strap model UMHS-757 sold separately). Its industrial-grade over-molding ensures a secure grip and offers 2 m drop protection. Additional features include HOLD, MIN/MAX, Relative, Range, and selectable Auto Power Off functions. has an easy-open storage pouch with a belt loop for storing the meter, probes, and thermocouple. With an IDEAL® TightSight™ Fork Meter, you’re equipped with a versatile, reliable tool that makes electrical measurements easier and safer.

What's Included

    (1) Tester (1) soft case (1) test leads

Features + Benefits

  • UL Certified CAT IV 600V & CAT III 1000V, measures 0-200 Amps AC/DC and 0-1000 Volts AC/DC
  • Provides True RMS AC voltage and current for accurate measurements on non-linear signals
  • Measures AC/DC Current, AC/DC Voltage, continuity, resistance, capacitance, diodes, and senses AC voltage
  • Built-in probe tip holder and hanging strap clip allows safer, easier measurement and probe storage
  • Built-in flashlight and dual backlit displays allow for safer/faster work in poorly lit environments
  • Compatible with IDEAL® Universal Magnetic Hanging Strap (model UMHS-757)
  • 6.6' Drop Protection
  • CAT Safety Rating-CAT IV 600 V / CAT III 1000 V

Key Specs

AttributeSpecification

item#

7421748

Brand

IDEAL

Manufacturer's Warranty

2 year limited warranty
AttributeSpecification

Ship Weight

1.39 LB

Product Weight

0.4500 lb

Dimensions L x W x H (in.)

8.7 x 2.4 x 1.8 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
