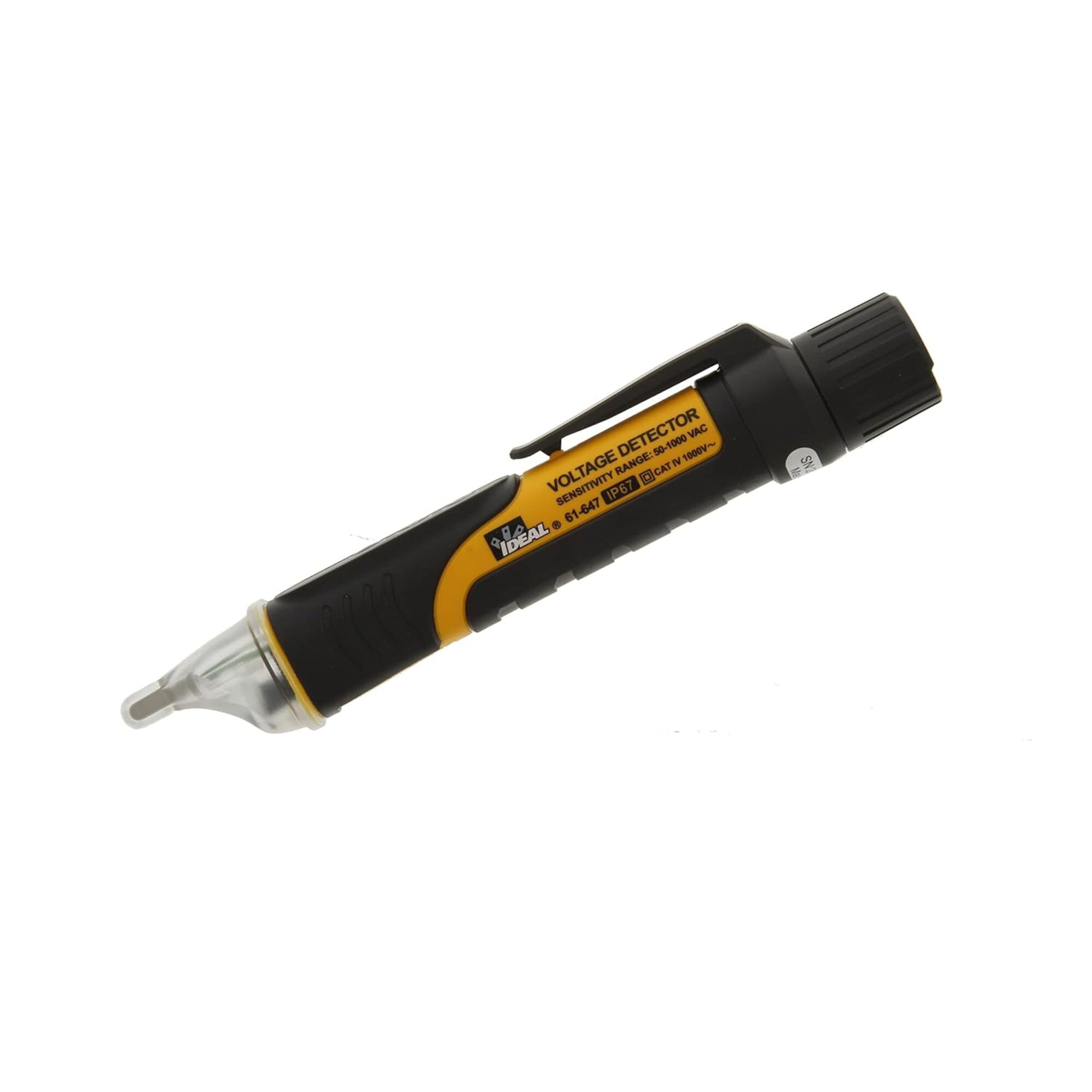

IDEAL, Non-Contact Voltage Tester Single Range 50-1000V AC, Auto Power Off, UL Certified CAT IV 1000V AC, 50 to 1000 V AC, Low battery indication, Built-in Flashlight, Low battery Indication, IP Rating-IP67, 61-647

Item# 7421836
New
IDEAL, Non-Contact Voltage Tester Single Range 50-1000V AC, Auto Power Off, UL Certified CAT IV 1000V AC, 50 to 1000 V AC, Low battery indication, Built-in Flashlight, Low battery Indication, IP Rating-IP67, 61-647

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

IDEAL, Non-Contact Voltage Tester Single Range 50-1000V AC, Auto Power Off, UL Certified CAT IV 1000V AC, 50 to 1000 V AC, Low battery indication, Built-in Flashlight, Low battery Indication, IP Rating-IP67, 61-647

Click or Tap image to Zoom

$29.22

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • UL Certified CAT IV 1000V AC, 50 to 1000 V AC

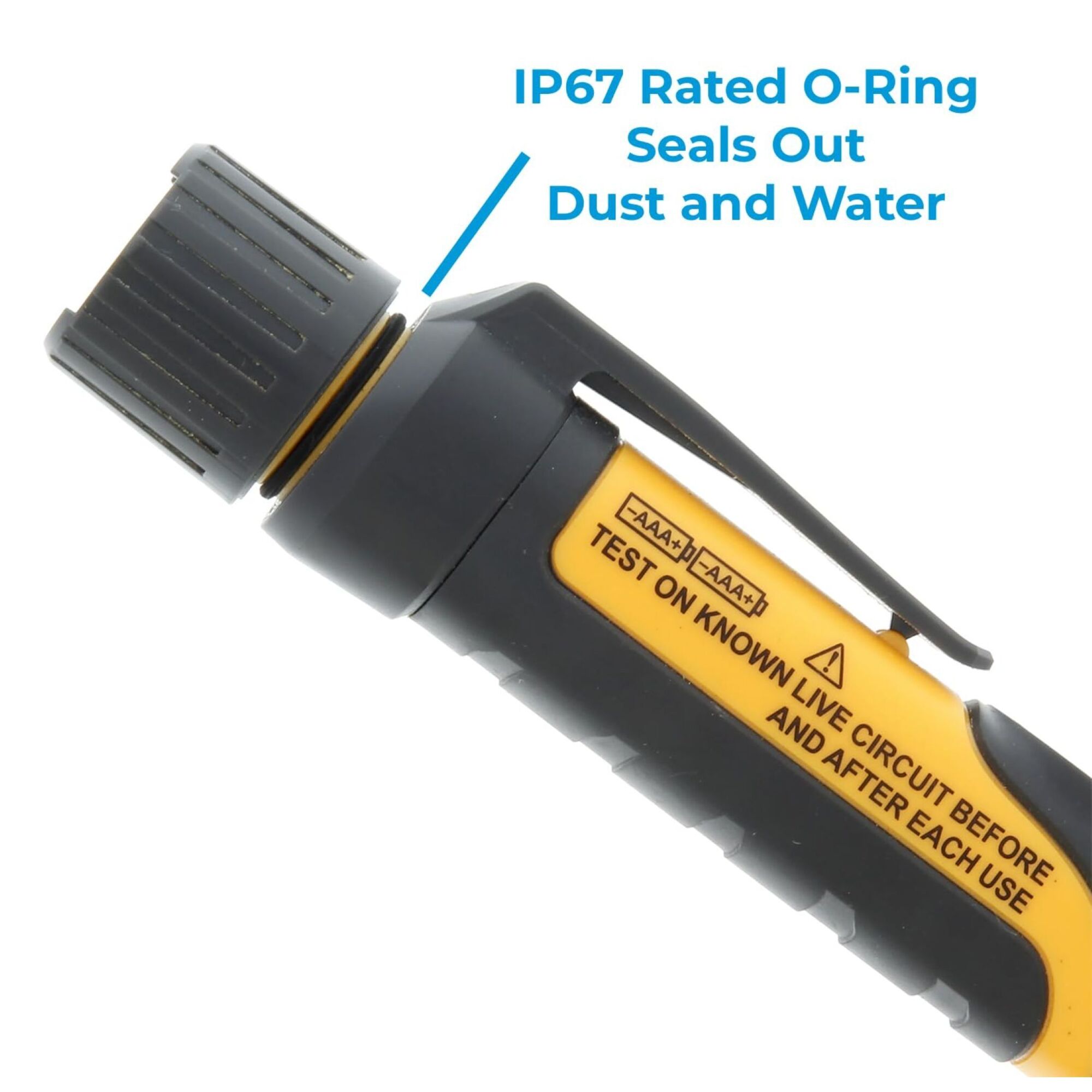

  • Dust tight and waterproof (1 m for 30 minutes) industrial design makes this tester easy to grip and capable of sustaining a drop from 6.5 ft (2 m)
  • LED Flashlight in the tip operates independently of the tester functions and can be used to illuminate the work area
  • Audible notification disable with the simple press of speaker button – tester can be operated with a visual only indication of voltage when working in noise sensitive or restricted areas
  • Auto power off after 10 minutes of inactivity – the tester will emit one long beep (0.5s) and then shut off

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

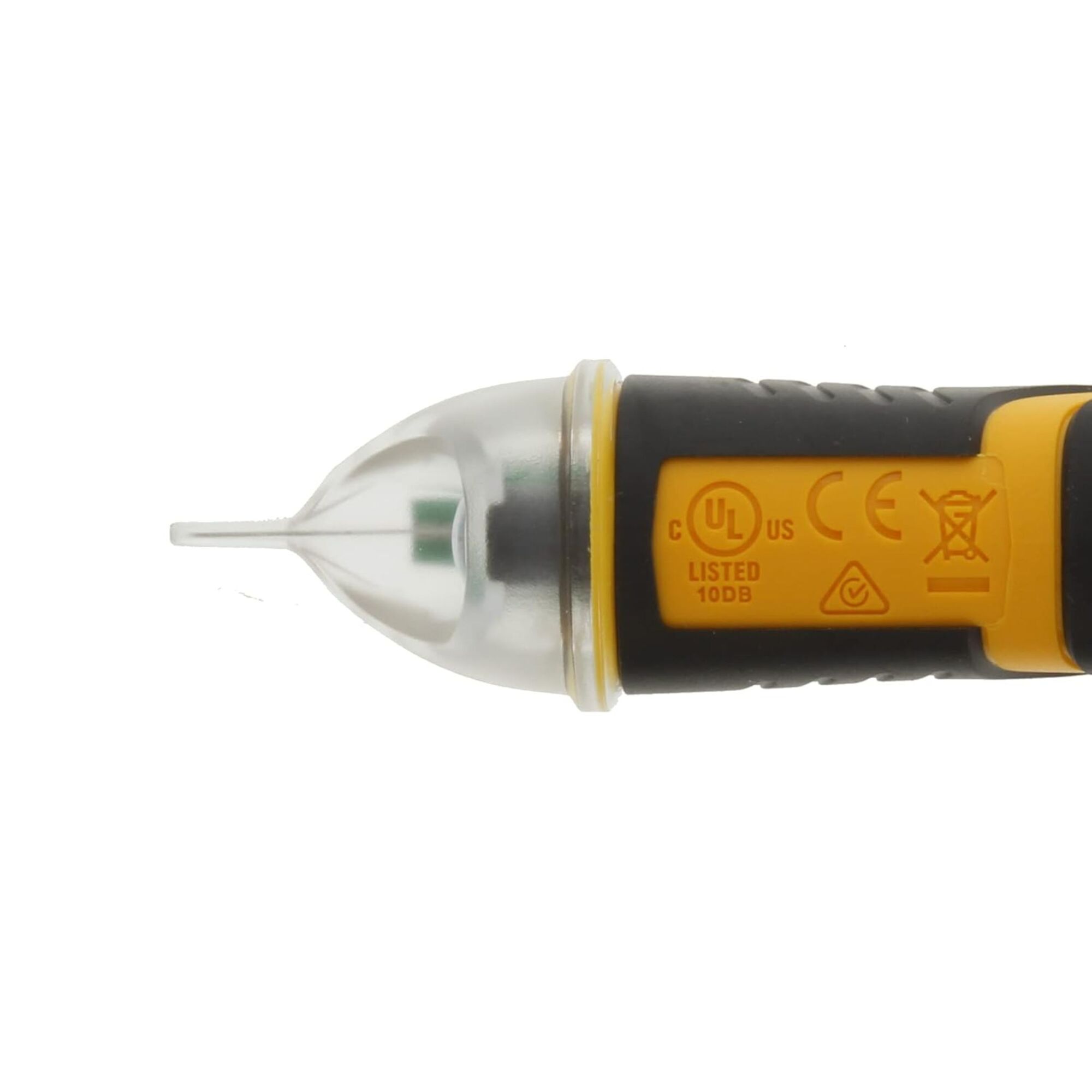

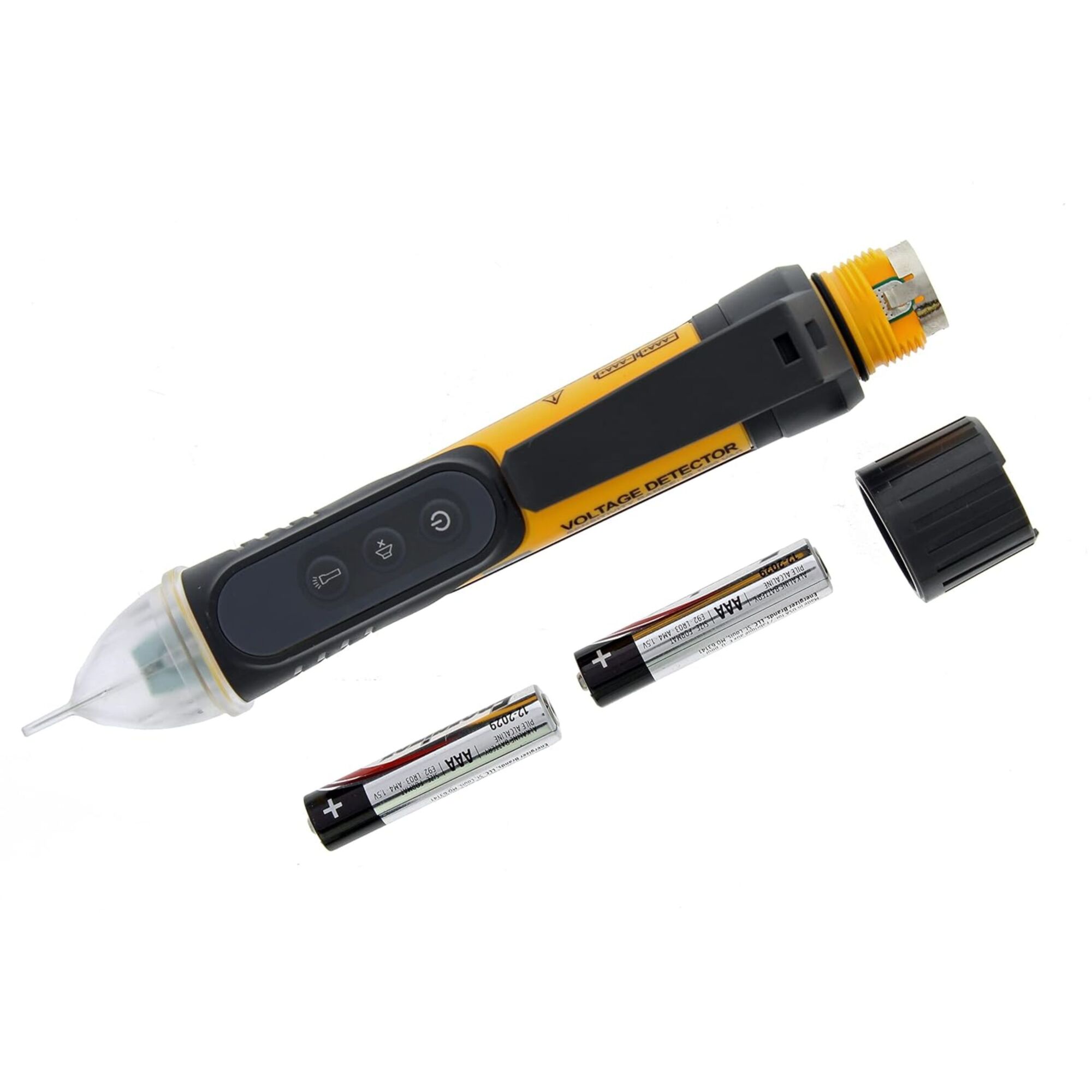

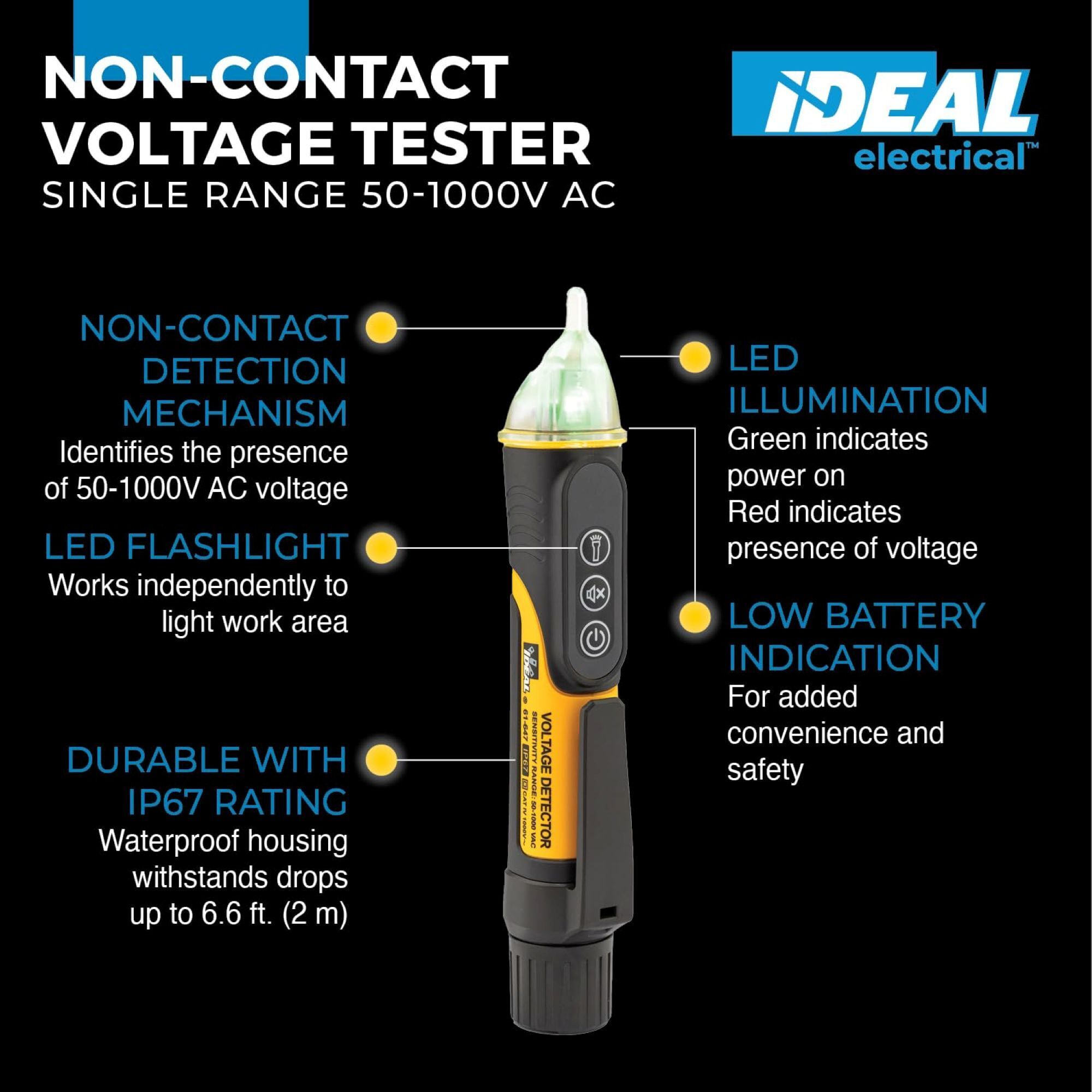

The IDEAL® 61-647 Single Range Non-Contact Voltage Tester is a robust and reliable tool for detecting the presence of voltage within the range of 50 – 1000V AC. This CAT IV 1000 V AC, UL Listed tester is built to withstand tough conditions. It can endure drops from 6.6ft. (2 m) and boasts IP67 protection against moisture and debris. It uses a non-contact detection system with an antenna enclosed in plastic at the tip, sensing the electromagnetic field around live conductors. When powered on, the tip illuminates with a green LED, switching to a red flashing LED and an audible beep that increases in frequency as the voltage level rises. Powered by two 1.5V AAA batteries, this tester also features a convenient LED flashlight in the tip, an audible disable function for quiet environments, a lanyard tie-off point, auto power off, and low battery indication. This NCVT is your go-tool for ensuring electrical safety with precision and ease.

What's Included

    (1) Tester

Features + Benefits

  • UL Certified CAT IV 1000V AC, 50 to 1000 V AC
  • Dust tight and waterproof (1 m for 30 minutes) industrial design makes this tester easy to grip and capable of sustaining a drop from 6.5 ft (2 m)
  • LED Flashlight in the tip operates independently of the tester functions and can be used to illuminate the work area
  • Audible notification disable with the simple press of speaker button – tester can be operated with a visual only indication of voltage when working in noise sensitive or restricted areas
  • Auto power off after 10 minutes of inactivity – the tester will emit one long beep (0.5s) and then shut off
  • Low battery indication

Key Specs

AttributeSpecification

item#

7421836

Brand

IDEAL

Manufacturer's Warranty

2 year limited warranty
AttributeSpecification

Ship Weight

2.5 LB

Product Weight

0.1600 lb

Dimensions L x W x H (in.)

6.4 x 1.0 x 1.2 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
