IDEAL, Circuit Breaker Finder 120V AC, GFCI Test, Built-in Flashlight, Low battery Indication, 61-535

Item# 7421810
New
IDEAL, Circuit Breaker Finder 120V AC, GFCI Test, Built-in Flashlight, Low battery Indication, 61-535

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

IDEAL, Circuit Breaker Finder 120V AC, GFCI Test, Built-in Flashlight, Low battery Indication, 61-535

Click or Tap image to Zoom

$58.45

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

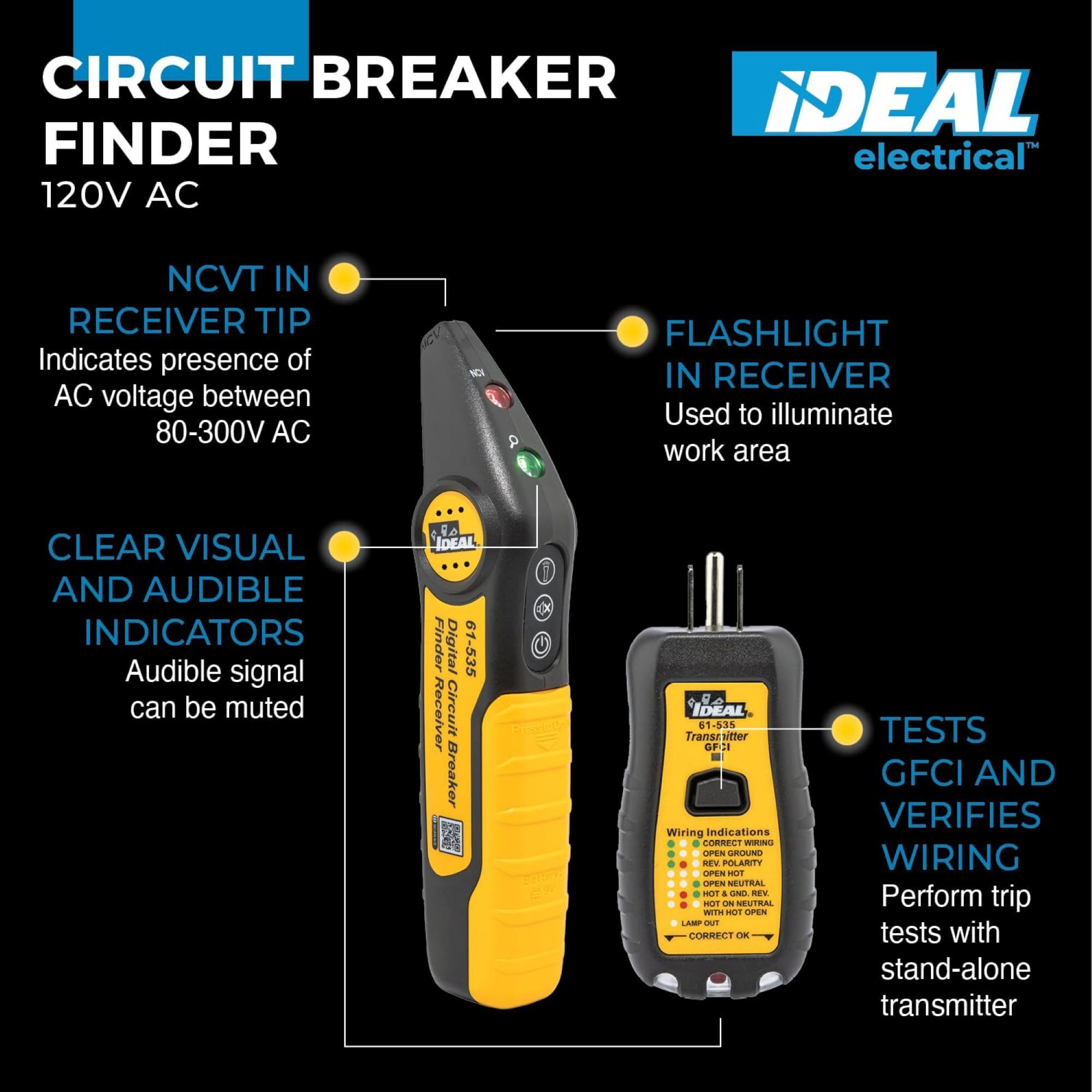

  • Quickly and easily identifies circuit breakers/fuses without disrupting power on energized 120V AC circuits
  • Clear visual and audible indicators (audible signal can be muted)
  • NCVT in receiver tip indicates presence of AC voltage between 80-300V AC

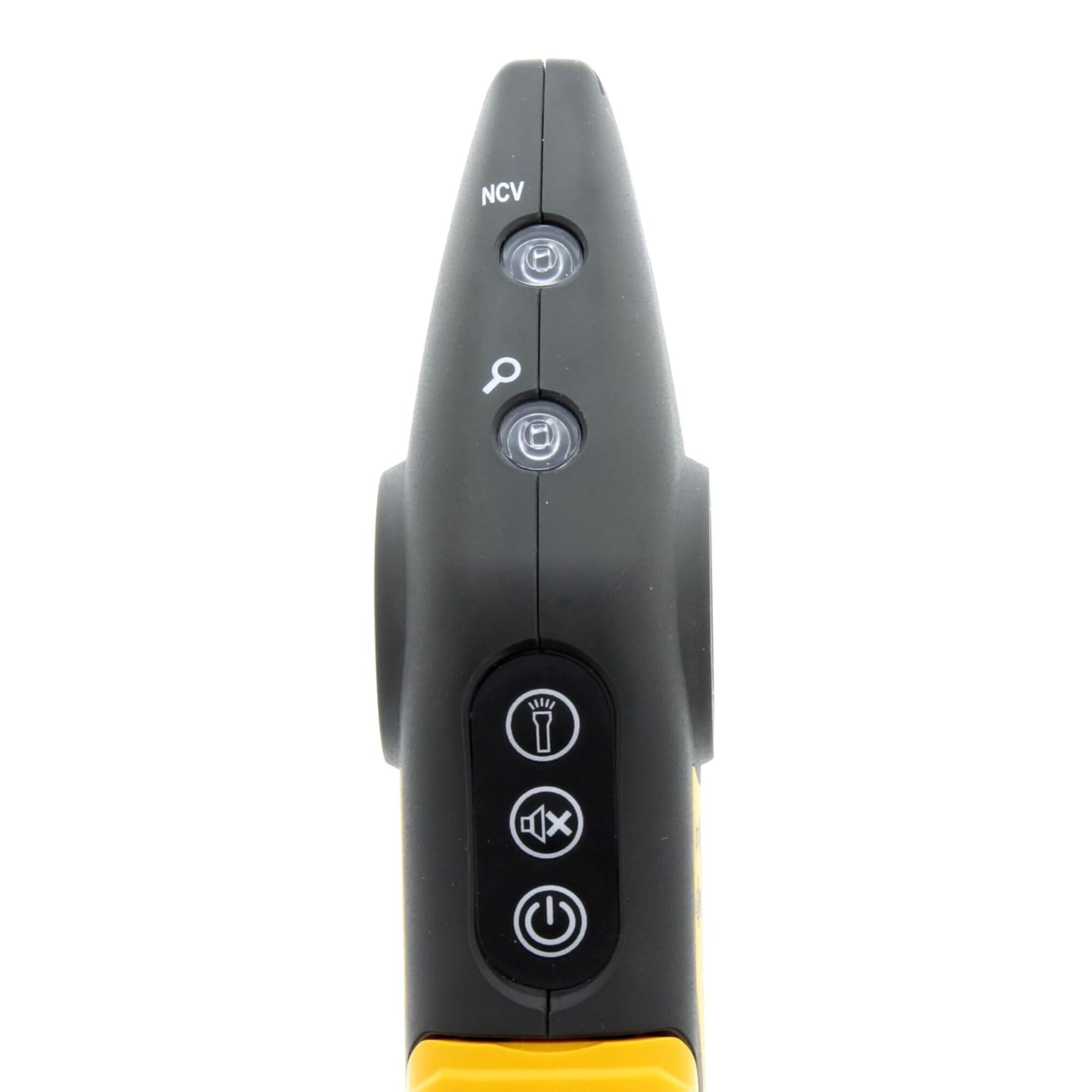

  • Flashlight in receiver operates independently of the tester functions and can be used to illuminate work area

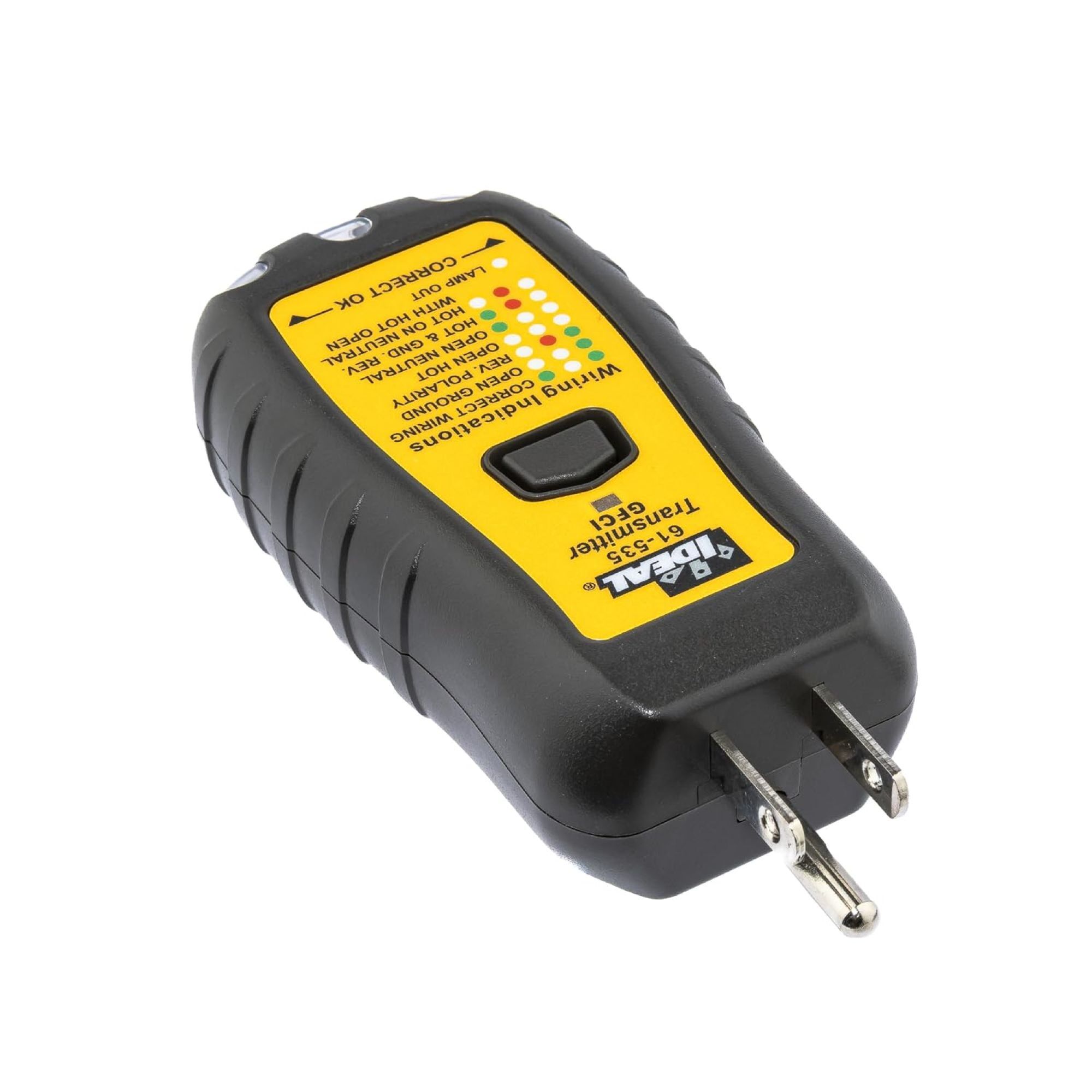

  • Transmitter tests outlet wiring configurations (indicated via Green/Red LEDs) and tests GFCIs

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

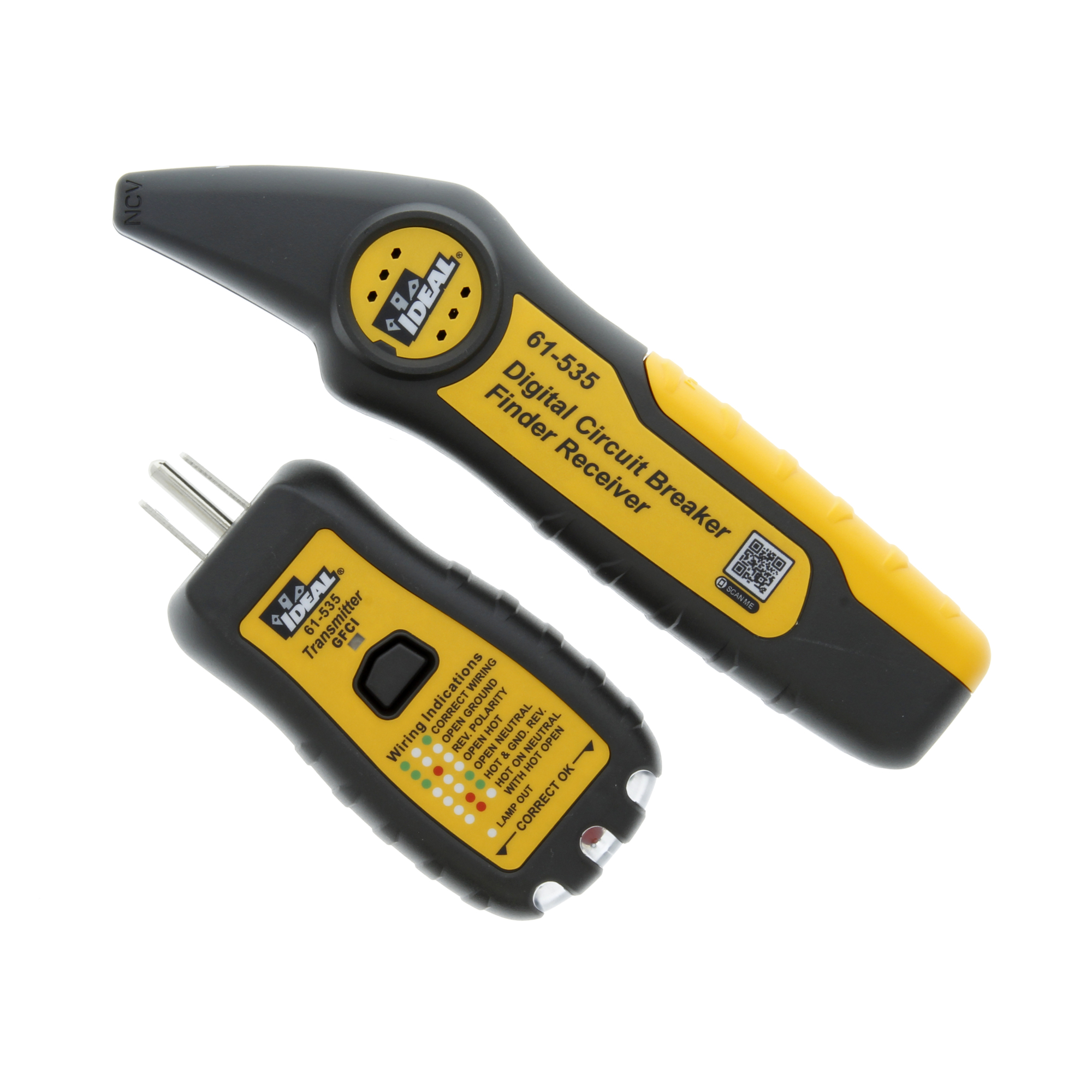

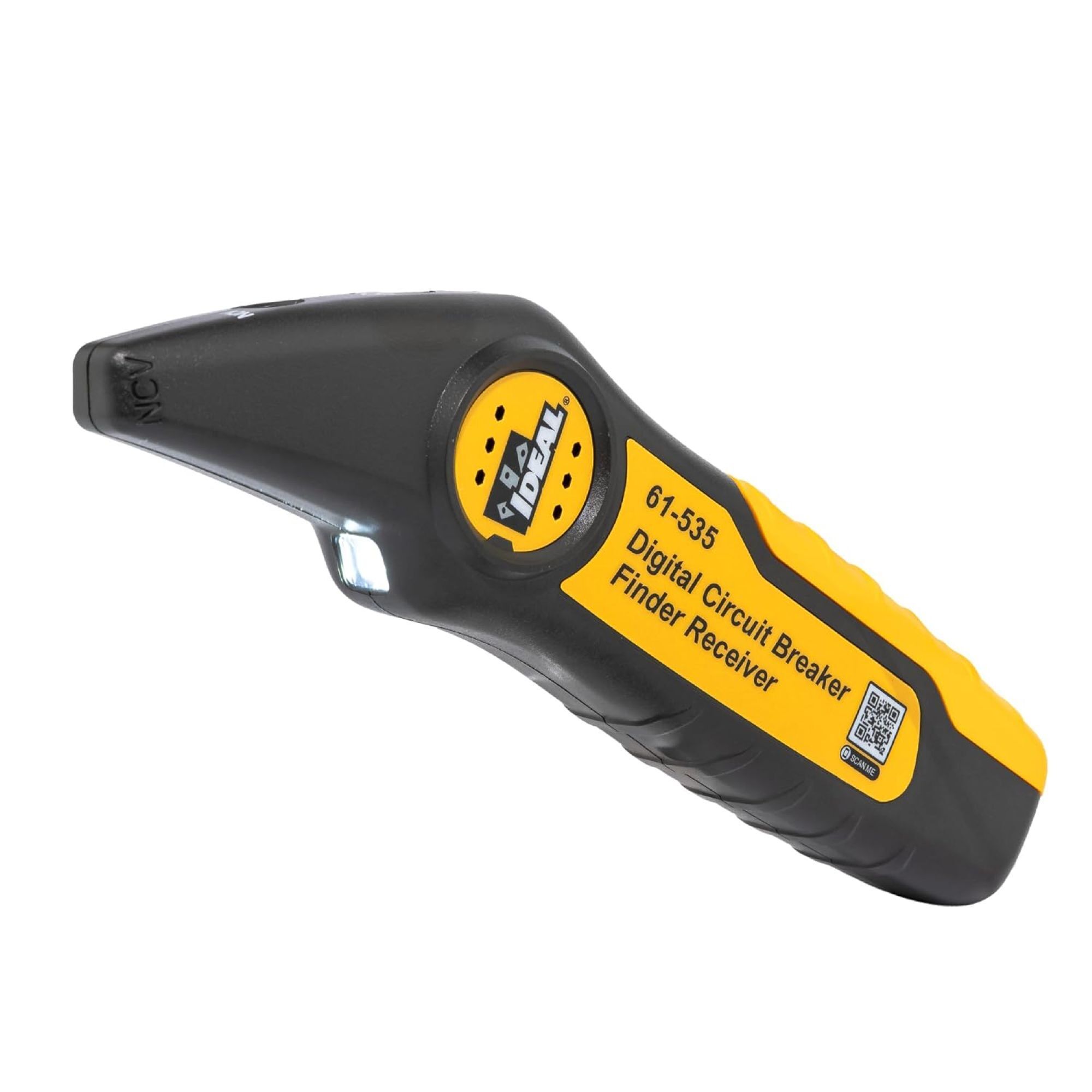

The IDEAL® 120V AC Circuit Breaker Finder (model 61-535) automatically identifies the circuit breakers/fuses protecting live branch circuits using its transmitter and receiver. When connected to an energized circuit, the transmitter sends a signal through the wires, not only detecting power but also indicating correct or incorrect wiring with green and red LEDs. It also features a convenient GFCI trip tester. The receiver picks up the transmitter’s signal, pinpointing the exact breaker or fuse with the strongest signal using a flashing green LED and a series of beeps. It also features a non-contact voltage (NCV) sensor in the tip that detects AC voltage from 80 to 300 V, alerting you with a red flashing LED and a beeping sound. For those working in noise-sensitive environments, the audible tones can be muted with a simple button press. Plus, the receiver comes with a built-in work light, perfect for those dimly lit areas. This tool is a must-have for easy circuit breaker identification.

What's Included

    (1) Tester (1) transmitter (1) receiver

Features + Benefits

  • Quickly and easily identifies circuit breakers/fuses without disrupting power on energized 120V AC circuits
  • Clear visual and audible indicators (audible signal can be muted)
  • NCVT in receiver tip indicates presence of AC voltage between 80-300V AC
  • Flashlight in receiver operates independently of the tester functions and can be used to illuminate work area
  • Transmitter tests outlet wiring configurations (indicated via Green/Red LEDs) and tests GFCIs
  • Receiver powers off automatically after five minutes of non-use to conserve battery life
  • cULus Certified (UL 1436, CSA C22.2 No. 160), CAT II 150V
  • CAT Safety Rating-CAT II 150 V
  • Non-Contact Voltage Test

Key Specs

AttributeSpecification

item#

7421810

Brand

IDEAL

Manufacturer's Warranty

2 year limited warranty
AttributeSpecification

Ship Weight

0.7 LB

Product Weight

0.1250 lb

Dimensions L x W x H (in.)

7.56 x 1.44 x 1.36 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
