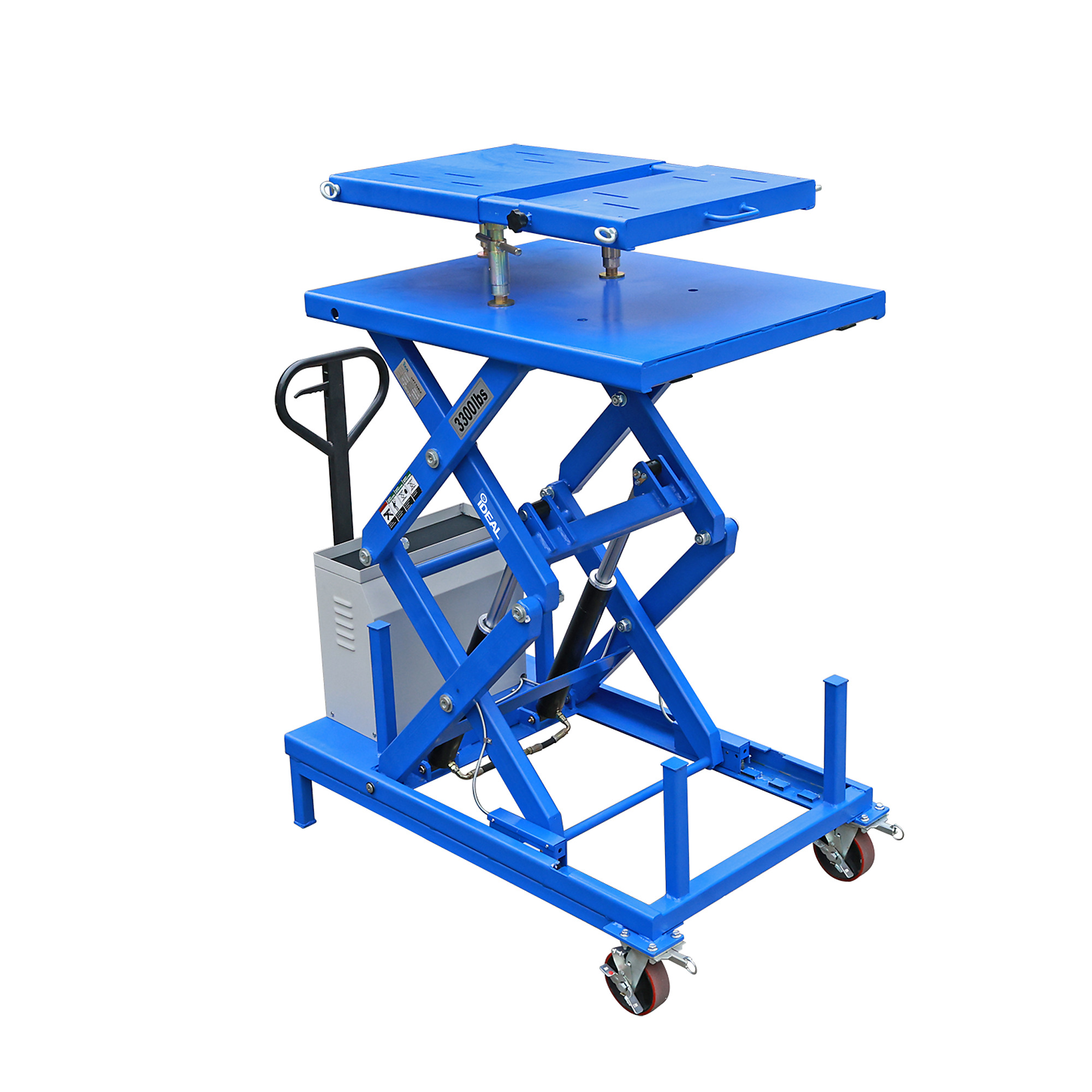

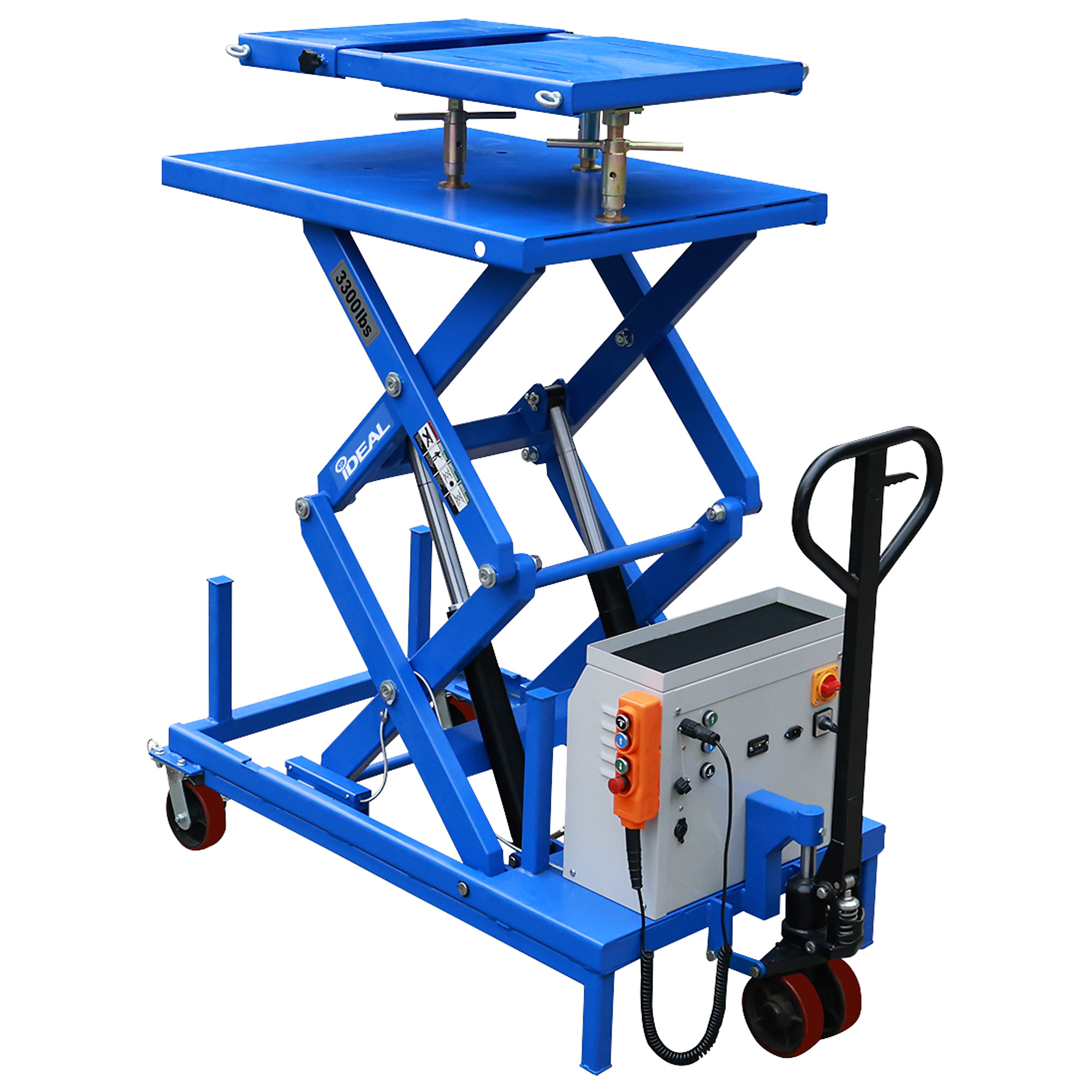

iDEAL by Tuxedo, 3300lbs Powertrain Platform Lift Table, Capacity 3300 lb, Lowered Height 35 in, Raised Height 72 in, Model# LT-PT3300DC-X

Item# 6150085
iDEAL by Tuxedo, 3300lbs Powertrain Platform Lift Table, Capacity 3300 lb, Lowered Height 35 in, Raised Height 72 in, Model# LT-PT3300DC-X

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

iDEAL by Tuxedo, 3300lbs Powertrain Platform Lift Table, Capacity 3300 lb, Lowered Height 35 in, Raised Height 72 in, Model# LT-PT3300DC-X

Click or Tap image to Zoom

$8020.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 3,300 LBS CAPACITY
  • INNOVATIVE, HIGH QUALITY PORTABLE SCISSOR LIFT DESIGN
  • EFFICIENT & SAFE METHOD TO INSTALL OR REMOVE HEAVY VEHICLE POWERTRAIN COMPONENTS IE: TRANSMISSIONS, ENGINES OR AXLE
  • 12VDC BATTERY OPERATION W/ INTEGRATED 110V BATTERY CHARGE
  • DOUBLE SCISSOR HD DESIGN W/ DUAL HQ HYDRAULIC CYLINDER

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

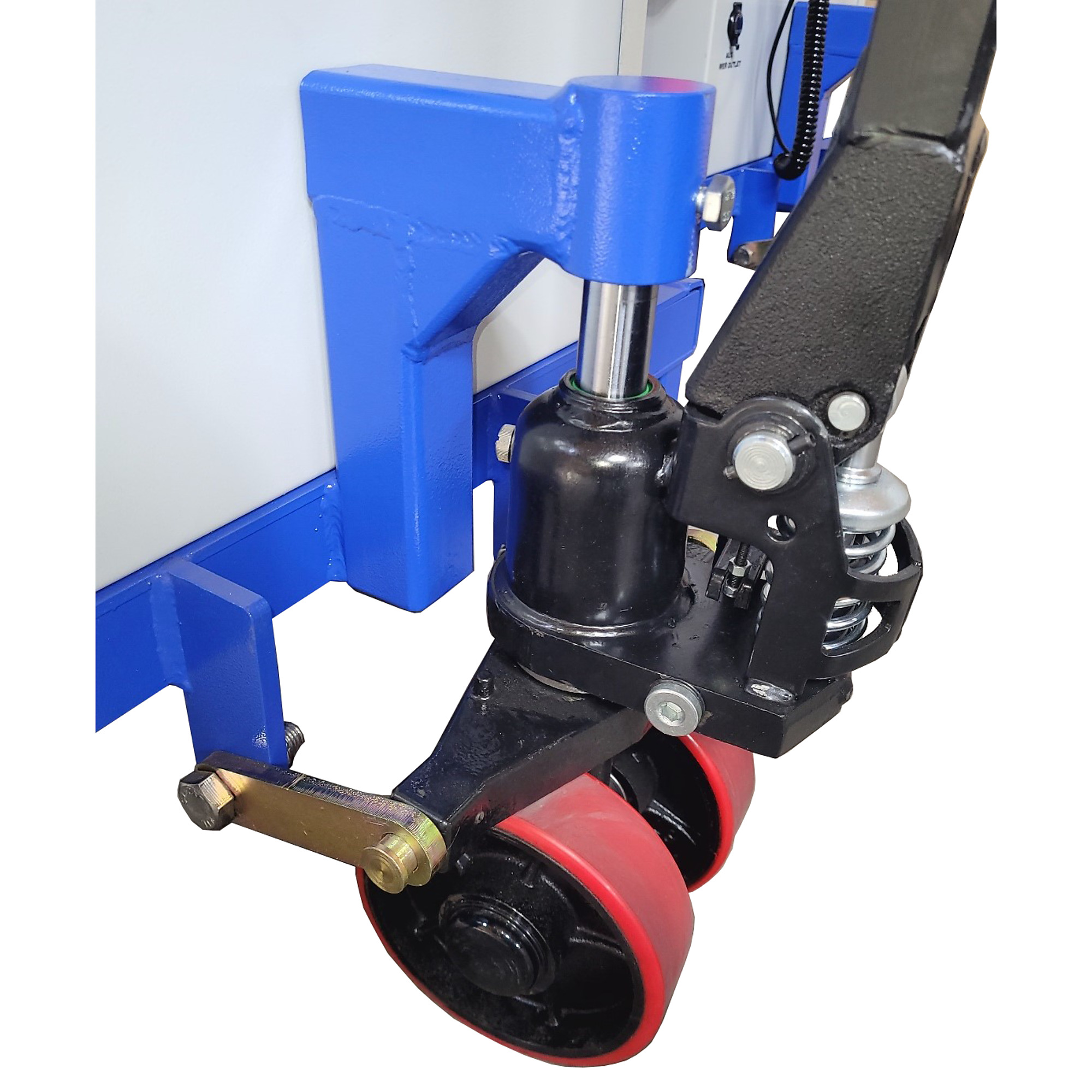

The iDEAL LT-PT3300DC-X is a 3,300 lb. portable, high-rise commercial / industrial grade 12VDC battery powered electric-hydraulic lift table, incorporating a multi-adjustable powertrain platform primarily designed to assist with controlled lifting lowering tasks to safely remove, replace or service heavy vehicle powertrain components such as engines, transmissions, drive-axle transaxle assemblies, or other similar heavy components. The LT-PT3300DC-X comes standardly equipped with a durable powertrain platform that includes extendable length, tilt height adjustments, while also incorporating a fully operational remote hand controller control box panel buttons for dual operational control operations. Also included is a high quality deep-cycle 12VDC sealed battery, integrated battery charger and 12VDC auxiliary outlet port. In addition, the iDEAL Powertrain 3300 lb. lift table comes standard with a pallet jack dolly with poly casters, leg support stands, front locking swivel directional poly casters, tool tray, double lift scissors, powerful DC electric motor, dual hydraulic cylinders, tie-down anchors, and heavy duty ratchet strap. Optional Accessories include a ‘quick mount’ PT Support Stand Kit 12VDC LED Spot Light with magnetic base.

What's Included

    (1) table

Features + Benefits

  • 3,300 LBS CAPACITY
  • INNOVATIVE, HIGH QUALITY PORTABLE SCISSOR LIFT DESIGN
  • EFFICIENT & SAFE METHOD TO INSTALL OR REMOVE HEAVY VEHICLE POWERTRAIN COMPONENTS IE: TRANSMISSIONS, ENGINES OR AXLE
  • 12VDC BATTERY OPERATION W/ INTEGRATED 110V BATTERY CHARGE
  • DOUBLE SCISSOR HD DESIGN W/ DUAL HQ HYDRAULIC CYLINDER

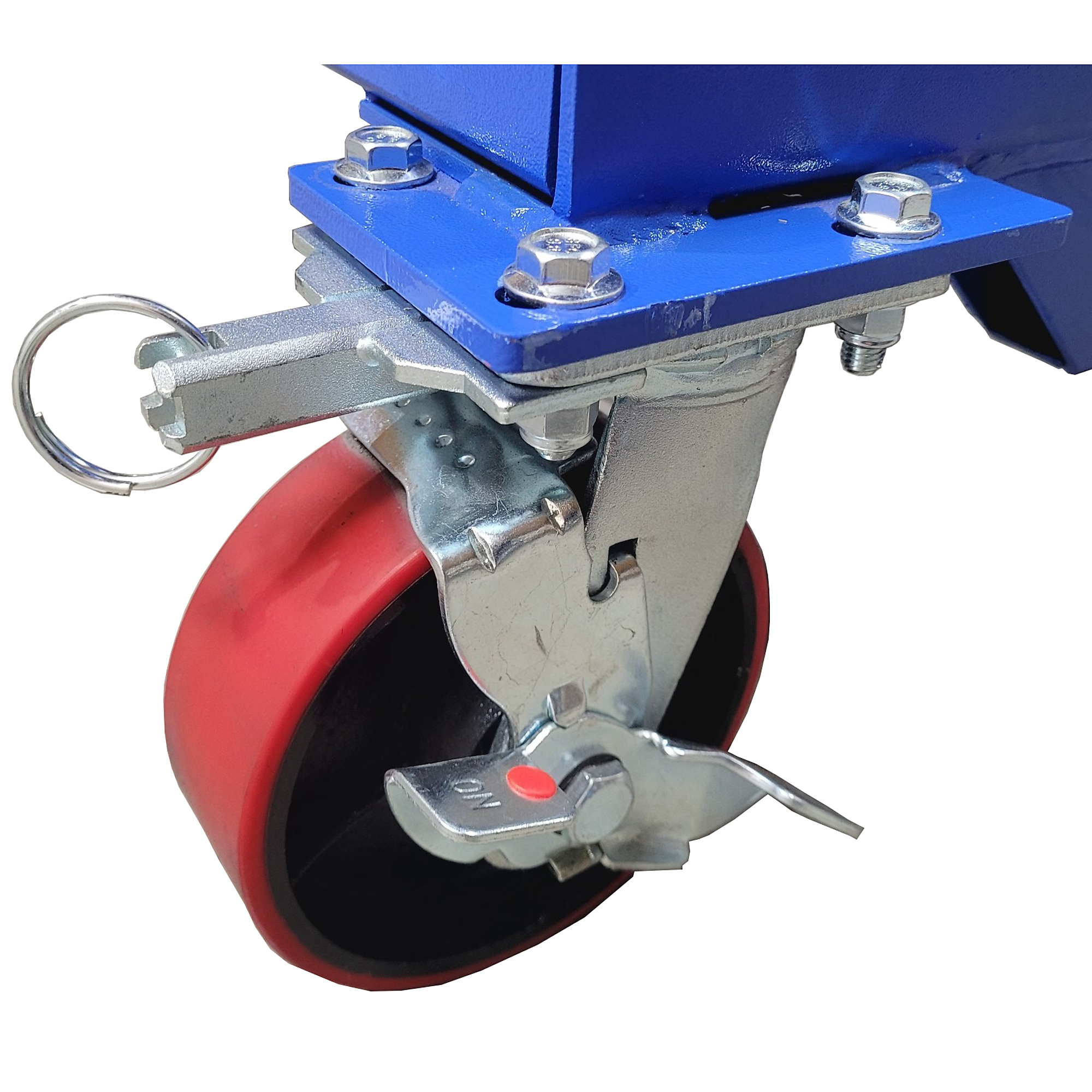

  • DURABLE 'DIRECTIONAL & LOCKING' 6" POLY SWIVEL CASTERS

Key Specs

AttributeSpecification

item#

6150085

Brand

iDEAL by Tuxedo

Manufacturer's Warranty

1 year limited warranty

Ship Weight

908.0 LB

Capacity

3,300 lb

Lowered Height

35 in

Raised Height

72 in
AttributeSpecification

Platform Length

36.7 in

Platform Width

23.6 in

Material

Steel

Tilting

Yes

Product Weight

908.0000 lb

Dimensions L x W x H (in.)

63.0 x 35.5 x 40.0 in
