iDEAL by Tuxedo, 2500lbs Powertrain Platform Lift Table, Capacity 2500 lb, Lowered Height 35 in, Raised Height 72 in, Model# LT-PT2500AH-X

Item# 6131773
iDEAL by Tuxedo, 2500lbs Powertrain Platform Lift Table, Capacity 2500 lb, Lowered Height 35 in, Raised Height 72 in, Model# LT-PT2500AH-X

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

iDEAL by Tuxedo, 2500lbs Powertrain Platform Lift Table, Capacity 2500 lb, Lowered Height 35 in, Raised Height 72 in, Model# LT-PT2500AH-X

Click or Tap image to Zoom

$6650.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 2,500 LBS CAPACITY
  • INNOVATIVE, HIGH QUALITY PORTABLE SCISSOR LIFT DESIGN
  • FULL OPERATION AIR SYSTEM HAND CONTROLS FOR LIFTING, LOCKING & LOWERING
  • COMPRESSED AIR / HP HYDRAULIC OPERATION (90 TO 125 PSI)
  • DOUBLE SCISSOR HD DESIGN W/ HQ HYDRAULIC CYLINDER

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The iDEAL LT-PT2500AH-X is a 2,500 lb. portable, high-rise industrial grade air-hydraulic lift table, incorporating a multi-adjustable powertrain platform primarily designed to assist with controlled lifting lowering tasks to safely remove, replace or service heavy vehicle powertrain components such as engines, transmissions, drive-axle transaxle assemblies, or other similar heavy components. The LT-PT2500AH-X comes standardly equipped with a durable multi-adjustable powertrain platform that includes extendable length, tilt height adjustments, while also incorporating an exclusive fully operational pneumatic hand operated ‘stainless-steel’ control panel with integrated air gauge water separator. In addition, iDEAL Powertrain 2500 lb. Lift Table comes standard with high-quality locking swivel directional poly casters, tool tray, removable hand bar, double scissor design, HD air-hydraulic pump hydraulic cylinder, tie-down anchors, and heavy duty ratchet strap all combined to provide maximum strength, stability, and safety for added efficiency and convenience. Optional ‘quick mount’ PT Support Stand Kit also available, providing additional support for various powertrain components.

What's Included

    (1) table

Features + Benefits

  • 2,500 LBS CAPACITY
  • INNOVATIVE, HIGH QUALITY PORTABLE SCISSOR LIFT DESIGN
  • FULL OPERATION AIR SYSTEM HAND CONTROLS FOR LIFTING, LOCKING & LOWERING
  • COMPRESSED AIR / HP HYDRAULIC OPERATION (90 TO 125 PSI)
  • DOUBLE SCISSOR HD DESIGN W/ HQ HYDRAULIC CYLINDER

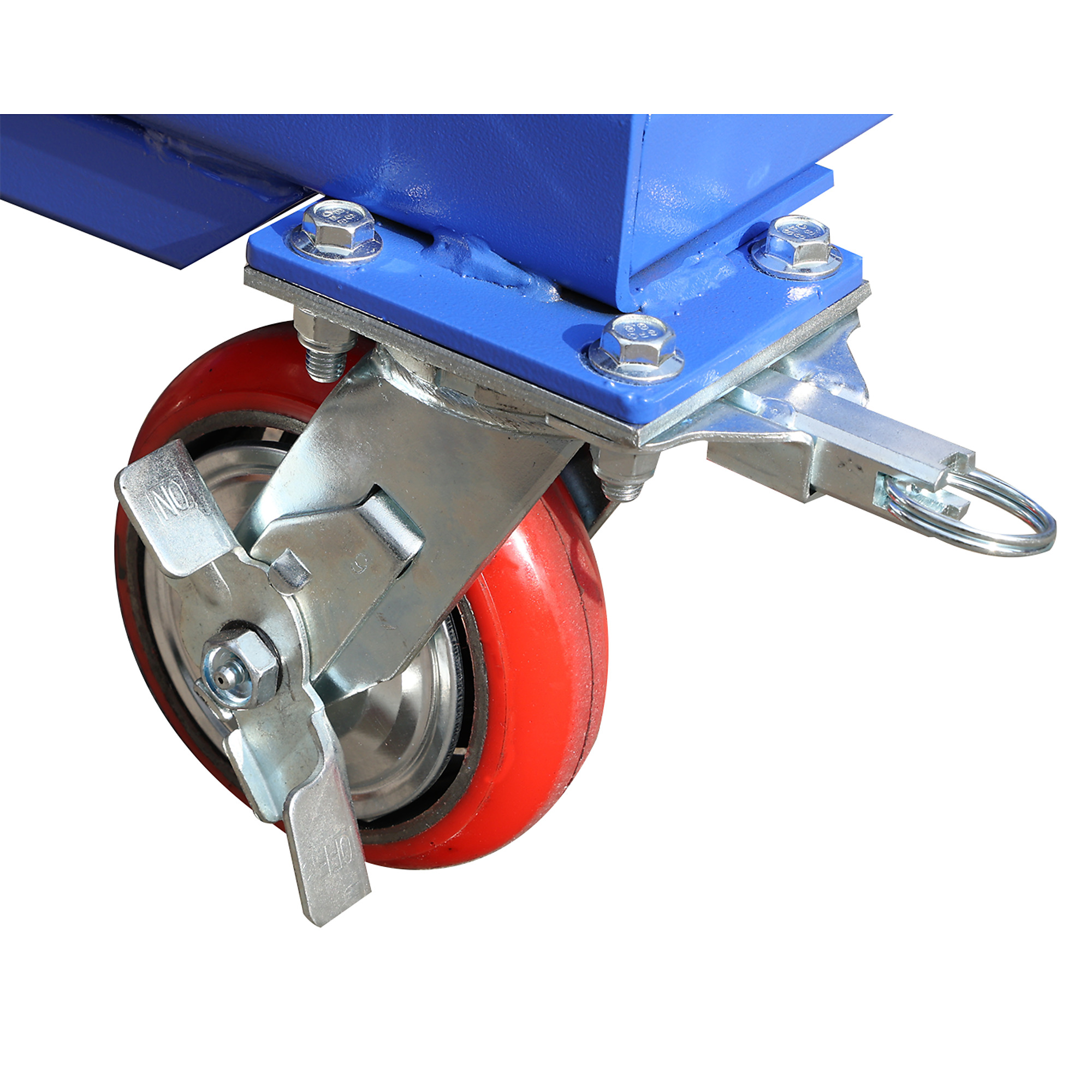

  • DURABLE 'DIRECTIONAL & LOCKING' 6" POLY SWIVEL CASTERS

Key Specs

AttributeSpecification

item#

6131773

Brand

iDEAL by Tuxedo

Manufacturer's Warranty

1 year limited warranty

Ship Weight

798.0 LB

Capacity

2,500 lb

Lowered Height

35 in

Raised Height

72 in
AttributeSpecification

Platform Length

36.7 in

Platform Width

23.6 in

Material

Steel

Tilting

Yes

Product Weight

798.0000 lb

Dimensions L x W x H (in.)

59.0 x 35.5 x 40.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
