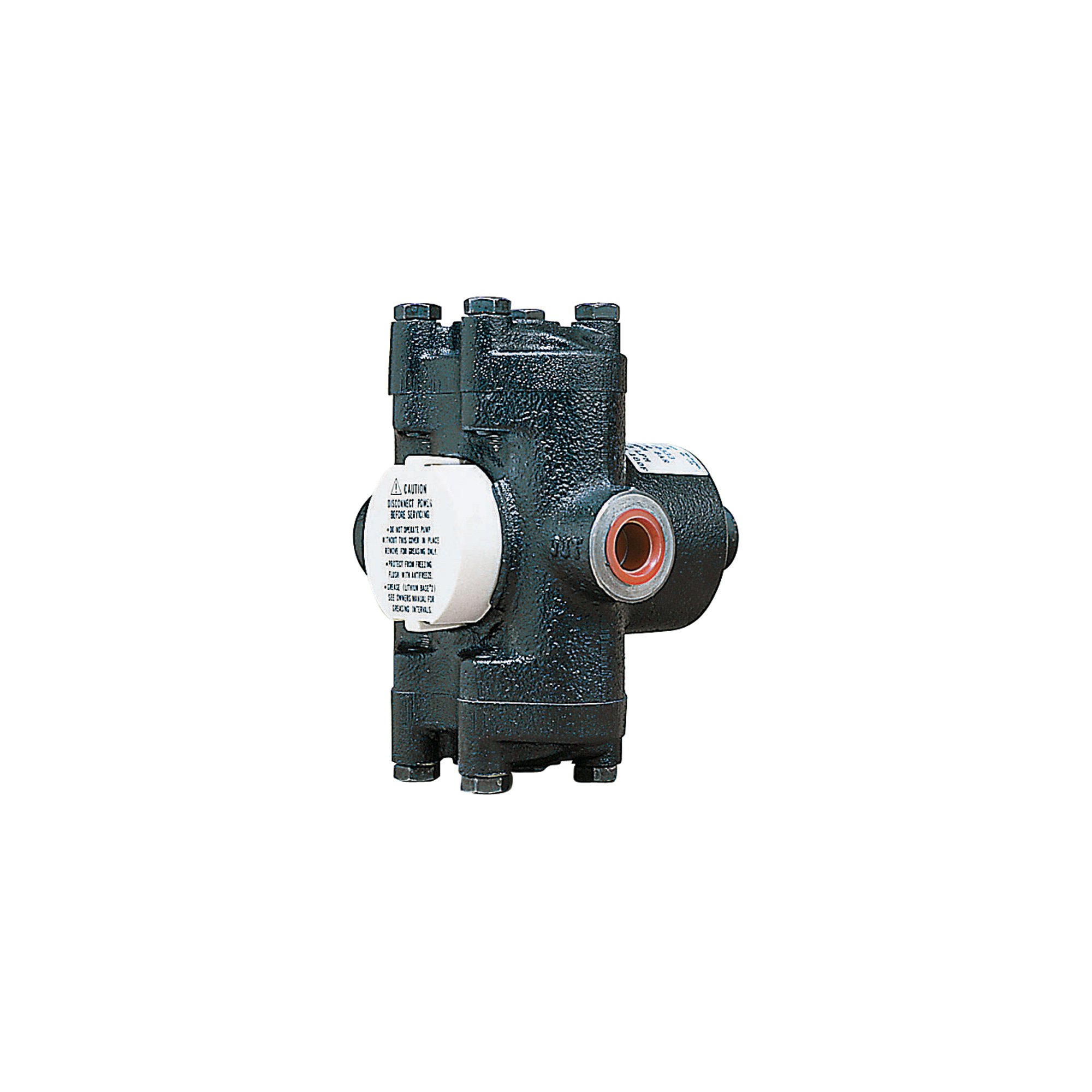

Hypro Twin-Plunger Pressure Washer Pump — 1000 PSI, 2.25 GPM, Model# 5321C-H

Item# 15620
Hypro Twin-Plunger Pressure Washer Pump — 1000 PSI, 2.25 GPM, Model# 5321C-H

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Hypro Twin-Plunger Pressure Washer Pump — 1000 PSI, 2.25 GPM, Model# 5321C-H

Click or Tap image to Zoom

  • 132 GPH
  • 1/2in. NPT inlet and outlet ports
  • 5/8in. I.D. hollow shaft
  • Can be driven at motor speeds up to 1800 RPM
  • Steel base fits a 56 frame motor; only 1.5 HP required

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Hypro Twin-Plunger Pressure Washer Pump features specially designed cylinder heads reinforced to withstand the demands of high pressure spraying.

Features + Benefits

  • 132 GPH
  • 1/2in. NPT inlet and outlet ports
  • 5/8in. I.D. hollow shaft
  • Can be driven at motor speeds up to 1800 RPM
  • Steel base fits a 56 frame motor; only 1.5 HP required
  • Pump handles water temps up to 180°F
  • Unitized valve assemblies with stainless steel seat, spring and poppets for long life
  • Torque arm furnished
  • Pressure-tested cast iron housing

Key Specs

AttributeSpecification

item#

15620

Brand

Hypro

Manufacturer's Warranty

12 months parts / 12 months labor

Ship Weight

10.6 LB

Max. PSI

1,000
AttributeSpecification

GPM

2.25

Horsepower

1.5 HP

Product Type

Pump

Shaft Diameter

0.625 in

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. Will this be very sensitive to dirty feedwater?

    I am hoping to use this as a pump for a closed loop boiler system that had some oil in it. Any particles in the water should be very small due to a 10 micron filter protecting it. Is this style pump able to handle small amounts of contamination in the water like this?

    1 answer

    1. The manufacturer recommends the pump for use if a small amount of oil mixes with the water. The pump can not handle any particles. Maximum water temperature recommended is 108 degrees.

      Helpful?

  2. Can this be run at a lower power for lower flow and pressure?

    I am looking for a pump that only needs to deliver 6-15 gph at 135psi with input water temperature of around 140 F. Is it possible to just run this pump with a weaker motor to deliver the flow rate I need? It's not for a pressure washer.

    1 answer

    1. Yes, you can put a weaker motor on this pump to drive a lower GPH and PSI. It has a maximum RPM of 1725. You will need to figure at what RPM you will need for your motor to produce the flow rate you need.
