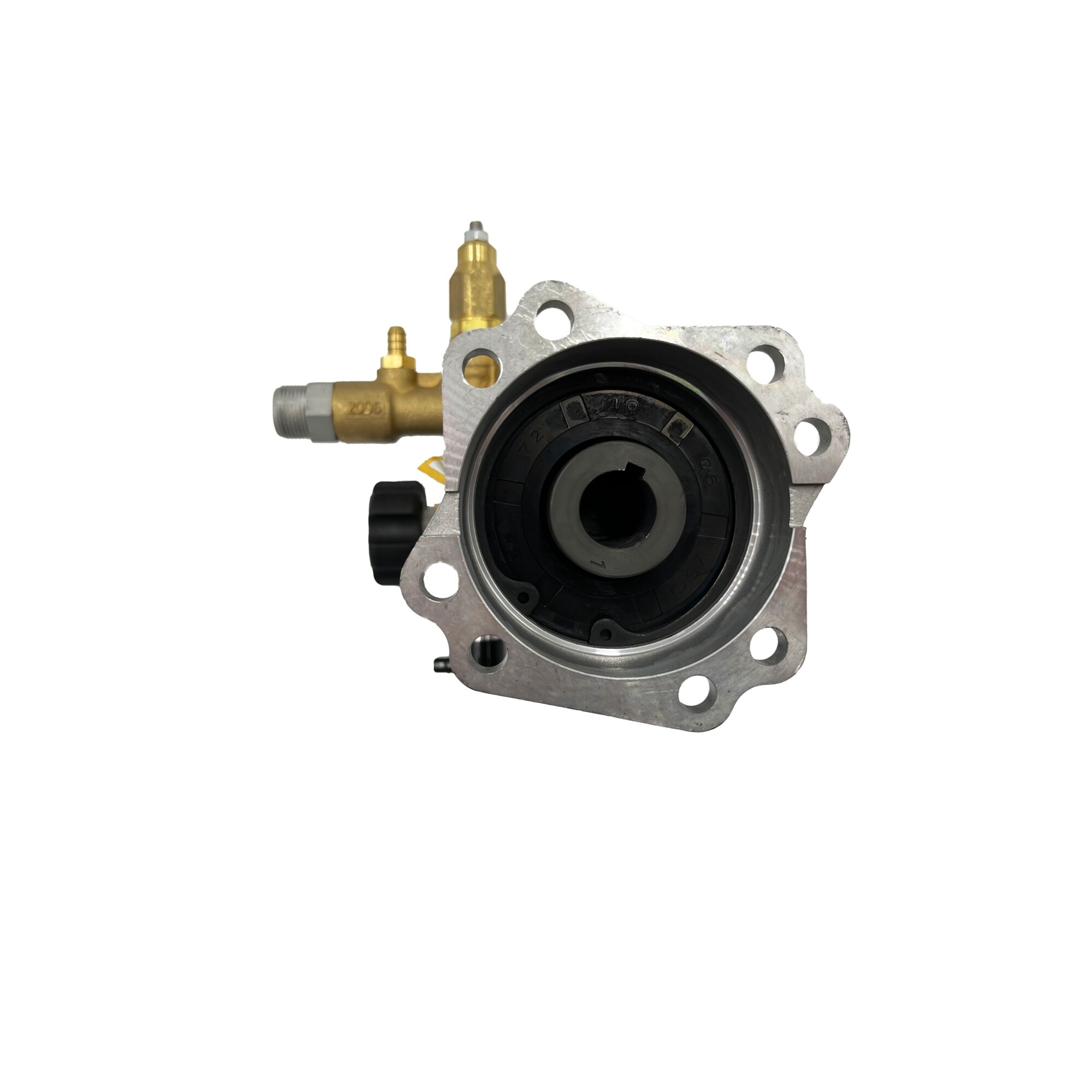

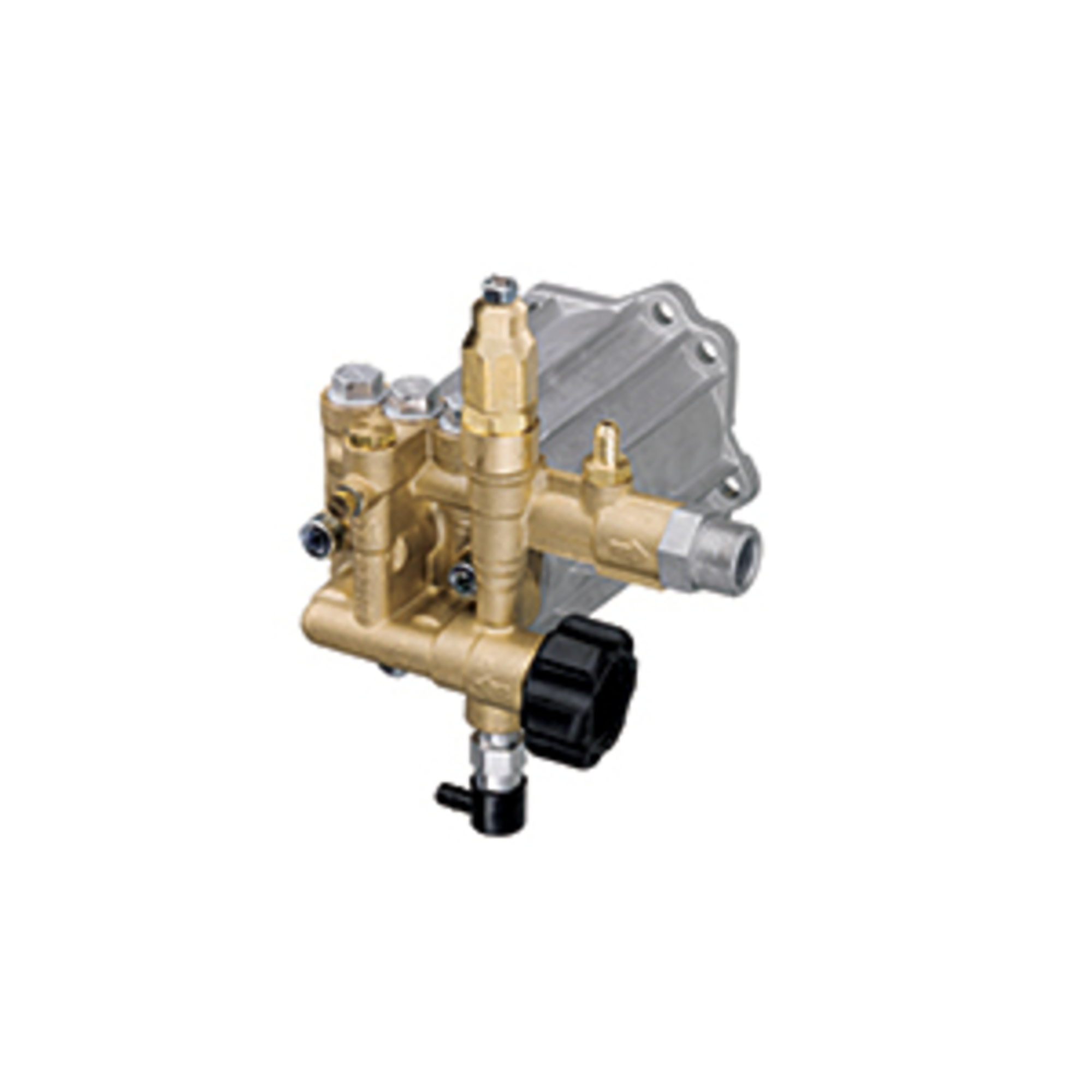

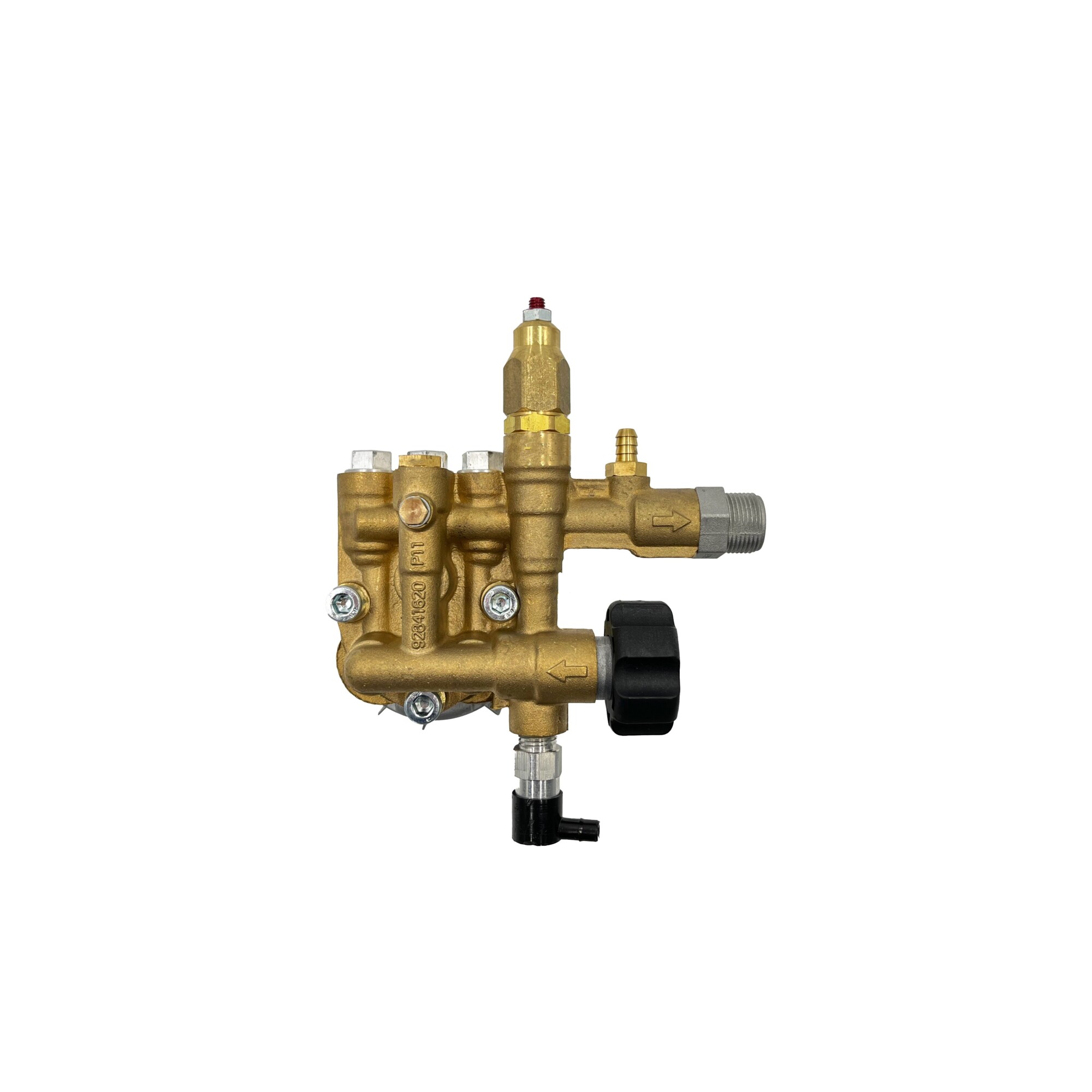

AR North America Horizontal Pressure Washer Pump, 3000 PSI, 2.5 GPM, Gas, Model# RMV25G30D-EZ-PKG

Item# 30147
"AR North America Horizontal Pressure Washer Pump, 3000 PSI, 2.5 GPM, Gas, Model# RMV25G30D-EZ-PKG"
AR North America Horizontal Pressure Washer Pump, 3000 PSI, 2.5 GPM, Gas, Model# RMV25G30D-EZ-PKG

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

AR North America Horizontal Pressure Washer Pump, 3000 PSI, 2.5 GPM, Gas, Model# RMV25G30D-EZ-PKG

Click or Tap image to Zoom

$432.95

  • Shipping:

    Factory shipped

  • Store Pickup:

  • 3/4in. hollow shaft
  • EZ Start valve
  • Gas engine flange
  • Thermal relief valve
  • Detergent tube with filter

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • AR North America Horizontal Pressure Washer Pump, 3000 PSI, 2.5 GPM, Gas, Model# RMV25G30D-EZ-PKG
  • MAG 1 Pressure Washer Pump Oil, 30W, Universal Use, 32oz.
  • NorthStar Pressure Washer Pump Freeze Guard, 12 Oz.
  • 3M Reusable Corded Earplugs, NRR 25dB, Model# 90586-80000
Price for all four:

$460.92

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Annovi Reverberi RMV25G30D-EZ-PKG, EZ version 3/4in. hollow shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The RMV25G30D-EZ-PKG can produce up to 3000 Max PSI, 2.5 Max GPM, and is designed to operate at 3400 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the RMV25G30D-EZ-PKG weighs in at 7.5 lbs and boasts a sleek compact design.

What's Included

    (1) Replacement pump

Features + Benefits

  • 3/4in. hollow shaft
  • EZ Start valve
  • Gas engine flange
  • Thermal relief valve
  • Detergent tube with filter
  • 22mm male x 14mm female high pressure hose connection

Key Specs

AttributeSpecification

item#

30147

Brand

AR North America

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1.6 LB

Max. PSI

3,000
AttributeSpecification

GPM

2.5

Product Type

Pump

Max. Temperature

140 °F

Shaft Diameter

0.75 in

Fuel Type

Gasoline

Reviews

Questions & Answers

60 Reviews This action will navigate to reviews.

Questions

1–10 of 17 Questions
Sort by:

  1. HP Required?

    Would my Honda 5 HP handle this pump?

    1. I installed this pump on a 6.5 HP Honda, works great!

      Helpful?

    2. your 5 hp engine would do just fine with this pump.

      Helpful?

    3. Yes. Great choice. Good power supply.. 5 hp would work well.

      Helpful?

    4. Mine is on a 6 HP engine and there's no bogging down whatsoever. In fact, I've got power to spare. I would feel confident putting this pump on a 5 HP engine.

      Helpful?

    5. This pump works with 5 HP engine with a 3 5/8" bolt circle and 3/4" diameter shaft.

      Helpful?

  2. Do I have to add Oil before first use?

    1. It's a sealed unit, it comes ready to use and you never have to add oil.

      Helpful?

    2. No. pump is a sealed unit. No service required.

      Helpful?

    3. I had the same question and was informed that the pump oil was added at the factory and comes as a sealed and ready to go unit . Just unbolt the old one and replace it with this one and your set !

      Helpful?

    4. No. Pump comes fully serviced. Just bolt it on and go.

      Helpful?

    5. The AR North America Horizontal Pressure Washer Pump is sealed and pre-filled with oil. It is recommended to check the oil before first use.

      Helpful?

  3. are theRMV pumps shiped with oil instaled?

    RMV25g30d-ez-pkg

    1. Pump is shipped ready to work. Oil is in pump and sealed. No service is required. Just bolt on.

      Helpful?

    2. Yes, the pump is fully serviced upon arrival. Just bolt on and go!

      Helpful?

    3. Yes, they are factory filled and sealed. There is no provision or need to check or change oil. Bolt it on, use it and forget about it.

      Helpful?

    4. The AR Pressure Washer Pump is shipped with oil installed. It's a factory sealed unit. No adding or changing of the oil is required. It's designed to last the life of the pump.

      Helpful?

    5. Yes. It is a sealed pump and per the info that came in the box it has the oil installed.

      Helpful?

  4. Pump bolt holes

    I think this pump will fit my pressure washer but I cant tell if the pump has bolt holes at the bottom as well as the top.My engine has 2 at the top and 2 at the bottom
    Thanks

    1. Yes, it has 4 mounting holes and new hex head cap screws are supplied

      Helpful?

    2. I ask same question, remove your old pump then measure bolt holes diagonally, mine was 3-1/2" pump mounted fine. Pump has 2 different bolt patterns so should work on others as well.

      Helpful?

    3. there are holes at the bottom. whether they will align with your engine I don't know.

      Helpful?

    4. This pump would have a standard 3 5/8" bolt circle. You can measure the bolt circle on your engine by measuring from center of bolt hole to center of bolt hole diagonally.

      Helpful?

  5. Connecting engine to pump

    where can I get a key/pin to fit the grooved receiver in the pump that connects to the groove on the engine shaft. Neither my AR pump or Powerhouse engine came with the groove pin. Thanks

    1. most any hardware store or auto
      parts store will have these items in stock. it would be best to take your engine with you or the pump to match the key correctly.

      Helpful?

    2. any good hardware store. it's a standard key way. just measure the slot

      Helpful?

    3. The key to fit the keyway can be purchased through our parts department at 1.800.222.5381.

      Helpful?

  6. Does this unit come with an unloader

    Is there an unloader relief built into this unit (adjustable or fixed), or is there more to buy?

    1. Unloader built in, preset from factory. My works great!

      Helpful?

    2. all parts shown come on the new pump preset and adjusted

      Helpful?

    3. This AR North America pump will include unloader relief valve. It is not adjustable.

      Helpful?

  7. What are the pistons made out of?

    1. I've opened the pump to replace the oil and it appears that the three pistons are made of stainless steel.

      Helpful?

    2. This pressure washer pump has stainless steel pistons.

      Helpful?

  8. Is there a standard bolt pattern for these pumps?

    How do I know if this pump will fit my unit? The item isn't available in the store and I am concerned that I will get something unusable.

    1. This pump has standard bolt pattern for axial pump motors in the 189cc range (5 - 6.5HP) with a horizontal output shaft. If you have a Honda or clone, it's a no brainer.

      Helpful?

    2. This pump would have a standard 3 5/8" bolt circle. You can measure the bolt circle on your engine by measuring from center of bolt hole to center of bolt hole diagonally.

      Helpful?

  9. Can you recommend a hose and wand for this pump? And if I will need any connectors.

    1. This pump comes with the hose fittings on it, both the low pressure garden hose as well as the high pressure fitting for your standard pressure washer hose. when buying a hose always make sure the pressure rating is compatible with the pump. (same pressure ratings)

      Helpful?

    2. The AR Pressure Washer Pump has a 22mm outlet. The hoses shown below have a 22mm fitting to connect to the pump. The gun/lance combo shown will work with this pressure washer hose.

      Helpful?

  10. Is this the correct replacement for a MTPV93519

    1 answer

    1. This pump will work as a replacement for a pressure washer that is rated at 3000 PSI and 2.5 GPM and has a 3/4" diameter engine shaft with a bolt pattern of 3 1/4" from top to bottom and 2 1/2 x 2 1/2 side to side (3 5/8" bolt circle).

      Helpful?
