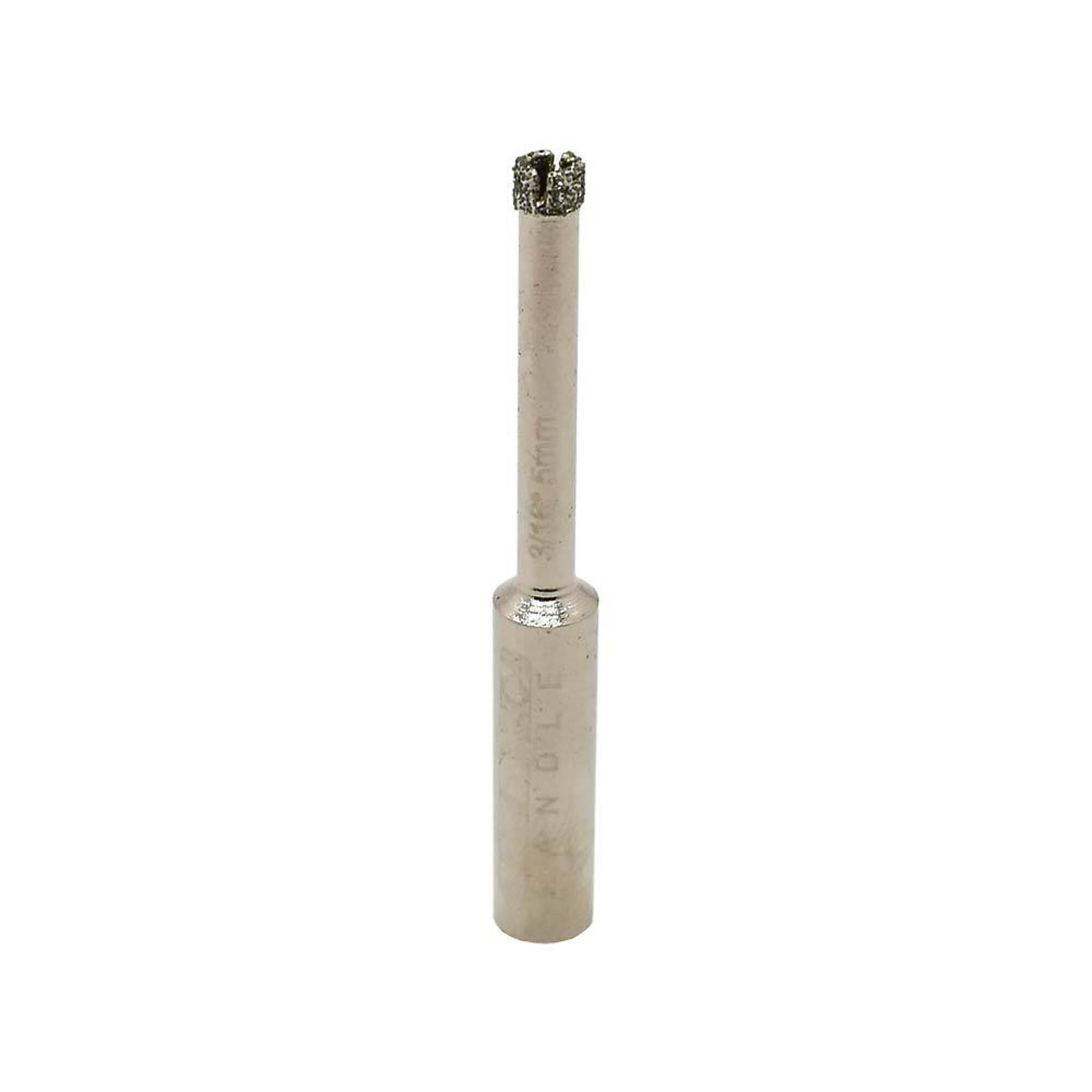

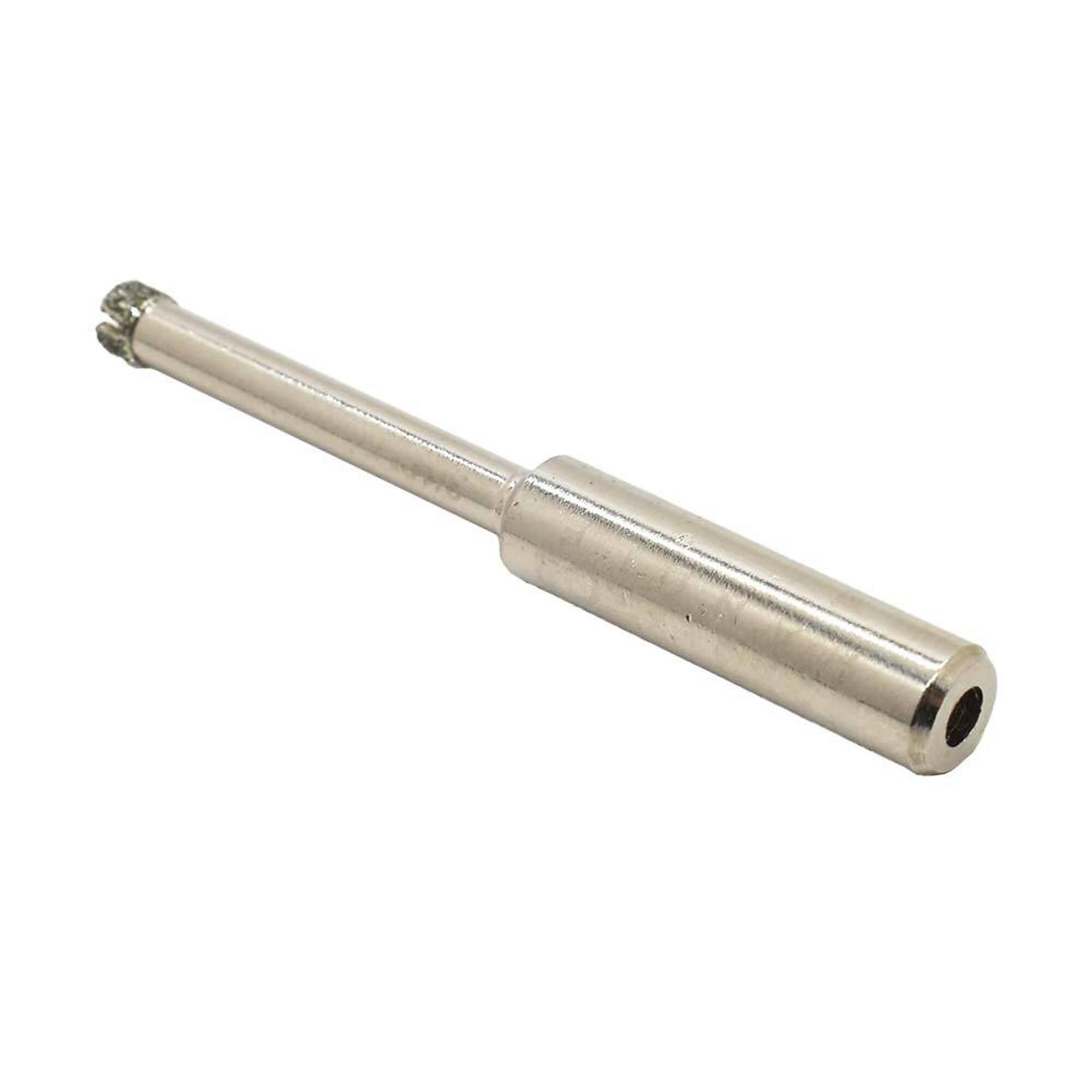

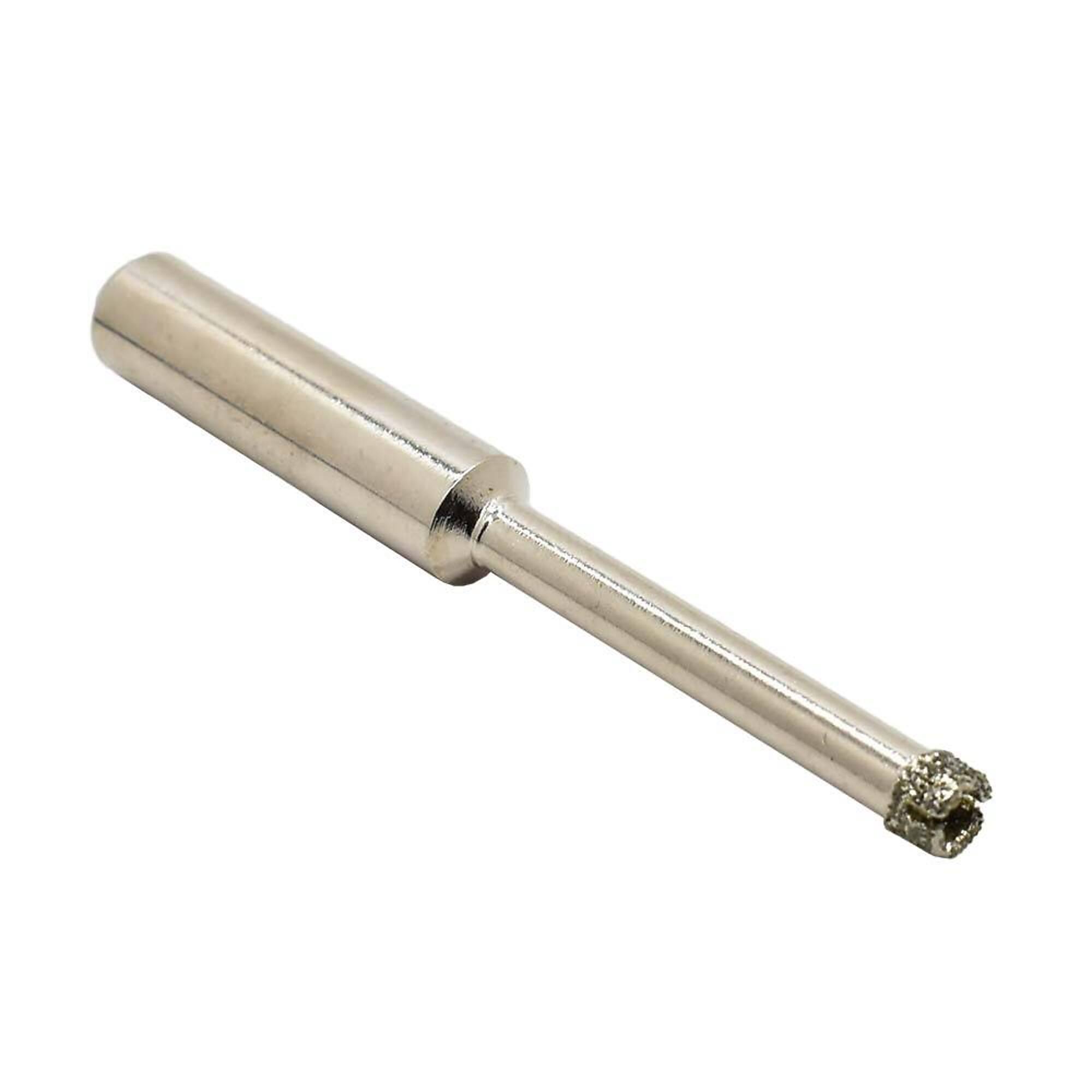

Hydro Handle HH316BIT 3/16 Inch Electroplated Diamond Bit 8 mm Shank

Item# 7382751
New
Hydro Handle HH316BIT 3/16 Inch Electroplated Diamond Bit 8 mm Shank

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Hydro Handle HH316BIT 3/16 Inch Electroplated Diamond Bit 8 mm Shank

Click or Tap image to Zoom

$5.49

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Produces precise 3/16" holes in tile, glass, quartz and marble for setting anchors, fittings and hardware with accuracy.
  • Starts cuts cleanly and prevents wandering on hard surfaces so holes align correctly without the need for tape or external guides.

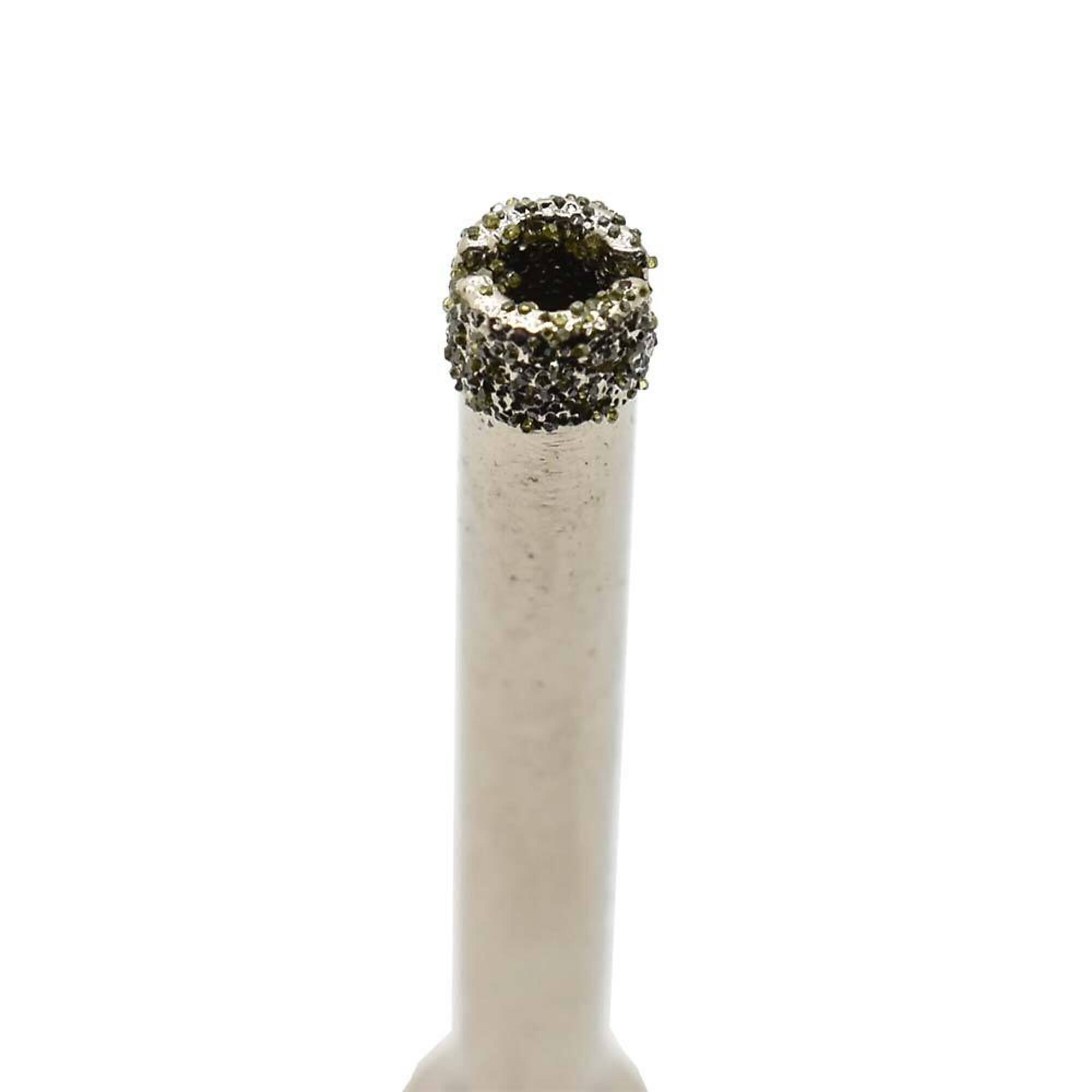

  • Cuts smoothly with an electroplated diamond coating that exposes sharp grit and protects brittle surfaces from cracks and chip-out.
  • Improves cooling and slurry removal through engineered side holes that direct water across the cutting edge.
  • Lathed one-piece steel body holds rigidity under load and resists vibration and drilling stress at high RPM.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Hydro Handle HH316BIT 3/16in. Electroplated Diamond Bit is designed for precision drilling of small holes in tile, glass, quartz, marble and other hard materials. This bit is ideal for installing anchors, fittings and hardware where accuracy is critical. The electroplated diamond coating provides a sharp cutting edge that reduces chip-out and protects brittle surfaces during drilling. Engineered side holes improve cooling and flush slurry away from the cutting edge, while the lathed one-piece steel body resists stress and vibration under high RPM use. The bit performs best when paired with water for cooling and dust suppression, yet it also supports controlled dry drilling when required. Designed with an 8 mm round shank, it fits universally in 3/8in. and 1/2in. drills for direct compatibility on the jobsite.

What's Included

    (1) 3/16 Inch Electroplated Diamond Bit 8 mm Shank

Features + Benefits

  • Produces precise 3/16" holes in tile, glass, quartz and marble for setting anchors, fittings and hardware with accuracy.
  • Starts cuts cleanly and prevents wandering on hard surfaces so holes align correctly without the need for tape or external guides.
  • Cuts smoothly with an electroplated diamond coating that exposes sharp grit and protects brittle surfaces from cracks and chip-out.
  • Improves cooling and slurry removal through engineered side holes that direct water across the cutting edge.
  • Lathed one-piece steel body holds rigidity under load and resists vibration and drilling stress at high RPM.

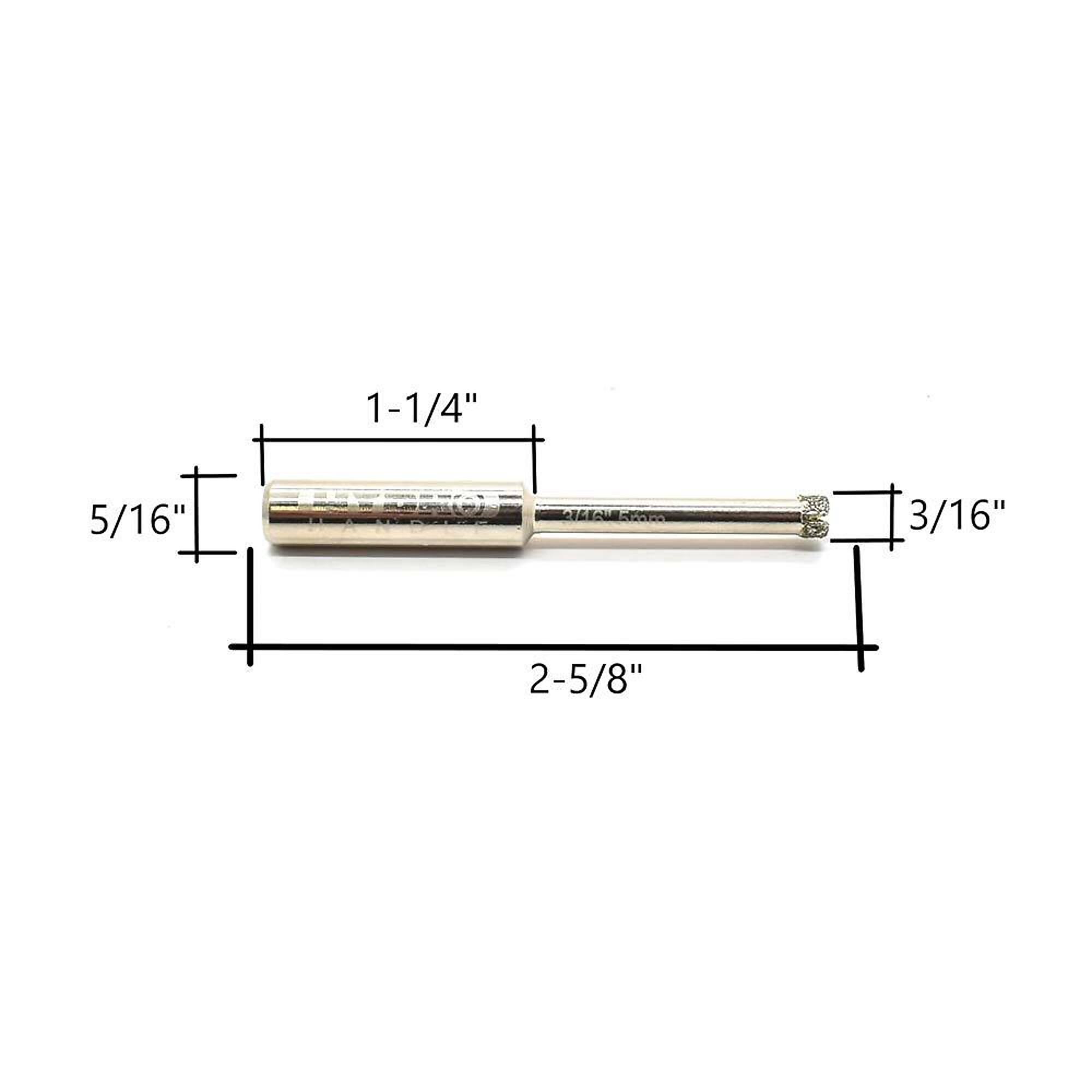

Key Specs

AttributeSpecification

item#

7382751

Brand

Hydro Handle

Manufacturer's Warranty

1 month limited warranty

Ship Weight

0.05 LB

Diameter

0.19 in

Length

2.5 in
AttributeSpecification

Material

Combination

Cutting Depth

1.5 in

Wet or Dry Cutting

Wet/Dry

Product Weight

0.0500 lb

Dimensions L x W x H (in.)

1.0 x 3.0 x 1.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 month limited warranty
