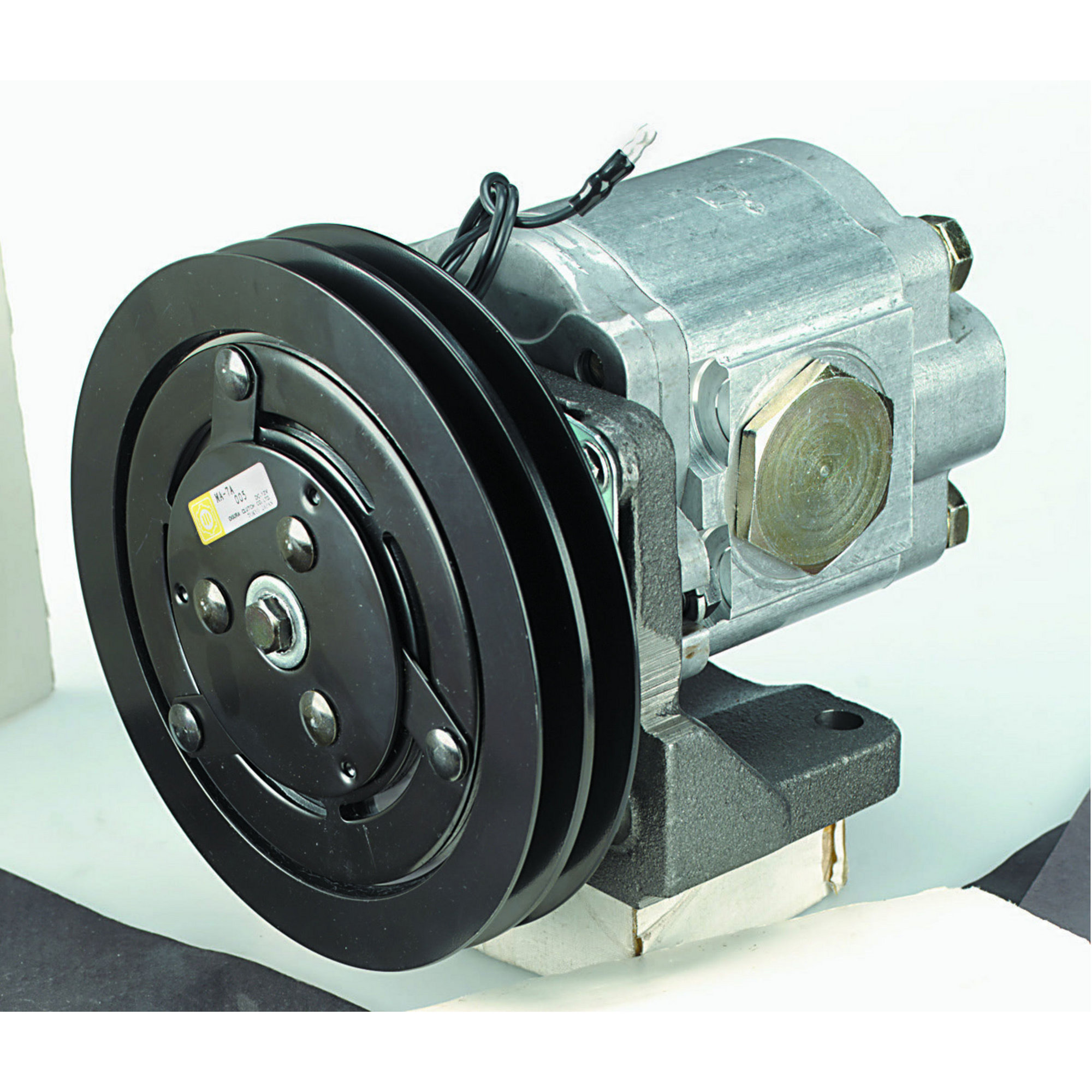

Hydraulic Clutch Pump — 8.6 GPM @ 1,200 RPM

Item# 1081
Hydraulic Clutch Pump — 8.6 GPM @ 1,200 RPM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Hydraulic Clutch Pump — 8.6 GPM @ 1,200 RPM

Click or Tap image to Zoom

  • GPM @ RPM:
  • 8.6 @ 1,200
  • 14.5 @ 2,000
  • 21.6 @ 3,000

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Each pump operates off truck or equipment engines. Mounted in line with engine belt 2 groove pulley. 7in. pulley diameter. Takes two type A 1/2in. belts. Clockwise rotation. Foot mounts with two 1/2in. holes. Maximum pressure 3,000. 1 1/4 in. SAE inlet, 3/4 in. SAE outlet.

Features + Benefits

  • GPM @ RPM:
  • 8.6 @ 1,200
  • 14.5 @ 2,000
  • 21.6 @ 3,000

Key Specs

AttributeSpecification

item#

1081

Manufacturer's Warranty

18 months parts / 18 months labor

Ship Weight

34.2 LB
AttributeSpecification

Max. PSI

3,000

Max. Flow Rate

21.6 GPM

Reviews

Questions & Answers

Questions

1–8 of 8 Questions
Sort by:

  1. Port locations

    Does this pump also have ports on the side that can be used? As in the photo cheers

    1 answer

    1. This pump has two ports that are 1-1/4 SAE inlet on one side, and 3/4 SAE outlet on the opposite side.
      There are no other ports.

      Helpful?

  2. can i buy the pump only ihave bracket and clutch

    1 answer

    1. The pump on this unit can be purchased separately. It is our part #MA2.5PB25D-R37521. For price and availability, or to place an order for one, please call our Parts Department at 1.800.657.0516.

      Helpful?

  3. Is there a serpentine pulley available for this or just v belt?

    1 answer

    1. At this time, Northern Tool does not offer a serpentine pulley for this hydraulic clutch pump.

      Helpful?

  4. what is the recommended minimum horse power required for this unit?

    1 answer

    1. To determine the horsepower required for this pump, you would need to know the GPM and PSI you are going to run it at. Example: maximum PSI of 3000 at 14.5 GPM = 43500 divided by 1371 = 31.7 horsepower.

      Helpful?

  5. What is the mounting orientation?

    Can I mount this so the shaft is vertical? Can I mount it any way I want?

    1 answer

    1. This hydraulic pump is only intended to run with the shaft horizontal. The pump should be oriented so the base mounting plate is on the bottom.

      Helpful?

  6. Is it wired for an on/off switch that you add?

    1 answer

    1. Electrical wiring is in place for a connection to the vehicle's 12V DC system using a 15 amp fuse and a separate on/off switch that would be additional.

      Helpful?

  7. Is there an electric on/off switch with these pumps?

    1 answer

    1. These Hydraulic Clutch Pumps do not feature an electric on/off switch.

      Helpful?

  8. What are the dimensions of this pump and where are the hook up ports

    1 answer

    1. The overall dimensions of the clutch pump are 8 5/8" x 7" x 7" (L x W x H). The inlet and outlet ports are on the rear side of the pump.

      Helpful?

Warranty

Manufacturer's Warranty

18 months parts / 18 months labor
