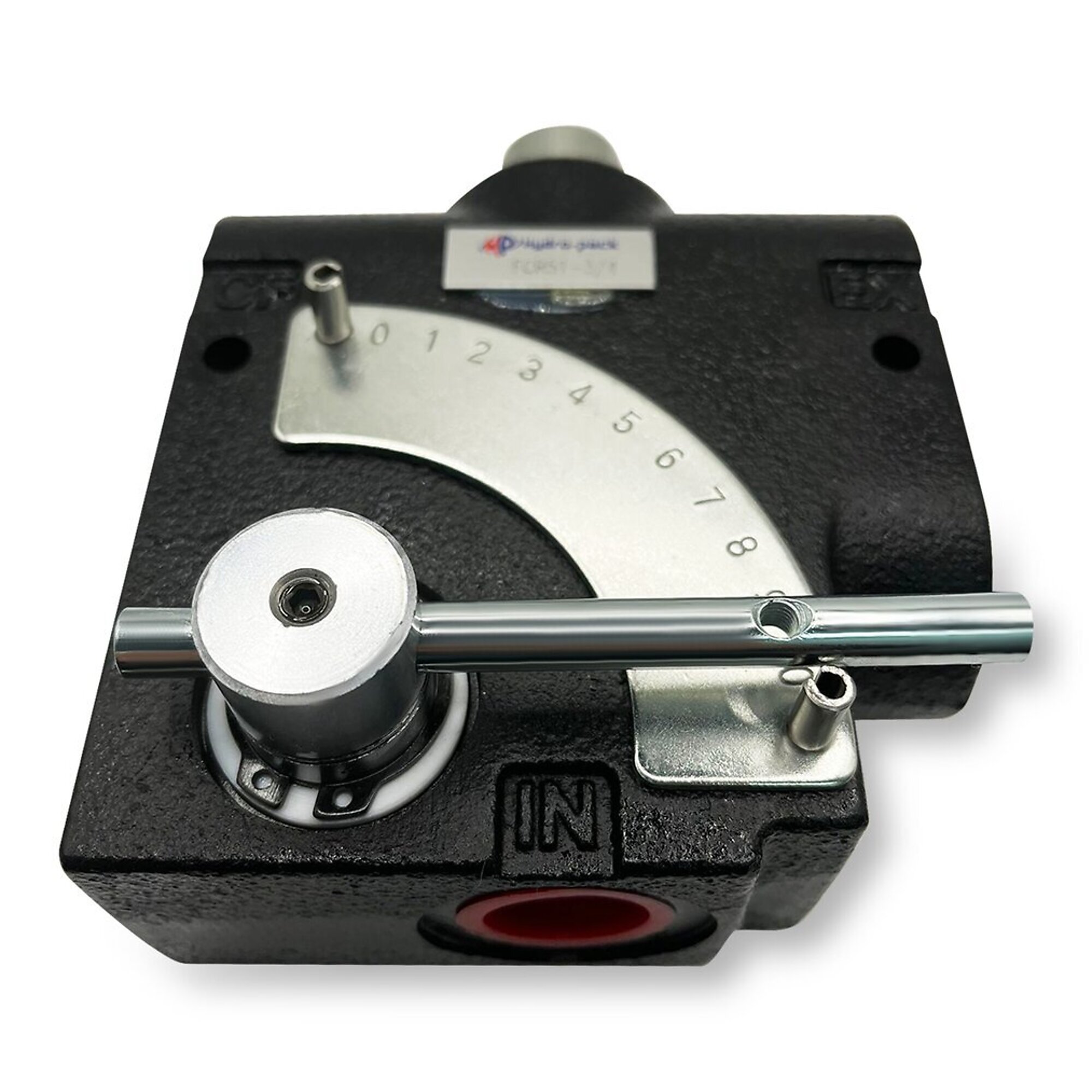

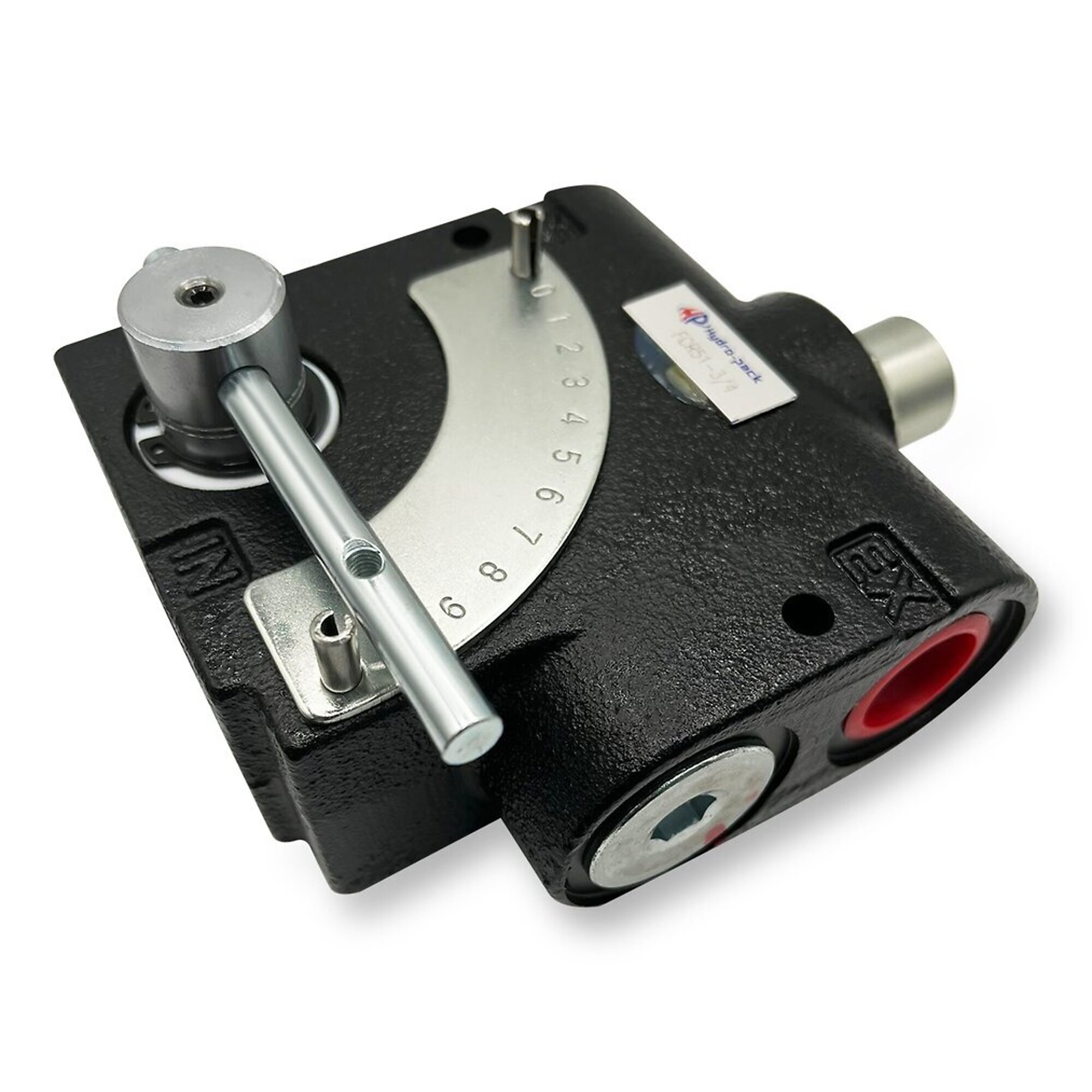

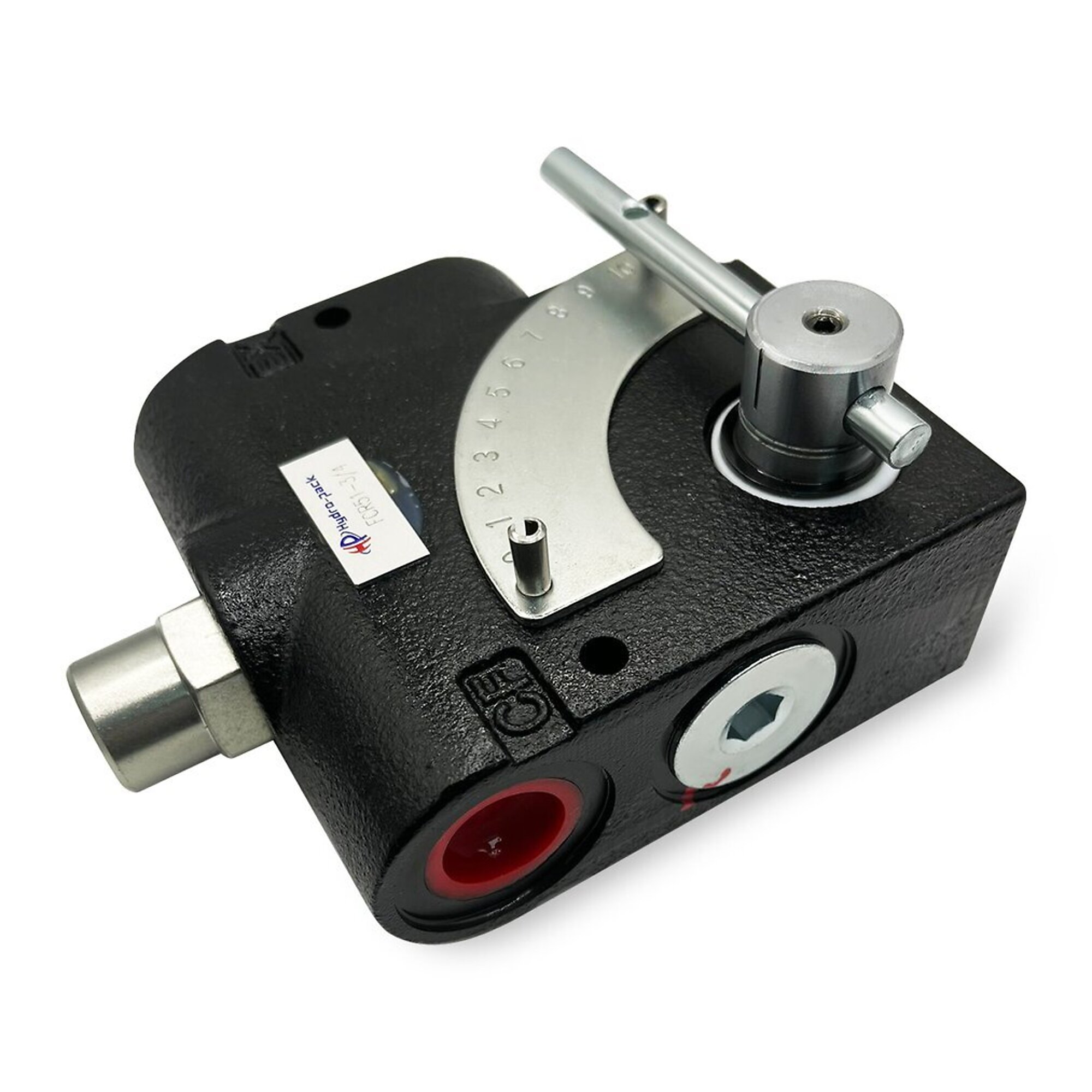

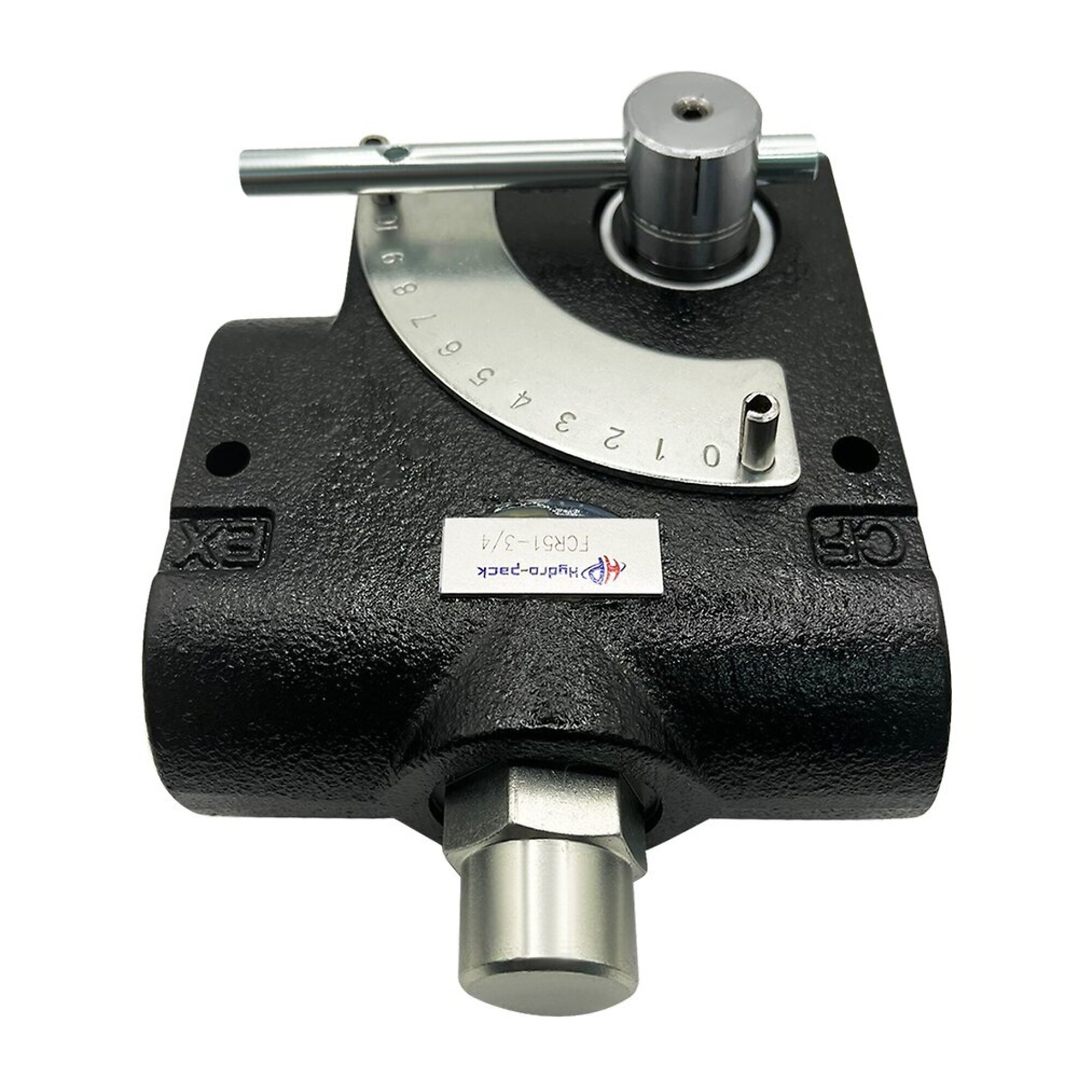

Hydraulic Adjustable Variable Flow Control Valve, 0-30 GPM, 3/4? NPT

Item# 7454638
New
Hydraulic Adjustable Variable Flow Control Valve, 0-30 GPM, 3/4? NPT

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Hydraulic Adjustable Variable Flow Control Valve, 0-30 GPM, 3/4? NPT

Click or Tap image to Zoom

$155.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Made in Europe, American Standards
  • Cast iron body
  • Heat treated compensator spool
  • Stainless steel rotary spool
  • Buna-n "O" rings

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

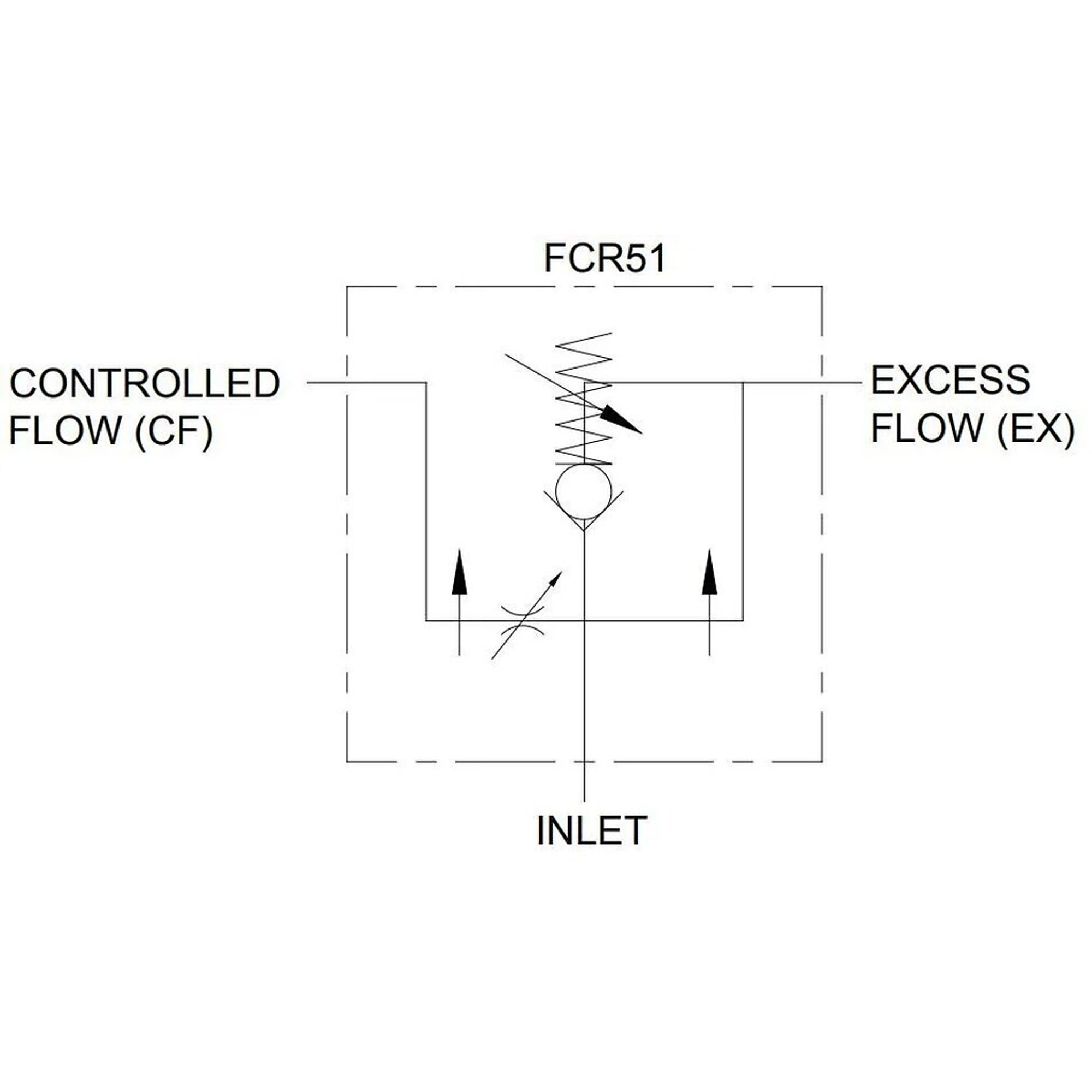

Hydraulic Adjustable Variable Flow Control Valve, 0-30 GPM, 3/4in. BSPP (fitting to 3/4in. NPT female). This valve is a full-range pressure compensating variable flow control. It is designed so that the orifice area varies as the lever is rotated. The outlet flow is smooth and constant regardless of the pressure on the control flow or excess flow ports. An adjustable ball spring relief allows for pressure compensated flow up to the pressure setting on the relief. Relief valves are preset at 1500 PSI and field adjustable from 75 to 3000 PSI (max). 180 F Filtration 17/14/19 For use with mineral based hydraulic fluid Side port configuration 100% Tested before dispatch External seals on rotary spool prevent contamination from locking up spool Made in Europe utilizing American standards, can operate under temperature anywhere from - 40F and up to 180F.

What's Included

    (1) Hydraulic Adjustable Variable Flow Control Valve, 0-30 GPM, 3/4? NPT

Features + Benefits

  • Made in Europe, American Standards
  • Cast iron body
  • Heat treated compensator spool
  • Stainless steel rotary spool
  • Buna-n "O" rings

Key Specs

AttributeSpecification

item#

7454638

Brand

Magister Hydraulics

Manufacturer's Warranty

1 year limited warranty

Ship Weight

8.0 LB

GPM

0
AttributeSpecification

Working Port

3/4 NPT in

Max. PSI

3,000

Body Material

Cast Iron

Product Weight

8.0000 lb

Dimensions L x W x H (in.)

8.0 x 6.0 x 4.0 in
