HY-C Type 2 Stove Board, 52in.L x 36in.W x 1in.H, Model# T2UL3652BL-1C

Item# 101792
1 Included
HY-C Type 2 Stove Board, 52in.L x 36in.W x 1in.H, Model# T2UL3652BL-1C

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

HY-C Type 2 Stove Board, 52in.L x 36in.W x 1in.H, Model# T2UL3652BL-1C

Click or Tap image to Zoom

$174.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

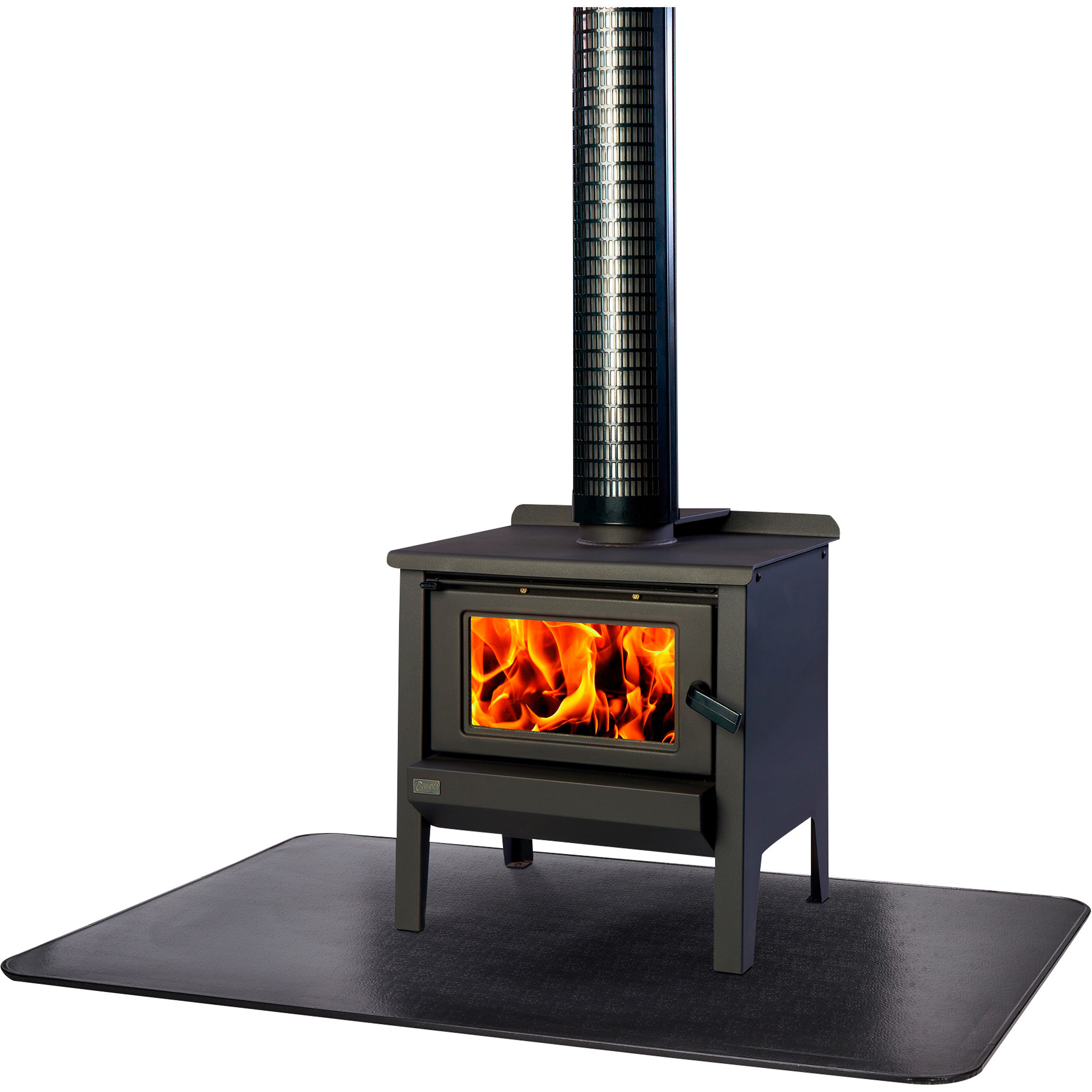

  • Use as a stove board or hearth extender to protect the floor in front of your fireplace
  • Use as a wall shield to protect your walls from intense heat
  • Can be used under other heating appliances such as kerosene, gas and electric heaters
  • Tested to UL1618 -R-Value: 1.56

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The HY-C Type 2 Stove Board is an essential wood burning stove accessory that can be used beneath wood burning appliances or on the wall behind them to protect against intense heat. This Type 2 UL1618 stove board provides non-combustible thermal and ember protection for floors and walls from the intense heat, hot coals, ashes and soot that wood burning appliances can produce. The construction is embossed printed steel and 1/2in. thick, specially formulated fiber board backing. The HY-C Connector Kit (Model #ULCK) and Wall Spacer Kit (Model #ULSK) are sold separately to connect multiple stove boards and to install the stove board as a wall shield.

What's Included

    (1) Stove board

Downloads

Product Manual

Features + Benefits

  • Use as a stove board or hearth extender to protect the floor in front of your fireplace
  • Use as a wall shield to protect your walls from intense heat
  • Can be used under other heating appliances such as kerosene, gas and electric heaters
  • Tested to UL1618 -R-Value: 1.56

Key Specs

AttributeSpecification

item#

101792

Brand

HY-C Company

Manufacturer's Warranty

3 month limited warranty

Ship Weight

28.0 LB

Included (qty.)

1

Material

Multiple
AttributeSpecification

Compatible With

Wood Stoves, Kerosene, Gas and Electric Heaters

Length

52 in

Height

1 in

Product Weight

24.0000 lb

Dimensions L x W x H (in.)

52.0 x 36.0 x 1.0 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. If I need two of these should provide adequate coverage under my kiln, can they just be laid adjacent to one another or must they be attached and sealed at the joint somehow? If the latter, how would that be done?

    1 answer

    1. They must be attached and secured to use 2 of them. A board connector kit would be available through the manufacturer.

      Helpful?

  2. Well, this damage the flooring beneath it is set on top of LPV flooring under a kiln?

    1 answer

    1. It is recommended that the stove board be used in conjunction with a cement board. It is recommended to have at least 12 inches beyond the kiln's footprint in all directions. It is not recommended to use the stove board only.

      Helpful?

  3. can this board be used under a wood burning stove?

    1 answer

    1. The stove board can be used beneath wood burning appliances.

      Helpful?

  4. How do you mount this to a wall?  Can you drive screws through it?

    1 answer

    1. When using the board as a wall shield, you will need to purchase the installation kit part number MSULSK separately. You will need to drill 1/4" holes completely through the board and into the wall behind. Northern Tool does not carry this kit. You may purchase the kit separately through our sister company Jacks Small Engine through the following link. https://www.jackssmallengines.com/

      Helpful?

  5. The product is lighter in weight than I expected. What is it made of?

    1 answer

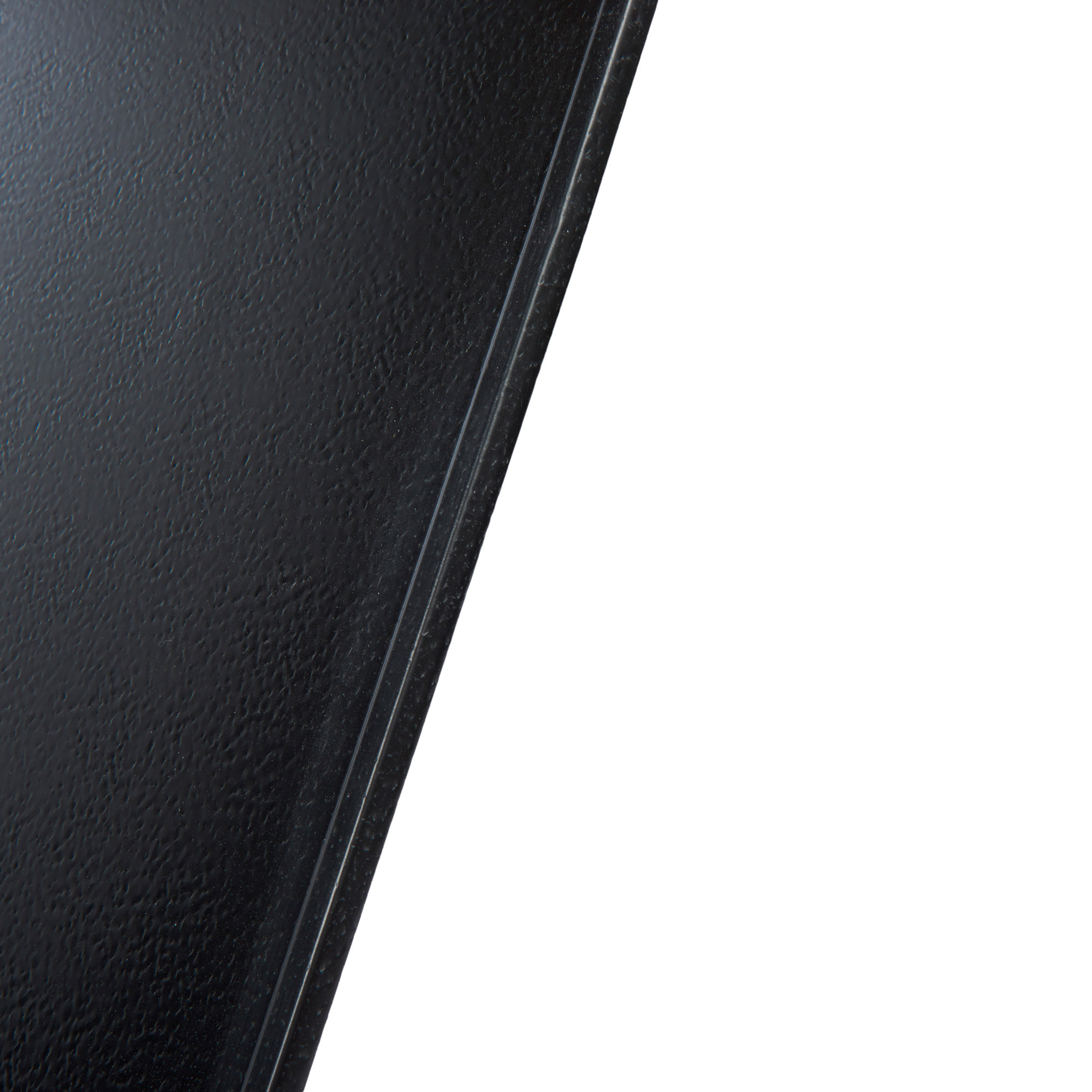

    1. The stove board is made of embossed printed steel and 1/2" thick specially formulated fiber board backing.

      Helpful?

  6. Does this product contain asbestos?

    1 answer

    1. The stove board does not include any asbestos.

      Helpful?

  7. Can this board be cut and trimmed?

    1 answer

    1. This stove board must not be cut or trimmed.

      Helpful?

  8. Can this product be cut for a custom fit?

    1 answer

    1. The unit would not be designed to be customized. It would be difficult to cut.

      Helpful?

Warranty

Manufacturer's Warranty

3 month limited warranty
