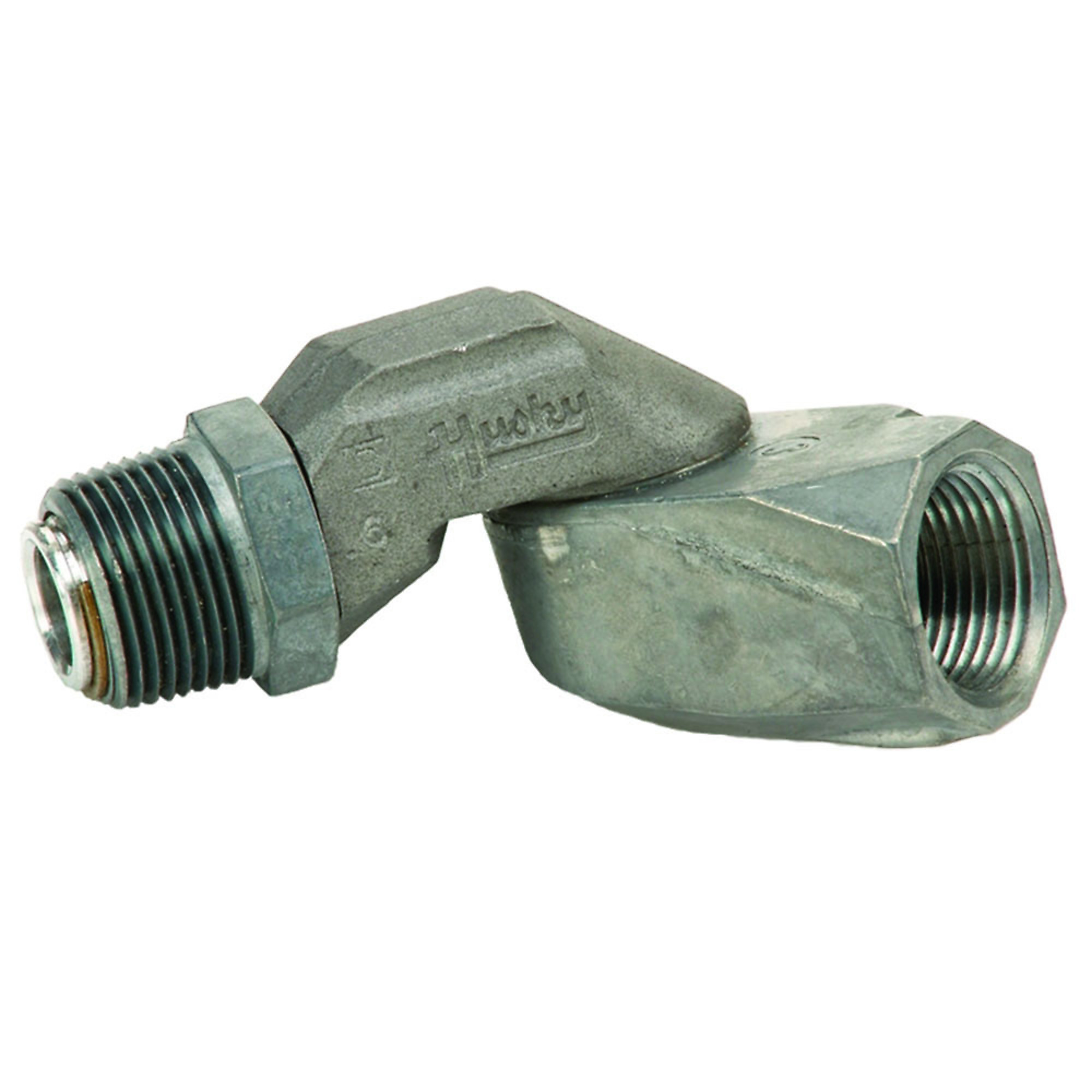

Husky 3/4'' M NPT x 3/4'' F NPT Multi-Plane Conventional / Farm / Consumer Pump Swivel
New
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$55.99
- Compatible with unleaded, diesel, and Ethanol blends through E10.
- Compact and light weight for easy handling.
- High flow rates due to laminar flow design.
- High strength step shoulder bearing diameters and impact absorbing stops.
- Multi-Plane, full 360° spherical rotation for easy movement of nozzle.
Prop 65 Warning: See Details
See full description
See All Fuel Hose Fittings
See All Husky Fuel Hose Fittings
Currently Viewing This Product
Specifications
Specifications
Husky 3/4'' M NPT x 3/4'' F NPT Multi-Plane Conventional / Farm / Consumer Pump Swivel
Fill-Rite 1in.Aluminum Multi-Plane Fuel Transfer Swivel, Model# S100H1315
Fill-Rite 3/4in. Aluminum Multi-Plane Fuel Transfer Swivel, Model# S075H1314
Fill-Rite, 3/4in. X 9in. Whip Hose, Model# WH07509
Hose Length
Same
4.2 ft
-
-
9 ft
Max. PSI
Same
150
-
-
50
Hose Included
Same
No
No
No
Yes
Fitting Type
Same
Swivel Connection
-
-
Other
Material
Same
Aluminum
Cast Aluminum
Cast Aluminum
Neoprene
Inlet
Same
3/4
-
-
3/4
Outlet
Same
3/4
-
-
3/4
Spring Driven Reel
Same
No
-
-
-
Max. Temperature
Same
130 °F
-
-
-
Product Weight
Same
0.5100 lb
-
-
1.0000 lb

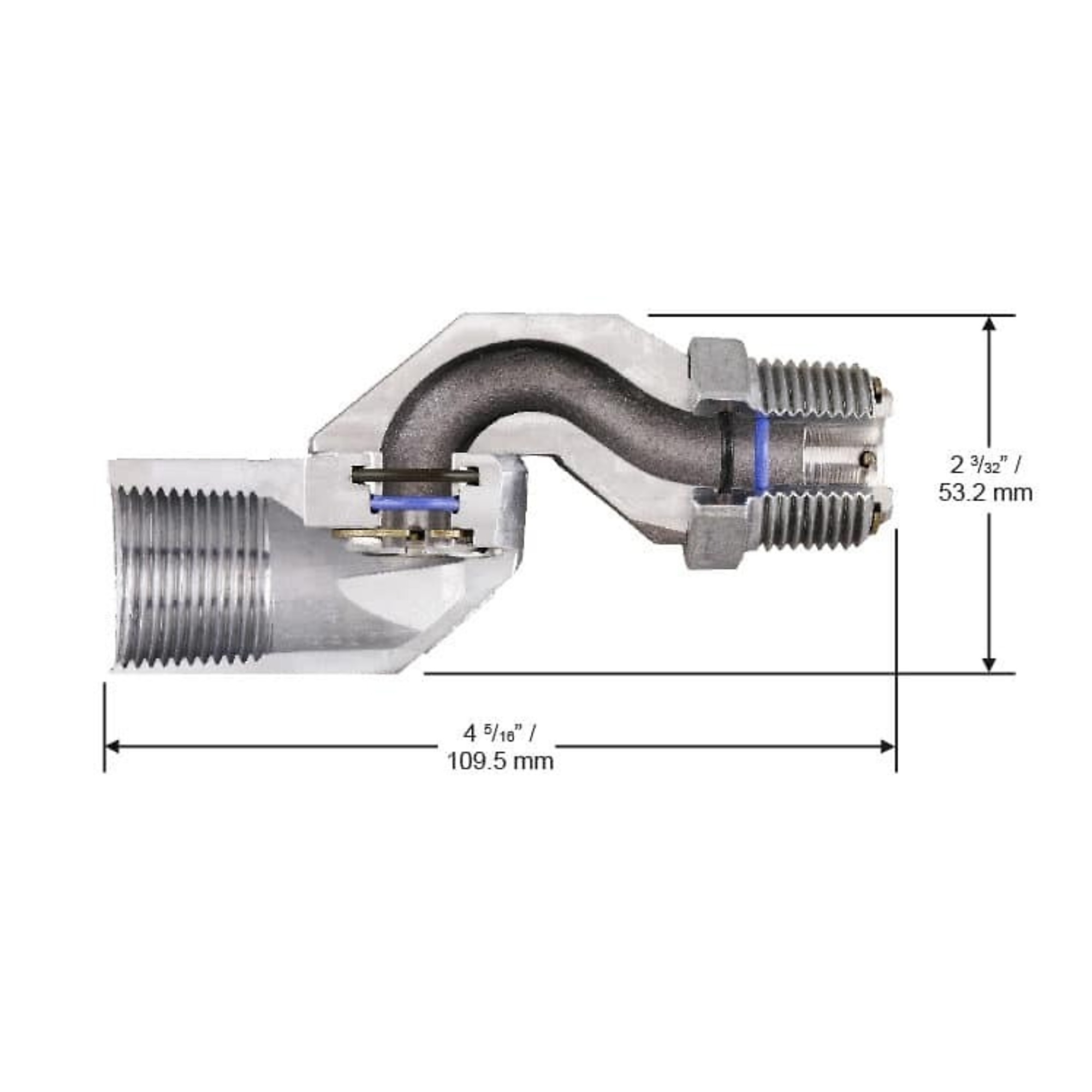

Dimensions L x W x H (in.)
Same
4.5 x 1.5 x 2.0 in
-
-
0.75 x 0.75 x 9.0 in
