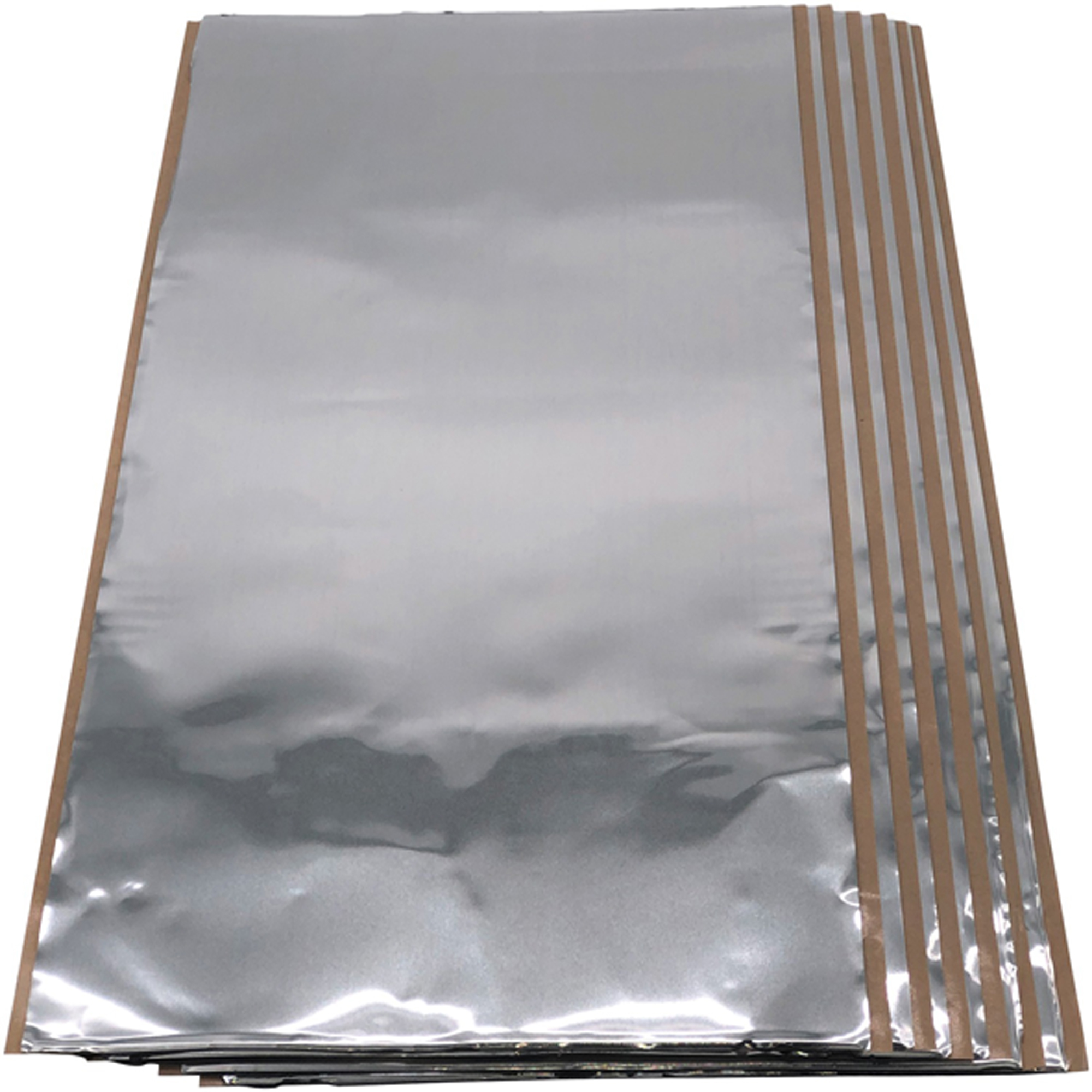

HushMat, Ultra II Auto Truck Hoodliner Insulation, Model# 50100

Item# 5983544
HushMat, Ultra II Auto Truck Hoodliner Insulation, Model# 50100

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

HushMat, Ultra II Auto Truck Hoodliner Insulation, Model# 50100

Click or Tap image to Zoom

$119.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Reduces low frequency noise, resonant noise from 0 Hz to 1 kHz
  • Reduces heat and thermal transfers by over 40%
  • Interior stays warmer in the winter and cooler in the summer, insulating up to 550°+F
  • R value: 18
  • Lightweight and super flexible with paintable aluminum surface

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The HushMat Ultra II Auto and Truck Heavy Duty Hoodliner is a universal kit for every vehicle engine hood or cover, designed for the rugged and high temperature engine-side environments. It is a self-adhesive, pressure-sensitive, constrained-layer damper, which has excellent adhesion to many difficult to bond substrates such as oily cold rolled steel, automotive E-coat, primers and finishes, and many plastics including polypropylene. The aluminum foil constraining layer and specially formulated viscoelastic polymer layer combine to give effective vibration damping over a wide temperature range. Ultra II can be hand-cut for special configurations and can be applied to both pre-painted and top-coated metal surfaces. It is compatible with automotive coatings and will not contaminate spray operations. The superior adhesive properties of this hoodliner allow it to be used in horizontal, vertical or inverted applications. It has good conformability and can be applied on complex shapes.

What's Included

    (6) sheets insulation material

Downloads

Product Manual Product Manual2
Safety Data Sheet

Features + Benefits

  • Reduces low frequency noise, resonant noise from 0 Hz to 1 kHz
  • Reduces heat and thermal transfers by over 40%
  • Interior stays warmer in the winter and cooler in the summer, insulating up to 550°+F
  • R value: 18
  • Lightweight and super flexible with paintable aluminum surface

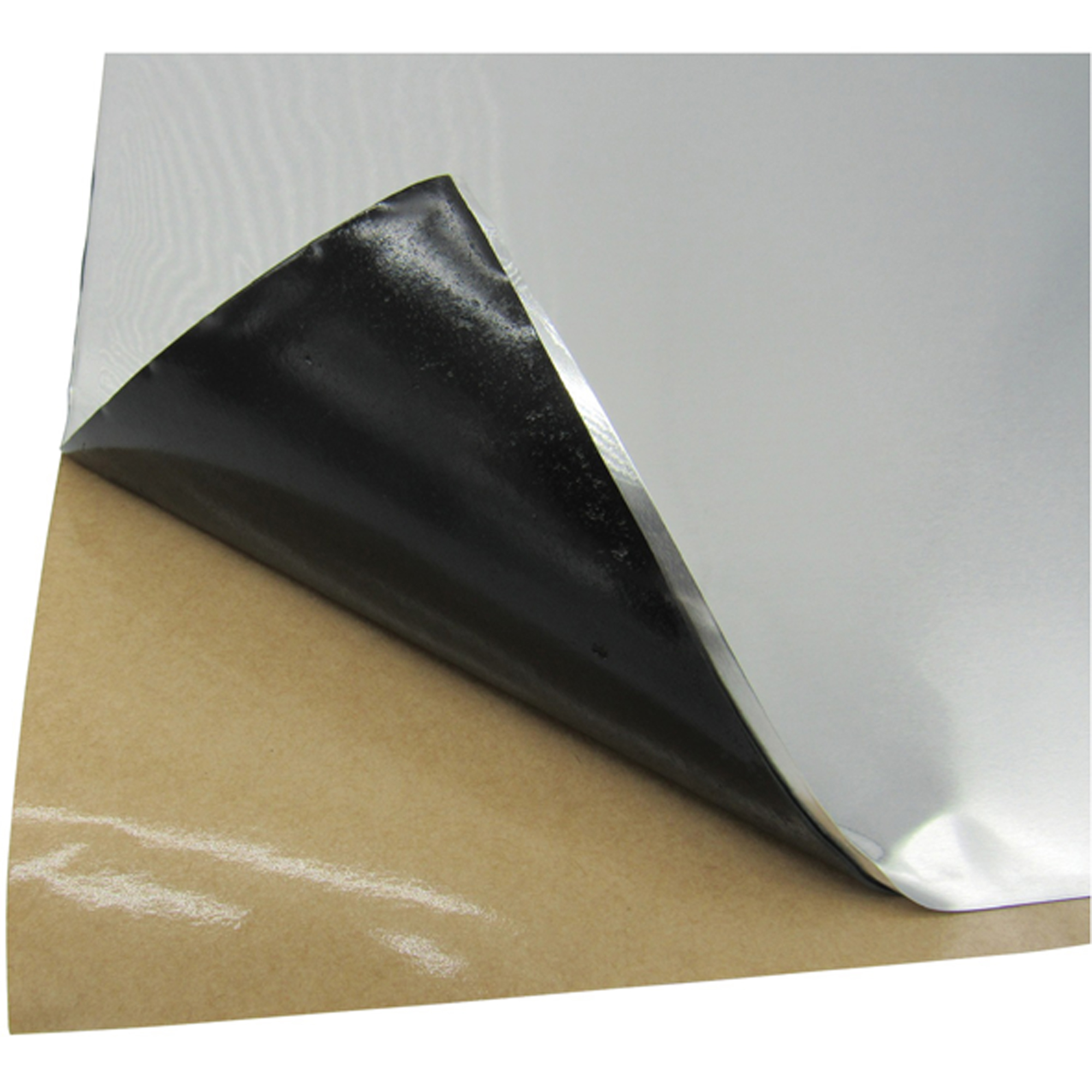

  • Self-adhesive peel and stick—no glue required
  • Installs in 1/2 the time versus other brands
  • Does not require surface prep; adhesion guaranteed—no alcohol or acetone wash needed, no installation tools required
  • Trims easily with standard razor knife or household scissors
  • OEM approved; meets or exceeds automotive damping specs GMO149M (General Motors), WSB-M5G58-A1 (Ford) and MS-CD 629 Type C (Chrysler)
  • Universal application—can be applied to firewall, floor pan, tunnel, doors, roof, rear wheel wells, trunk and quarter panels
  • Includes 6 sheets of 12 in. x 23 in. (11.5 sq. ft.)

Key Specs

AttributeSpecification

item#

5983544

Brand

HushMat

Manufacturer's Warranty

1 year limited warranty

Ship Weight

7.75 LB

Product Type

Sound Dampening
AttributeSpecification

Color

Silver

Material

Rubber

Product Weight

6.9000 lb

Dimensions L x W x H (in.)

23.0 x 12.0 x 0.6 in

Reviews

Questions & Answers

Questions

  1. How many sheets do you get in a pack?

    1. There are 6 sheets included.

      Helpful?

    2. information above says 6 sheets

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
