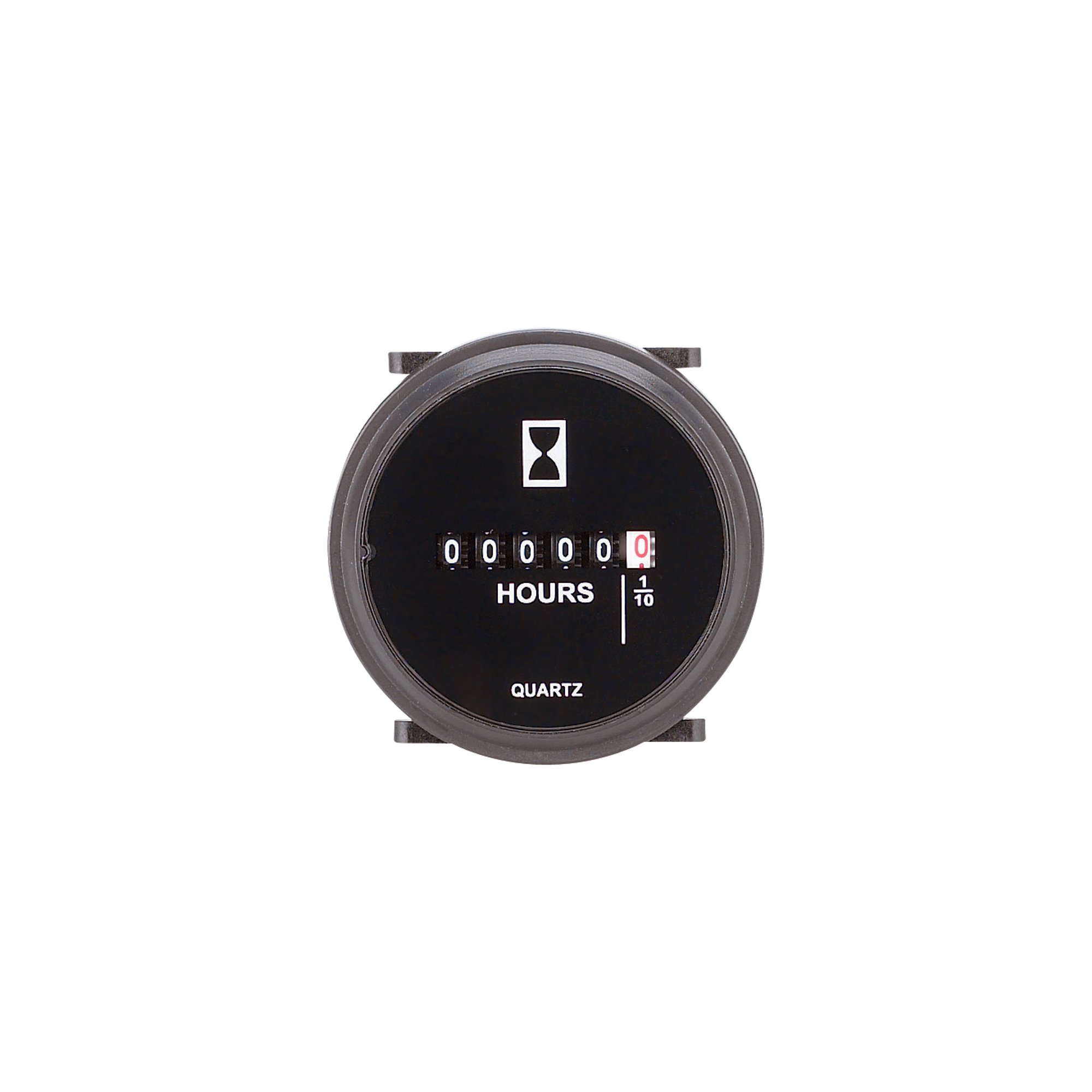

Hour Meter For Small Engines - 2in. Round

Item# 160589
Hour Meter For Small Engines - 2in. Round

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Hour Meter For Small Engines - 2in. Round

Click or Tap image to Zoom

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The hour meter for small engines is the most common style of hour meter available. Easy to install. Operates correctly on multi-voltage electrical systems: 12V, 24V, 32V, 36V, 48V and 72V DC.

What's Included

  • (1) Hour meter for small engines

Key Specs

AttributeSpecification

item#

160589

Manufacturer's Warranty

24 months parts / 24 months labor

Ship Weight

0.5 LB
AttributeSpecification

Display Unit

Hours

Compatible With

Multi Voltage Electrical System

Reviews

Questions & Answers

16 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. What type of electrical connections are on meter? Posts , spades, etc.? Is there a back view so that I can see the type of retaining bracket?

    1. The connectors are spade. Bracket just slips over back of meter and presses tight against the back of the dash like a big washer. Meter has teeth into which bracket locks.

      Helpful?

    2. Back terminals are 1/4" spade. 2" diameter of body is threaded, so you slide the meter in from the front, and snug up the plastic locknut from the back side.

      Helpful?

    3. This hour meter comes with 2 electrical posts. It's easy to hook up. You need a ground wire and a positive wire from the ignition switch.

      Helpful?

  2. Is the back fastening bracket metal or plastic?

    1. Plastic.

      Helpful?

    2. It's plastic, but I've had mine on my lawn tractor for 2 years now, and it's held up just fine.

      Helpful?

    3. The back fastening bracket is made of a hard plastic material.

      Helpful?

  3. The meter I am replacing has 4 electrical posts. Does this one?

    1. Nope. Just 2.

      Helpful?

    2. This meter has 2 posts. one is positive. one is negative.

      Helpful?

    3. This only has 2 electrical posts.

      Helpful?

  4. Require battery to work?

    I want to use this on a pull start log splitter with no battery. Will it work?

    1. I am running this hour meter on my generator, but generator has 12VDC cigarette plug. I spliced into the supply side of the cigarette plug, so when the generator is running, the hour meter is powered.

      As long as you log splitter will generate 12VDC when running, you should be fine.

      Helpful?

    2. The hour meter requires some sort of DC voltage between 12 and 72 in order to operate.

      Helpful?

  5. Does it have the two (2) wires included?

    1. yes

      Helpful?

    2. The meter does have the 2 wire included on the back of the meter.

      Helpful?

  6. Does unit have chrome bezel? Is it lighted?

    1 answer

    1. The hour meter has a stainless steel bezel, and it is not lighted.

      Helpful?

Warranty

Manufacturer's Warranty

24 months parts / 24 months labor
