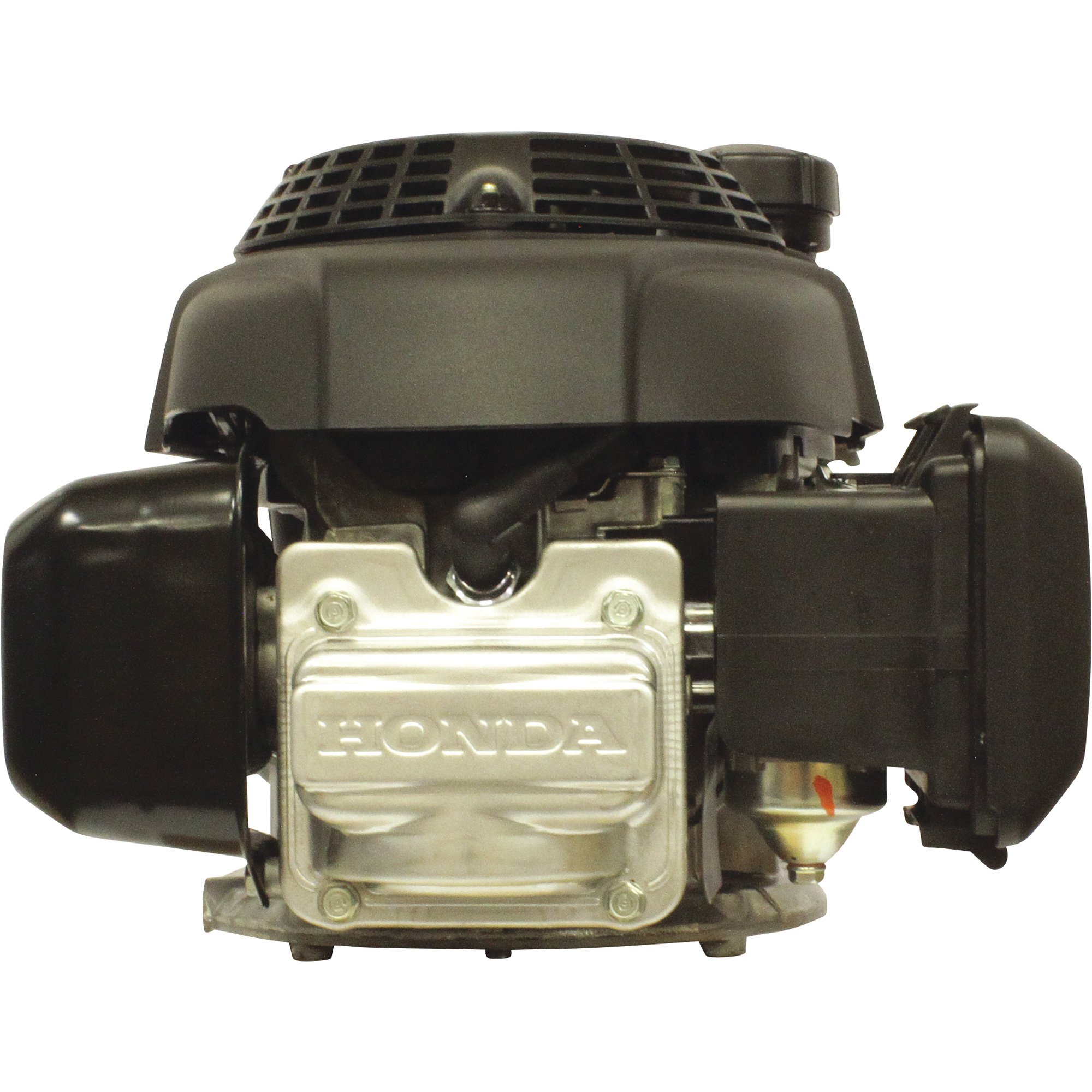

Honda GCV Series Vertical Engine — 160cc, 25mm x 3.36in. Shaft, Model# GCV160LA1S3B

Item# 75920
Honda GCV Series Vertical Engine — 160cc, 25mm x 3.36in. Shaft, Model# GCV160LA1S3B
Honda GCV Series Vertical Engine — 160cc, 25mm x 3.36in. Shaft, Model# GCV160LA1S3B

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Honda GCV Series Vertical Engine — 160cc, 25mm x 3.36in. Shaft, Model# GCV160LA1S3B

Click or Tap image to Zoom

  • Model# GCV160LA1S3B; 160cc 4-stroke engine with 25mm dia. x 3.36in.L vertical shaft
  • Utilizes Honda's latest overhead cam technology
  • Electronic ignition system with recoil start
  • 8in. bolt circle mounting pattern
  • Single cylinder with aluminum alloy cylinder bore

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Honda GCV Series Vertical Engine is a premium vertical shaft engine featuring Honda's latest overhead cam technology. This incredibly quiet engine uses an internal timing belt. Compact and lightweight, this air-cooled, 4-stroke single-cylinder engine is perfect for home and light industrial use. U.S.A. 50-state compliant engine. (Appearance of actual item may differ slightly from item pictured, instead featuring a red shroud.)

What's Included

  • (1) Vertical engine

Downloads

Product Manual

Features + Benefits

  • Model# GCV160LA1S3B; 160cc 4-stroke engine with 25mm dia. x 3.36in.L vertical shaft
  • Utilizes Honda's latest overhead cam technology
  • Electronic ignition system with recoil start
  • 8in. bolt circle mounting pattern
  • Single cylinder with aluminum alloy cylinder bore
  • Powers select Honda consumer/commercial lawn mowers
  • Does not fit Honda PE mowers with metric shaft
  • Incredibly quiet engine uses an internal timing belt

Key Specs

AttributeSpecification

item#

75920

Brand

Honda Engines

Manufacturer's Warranty

24 months consumer / 90 day commercial

Ship Weight

27.4 LB

Engine Displacement

160 cc

Engine Type

GCV Series OHC

Shaft Diameter Metric

25 mm

Shaft Length

3.36 in

Fuel Type

Gasoline

Start Type

Recoil

Shaft Keyway

0.25 in

Net Torque

8.3 ft-lbs.

Crankshaft

S3 Type

Cylinders (qty.)

1

Cylinder Bore

Aluminum Alloy

Net Power Output

5.1 HP

Compression Ratio

8.5:1

Fuel Tank

Yes

Fuel Tank Capacity

0.98 qt

Oil Capacity

0.58 qt
AttributeSpecification

Low Oil Shutdown

No

Low Oil Alert

No

Max. RPM

3,600 rpm

Shaft Rotation (From PTO Shaft Side)

Counter Clockwise

Governor System

Centrifugal Mechanical

Ignition System

Electronic

Carburetor

Horizontal Butterfly Valve

Lubrication System

Splash

Cooling System

Air

Bore

2.7 in

Stroke

2 in

Air Cleaner Type

Dry (paper)

Choke Control

Automatic

Throttle Control

Fixed

Fuel Filter

Yes

Muffler Included

Yes

Bolt Circle

8 in

Product Weight

25 lb

Dimensions L x W x H (in.)

14.37 x 13 x 13.81 in

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. Is this motor good for a log splitter

    1 answer

    1. This engine is not designed for use with log splitters.

      Helpful?

  2. what throttle control fixed means

    1 answer

    1. A fixed throttle control would mean that the engine speed (RPM) cannot be adjusted. It will run at the full 3,600 RPM when running.

      Helpful?

  3. The only difference that I see in the model number of this motor is: This motor shows 'LA1' in the model number. Mine shows 'LA0' in the model number. From what I see, this is only the manufacturing location and nothing more. Am I correct?

    1 answer

    1. The "L" is US Carb tier 3 and the "A" is the manufacturing location, United States. The "1" or "0" would be the model version like a change in the color.

      Helpful?

  4. How much horse power does this engine have?

    1 answer

    1. This engine will be rated at 5 horsepower.

      Helpful?
