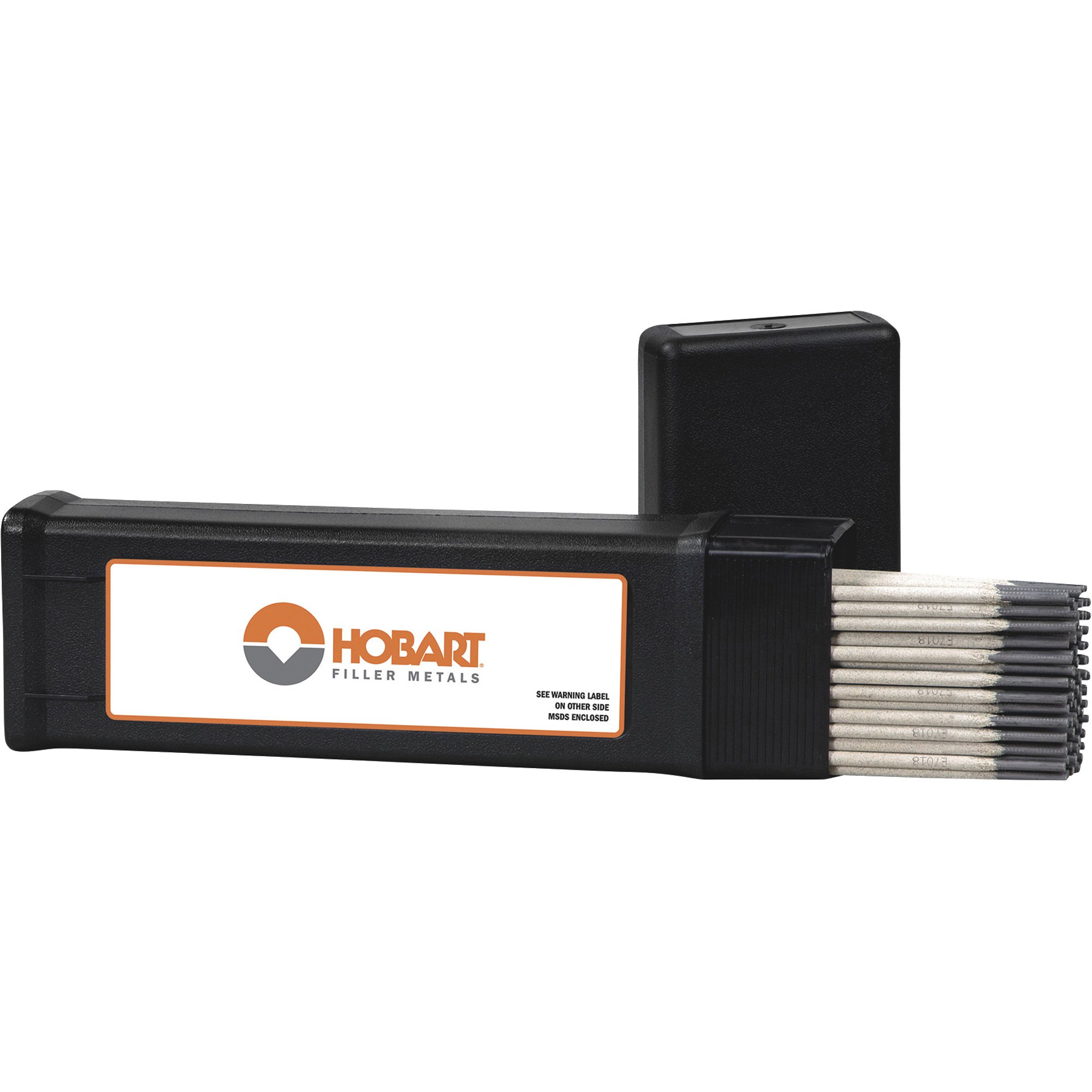

Hobart Filler Metals 7018 Stick Welding Electrodes

Item# 600856
Hobart Filler Metals 7018 Stick Welding Electrodes
Hobart Filler Metals 7018 Stick Welding Electrodes

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Hobart Filler Metals 7018 Stick Welding Electrodes

Click or Tap image to Zoom

From

$17.99

Save up to $92.00

Choose Options for complete product description, reviews and purchasing.

ELECTRODE SIZE

CONTAINER SIZE

See full description

  • Description

  • Reviews

  • Q & A

Product Summary

These Hobart 7018 Stick Welding Electrodes are low-hydrogen electrodes for use in all positions on low, medium and high-carbon steels. Ideal for out-of-position welding and tacking. Runs on AC or DCEP (reverse) polarity. Not recommended for low-voltage AC welders. Choose from a variety of electrode sizes and package sizes to match your needs.

Reviews

Questions & Answers

31 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. What size 7018 rod do I use to weld 1/2" cold roll steel

    I have a 225 buzz box welder

    Originally posted on "Hobart Filler Metals Stick Welding Electrodes, 7018, 3/32in. x 14in.L, 5-Lb. Container, Model# 770482"

    1. The manufacturer recommends 5/32" rod to weld 1/2" cold roll steel.

      Helpful?

    2. If your buzz box is like my Lincoln 225, I'd limit it to 125 amps because of duty cycle, 1/8" 7018 fits nicely. Size and length of cables becomes very important as the current goes up. With a 45 chamfer on each plate for butt weld, likely 6 passes to fill, removing all slag between passes. A flat tee joint you might get away with three passes, again removing all of the slag. I run 75a for 1/8" 6011 and am running against the duty cycle all of the time, even with a high volume fan.

      Helpful?

    3. 1/8" will do with multi-pass, but 5/32" rod will be better.
      Rocky D

      Helpful?

    4. You would use the 3/32" rod to weld 1/2" cold rolled steel.

      Helpful?

  2. Will 7018 welding rod weld mild steel to cast iron?

    Which welding rod would work best?

    Originally posted on "Hobart Filler Metals Stick Welding Electrodes, 7018, 3/32in. x 14in.L, 5-Lb. Container, Model# 770482"

    1. While it will hold for a very little while, it will crack. You need a rod designed for that purpose such as Certainium. Very expensive.
      Rocky D

      Helpful?

    2. These rods will work on low, medium and high carbon steels. that does include mild steel. They will not work on cast iron.

      Helpful?

  3. What aws classification are these and are they hermitically sealed in this container?

    1 answer
    Originally posted on Hobart Filler Metals Stick Welding Electrodes — 7018, 1/8in. Dia. x 14in.L, 1-Lb. Pkg., Model# H119944-R01

    1. The AWS classification is E7018. The rods are hermitically sealed.

      Helpful?

  4. Can these be used with propane torch!

    1 answer
    Originally posted on "Hobart Filler Metals Stick Welding Electrodes, 7018, 5/32in. x 14in.L, 5-Lb. Container, Model# 770480"

    1. The unit is not recommended for use with a propane torch.

      Helpful?

  5. The last time we ordered the 25 lb box ...the sticks didn't come in a container that can be closed or sealed when not in use. Do these come in a container? Need an answer ASAP.

    1 answer
    Originally posted on "Hobart Filler Metals Stick Welding Electrodes, 7018, 1/8in. x 14in.L, 25-Lb. Carton, Model# 770477"

    1. They will only come in the carton that is shown. They would not come in a container that would be sealed.

      Helpful?

  6. how many are in a package?

    1 answer
    Originally posted on "Hobart Filler Metals Stick Welding Electrodes, 7018, 1/8in. x 14in.L, 25-Lb. Carton, Model# 770477"

    1. The package is sold by weight only and so quantity by number cannot really be determined.

      Helpful?
