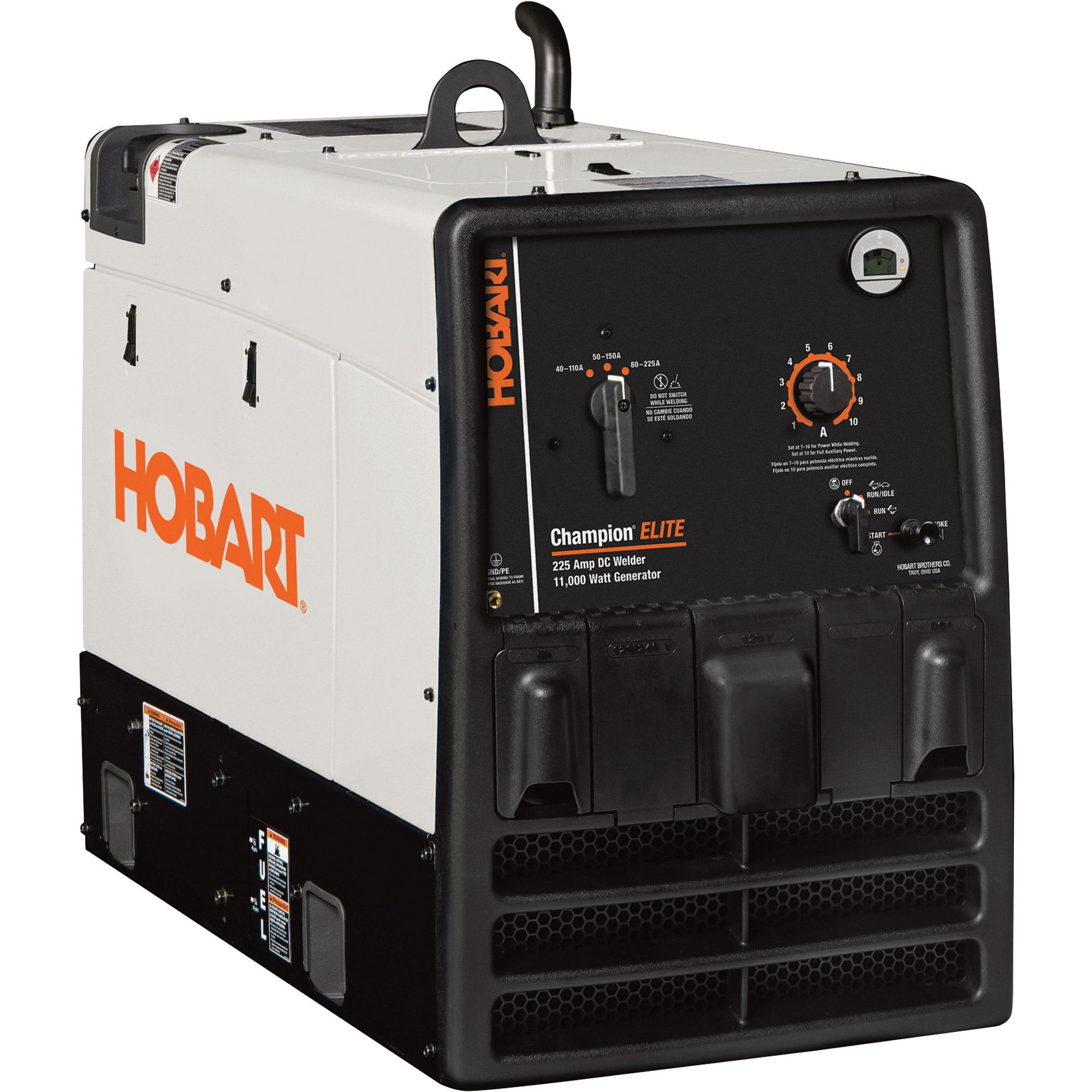

Hobart Champion Elite Welder Generator with Kohler Engine and Running Gear - 225 Amp DC, 11,000 Watt AC Power, Model# 500562002

Item# 44909
"FREE SHIPPING - Hobart Champion Elite DC Welder/AC Generator with Kohler Engine and Running Gear - 225 Amp DC, 11,000 Watts AC Power, Model# 500562002"
Hobart Champion Elite Welder Generator with Kohler Engine and Running Gear - 225 Amp DC, 11,000 Watt AC Power, Model# 500562002

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Hobart Champion Elite Welder Generator with Kohler Engine and Running Gear - 225 Amp DC, 11,000 Watt AC Power, Model# 500562002

Click or Tap image to Zoom

  • Mobile power source heavy-duty generator/welder
  • 41in.L x 20in.W x 28in.H unit is just under 4ft. long and weighs less than most competitive units
  • Portable, engine-driven solution with 23 HP Kohler twin cylinder, 4-cycle OHV engine
  • Delivers up to 11,000 Watts of AC generator power to run tools, worklights or backup power during an outage
  • 9,500 continuous watts power generation

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Hobart® Champion™ Elite Welder Generator with Kohler Engine and Running Gear can simultaneously handle welding jobs and act as a generator to provide on-site power for tools and more. A versatile performer for light industrial, MRO, farm and hobby applications. 225 Amp DC, 11,000 Watts AC power. Includes the running gear wheel kit for mobility. Hobart 5/3/1 limited warranty; engine warranted separately by manufacturer. U.S.A.

What's Included

  • (1) Welder/generator with running gear

Downloads

Product Manual

Features + Benefits

  • Mobile power source heavy-duty generator/welder
  • 41in.L x 20in.W x 28in.H unit is just under 4ft. long and weighs less than most competitive units
  • Portable, engine-driven solution with 23 HP Kohler twin cylinder, 4-cycle OHV engine
  • Delivers up to 11,000 Watts of AC generator power to run tools, worklights or backup power during an outage
  • 9,500 continuous watts power generation
  • Can simultaneously deliver 150 Amps weld output and 8,000 Watts of generator power
  • Delivers up to 225 Amps @ 100% duty cycle (DC output)
  • 40–225 Amp DC output range
  • Handles mild steel, stainless steel and cast iron with max. thickness of 1/2in. in a single pass
  • Auto-idle for increased fuel savings and reduced noise
  • Fuel-efficient model can run up to 14 hrs. on one 12 gal. tank of gas under a continuous load of 4,000 Watts
  • Heavy-duty construction with fully enclosed engine design, large battery and rugged electrical connections and wiring
  • Fully enclosed case design reduces noise and provides added weather protection
  • Sight gauge makes it easy to check fuel levels
  • Includes built-in digital hour meter to assist you in keeping current on scheduled maintenance
  • "No tools" oil change and standard hour meter help maintain routine scheduled oil servicing
  • Coarse and Fine amperage adjustments allow for easy fine-tuning of welder output
  • Extra-large 12 gallon fuel capacity for increased runtimes
  • Includes four 120V (20 Amp) GFCI protected outlets, one 240V (NEMA 6-50R) 50 Amp receptacle and one 120/240V (14-50R) 50 Amp receptacle with pushbutton reset circuit breakers
  • Required welding cables (Item#s 628510 or 628511, sold separately)
  • Includes running gear wheel kit

Key Specs

AttributeSpecification

item#

44909

Brand

Hobart

Manufacturer's Warranty

5 year limited warranty

Ship Weight

525.0 LB
AttributeSpecification

Max. Weld Thickness

0.5 in

Weldable Materials

Stainless steel, galvanized

Min. Amps

40

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

  1. can this be outfitted to mig weld?

    can this be outfitted to mig weld if a spool guna is purchased ?

    1. No it cannot be outfitted for mig welding itself. But it will provide the power if a separate mig welder with spoolgun is plugged into it.

      Helpful?

    2. This welder/generator cannot be used with a spoolgun to MIG weld. Click the links below to view 2 welders and a compatible spoolgun that can be used to MIG weld. These welders can be run off this welder/generator.

      Helpful?

    3. You would have to purchase the Handler 190 or 210MVP with the spoolgun and run it off the generator.

      Helpful?
