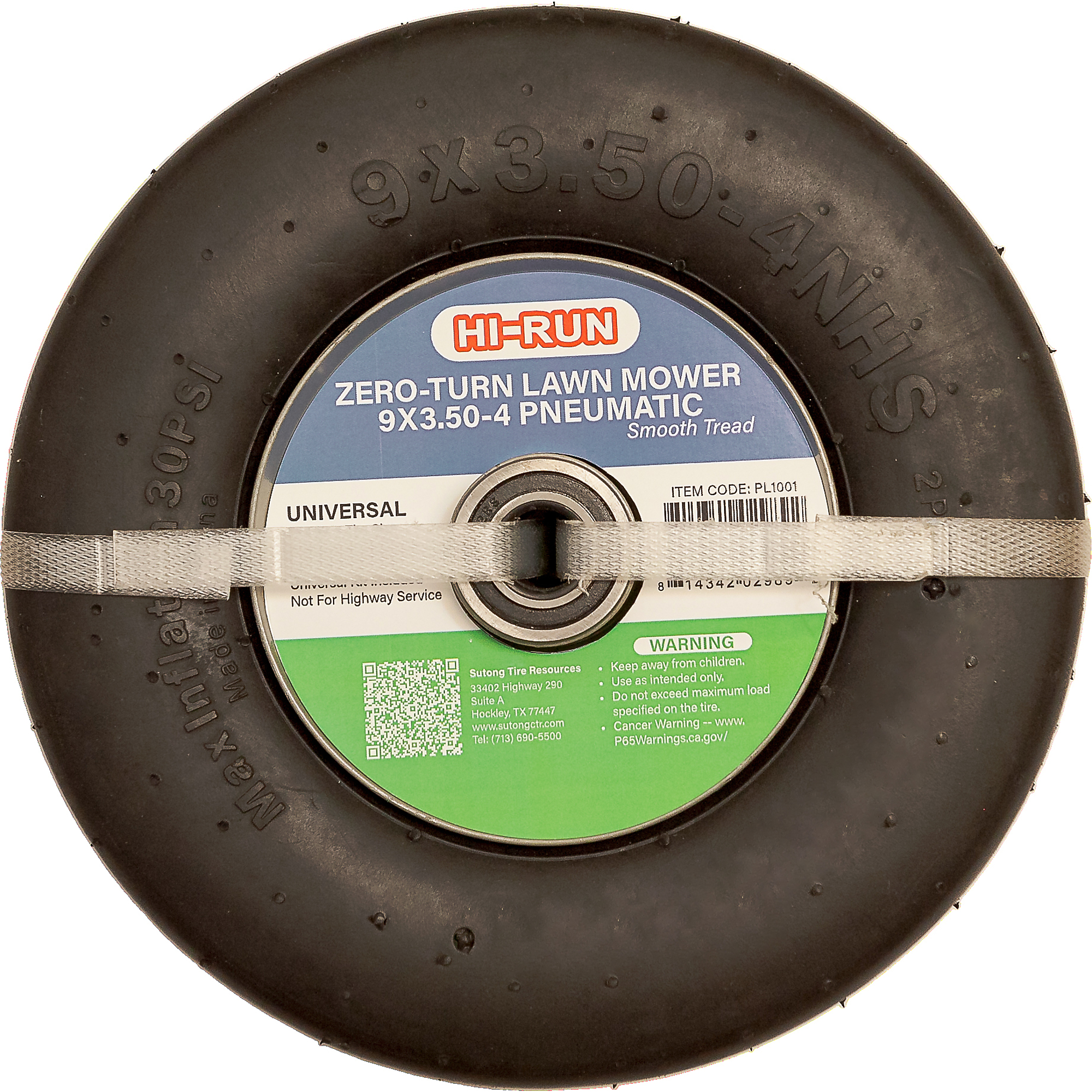

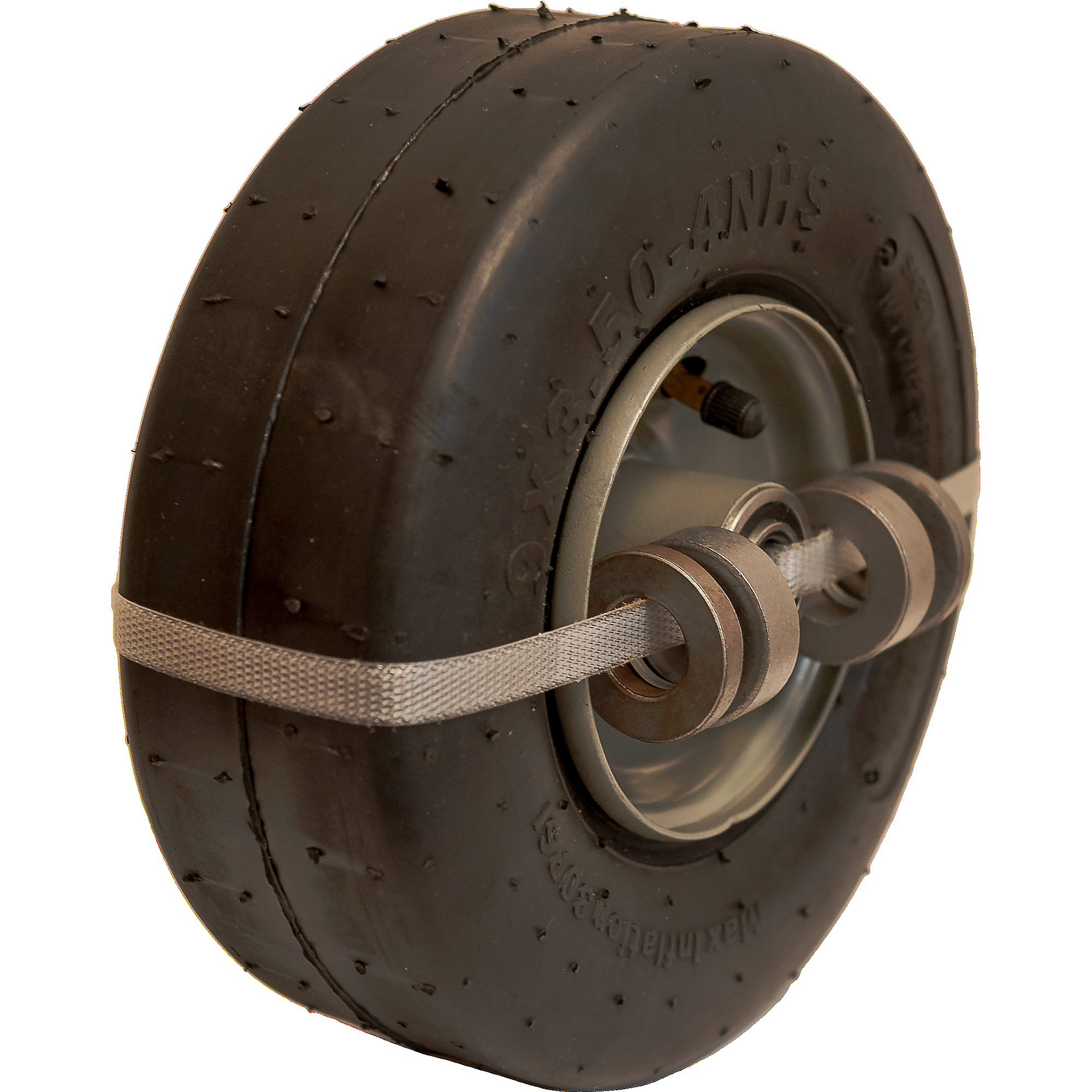

HI-RUN, Universal Pneumatic Tire/Wheel with Kits, 5/8in. 3/4in. ID, Tire Size 9X3.5-4 Load Range Rating A, Model# PL1001

Item# 5328144
HI-RUN, Universal Pneumatic Tire/Wheel with Kits, 5/8in. 3/4in. ID, Tire Size 9X3.5-4 Load Range Rating A, Model# PL1001

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

HI-RUN, Universal Pneumatic Tire/Wheel with Kits, 5/8in. 3/4in. ID, Tire Size 9X3.5-4 Load Range Rating A, Model# PL1001

Click or Tap image to Zoom

$32.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Tread Pattern: Smooth
  • Tire Size: 9X3.5-4
  • OD (Outer Diameter): 9.17 in
  • SW (Tire width): 3.19 in
  • Inflation Pressure (PSI): 30

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Pneumatic Zero-Turn Lawn Mower Smooth Tread Tire Assembly with Universal Kit; Fits for most zero-turn lawn mower brands; Fits 3/4in. and 5/8in. axle size; 3/4in. ball bearing and 5/8in. bearing shim installed; Universal adapter kit with the smooth tread tire assembly includes four washers and four spacers.

What's Included

    (1) Tire and Rim, replacement kits

Features + Benefits

  • Tread Pattern: Smooth
  • Tire Size: 9X3.5-4
  • OD (Outer Diameter): 9.17 in
  • SW (Tire width): 3.19 in
  • Inflation Pressure (PSI): 30
  • Pneumatic tube-type tire

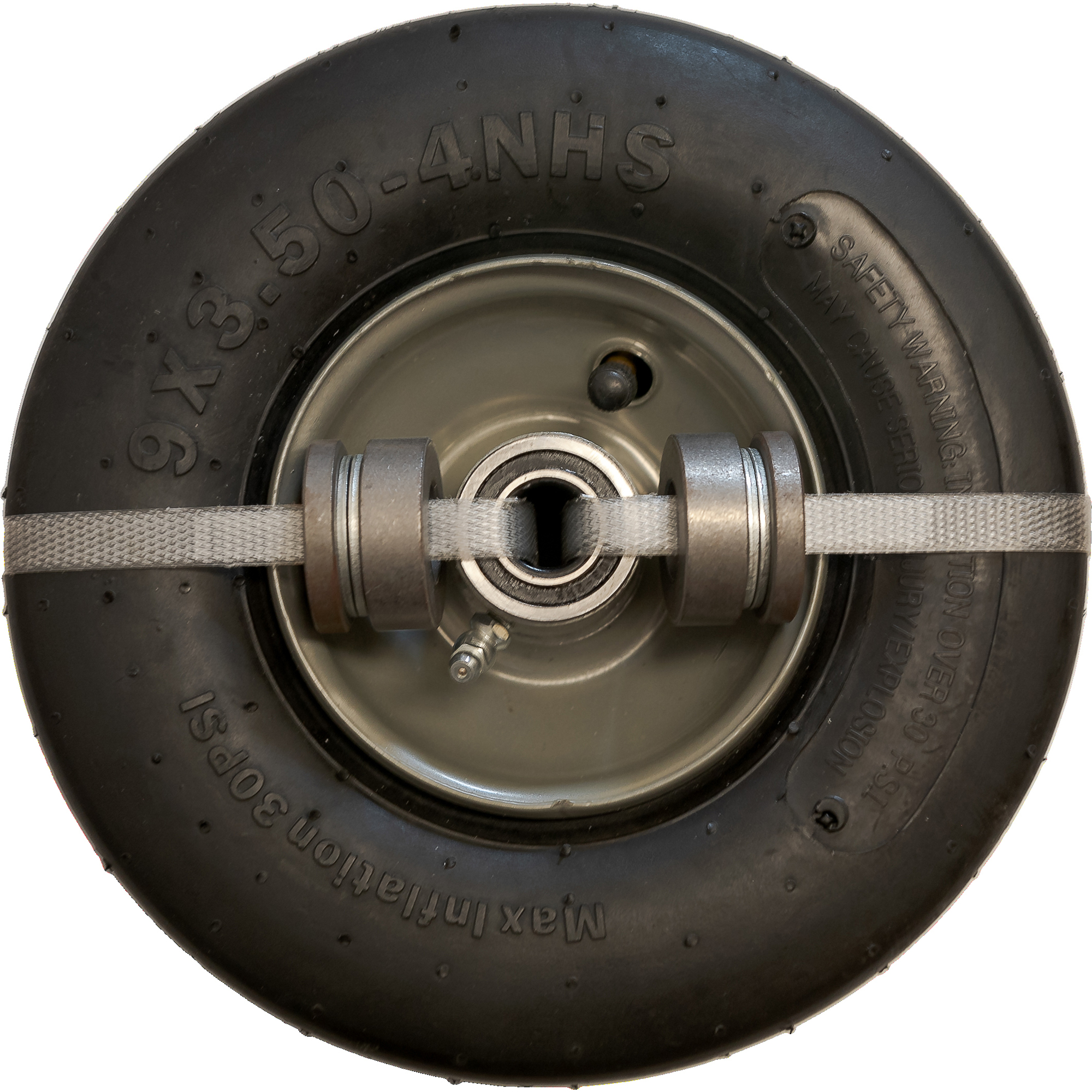

  • 3/4" ball bearing & 5/8" bearing shim installed

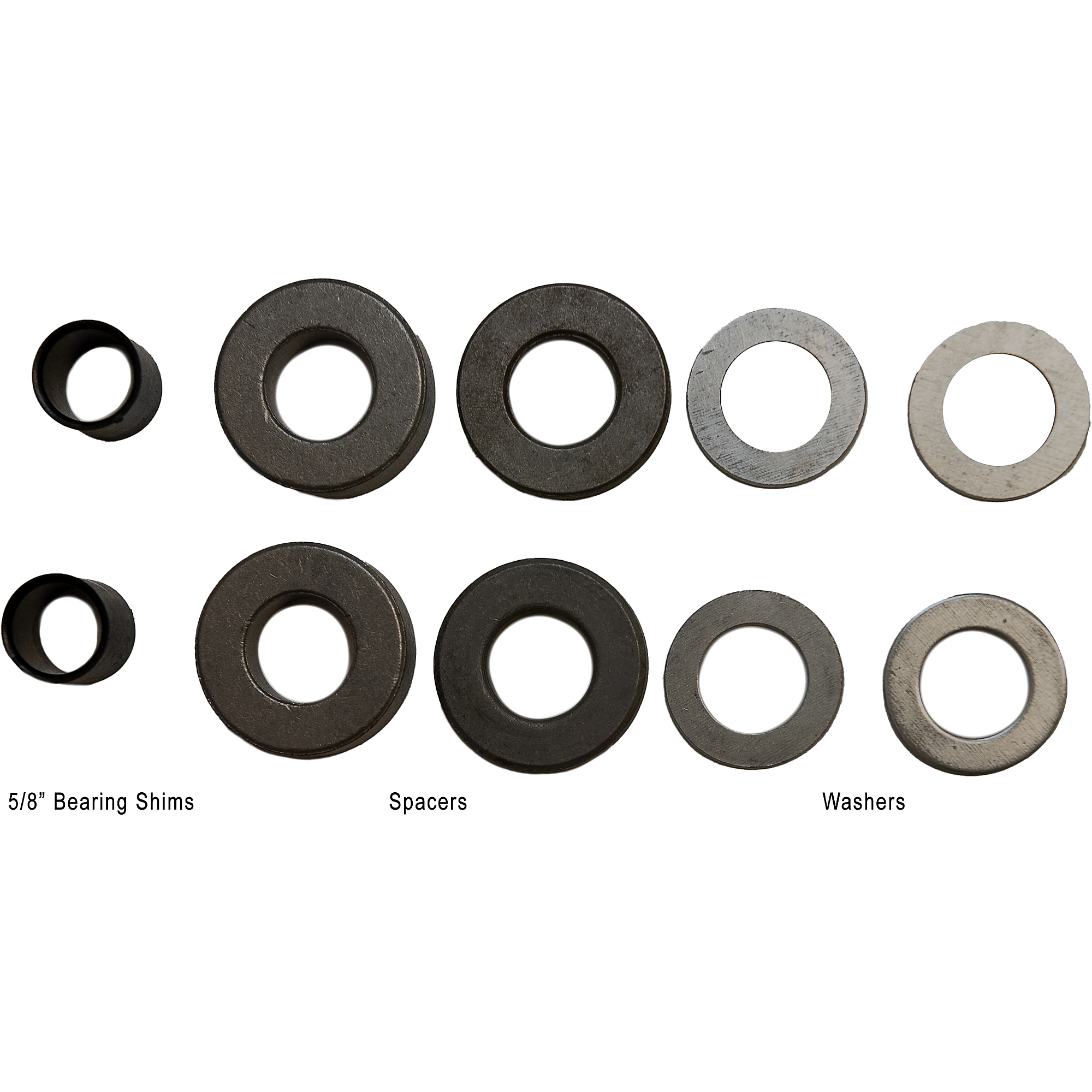

  • Kits include: 4pcs washers, 4pcs spacers

Key Specs

AttributeSpecification

item#

5328144

Brand

HI-RUN

Manufacturer's Warranty

2 year limited warranty

Ship Weight

3.7 LB

Tire Size

9X3.5-4

Load Range Rating

A

Style of Tire

Tire and Rim

Flat Free

No

Pneumatic

Yes

Tread Type

Smooth

Load Capacity

300 lb
AttributeSpecification

Tire Diameter

9.17 in

Rim Diameter

4 in

Tire Speed Rating

25 MPH

Rim Material

Steel

Tire Width

3.19 in

Tire Type

Bias Ply

Tubeless

No

Ply Rating

2

Product Weight

3.7000 lb

Dimensions L x W x H (in.)

9.17 x 3.19 x 9.17 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
