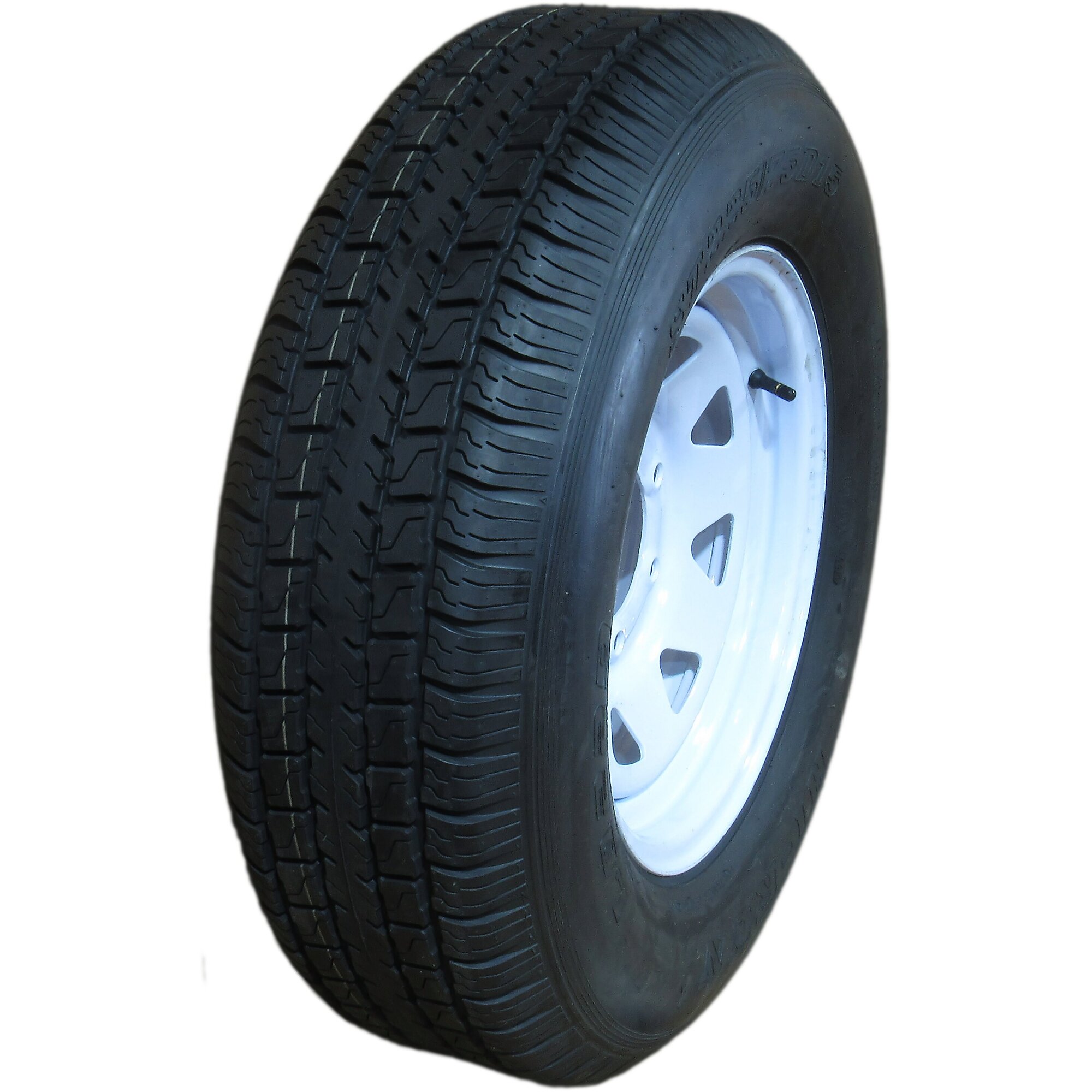

HI-RUN, Highway Trailer Tire Assembly, Bias-Ply, Spoked, Tire Size ST225/75D15 Load Range Rating D, Bolt Holes (qty.) 6 Model# ASB1006

Item# 5327176
HI-RUN, Highway Trailer Tire Assembly, Bias-Ply, Spoked, Tire Size ST225/75D15 Load Range Rating D, Bolt Holes (qty.) 6 Model# ASB1006

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

HI-RUN, Highway Trailer Tire Assembly, Bias-Ply, Spoked, Tire Size ST225/75D15 Load Range Rating D, Bolt Holes (qty.) 6 Model# ASB1006

Click or Tap image to Zoom

$193.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

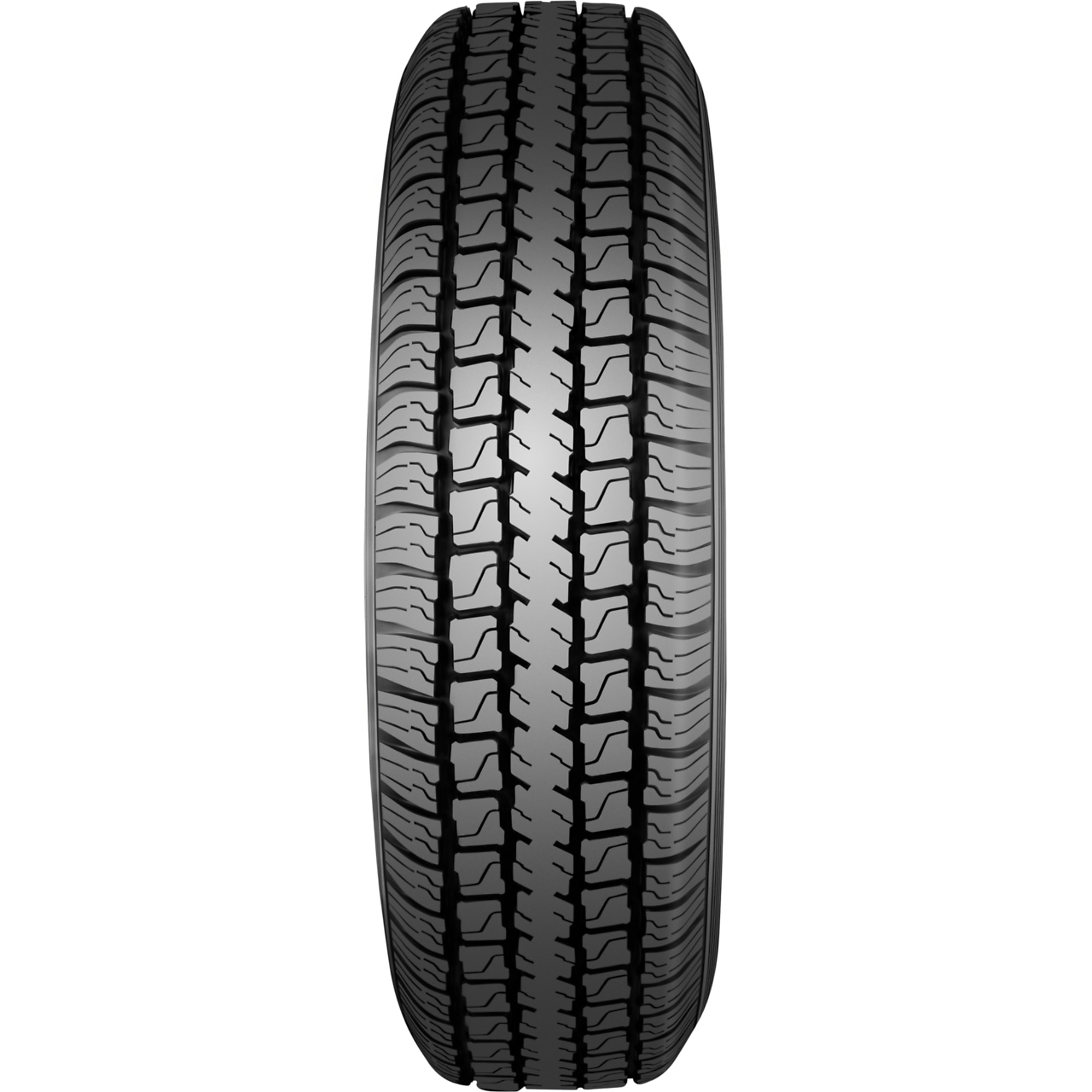

  • Tread Pattern: H180 Highway Trailer
  • Tire Size: ST225/75D15
  • OD (Outer Diameter): 28.5 in
  • SW (Tire width): 8.4 in
  • Inflation Pressure (PSI): 65

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Strong bias replacement tire/wheel for high-spead trailers; Manufactured to exceed DOT requirements; 5-lug bolt pattern; Excellent Wear Resistance.

What's Included

    (1) Tire and Rim

Features + Benefits

  • Tread Pattern: H180 Highway Trailer
  • Tire Size: ST225/75D15
  • OD (Outer Diameter): 28.5 in
  • SW (Tire width): 8.4 in
  • Inflation Pressure (PSI): 65
  • Bolt Pattern: 6-5.5
  • Assembly is DOT approved
  • Load Range D, 8 ply
  • Bias Ply

Key Specs

AttributeSpecification

item#

5327176

Brand

HI-RUN

Manufacturer's Warranty

2 year limited warranty

Ship Weight

45.5 LB

Tire Diameter

28.5 in

Style of Tire

Tire and Rim

Tire Size

ST225/75D15

Load Range Rating

D

Bolt Pattern

6

Tire Type

Bias Ply

Load Capacity

2,540 lb

Flat Free

No
AttributeSpecification

Pneumatic

Yes

Tread Type

H180 Highway Trailer

Rim Diameter

15 in

Tire Speed Rating

75 MPH

Bolt Circle Diameter

5.5 in

Rim Material

Steel

Tire Width

8.4 in

Tubeless

Yes

Ply Rating

8

Product Weight

45.5000 lb

Dimensions L x W x H (in.)

28.5 x 8.4 x 28.5 in

Reviews

Questions & Answers

Questions

  1. what is the difference between the ST225/75D15 & the ST205/75R15

    1 answer

    1. The tire size ST225/75D15 is a bias-ply tire. The ST20575R15 is a radial tire and is narrower and designed for cooler running and highway performance.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
