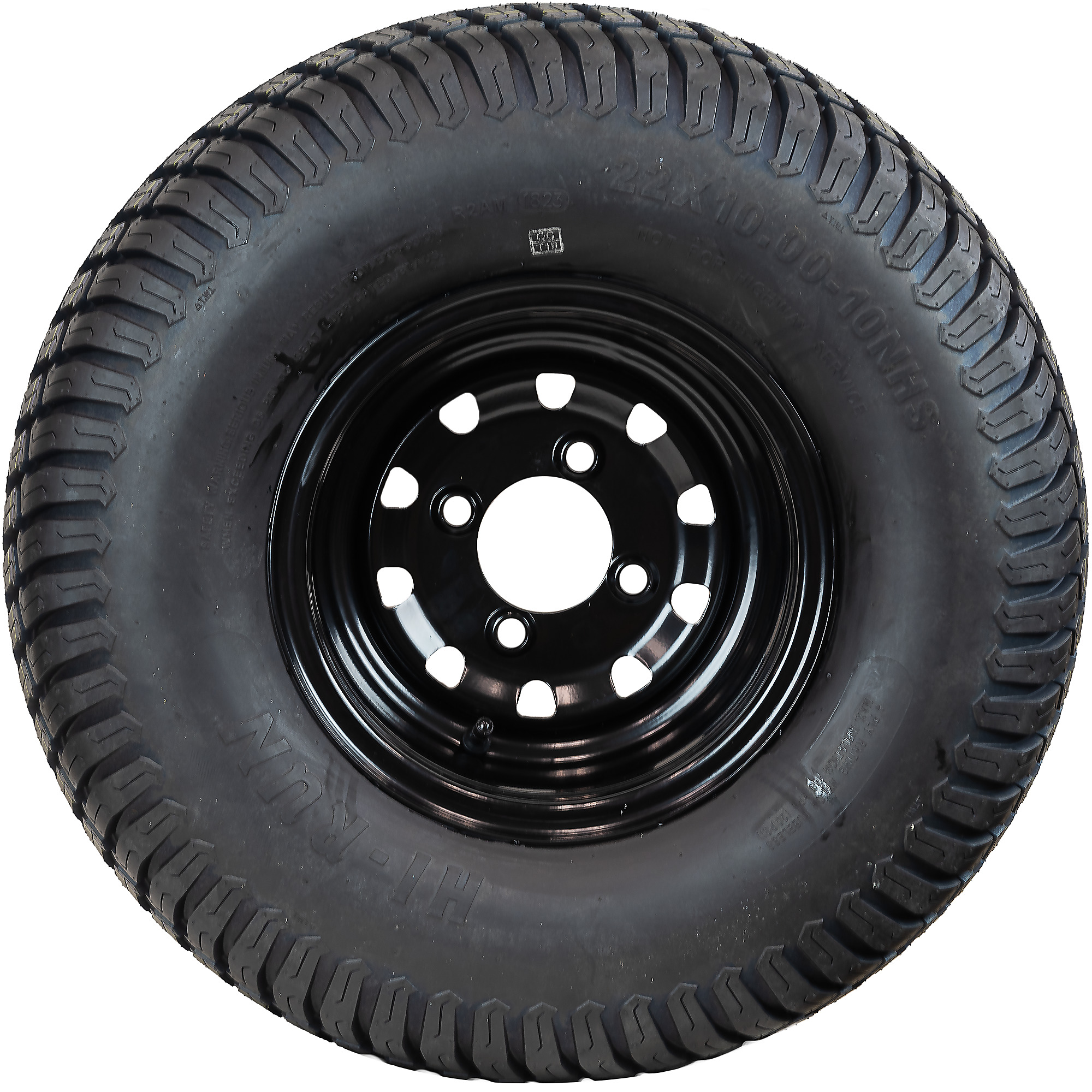

HI-RUN, LG Tire Assembly, Black Rim, Tire Size 22X10-10 Load Range Rating B, Bolt Holes (qty.) 4 Model# ASB1217

Item# 5710933
HI-RUN, LG Tire Assembly, Black Rim, Tire Size 22X10-10 Load Range Rating B, Bolt Holes (qty.) 4 Model# ASB1217

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

HI-RUN, LG Tire Assembly, Black Rim, Tire Size 22X10-10 Load Range Rating B, Bolt Holes (qty.) 4 Model# ASB1217

Click or Tap image to Zoom

$134.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

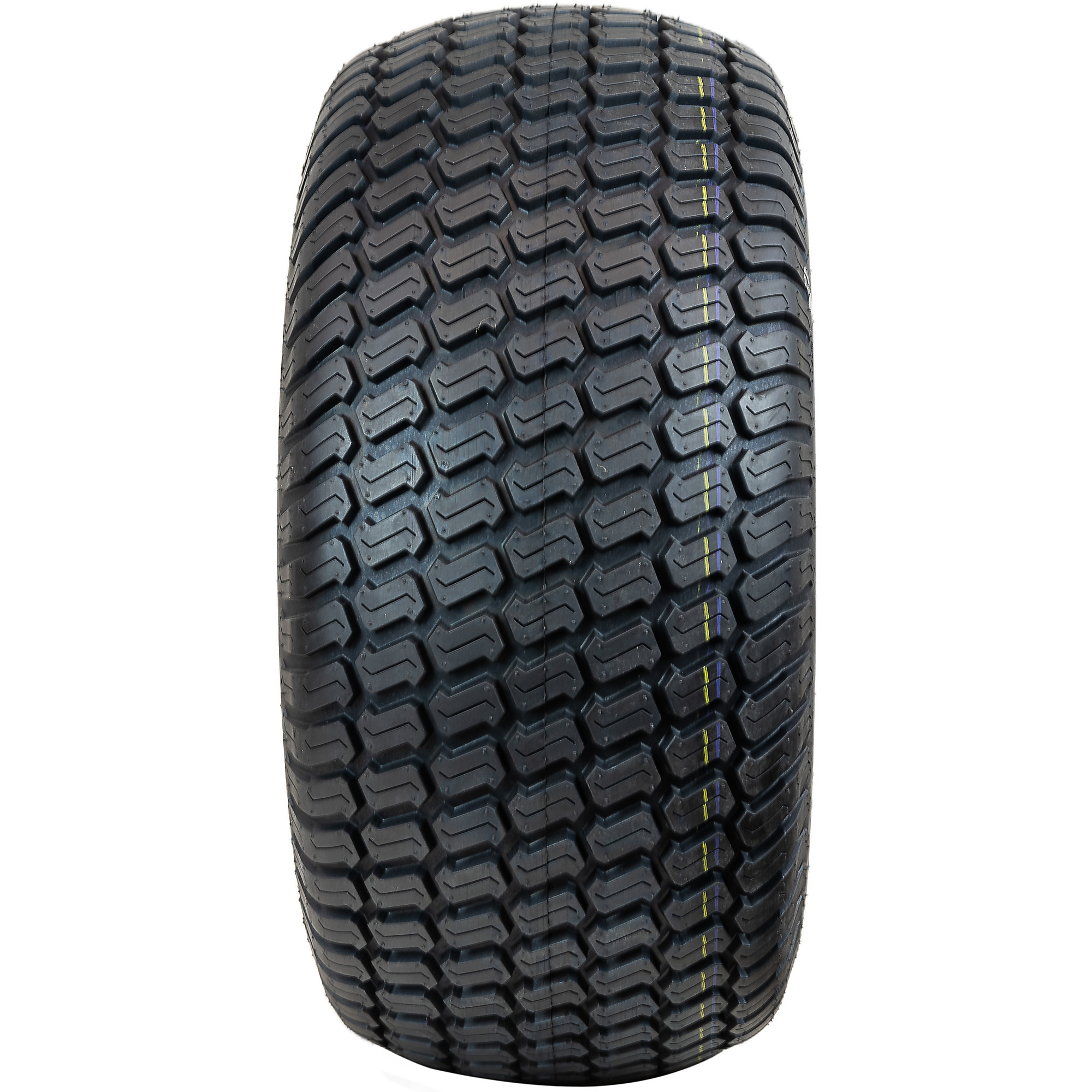

  • Tread Pattern: SU05 Turfmaster
  • Tire Size: 22X10-10
  • OD (Outer Diameter): 22 in
  • SW (Tire width): 10.3 in
  • Max Loading Capacity (Lbs): 1680

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The HI-RUN lawn garden tires are the ideal replacement for lawn mowers and garden tractors. The close shape tread provides great traction, and the wide shoulder design provides minimum damage to your turf and lawn. The black rim gives your mower a brand-new look.

What's Included

    (1) Tire and Rim

Features + Benefits

  • Tread Pattern: SU05 Turfmaster
  • Tire Size: 22X10-10
  • OD (Outer Diameter): 22 in
  • SW (Tire width): 10.3 in
  • Max Loading Capacity (Lbs): 1680
  • Inflation Pressure (PSI): 22
  • Rim Size: 10X7
  • Rim Color: Black
  • Bolt Pattern: 4-4.0
  • Central Bore (in): 2.83
  • Offset (in): -0.55
  • Tubeless pneumatic tire
  • Bias ply
  • Load range B, 4 Ply

Key Specs

AttributeSpecification

item#

5710933

Brand

HI-RUN

Manufacturer's Warranty

2 year limited warranty

Ship Weight

28.6 LB

Tire Size

22X10-10

Load Range Rating

B

Bolt Pattern

4

Style of Tire

Tire and Rim

Flat Free

No

Pneumatic

Yes

Tread Type

SU05 Turfmaster
AttributeSpecification

Load Capacity

1,680 lb

Tire Diameter

22 in

Rim Diameter

10 in

Tire Speed Rating

40 MPH

Bolt Circle Diameter

4 in

Rim Material

Steel

Tire Width

10.3 in

Tubeless

Yes

Ply Rating

4

Product Weight

28.6000 lb

Dimensions L x W x H (in.)

22.0 x 10.3 x 22.0 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

  1. How many wheels and tire do you get I am seeing a quantum of 4 is that right?

    1 answer

    1. This would be for just one (1) tire and rim.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
