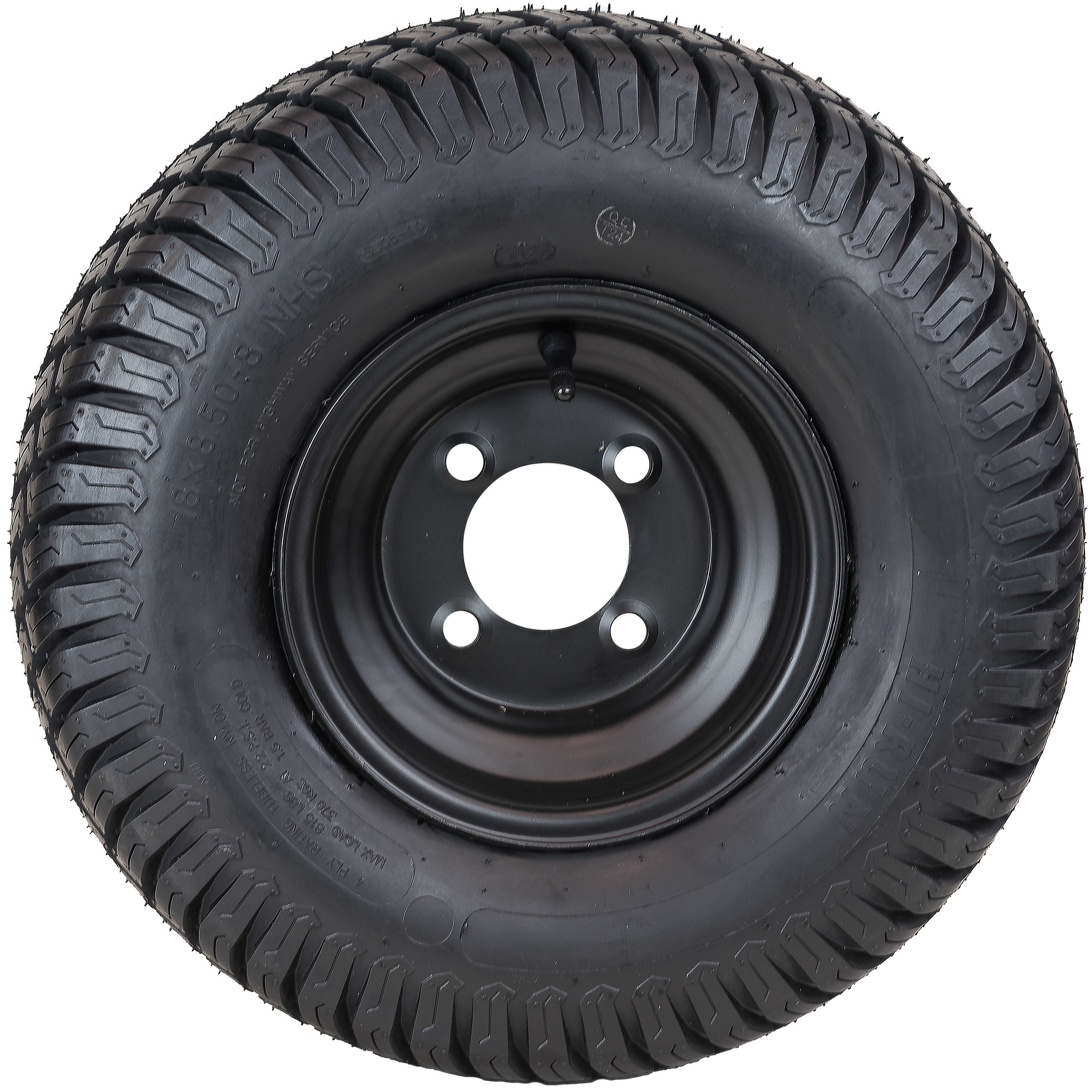

HI-RUN, LG Tire Assembly, Black Rim, Tire Size 18X8.5-8 Load Range Rating B, Bolt Holes (qty.) 4 Model# ASB1220

Item# 5710917
"HI-RUN, LG Tire Assembly, Black Rim, Tire Size 18X8.5-8 Load Range Rating B, Bolt Holes (qty.) 4 Model# ASB1220"
HI-RUN, LG Tire Assembly, Black Rim, Tire Size 18X8.5-8 Load Range Rating B, Bolt Holes (qty.) 4 Model# ASB1220

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

HI-RUN, LG Tire Assembly, Black Rim, Tire Size 18X8.5-8 Load Range Rating B, Bolt Holes (qty.) 4 Model# ASB1220

Click or Tap image to Zoom

$64.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Tread Pattern: SU05 Turfmaster
  • Tire Size: 18X8.5-8
  • OD (Outer Diameter): 17.9 in
  • SW (Tire width): 8.3 in
  • Max Loading Capacity (Lbs): 815

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The HI-RUN lawn garden tires are the ideal replacement for lawn mowers and garden tractors. The close shape tread provides great traction, and the wide shoulder design provides minimum damage to your turf and lawn. The black rim gives your mower a brand-new look.

What's Included

    (1) Tire and Rim

Features + Benefits

  • Tread Pattern: SU05 Turfmaster
  • Tire Size: 18X8.5-8
  • OD (Outer Diameter): 17.9 in
  • SW (Tire width): 8.3 in
  • Max Loading Capacity (Lbs): 815
  • Inflation Pressure (PSI): 22
  • Rim Size: 8X5.5
  • Rim Color: Black
  • Bolt Pattern: 4-4.0
  • Central Bore (in): 2.83
  • Offset (in): 0
  • Tubeless pneumatic tire
  • Bias ply
  • Load range B, 4 Ply

Key Specs

AttributeSpecification

item#

5710917

Brand

HI-RUN

Manufacturer's Warranty

2 year limited warranty

Ship Weight

14.6 LB

Tire Size

18X8.5-8

Load Range Rating

B

Bolt Pattern

4

Style of Tire

Tire and Rim

Flat Free

No

Pneumatic

Yes

Tread Type

SU05 Turfmaster
AttributeSpecification

Load Capacity

815 lb

Tire Diameter

17.9 in

Rim Diameter

8 in

Tire Speed Rating

40 MPH

Bolt Circle Diameter

4 in

Rim Material

Steel

Tire Width

8.3 in

Tubeless

Yes

Ply Rating

4

Product Weight

14.6000 lb

Dimensions L x W x H (in.)

17.9 x 8.3 x 17.9 in

Reviews

Questions & Answers

50 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. Does rim come with tire

    1 answer

    1. This will include the tire and rim.

      Helpful?

  2. What size assembly hub for ttire 18x8.5-8 modelASB1220

    1 answer

    1. The overall diameter is 18". The overall width is 8.5". The rim diameter is 8". The width of the rim is 5.5" The center bore is 2.83". The bolt pattern will be 4 on 4.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
