HI-RUN, Highway Trailer Tire Assembly, Bias-Ply, Tire Size 4.80X12 Load Range Rating C, Bolt Holes (qty.) 5 Model# ASB1098

Item# 5328030
HI-RUN, Highway Trailer Tire Assembly, Bias-Ply, Tire Size 4.80X12 Load Range Rating C, Bolt Holes (qty.) 5 Model# ASB1098

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

HI-RUN, Highway Trailer Tire Assembly, Bias-Ply, Tire Size 4.80X12 Load Range Rating C, Bolt Holes (qty.) 5 Model# ASB1098

Click or Tap image to Zoom

$87.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Tread Pattern: SU02 Highway Trailer
  • Tire Size: 4.80X12
  • OD (Outer Diameter): 20.5 in
  • SW (Tire width): 4.6 in
  • Inflation Pressure (PSI): 90

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

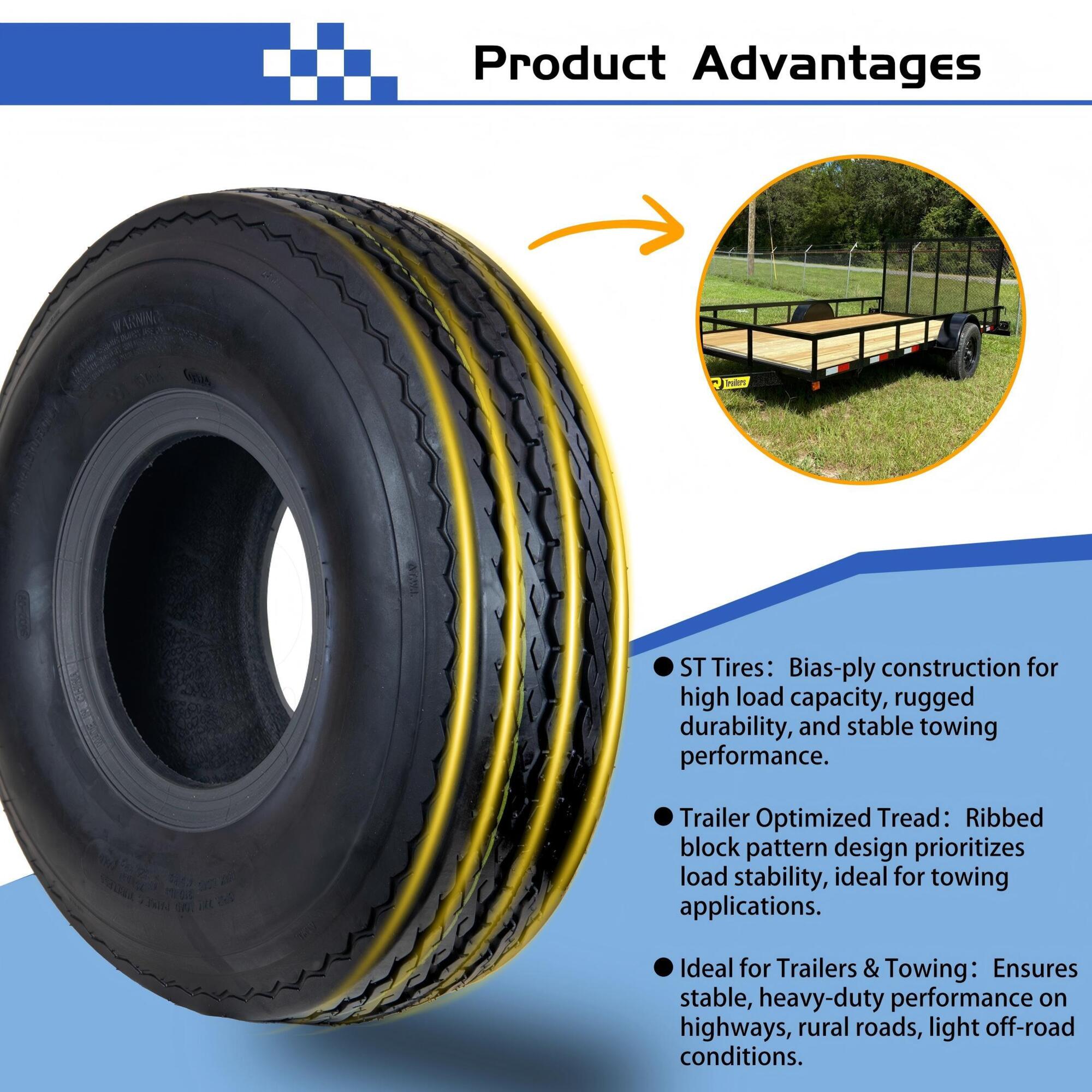

Best replacement tire/wheel for boat, utility and RV trailers; 5-lug bolt pattern; High-intensity matrix design, self cleaning nature, wear resistant; Good capacity of defense against sideslip.

What's Included

    (1) Tire and Rim

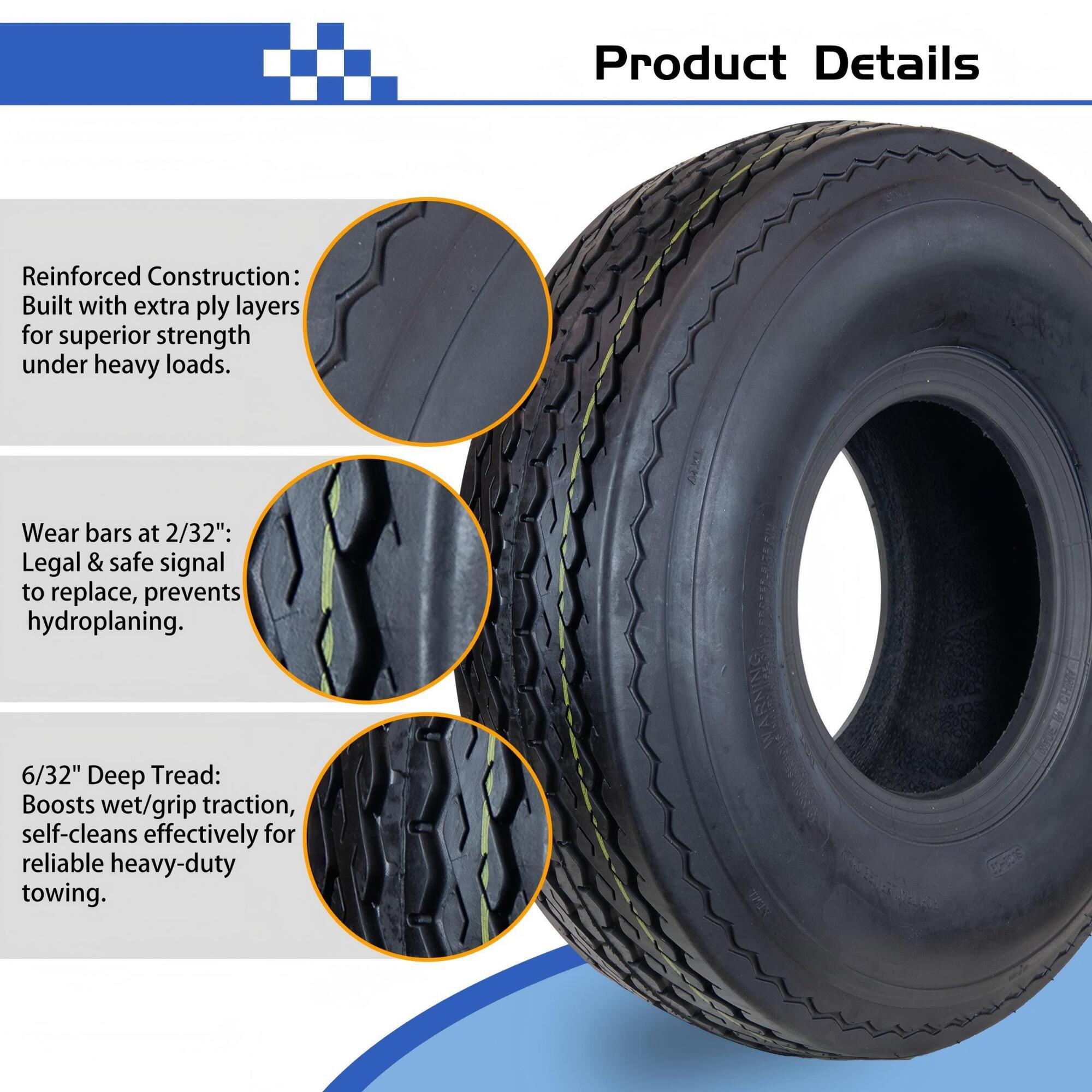

Features + Benefits

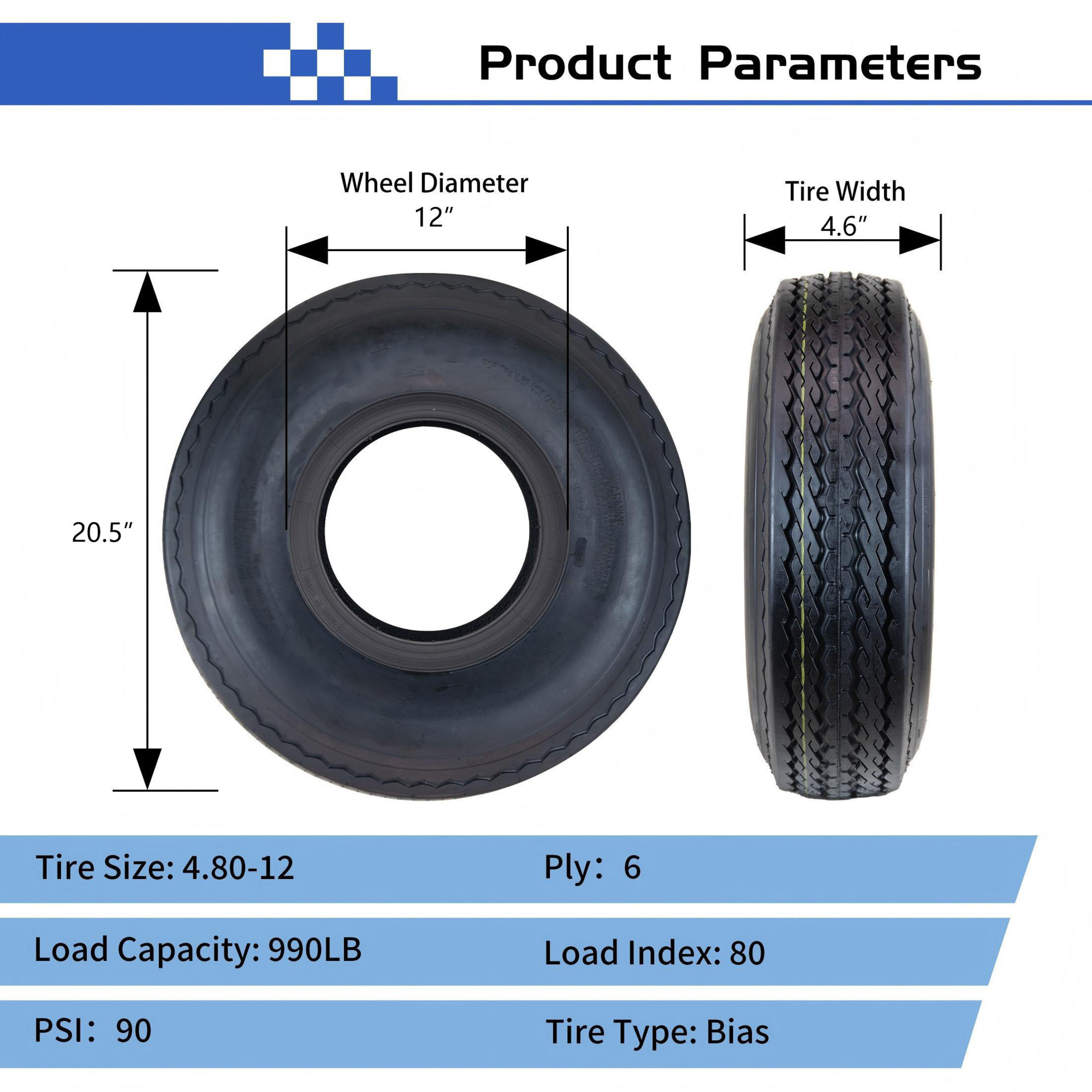

  • Tread Pattern: SU02 Highway Trailer
  • Tire Size: 4.80X12
  • OD (Outer Diameter): 20.5 in
  • SW (Tire width): 4.6 in
  • Inflation Pressure (PSI): 90
  • Bolt Pattern: 5-4.5
  • Assembly is DOT approved
  • Load Range C, 6 ply
  • Bias Ply

Key Specs

AttributeSpecification

item#

5328030

Brand

HI-RUN

Manufacturer's Warranty

2 year limited warranty

Ship Weight

18.14 LB

Tire Diameter

20.5 in

Style of Tire

Tire and Rim

Tire Size

4.80X12

Load Range Rating

C

Bolt Pattern

5

Tire Type

Bias Ply

Load Capacity

990 lb

Flat Free

No
AttributeSpecification

Pneumatic

Yes

Tread Type

SU02 Highway Trailer

Rim Diameter

12 in

Tire Speed Rating

75 MPH

Bolt Circle Diameter

4.5 in

Rim Material

Steel

Tire Width

4.6 in

Tubeless

Yes

Ply Rating

6

Product Weight

18.1400 lb

Dimensions L x W x H (in.)

20.5 x 4.6 x 20.5 in

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. What is the speed rating? How fast can I go with them?

    1 answer

    1. The HI-RUN Highway Trailer Tire Assembly (Model# ASB1098) has a speed rating of 75 MPH, ideal for high-speed highway towing.

      Helpful?

  2. I need to know what size the hub bore is on these. I’m looking for some that are 3.19 inches and will fit my current trailer hubs.

    1 answer

    1. The bore diameter is 2.80".

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
