HI-RUN, Highway Trailer Tire Assembly, Bias Ply, Black Mod, Tire Size ST175/80D13 Load Range Rating C, Bolt Holes (qty.) 5 Model# ASB1209

Item# 5696772
HI-RUN, Highway Trailer Tire Assembly, Bias Ply, Black Mod, Tire Size ST175/80D13 Load Range Rating C, Bolt Holes (qty.) 5 Model# ASB1209

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

HI-RUN, Highway Trailer Tire Assembly, Bias Ply, Black Mod, Tire Size ST175/80D13 Load Range Rating C, Bolt Holes (qty.) 5 Model# ASB1209

Click or Tap image to Zoom

$109.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

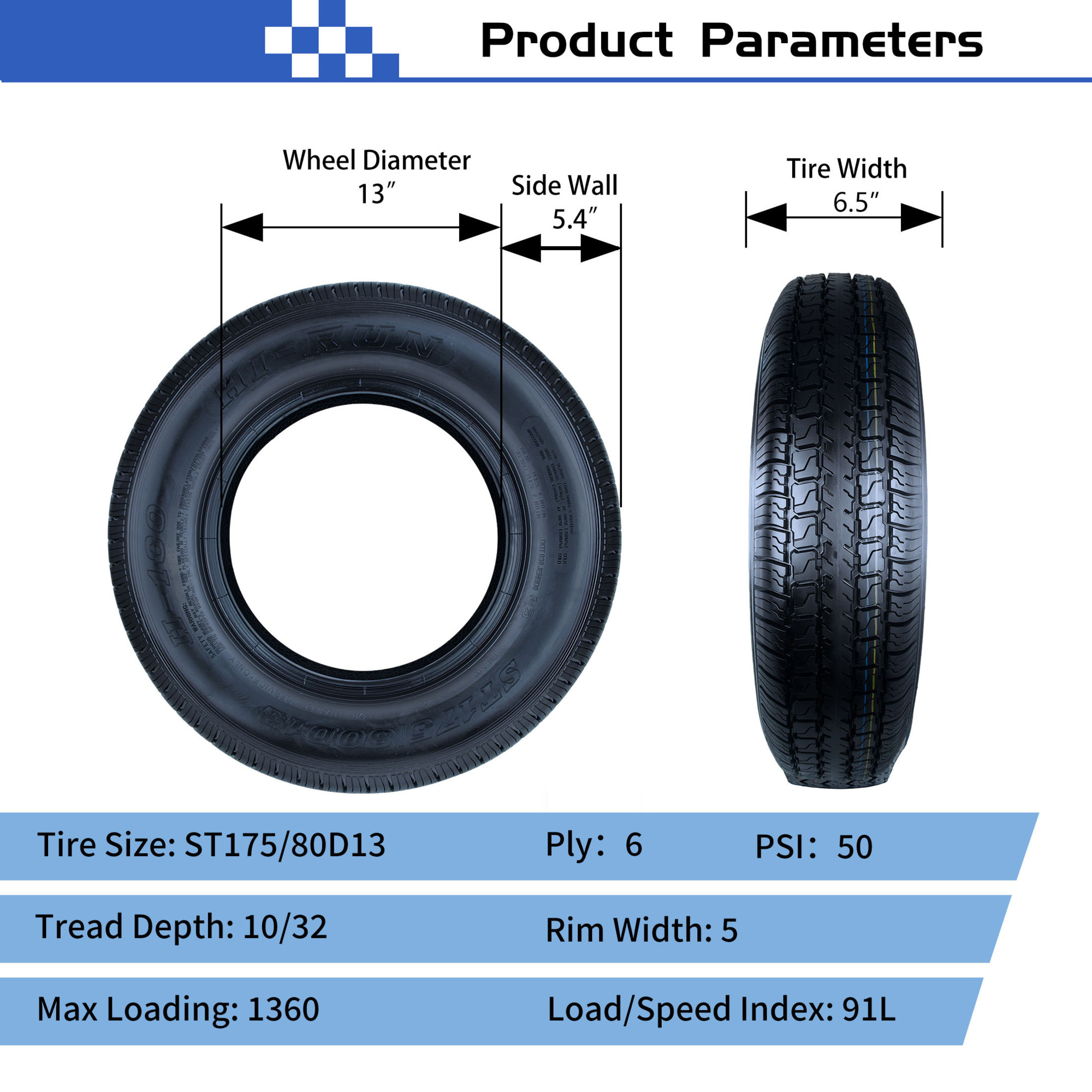

  • Tread Pattern: H180 Highway Trailer
  • Tire Size: ST175/80D13
  • OD (Outer Diameter): 23.9 in
  • SW (Tire width): 6.5 in
  • Inflation Pressure (PSI): 50

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

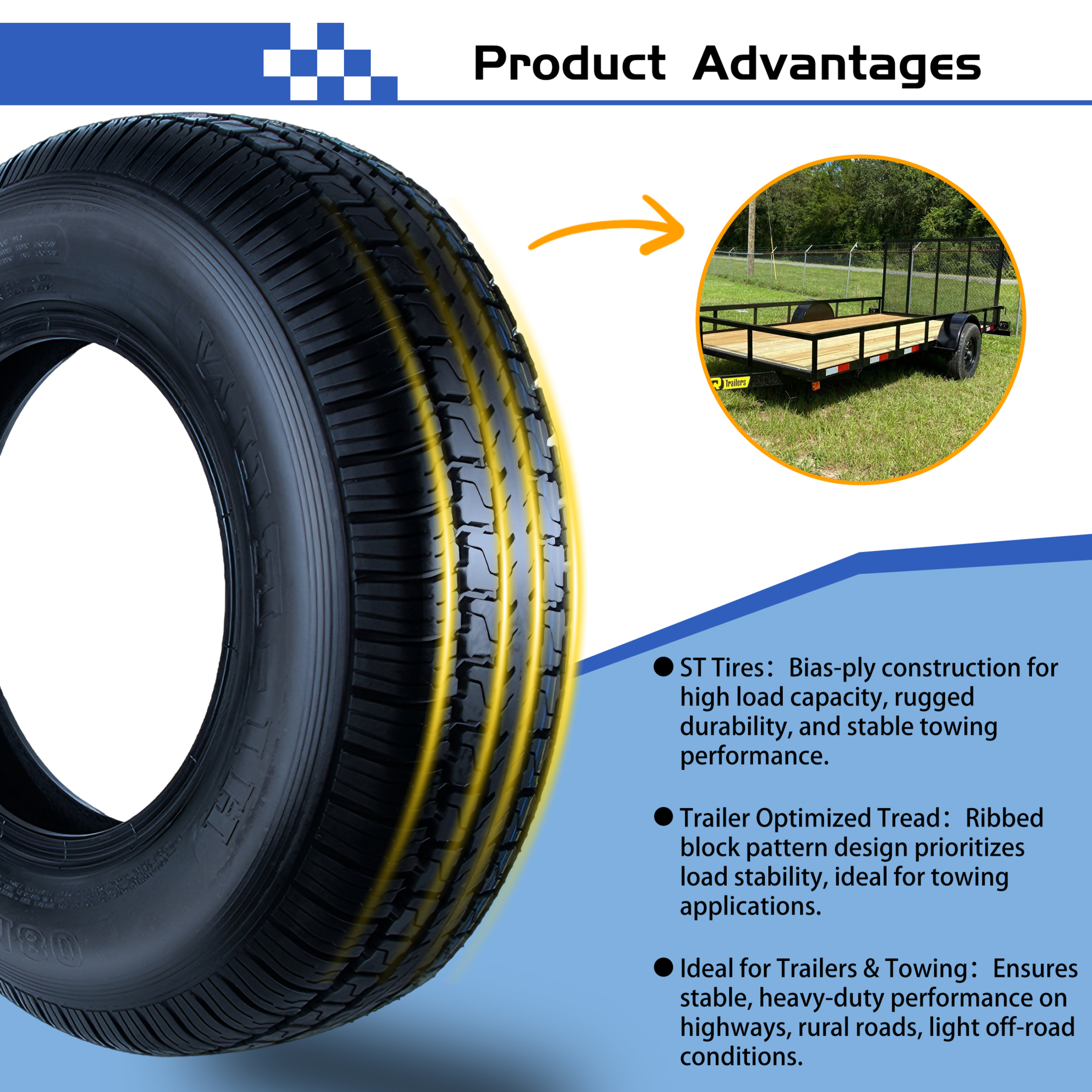

The HI-RUN trailer tires are the ideal replacement wheel for utility, RV and boat trailers. The tires are manufactured to exceed DOT requirements, and featured with excellent wear resistance and heavy load capacity. The black modular rims give your vehicle a brand new look.

What's Included

    (1) Tire and Rim

Features + Benefits

  • Tread Pattern: H180 Highway Trailer
  • Tire Size: ST175/80D13
  • OD (Outer Diameter): 23.9 in
  • SW (Tire width): 6.5 in
  • Inflation Pressure (PSI): 50
  • Rim Size: 13X4.5
  • Bolt Pattern: 5-4.5
  • Rim Offset (in): 0
  • Rim Center Bore (in): 3.19
  • Nut diameter (in): 0.591
  • Rim Color: Black Modular
  • Assembly is DOT approved
  • Bias
  • Load Range C, 6 ply

Key Specs

AttributeSpecification

item#

5696772

Brand

HI-RUN

Manufacturer's Warranty

2 year limited warranty

Ship Weight

25.7 LB

Tire Diameter

23.9 in

Style of Tire

Tire and Rim

Tire Size

ST175/80D13

Load Range Rating

C

Bolt Pattern

5

Tire Type

Bias Ply

Load Capacity

1,360 lb

Flat Free

No
AttributeSpecification

Pneumatic

Yes

Tread Type

H180 Highway Trailer

Rim Diameter

13 in

Tire Speed Rating

75 MPH

Bolt Circle Diameter

4.5 in

Rim Material

Steel

Tire Width

6.5 in

Tubeless

Yes

Ply Rating

6

Product Weight

25.7000 lb

Dimensions L x W x H (in.)

23.9 x 6.5 x 23.9 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
