HeatStar High-Intensity Infrared Natural Gas Heater, 60,000 BTU, Model# F180629

Item# 29129
"HeatStar High-Intensity Infrared Natural Gas Heater, 60,000 BTU, Model# F180629"

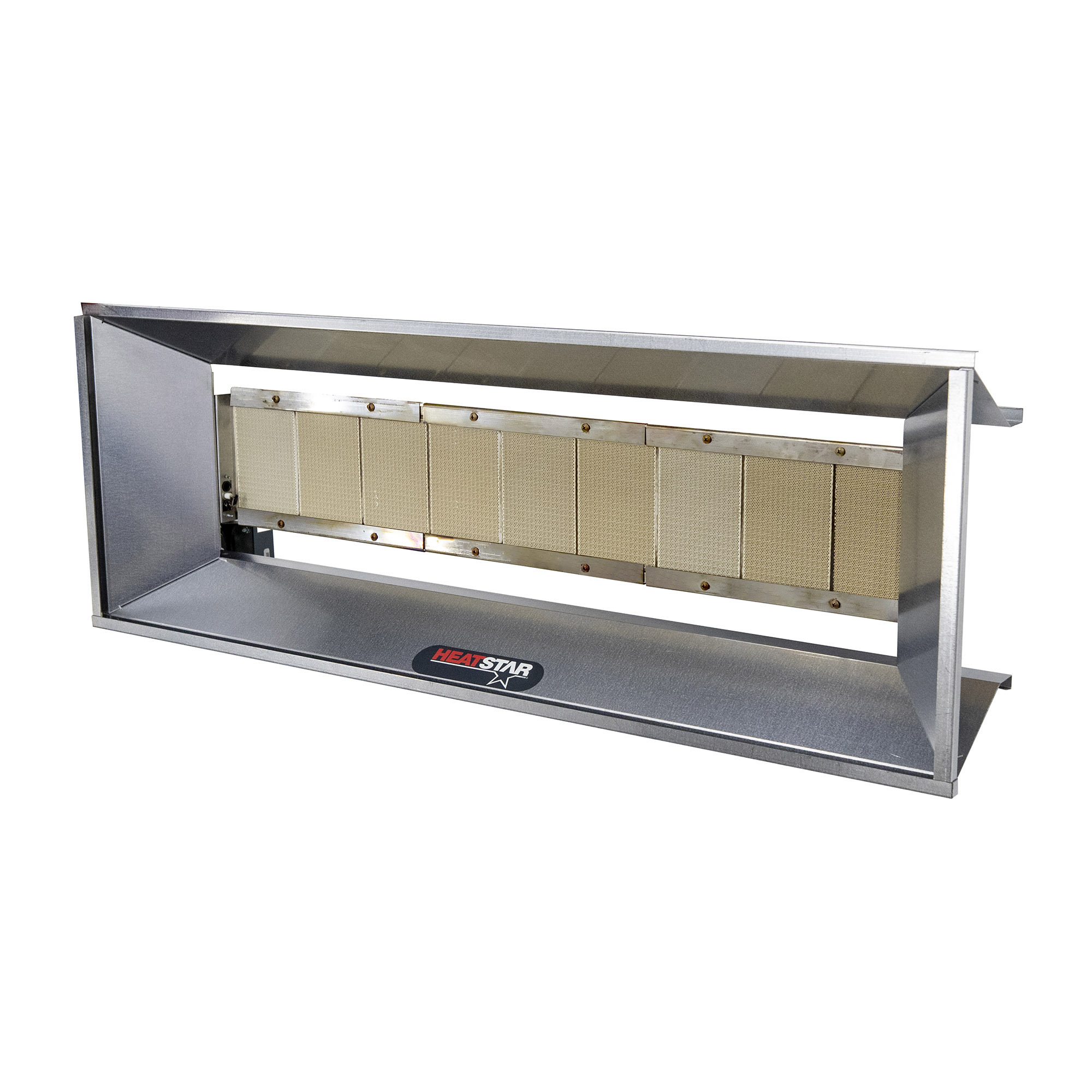

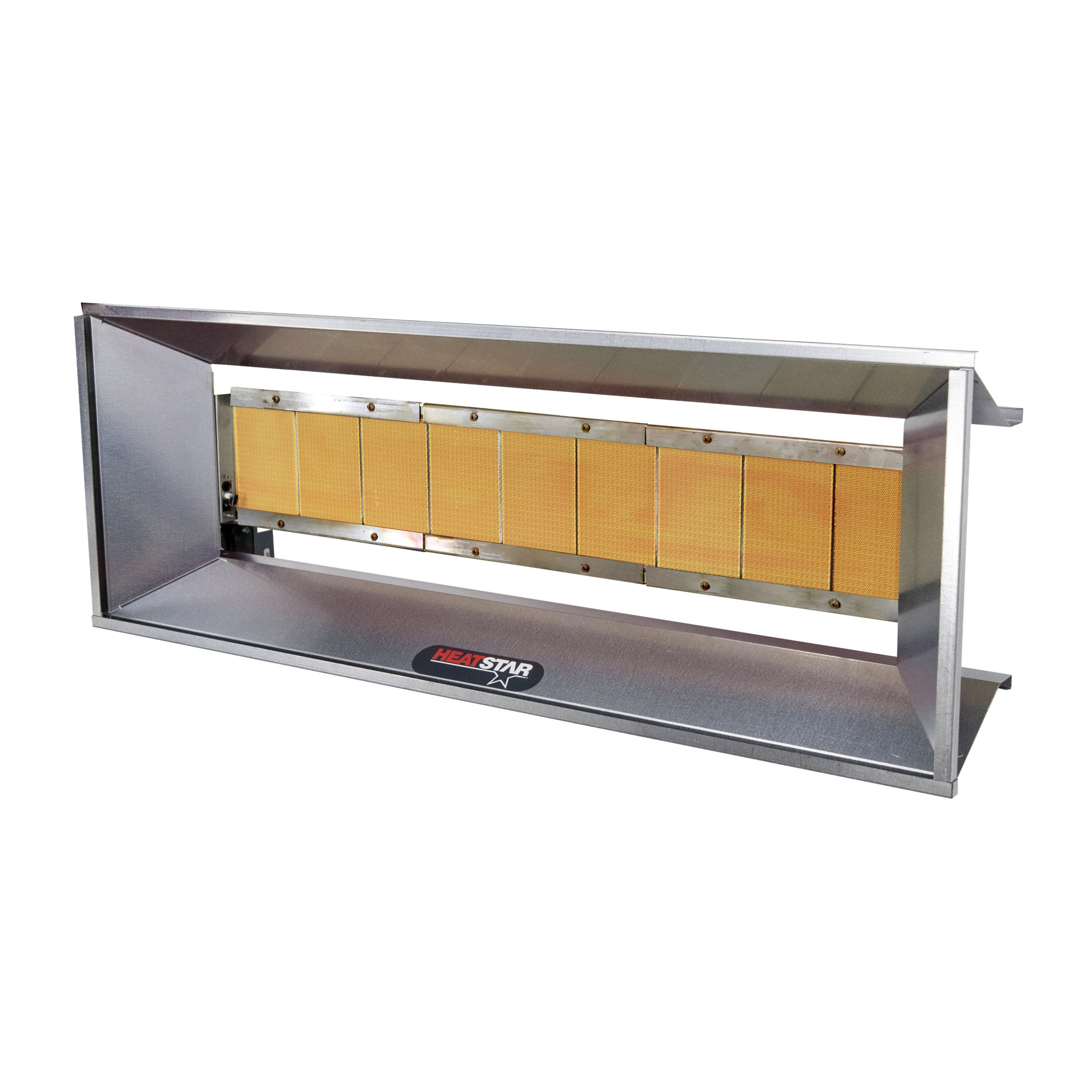

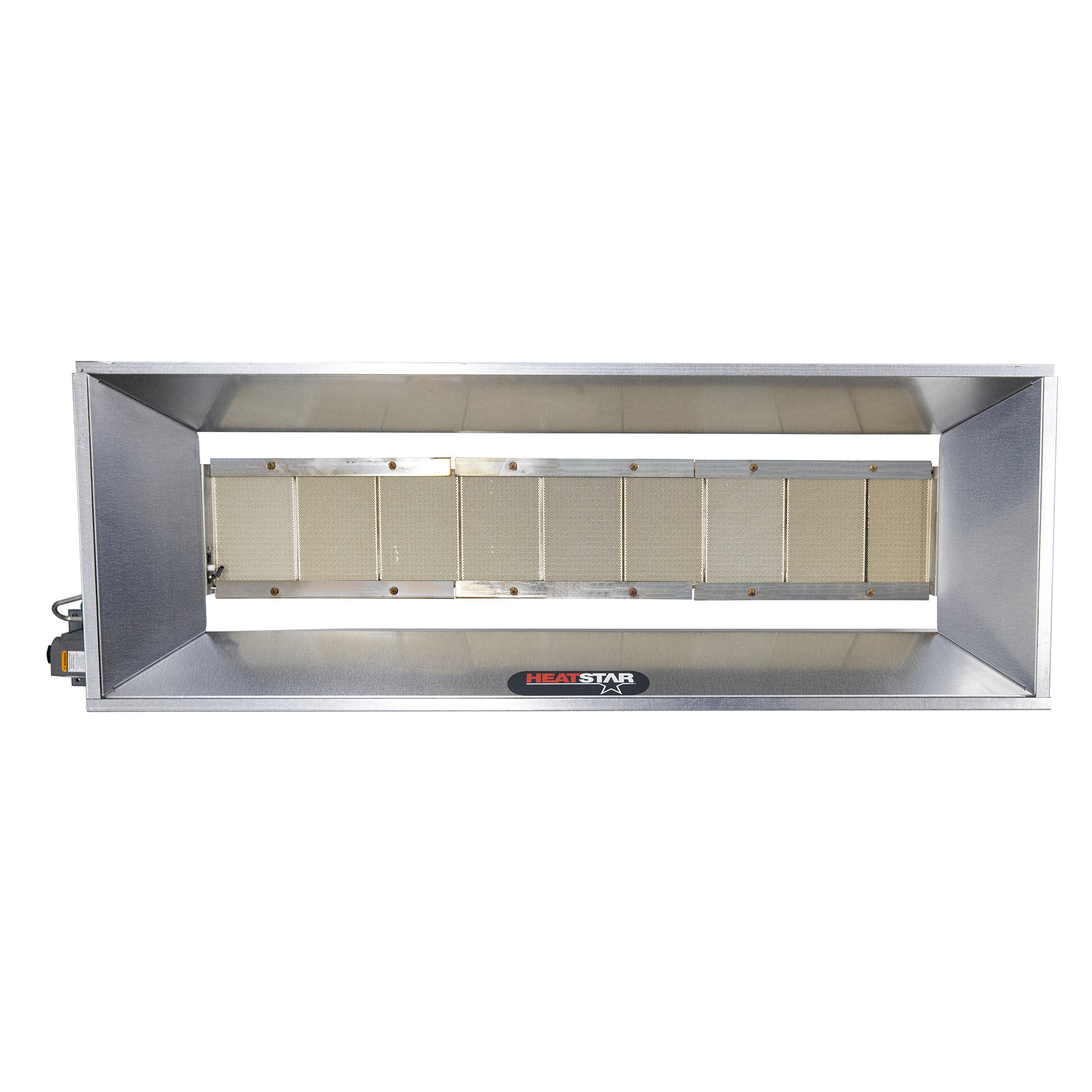

HeatStar High-Intensity Infrared Natural Gas Heater, 60,000 BTU, Model# F180629

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

HeatStar High-Intensity Infrared Natural Gas Heater, 60,000 BTU, Model# F180629

Click or Tap image to Zoom

$649.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • No direct venting required
  • Additional burner orfices enables the installer to increase or decrease the heat output
  • Spark ignition heaters ship with 40VA transformer
  • Noncorrosive materials are used throughout heater construction

See full description

Complete Your Solution

  • HeatStar High-Intensity Infrared Natural Gas Heater, 60,000 BTU, Model# F180629
  • SunStar Heating Products 24 Volt Thermostat, Model# 30562000
  • Mr. Heater Universal Gas Connection Kit, Model# F271239
Price for all three:

$705.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This HeatStar High-Intensity Infrared Natural Gas Heater provides quiet, clean heat for pole barns, factories, warehouses, loading docks and more.

What's Included

    (1) Heater

Downloads

Product Manual

Features + Benefits

  • No direct venting required
  • Additional burner orfices enables the installer to increase or decrease the heat output
  • Spark ignition heaters ship with 40VA transformer
  • Noncorrosive materials are used throughout heater construction

Key Specs

AttributeSpecification

item#

29129

Brand

HeatStar

Manufacturer's Warranty

1 year limited warranty

Ship Weight

34.0 LB

Heat Output

60,000 Btu/hour

Heat Type

Infrared
AttributeSpecification

Blower Included

No

Amps

2.81

Thermostat Included

No

Product Weight

lb

Dimensions L x W x H (in.)

45.25 x 19.25 x 12.0 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. I use this for patio heater in California. It is not directly exposed to rain but to humidity and dew in morning. We want to cover when not in use. Do you have a cover for this unit to reduce exposure to outdoors??

    1 answer

    1. The heater is for indoor use only. There is no cover available for it.

      Helpful?

  2. How do you start tge pilot light

    1 answer

    1. You would set the thermostat to the off position, wait 5 minutes to allow any gas to escape that may have accumulated, then turn the know to pilot. Using a match, light the pilot light. See page E6 of the product manual on our web.

      Helpful?

  3. Does this heater require electricity?

    1 answer

    1. Yes, the Heatstar High-Intensity Infrared Natural Gas Heater (Model F180629) does require electricity for its spark ignition system. It comes with a 120V/24VAC/40VA transformer. This means you'll need an electrical connection to operate the ignition and control systems.

      Helpful?

  4. how many Sq feet does it heat?

    1 answer

    1. The 60,000 BTU heater would heat approximately 1500 square feet.

      Helpful?

  5. Any brackets for install in the wall this heater

    1 answer

    1. A wall mounting bracket model F114581 (part number MHF114581) can be purchased through our sister company Jacks Small Engine at the link below. https://www.jackssmallengines.com/

      Helpful?

  6. What is the clearance requirement from the ceiling to the top of the heater and from the heater to the floor?

    1 answer

    1. This heater requires a minimum of 40" from the top of the heater to the ceiling and a minimum of 84" from the bottom of the heater to the floor.

      Helpful?

  7. Are these heaters able to be connected to each other, with the same thermostat

    1 answer

    1. This heater cannot be connected to another heater with the same thermostat. It has to be operated by its own thermostat like item 16342 shown below.

      Helpful?

  8. Can this be converted to propane?

    1 answer

    1. This heater cannot be converted to propane. HeatStar does offer some slightly larger heaters that run off of propane which I will list below.

      Helpful?

  9. can you use a thermostat on this unit and is it available to buy

    1 answer

    1. A thermostat is required to operate this heater. Please view the recommended thermostat, item 16342, below.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

See All Thermostats

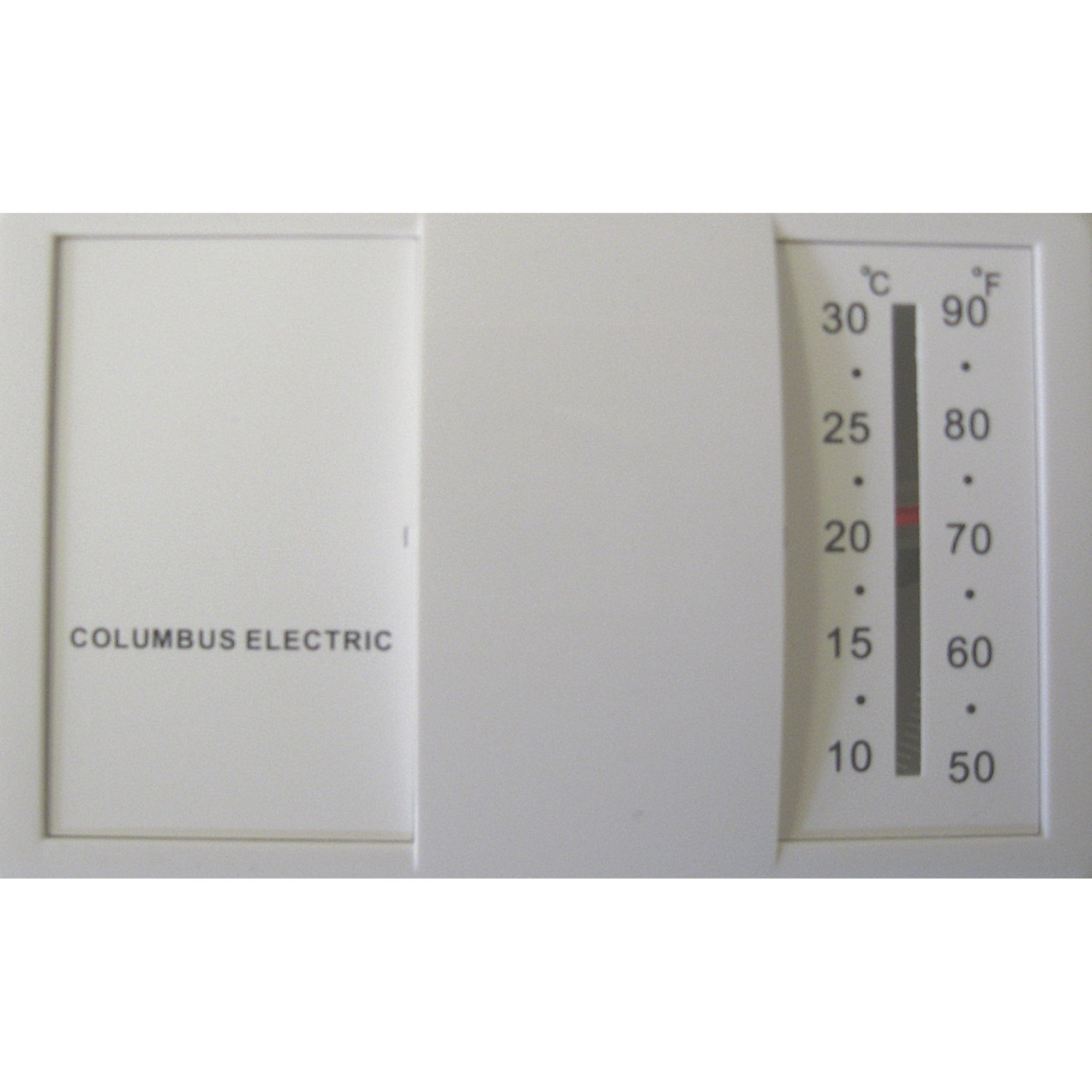

SunStar Heating Products 24 Volt Thermostat, Model# 30562000
