This engine features a direct injection fuel system.

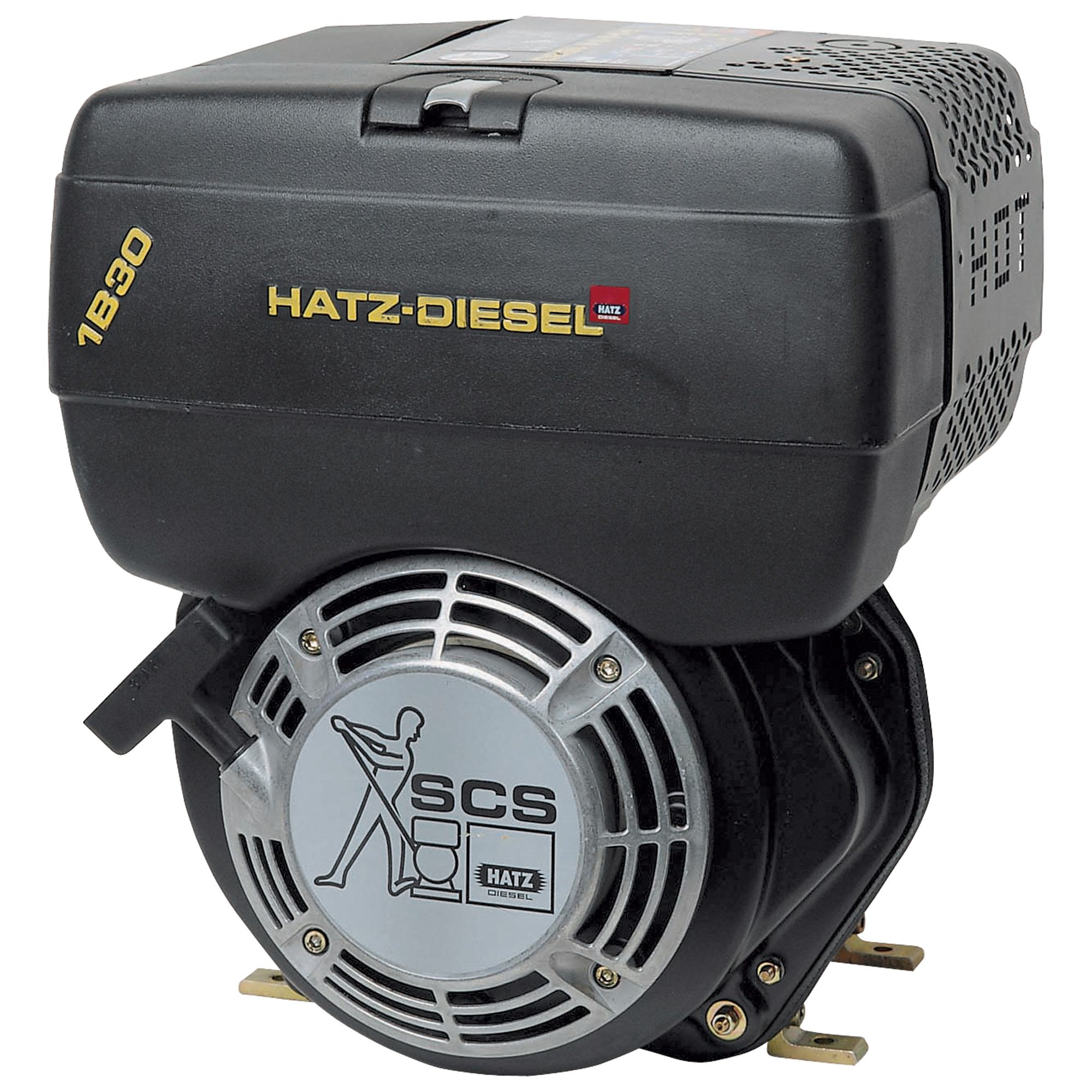

Hatz Diesel Engine — 6.8 HP, 1in. x 2 7/16in. Shaft, Model# 1B30X-9903
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Air-cooled single cylinder diesel engine
- Small, light, powerful, and universally applicable
- Light alloy die cast cylinder crankcase
- Light alloy cylinder head
- Forged crankcase
See full description
See All Horizontal Engines
See All Horizontal Engines
Currently Viewing This Product
Shipping: Sold Out
Specifications
Specifications
Hatz Diesel Engine — 6.8 HP, 1in. x 2 7/16in. Shaft, Model# 1B30X-9903
Honda Engines, HONDA 270CC 6:1 ENGINE, Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX270UT2HA2
Honda Engines, HONDA GX270 6:1 ELECTRIC START, Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX270UT2HEA2
Honda Engines, V-TWIN HORIZONTAL 630CC RQXA, Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQXA
Engine Type
Same
Diesel
GX Series OHV Commercial-duty
GX Series OHV Commercial-duty
GX Series OHV V-twin Commercial-duty
Start Type
Same
Recoil
Recoil
Electric and Recoil
Electric
Shaft Keyway
Same
3/16
-
0.25 in
0.25 in
Cylinder Bore
Same
Light alloy die cast
Cast Iron
Cast Iron
Integrated
Compression Ratio
Same
1:21.5
8.5:1
8.5:1
9.3:1
Lubrication System
Same
Pressurized circulation
Splash
Splash
Full Pressure
Air Cleaner Type
Same
Dry
Dual Element
Dual Element
Dual Element
Engine Displacement
Same
-
270 cc
270 cc
688 cc
Shaft Diameter
Same
-
1 in
1 in
1 in
Shaft Length
Same
-
3.23 in
3.23 in
2.9 in
Net Torque
Same
-
14.1 ft-lbs.
14.1 ft-lbs.
35.6 ft-lbs.
Crankshaft
Same
-
H-type
H-type
Q-type
PTO Height
Same
-
5.25 in
5.25 in
5.25 in
Cylinders (qty.)
Same
-
1
1
2
Net Power Output
Same
-
8.5 HP
8.5 HP
20.8 HP
Fuel Tank Capacity
Same
-
5.6 qt
5.6 qt
-
Oil Capacity
Same
-
1.16 qt
1.16 qt
2 qt
Shaft Rotation (From PTO Shaft Side)
Same
-
Counter Clockwise
Counter Clockwise
Counter Clockwise
Governor System
Same
-
Centrifugal Mechanical
Centrifugal Mechanical
Mechanical
Ignition System
Same
-
Electronic
Electronic
Electonic, Digital CDI W/variable Ignition Timing
Carburetor
Same
-
Float, External Vent
Float, External Vent
2-barrel, Fuel Cut Solenoid, Inner Vent
Cooling System
Same
-
Air
Air
Air
Bore
Same
-
3 in
3 in
3.1 in
Stroke
Same
-
2.3 in
2.3 in
2.8 in
Choke Control
Same
-
Manual
Manual
Remote
Throttle Control
Same
-
Manual
Remote
Remote
Fuel Filter
Same
-
Yes
Yes
-
Fuel Tank
Same
-
-
-
No
Low Oil Alert
Same
-
-
-
Yes
Charging System Amps
Same
-
-
-
3
Muffler Included
Same
-
-
-
No
