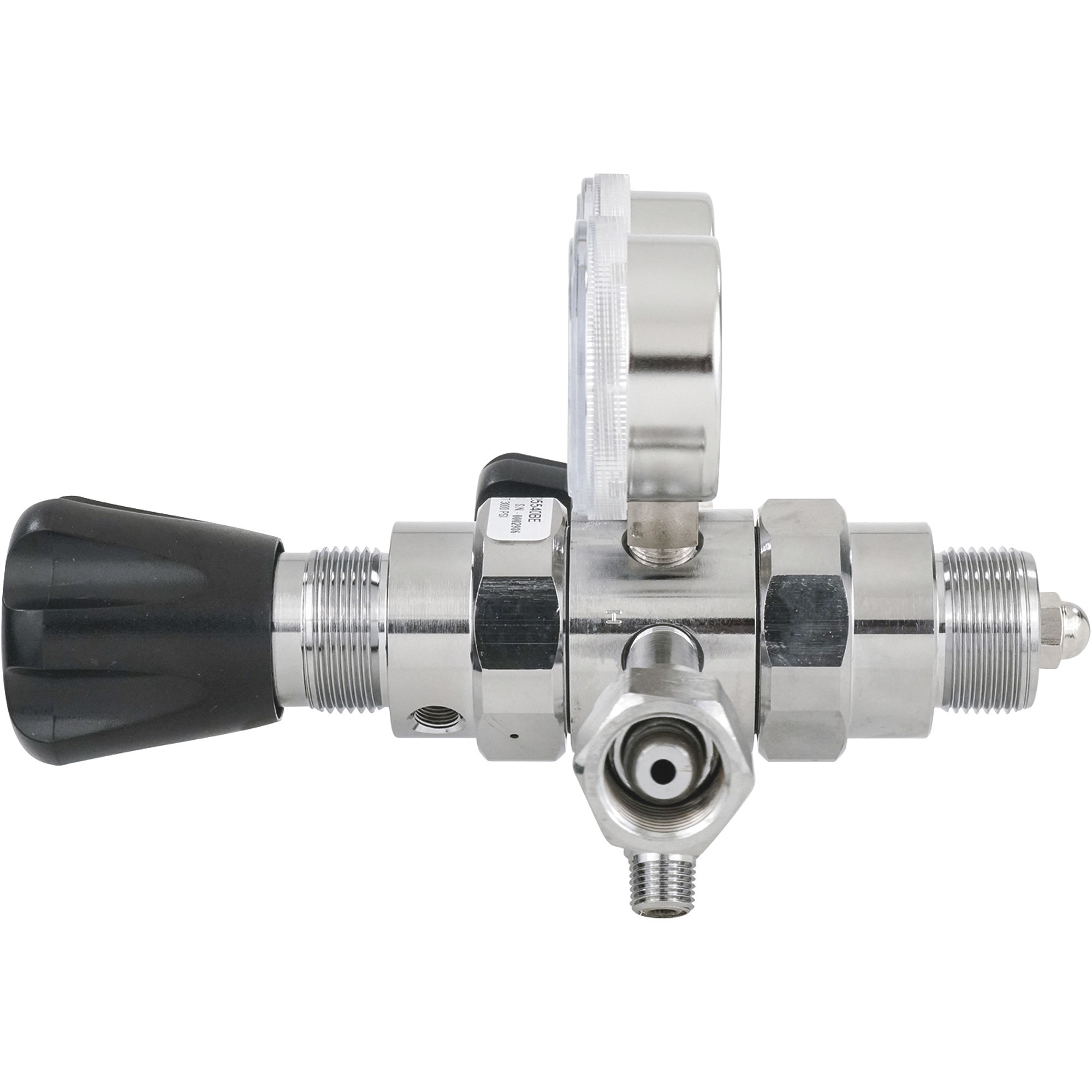

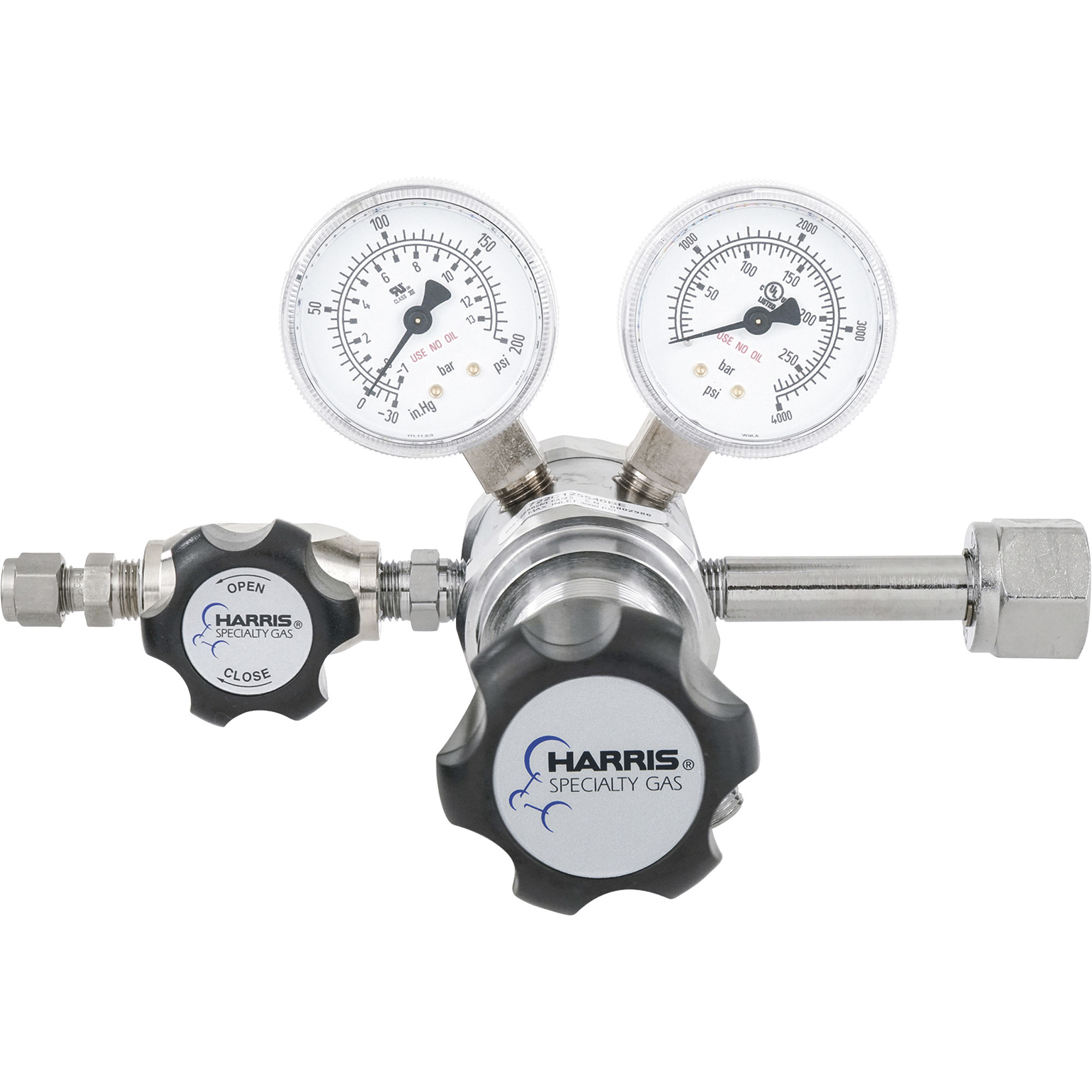

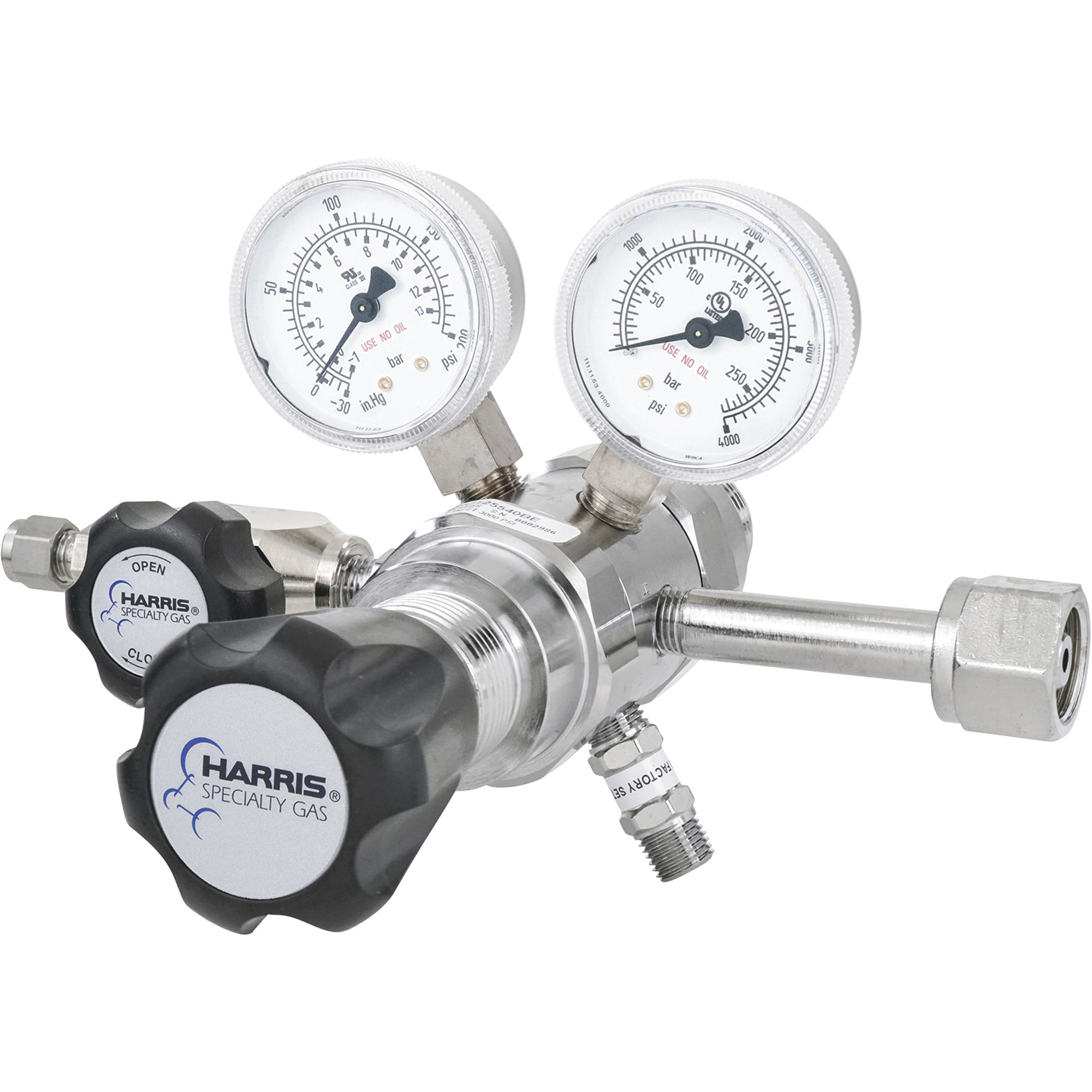

Harris, REG,HP722C-125-540-BE, Max. Inlet Pressure 3000 PSIG, Model# HP722C-125-540-BE

Item# 87680
Harris, REG,HP722C-125-540-BE, Max. Inlet Pressure 3000 PSIG, Model# HP722C-125-540-BE

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Harris, REG,HP722C-125-540-BE, Max. Inlet Pressure 3000 PSIG, Model# HP722C-125-540-BE

Click or Tap image to Zoom

$669.99

  • Shipping:

    Factory shipped

  • Store Pickup:

  • 2in. dual scale chrome-plated brass gauges (psi/bar)
  • Mountable on the front or back panel
  • Maximum inlet pressure of 3000 PSIG
  • Recommended for non-corrosive gases or purity levels of Grade 5.0 (99.999) and higher
  • External relief valve is standard

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Harris, REG,HP722C-125-540-BE, Max. Inlet Pressure 3000 PSIG, Model# HP722C-125-540-BE
  • Hobart Welding Goggles, #5 Shade, Flip-Up Front, Oxyacetylene, Model# 770095
Price for all two:

$688.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This high-purity, two-stage cylinder Harris® Oxygen Specialty Gas Lab Regulator is constructed of chrome-plated brass for constant delivery pressure from full to near empty cylinder conditions. The Model HP722 is suitable for high purity gas applications, research sample systems gases, process analyzer gases, gas chromatography, EPA protocol gases, laser gas systems and emission monitoring systems. The 200 PSIG delivery pressure gauge features a delivery pressure range of 0 to 125 PSIG.

What's Included

    (1) Two-stage cylinder regulator with CGA inlet connection and outlet diaphragm valve (1) 1/4in. compression fitting

Features + Benefits

  • 2in. dual scale chrome-plated brass gauges (psi/bar)
  • Mountable on the front or back panel
  • Maximum inlet pressure of 3000 PSIG
  • Recommended for non-corrosive gases or purity levels of Grade 5.0 (99.999) and higher
  • External relief valve is standard
  • 1 11/16in. 316L stainless steel diaphragm eliminates contamination from diffusion or outgassing
  • Designed to 1 x 10-9cc/sec. inboard helium leak rate to maintain gas purity levels
  • One-piece encapsulated seat design includes a sintered filter to protect the seat from particulate contamination
  • Chrome-plated brass barstock bonnet, body and fittings
  • Cleaned per CGA G4.1

Key Specs

AttributeSpecification

item#

87680

Brand

Harris

Manufacturer's Warranty

1 year limited warranty

Ship Weight

7.6 LB

Max. Inlet Pressure

3,000 PSIG

Max. Delivery Pressure

125 PSIG

Body Material

Multiple
AttributeSpecification

Gas Service

Oxygen

Welding Process

Gas

Supply Pressure Gauge

4,000 PSIG

Inlet Connection

CGA 540

Product Weight

7.6000 lb

Dimensions L x W x H (in.)

9.5 x 9.5 x 9.5 in
