Product Summary

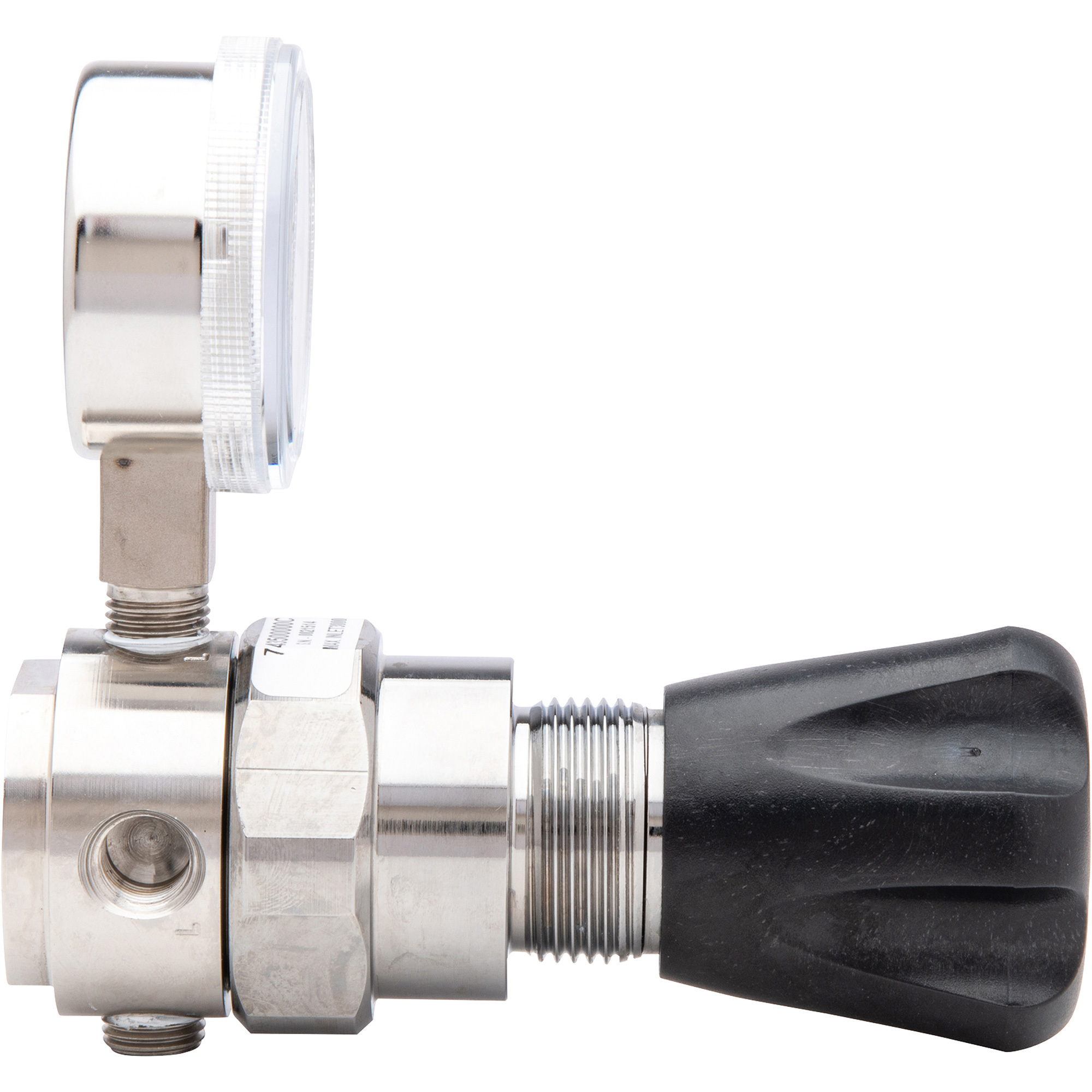

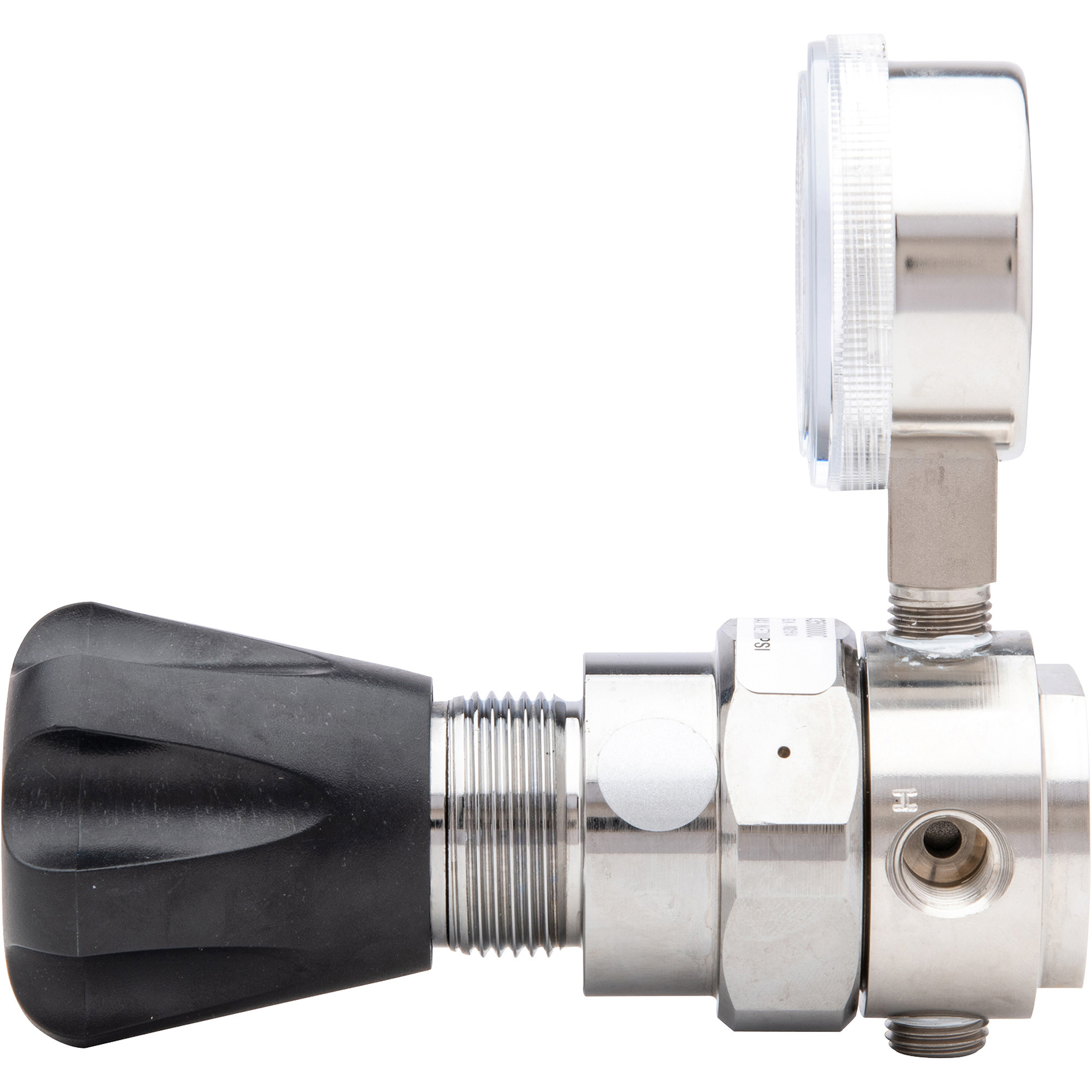

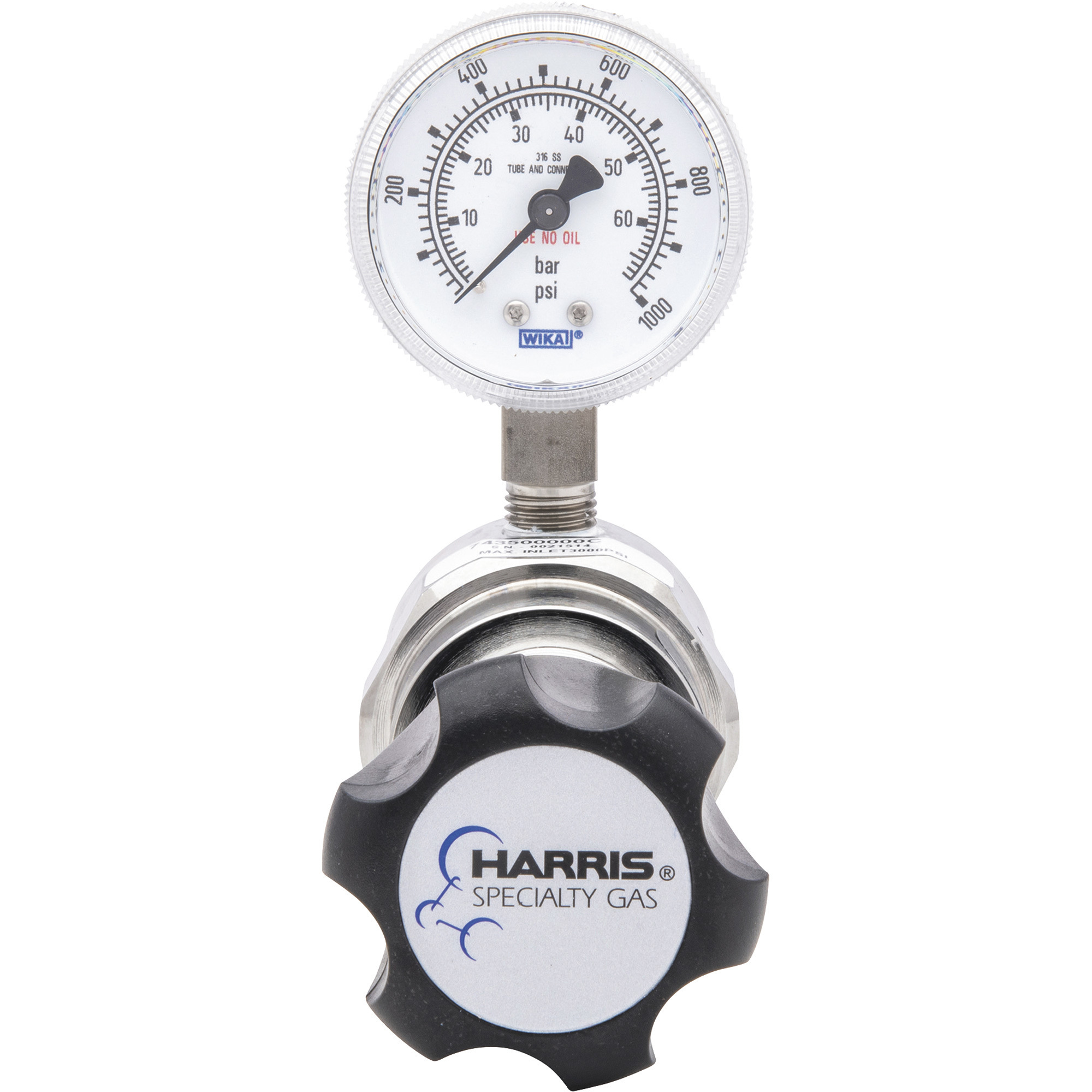

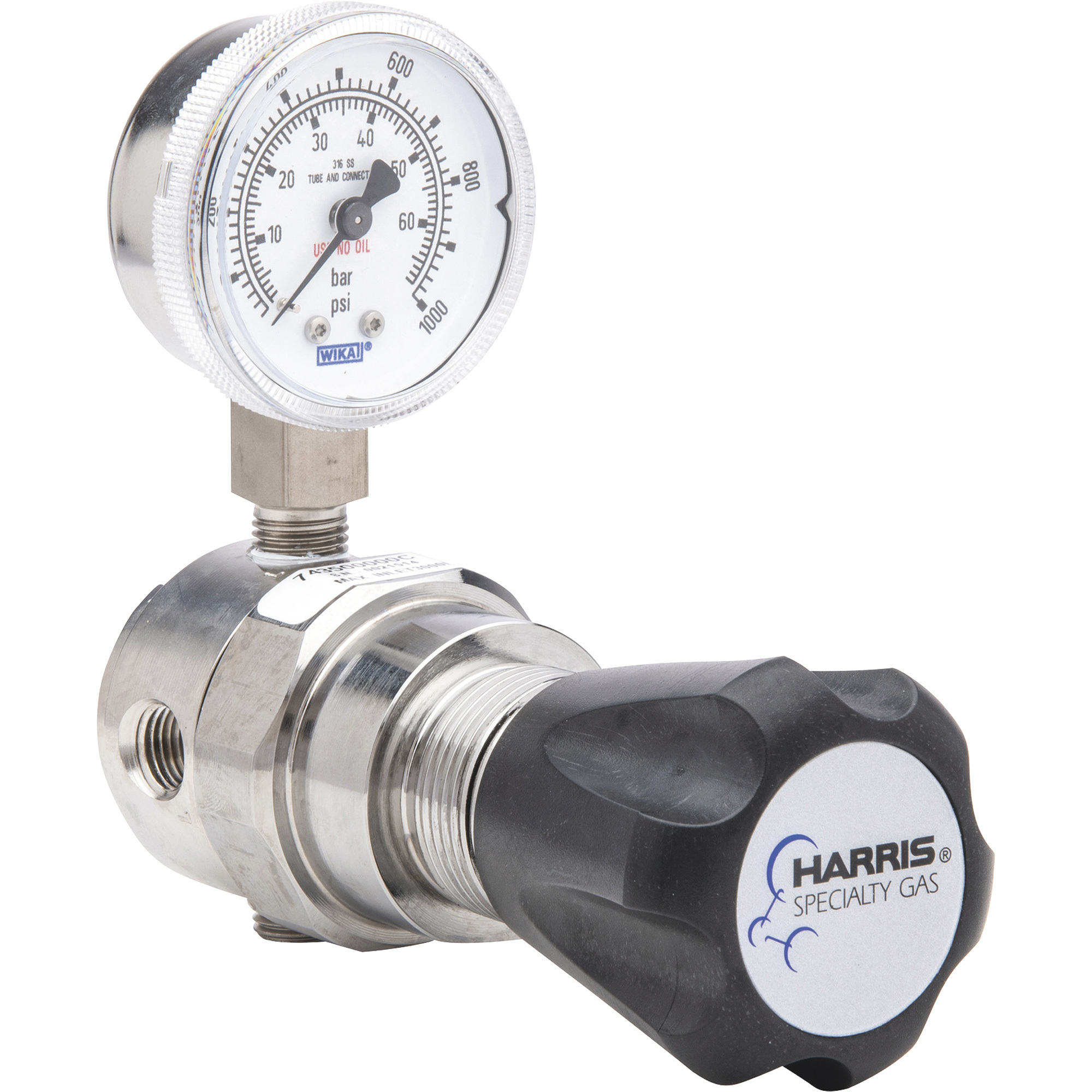

The Harris HP743-500 Single-Stage Steel Pipeline Regulator is designed for applications with up to 3000 PSIG inlet pressure. This regulator is suitable for corrosive gas applications, high-purity gas applications, research sample systems gases, process analyzer gases, gas chromatography, EPA protocol gases, laser gas systems and emission monitoring.

What's Included

    (1) Regulator

Features + Benefits

  • 1 11/16in.- 316L stainless steel diaphragm eliminates contamination from diffusion or outgassing
  • 1-piece encapsulated seat design
  • 10-micron sintered internal filter to protect the PTFE Teflon® seat from particulate contamination
  • Stainless steel body and fittings and chrome-plated brass bonnet
  • 2in. stainless steel dual scale gauge (psi/bar)

Key Specs

AttributeSpecification

item#

113825

Brand

Harris

Manufacturer's Warranty

3 months parts/3 months labor

Ship Weight

2.63 LB

Max. Inlet Pressure

3,000 PSIG

Max. Delivery Pressure

500 PSIG
AttributeSpecification

Body Material

Stainless Steel

Gas Service

Other

Welding Process

Gas

Inlet Connection

1/4 In FNPT

Product Weight

2.6300 lb

Dimensions L x W x H (in.)

5.25 x 2.25 x 5.5 in

Warranty

Manufacturer's Warranty

3 months parts/3 months labor
