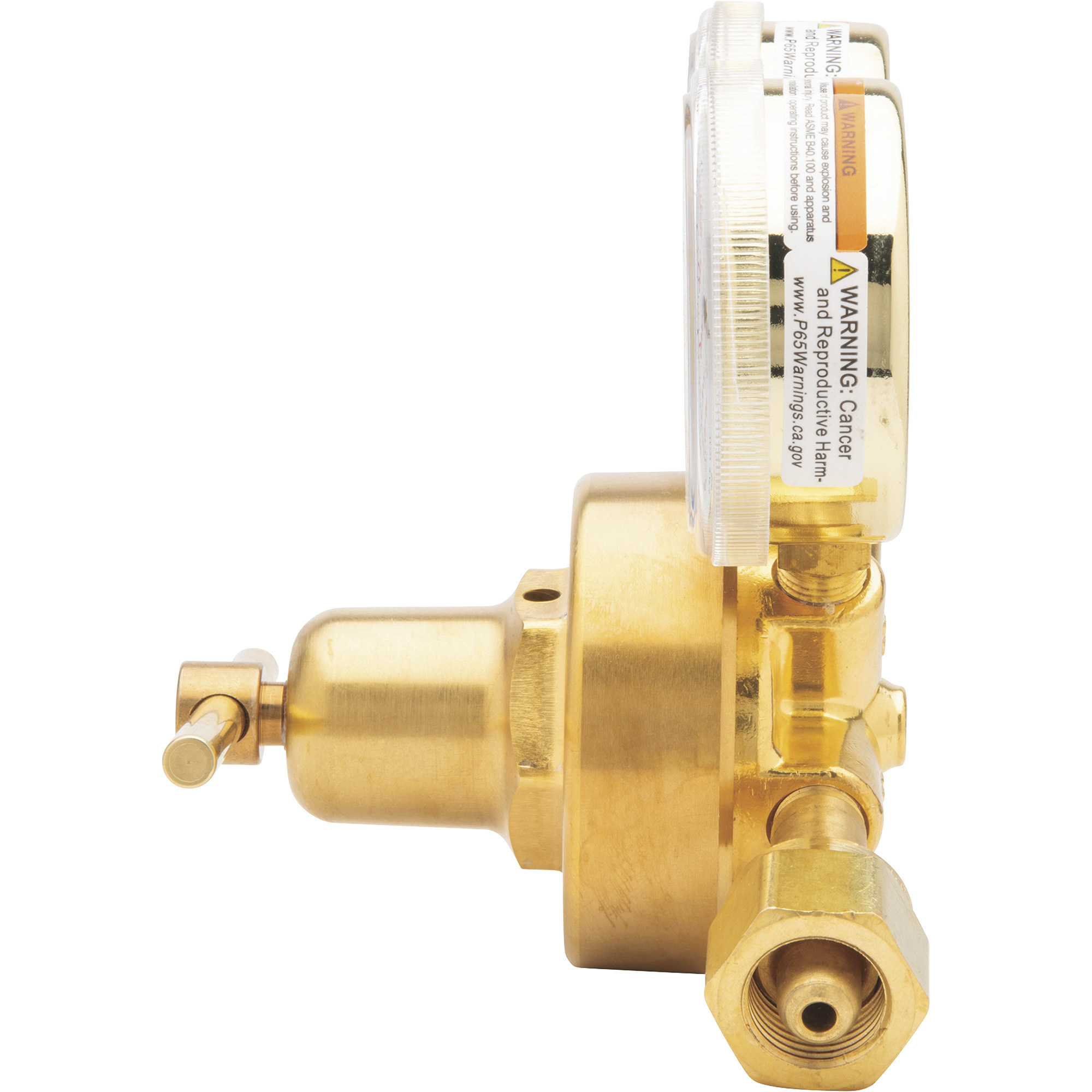

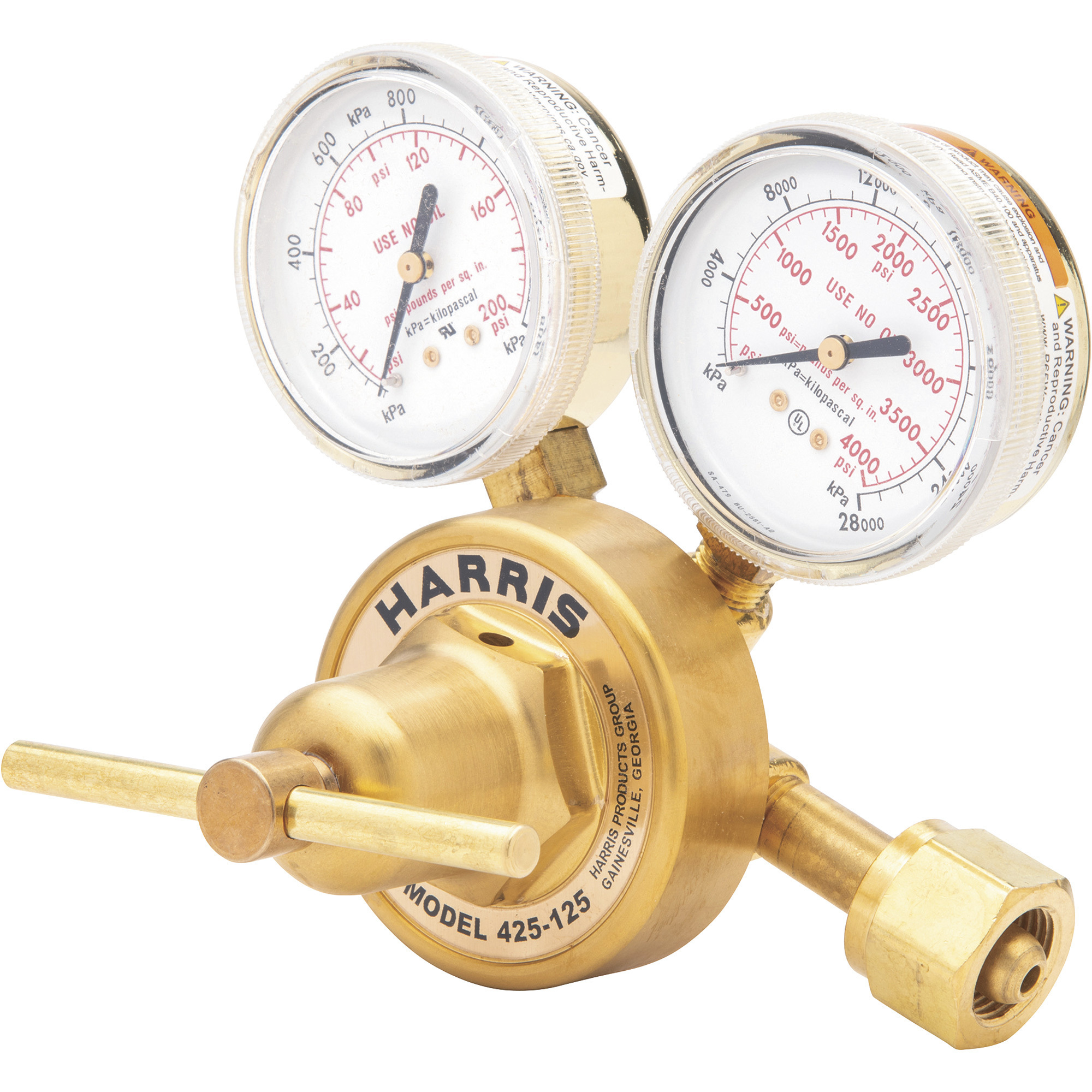

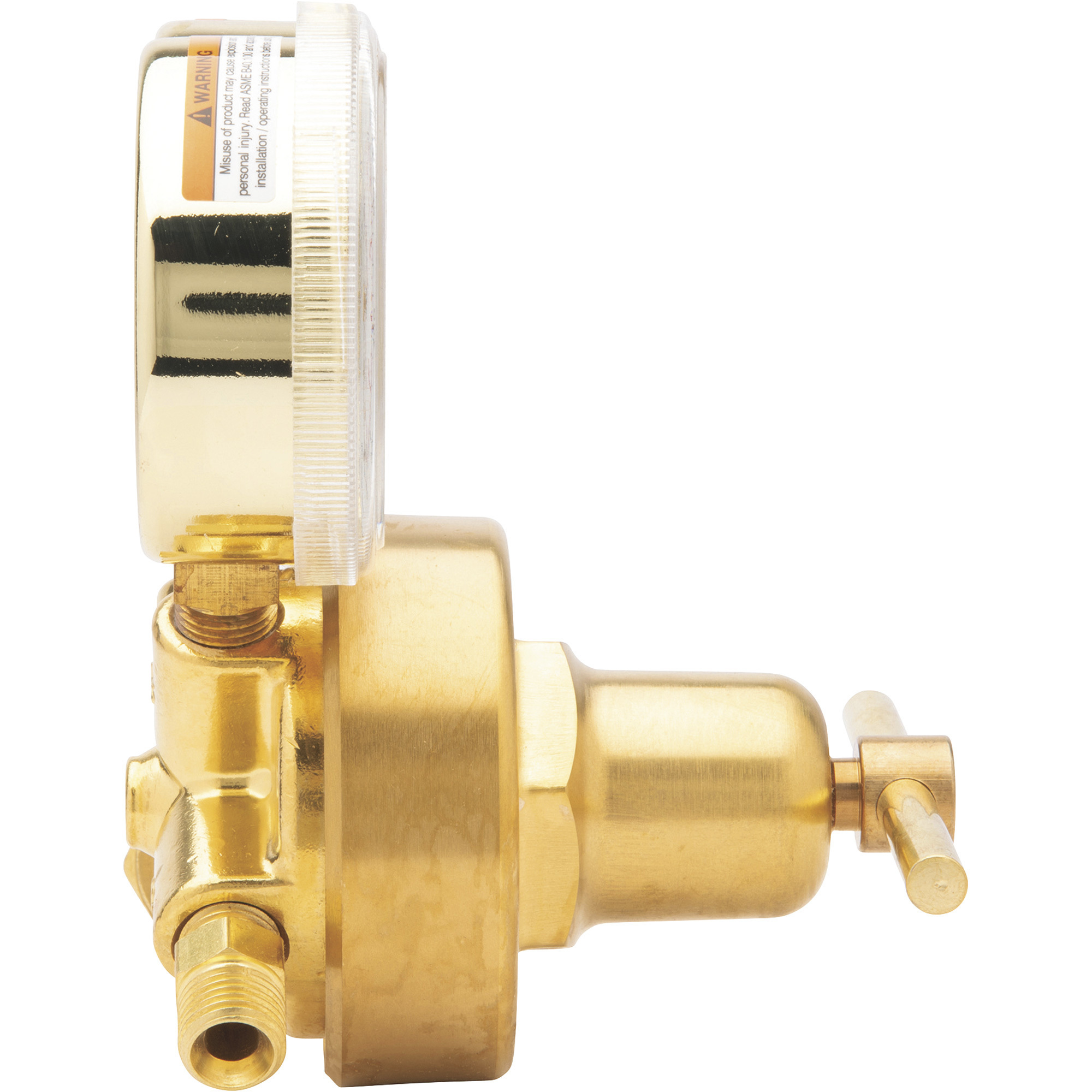

Harris, HS REG,425-125-346 Max. Inlet Pressure 3000 PSIG, Model# 425-125-346

Item# 107159
Harris, HS REG,425-125-346 Max. Inlet Pressure 3000 PSIG, Model# 425-125-346

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Harris, HS REG,425-125-346 Max. Inlet Pressure 3000 PSIG, Model# 425-125-346

Click or Tap image to Zoom

Product Summary

This Harris® Premium Single-Stage Industrial Regulator is an ideal choice for most industrial applications. The regulator incorporates an exclusive tamper-proof, self-reseating internal high-pressure safety valve plus a number of other Harris features designed to make it a rugged, long-lasting performer. Designed for use with Medical Air. A rugged brass body and bonnet provide long service life.

What's Included

    (1) Premium single-stage industrial regulator

Features + Benefits

  • Exclusive tamper-proof, self-reseating internal high-pressure safety valve
  • Compatible with the most common welding shielding gases including Medical Air
  • Neoprene diaphragm for improved pressure control
  • One-piece encapsulated seat design with internal filter protects the PTFE Teflon® seat from particulate contamination
  • Easy-to-operate "T" screw handle
  • 2 1/2in. easy-to-read brass dual scale gauges
  • Compact, lightweight and rugged design with brass body and bonnet to offer long service life

Key Specs

AttributeSpecification

item#

107159

Brand

Harris

Manufacturer's Warranty

84 Months Limited

Max. Inlet Pressure

3,000 PSIG

Max. Delivery Pressure

125 PSIG

Body Material

Brass
AttributeSpecification

Gas Service

Other

Welding Process

Gas

Supply Pressure Gauge

4,000 PSIG

Inlet Connection

Cga-346

Product Weight

4.3100 lb

Dimensions L x W x H (in.)

7.75 x 7.375 x 6.875 in

Questions & Answers

Warranty

Manufacturer's Warranty

84 Months Limited
