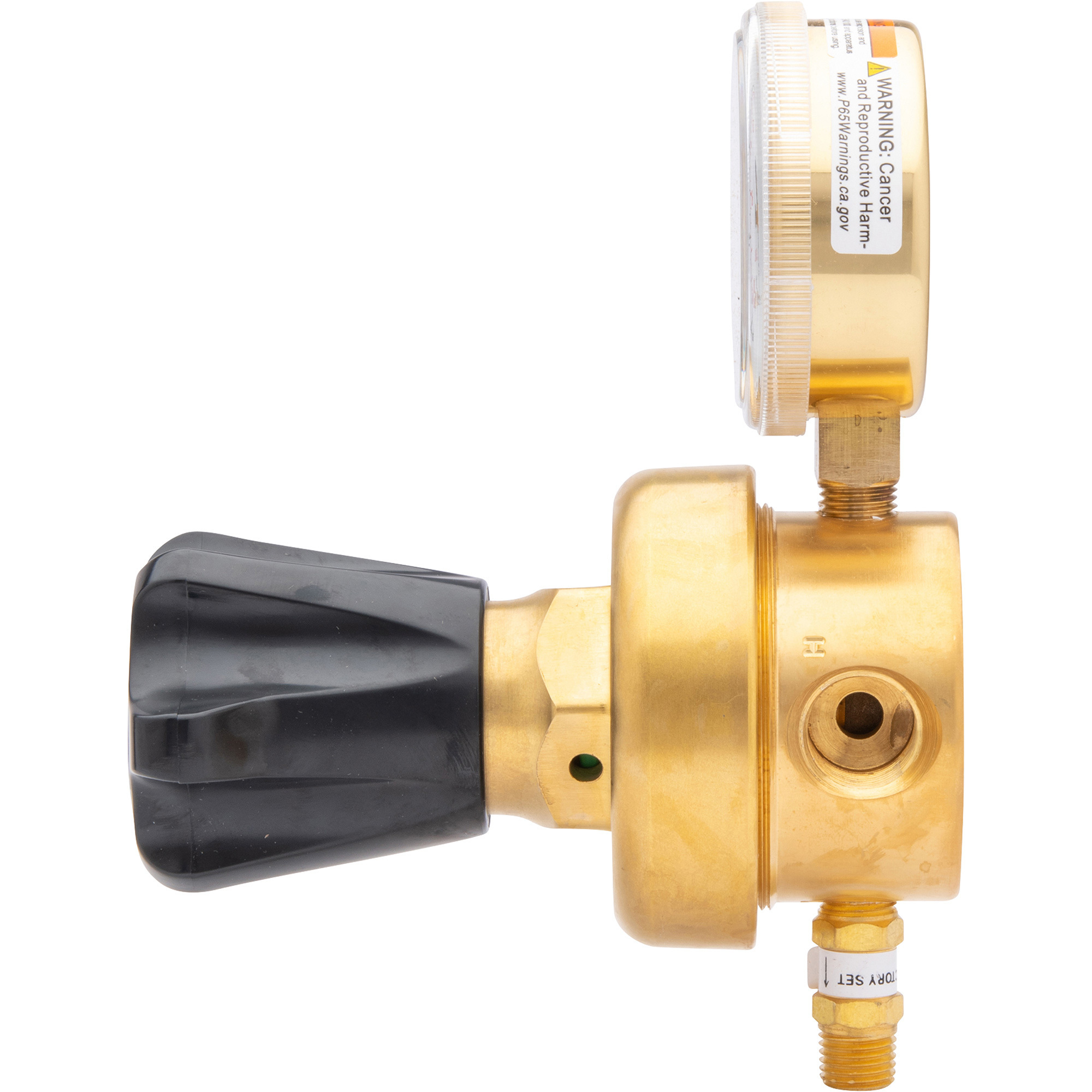

Harris HP3530-125 Brass In-Line Manifold Regulator for Pipeline, For Non-Corrosive Gas, 3000 PSIG, Model# 4000802

Item# 113809
Harris HP3530-125 Brass In-Line Manifold Regulator for Pipeline, For Non-Corrosive Gas, 3000 PSIG, Model# 4000802

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Harris HP3530-125 Brass In-Line Manifold Regulator for Pipeline, For Non-Corrosive Gas, 3000 PSIG, Model# 4000802

Click or Tap image to Zoom

$559.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 4-port configuration: 1 high-pressure and 3 low-pressure 1/2in. NPT (F) inlet and outlet connections
  • Maximum inlet pressure 3000 PSIG
  • Conforms to CGA E-4 standard for gas pressure regulators
  • 2 3/4in. stainless steel diaphragm eliminates contamination from diffusion or outgassing
  • 1-piece encapsulated seat design with 10 micron sintered internal filter to protect the PTFE Teflon® seat from particulate contamination

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Harris HP3530-125 Brass In-Line Manifold Regulator for Pipeline is designed for use with non-corrosive high-flow gas, high-purity gas, research sample systems gas, process analyzer gas, bulk gas distribution systems gas, laser gas systems and emission monitoring systems gas. Note: This regulator is for use with non-corrosive gasses only. It is not designed for use with acetylene.

What's Included

    (1) Model 3530-124 1/2in. NPT(F) inlet/outlet regulator

Downloads

Product Manual

Features + Benefits

  • 4-port configuration: 1 high-pressure and 3 low-pressure 1/2in. NPT (F) inlet and outlet connections
  • Maximum inlet pressure 3000 PSIG
  • Conforms to CGA E-4 standard for gas pressure regulators
  • 2 3/4in. stainless steel diaphragm eliminates contamination from diffusion or outgassing
  • 1-piece encapsulated seat design with 10 micron sintered internal filter to protect the PTFE Teflon® seat from particulate contamination
  • Brass barstock body, bonnet and fittings

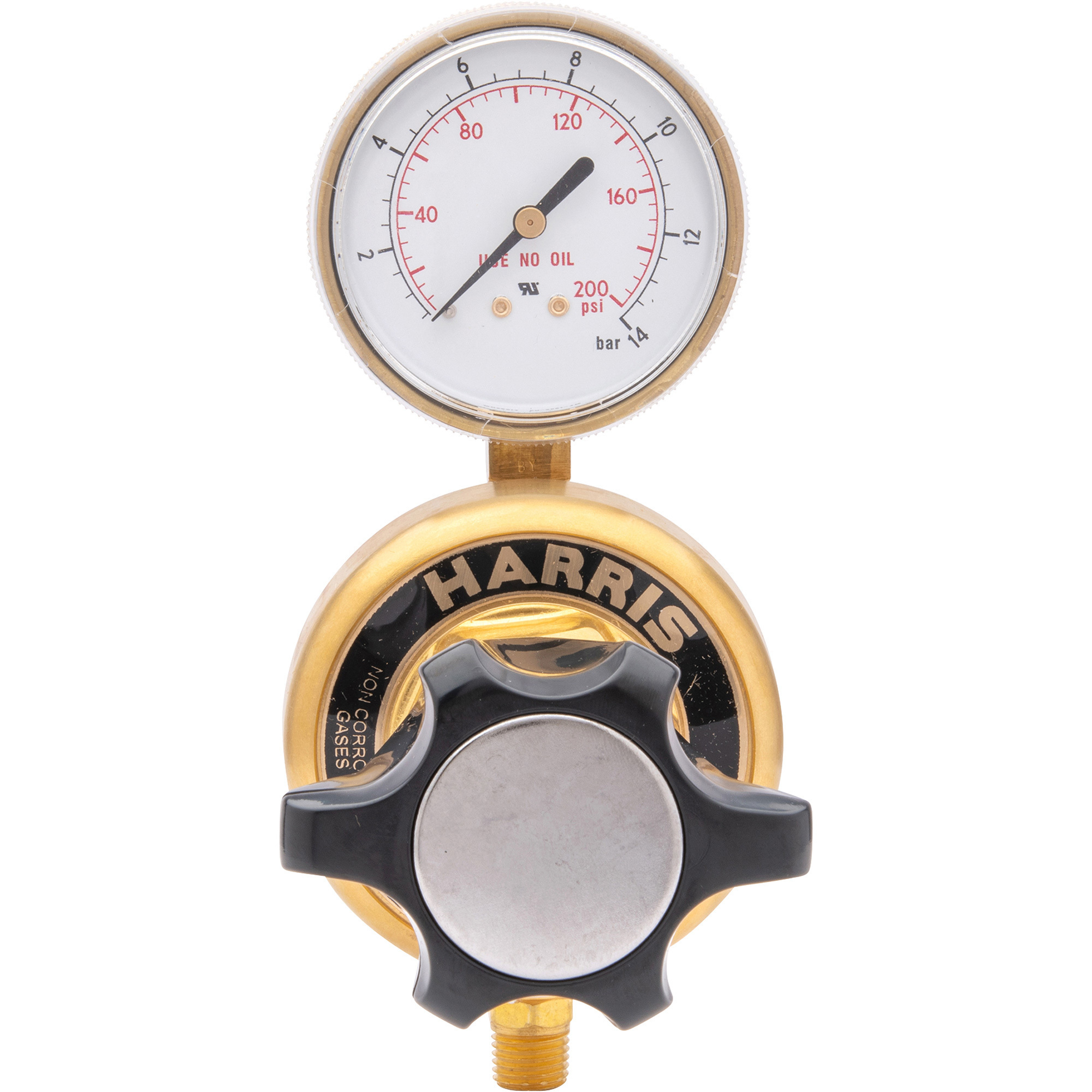

  • 2 1/2in. brass dual scale gauge (psi/bar)

Key Specs

AttributeSpecification

item#

113809

Brand

Harris

Manufacturer's Warranty

1 year limited warranty

Ship Weight

5.25 LB

Max. Inlet Pressure

3,000 PSIG

Max. Delivery Pressure

150 PSIG
AttributeSpecification

Body Material

Brass

Gas Service

Other

Welding Process

Gas

Inlet Connection

1 1/2 In FNPT

Product Weight

4.7000 lb

Dimensions L x W x H (in.)

7.5 x 3.4 x 5.5 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
