Harris, HS FLOW/REG,356 DUAL, Max. Inlet Pressure 3000 PSIG, Model# 56-Ar/He-580

Item# 107171
Harris, HS FLOW/REG,356 DUAL, Max. Inlet Pressure 3000 PSIG, Model# 56-Ar/He-580

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Harris, HS FLOW/REG,356 DUAL, Max. Inlet Pressure 3000 PSIG, Model# 56-Ar/He-580

Click or Tap image to Zoom

$449.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Designed to provide two separate flows from one common gas source
  • Equipped with two Model 55 flowmeters that can be set at different flow rates
  • Delivery pressure: 0-100 SCFH on Helium and 0-40 SCFH on Argon
  • Ideal for back purging, trail purging and/or other dual applications
  • 2in. brass dual scale easy-to-read gauges

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

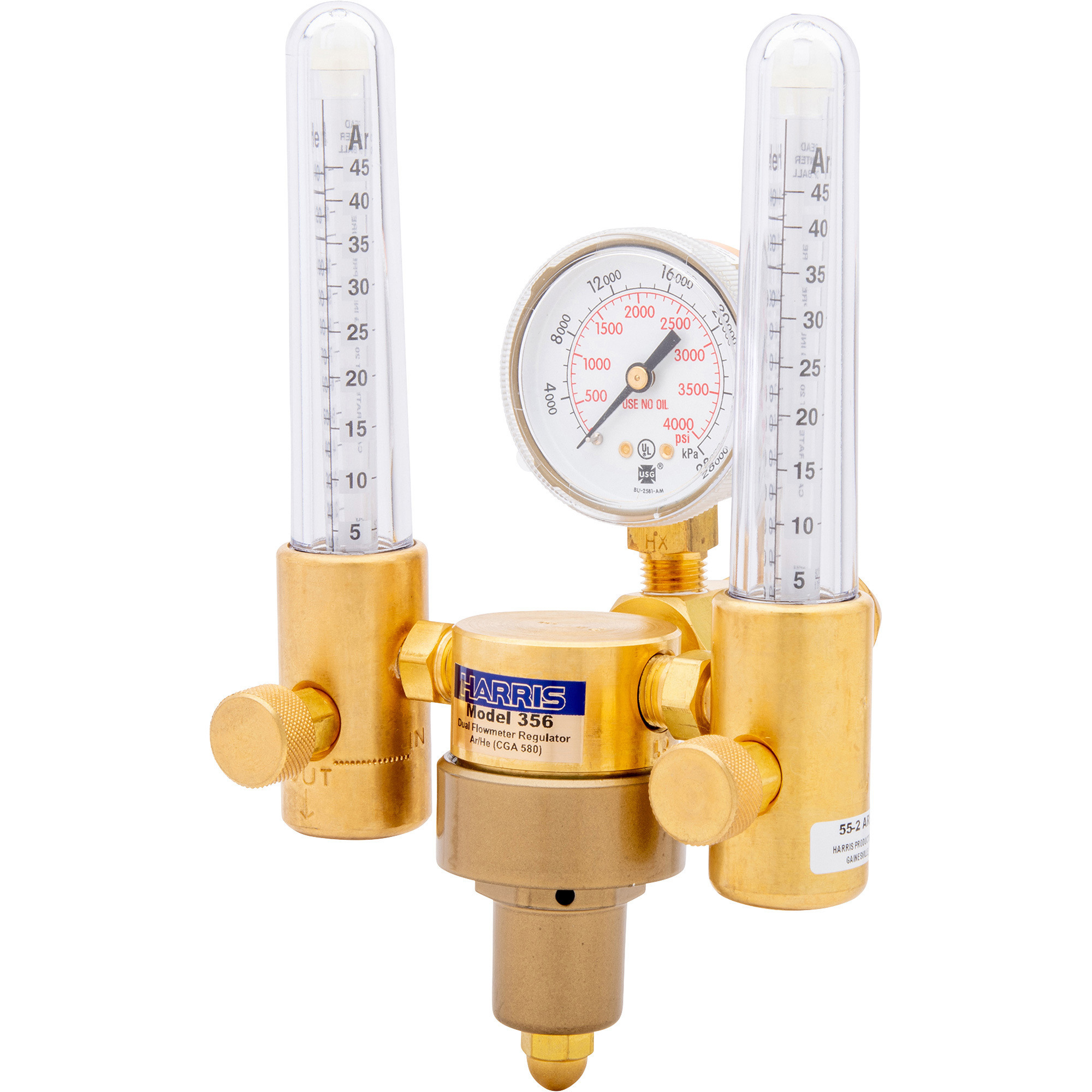

This Harris® 356 Series Dual Flowmeter/Regulator is capable of providing two separate independent flows from one common gas source. It comes equipped with two Model 55 flowmeters that can be set at different flow rates. It is ideal for back purging, trail purging and/or other dual applications. Designed for use with Helium and Argon. A brass body provides extended service life.

What's Included

    (1) Dual flowmeter/regulator

Features + Benefits

  • Designed to provide two separate flows from one common gas source
  • Equipped with two Model 55 flowmeters that can be set at different flow rates
  • Delivery pressure: 0-100 SCFH on Helium and 0-40 SCFH on Argon
  • Ideal for back purging, trail purging and/or other dual applications
  • 2in. brass dual scale easy-to-read gauges
  • Neoprene diaphragm for improved pressure control
  • One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
  • Brass body for longer service life
  • Sensitive needle valve permits highly accurate flow settings
  • Durable cover and easy-to-read flow tube

Key Specs

AttributeSpecification

item#

107171

Brand

Harris

Manufacturer's Warranty

84 Months Limited

Ship Weight

4.84 LB

Max. Inlet Pressure

3,000 PSIG

Max. Delivery Pressure

20 PSIG

Body Material

Steel
AttributeSpecification

Gas Service

Argon and Helium

Welding Process

Gas

Supply Pressure Gauge

4,000 PSIG

Inlet Connection

Cga-510

Product Weight

4.8400 lb

Dimensions L x W x H (in.)

9.5 x 9.5 x 9.5 in
