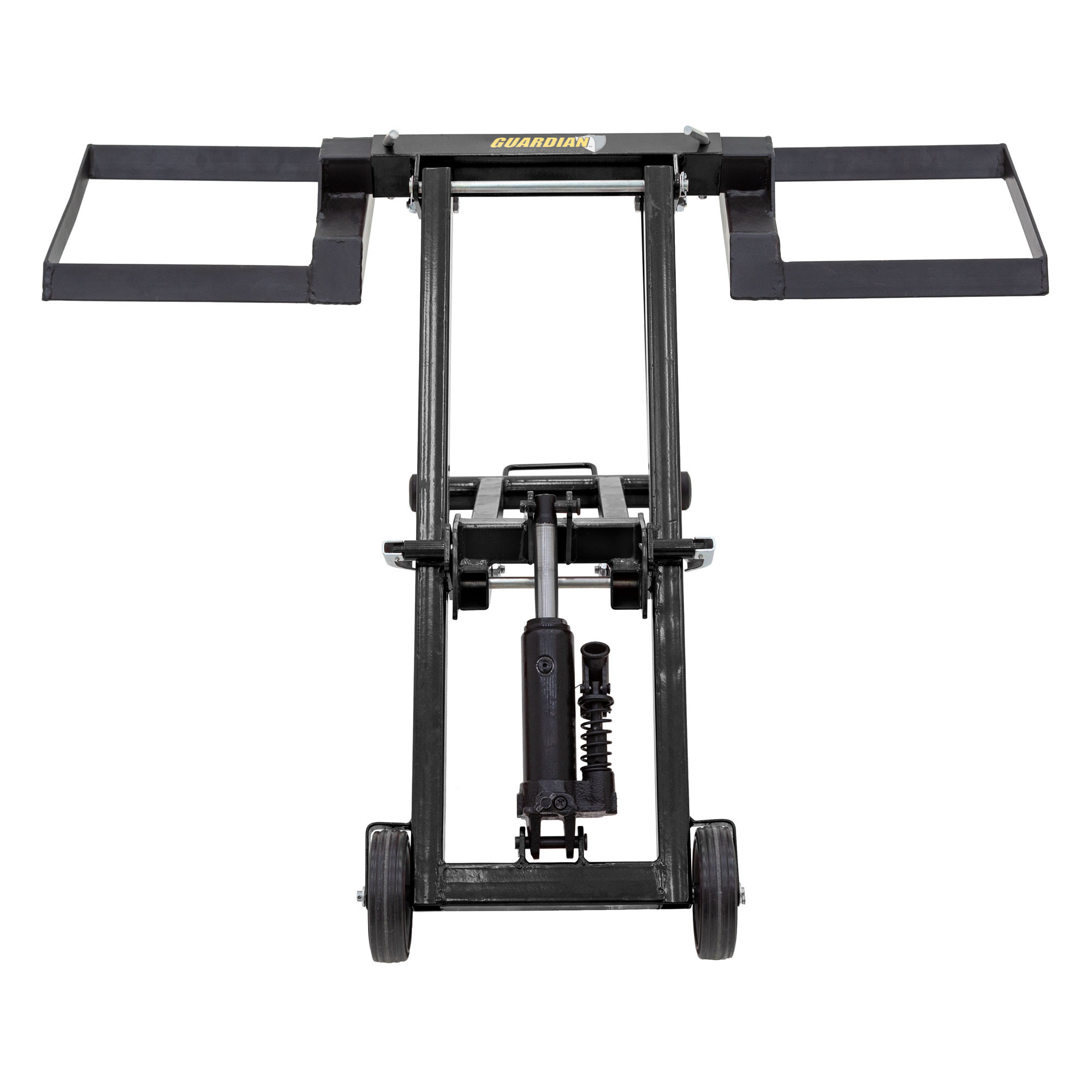

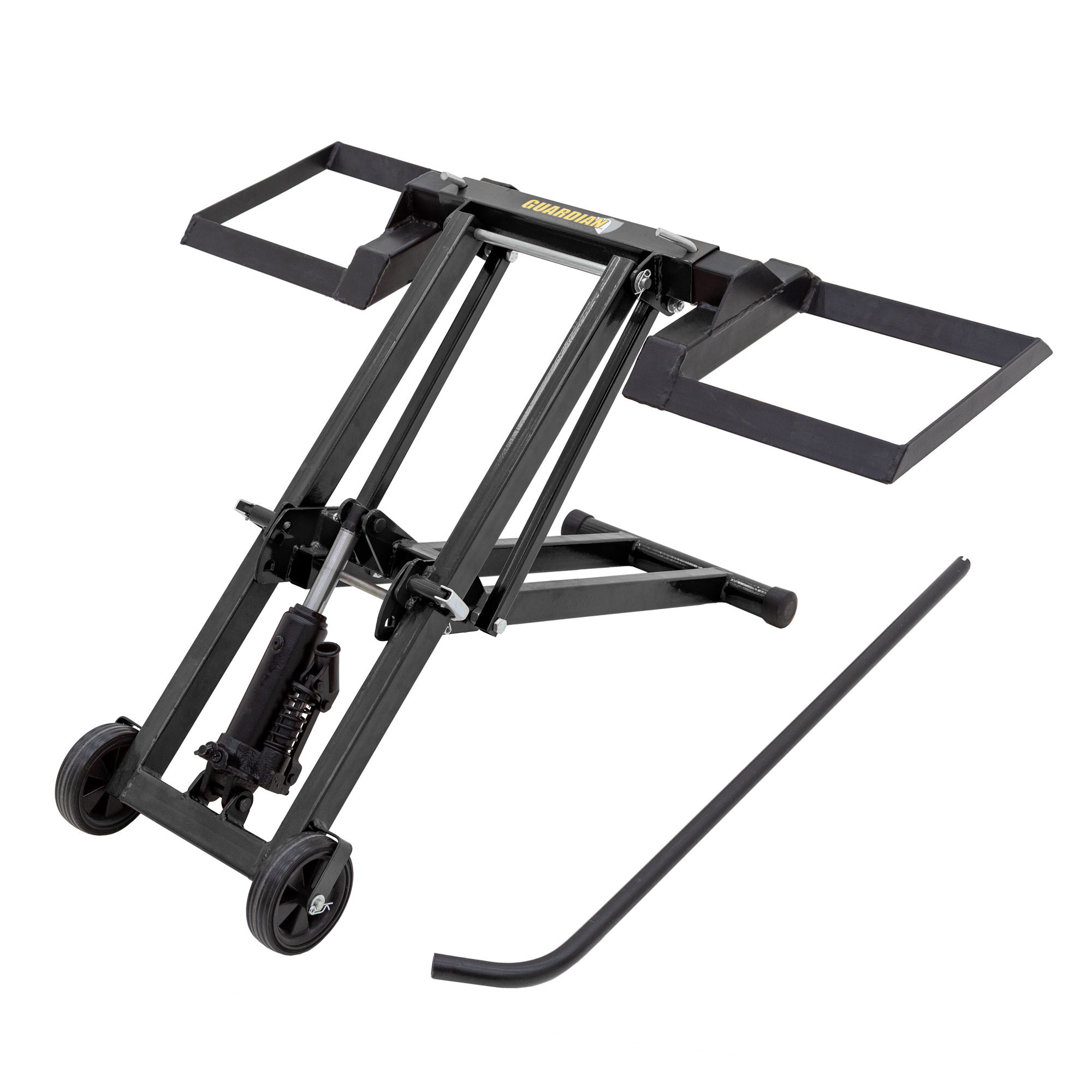

Guardian, Hydraulic Mower Lift - 500 lb Capacity, Model# HML-05

Item# 6596600
Top Seller
Guardian, Hydraulic Mower Lift - 500 lb Capacity, Model# HML-05

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Guardian, Hydraulic Mower Lift - 500 lb Capacity, Model# HML-05

Click or Tap image to Zoom

$197.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Powder-coated steel construction
  • 500-lb per axle weight capacity
  • Access underbody to perform maintenance such as blade work, cleaning debris, oil changes and more

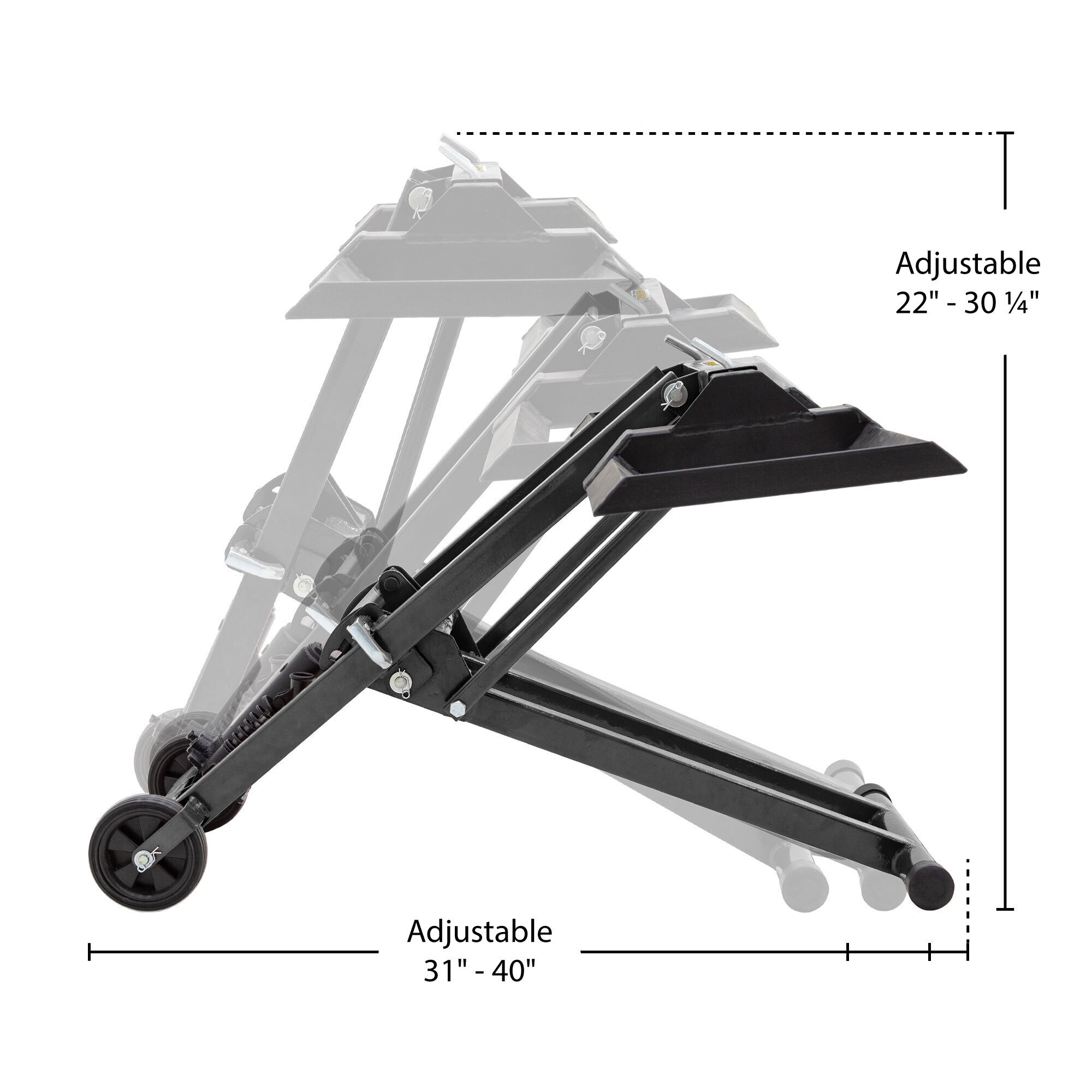

  • Three locking height positions at 18.5", 22.5" and 27"

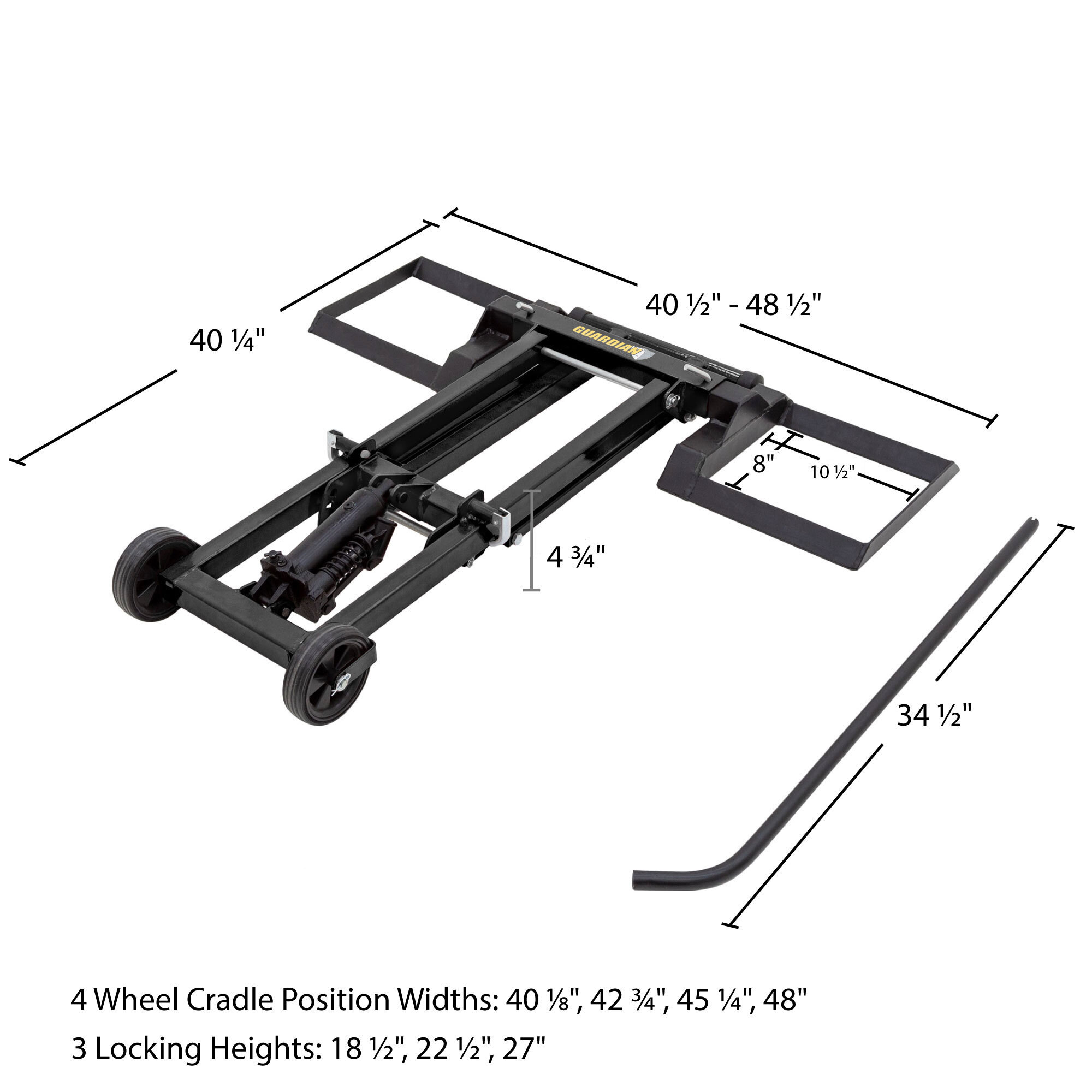

  • Four wheel cradle position widths: 40.125", 42.75", 45.25" and 48"

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

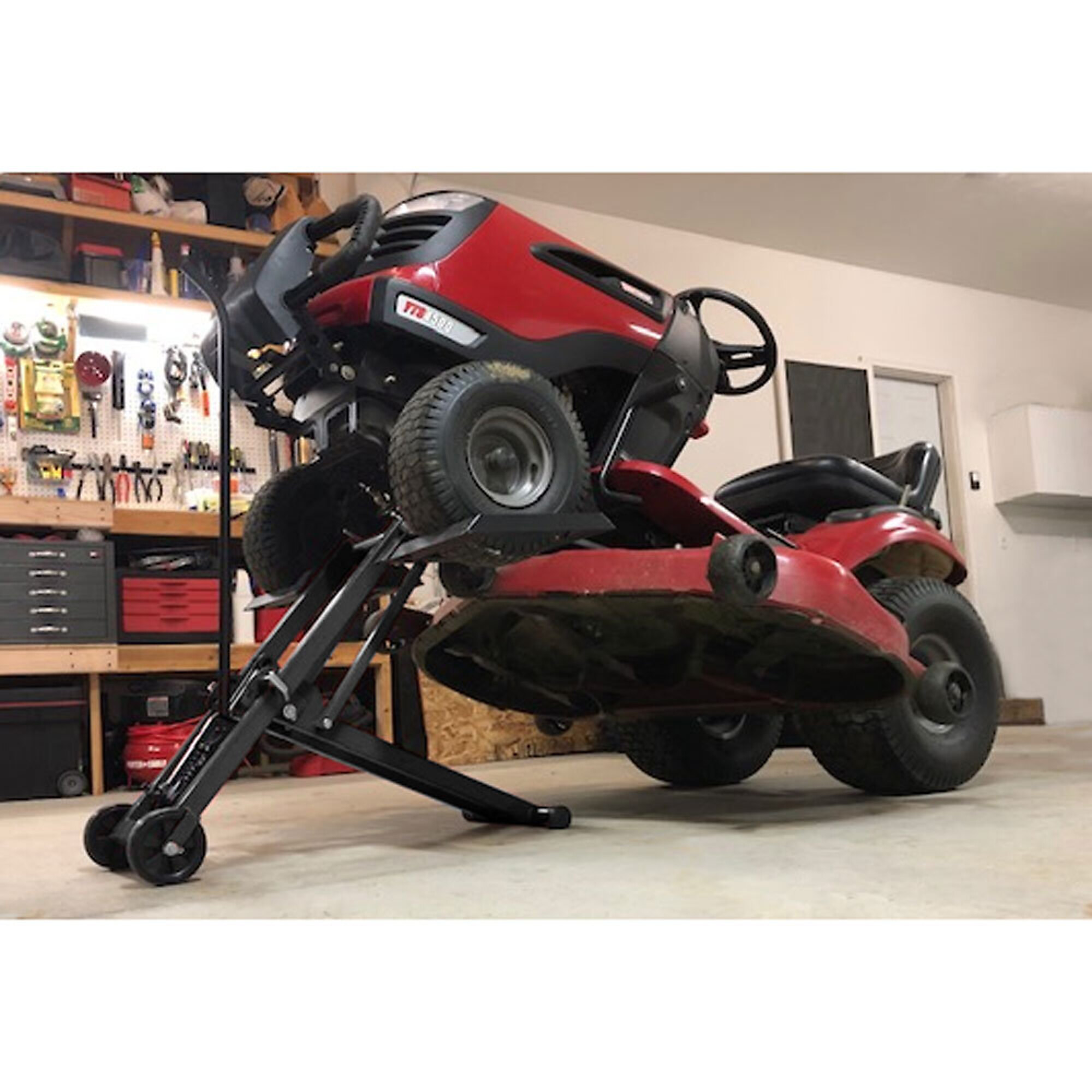

Instead of struggling with improper jacks, or paying to have your lawn mower serviced, use the Guardian Hydraulic Lawn Mower Lift to safely elevate your lawn mower for easy access to the underbody. Manufactured with powder-coated steel, this lift can support up to 500 pounds of mower when one axle is lifted off the ground and the second axle stays on the ground. This lift has three locking height positions at 18.5in., 22.5in. and 27in., so that you can set it to the height best suited for your model and the type of maintenance work you want to perform. The four wheel cradle position widths are: 40.125in., 42.75in., 45.25in. and 48in.

What's Included

    (1) 1

Features + Benefits

  • Powder-coated steel construction
  • 500-lb per axle weight capacity
  • Access underbody to perform maintenance such as blade work, cleaning debris, oil changes and more
  • Three locking height positions at 18.5", 22.5" and 27"
  • Four wheel cradle position widths: 40.125", 42.75", 45.25" and 48"

Key Specs

AttributeSpecification

item#

6596600

Brand

Guardian

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

55.0 LB
AttributeSpecification

Product Type

Lift

Product Weight

55.0000 lb

Dimensions L x W x H (in.)

40.25 x 40.5 x 4.75 in

Reviews

Questions & Answers

Questions

  1. Can you jack up the rear wheels also?

    1 answer

    1. You would not be able to lift the mower by the rear wheels with this mower lift.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor
