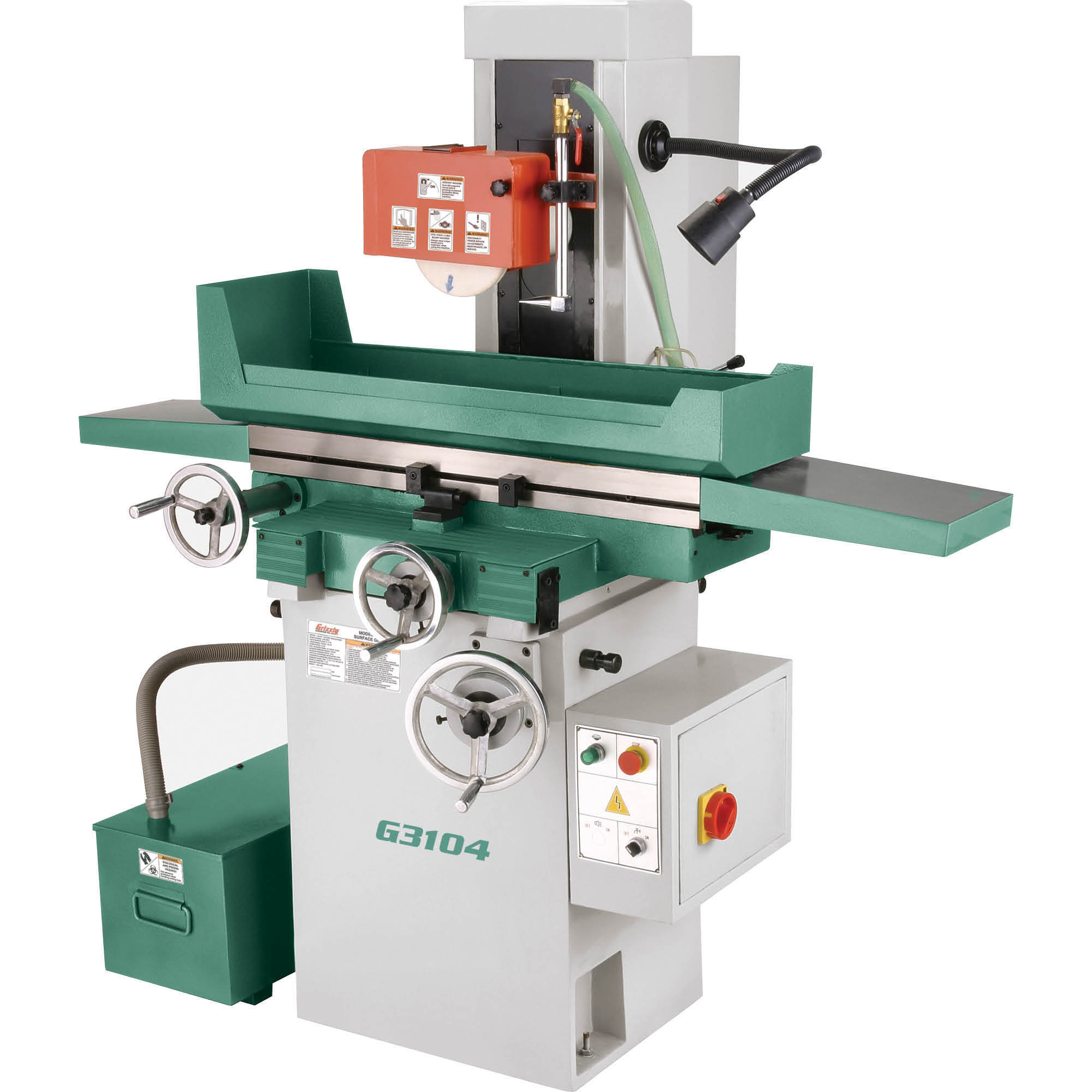

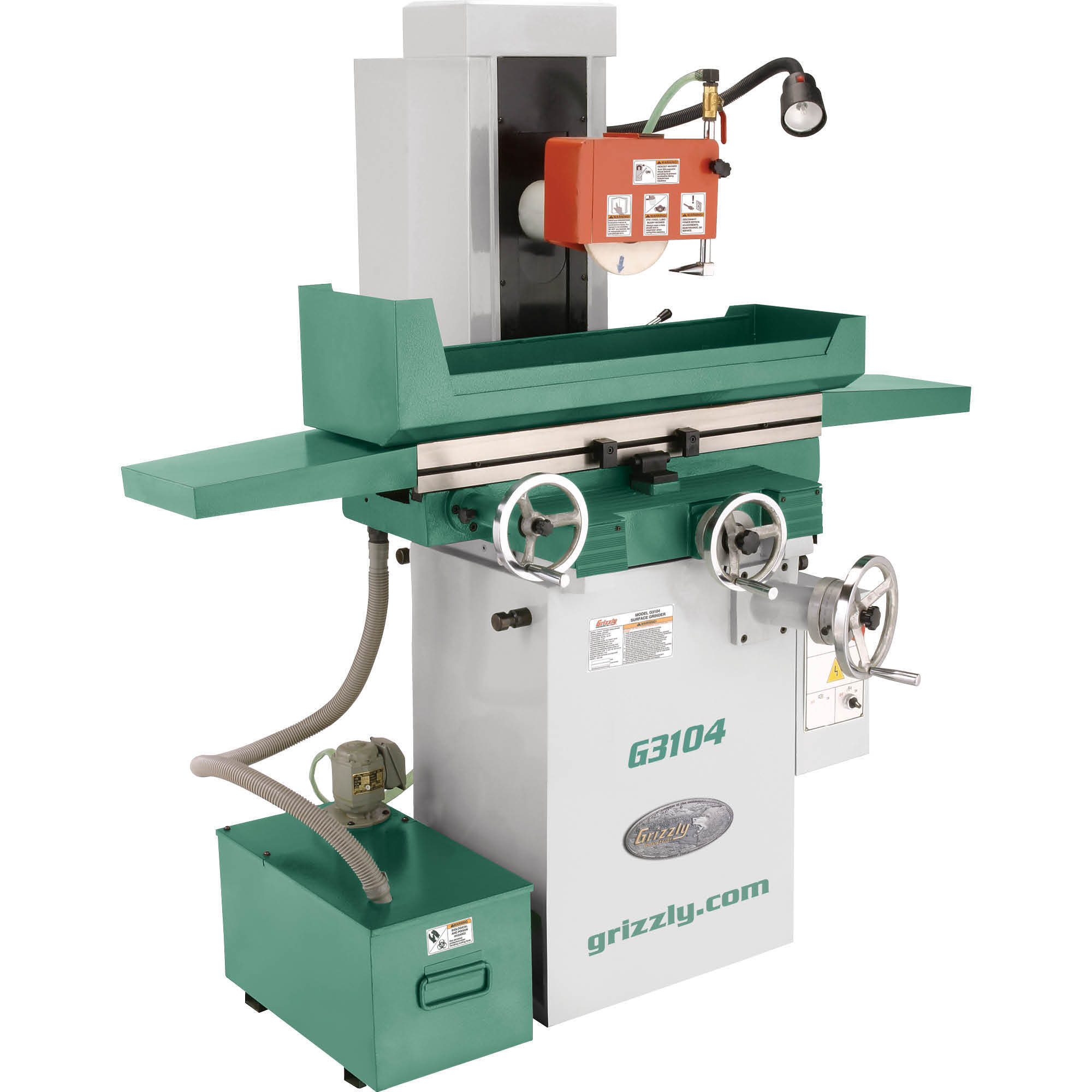

Grizzly G3104 - 6" x 18" Surface Grinder

Item# 7511495
New
Grizzly G3104 - 6" x 18" Surface Grinder

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Grizzly G3104 - 6" x 18" Surface Grinder

Click or Tap image to Zoom

$5979.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Flood Coolant System
  • Column Dial

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Here is an excellent surface grinder for grinding precision parts in hardened or annealed ferrous metals. It features heavy cast iron construction, quiet-running precision spindle, ball bearing longitudinal slide, coolant system and more. Choose from our selection of grinding wheels, and accurately true and balance them with the supplied kit. A must for precise, close tolerance work. Features:
  • Flood coolant system
  • Column dial
  • Cross feed dial
  • Cast iron cabinet
  • One-shot lubrication
  • Work light

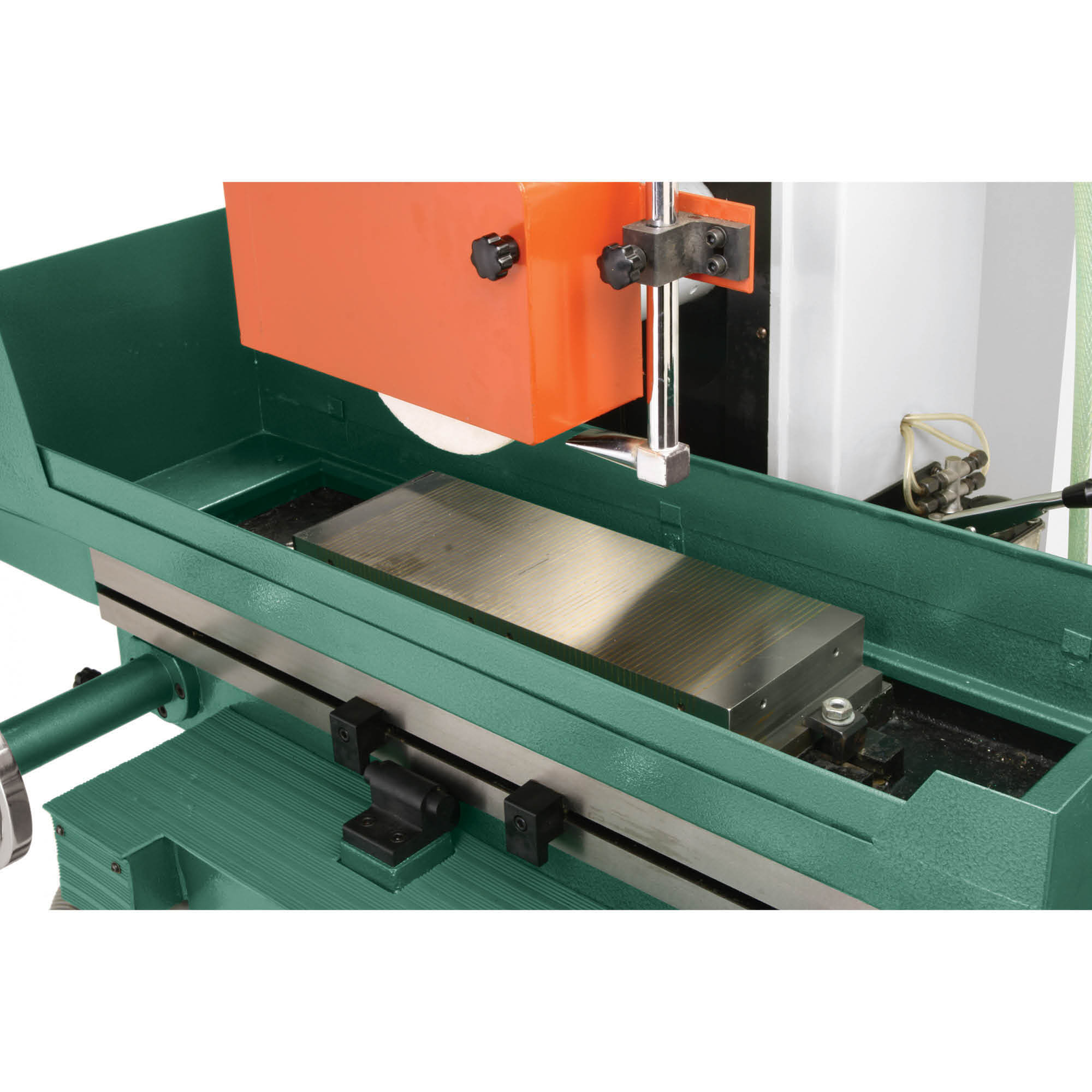

  • 5-7/8in. x 15-3/4in. magnetic chuck
  • Splash guard
  • Grinding wheel balancing kit
  • Includes 24-grit grinding wheel Specifications:
  • Motor: 2 HP, 110V/220V, single-phase, 18.8A/9.4A
  • Prewired: 110V
  • Table surface: 6in. x 18in.
  • Longitudinal travel: 20-1/2in.
  • Cross travel: 6-7/8in.
  • Maximum distance table to wheel: 10-3/4in.
  • T-slot and size: 1/2in. stud, 7/8in. head
  • Grinding wheel: 7in.D x 1-1/4in. B x 3/4in. W
  • Column size: 7-1/2in. x 12in.
  • Spindle diameter: 1-1/4in.
  • Spindle speed: 3450 RPM
  • Cast iron construction
  • Overall dimensions: 61in. W x 42-3/4in. D x 63in. H
  • Approximate shipping weight: 1429 lbs.

    • What's Included

      (1) Surface Grinders

    Features + Benefits

    • Flood Coolant System
    • Column Dial

    Key Specs

    AttributeSpecification

    item#

    		7511495

    Brand

    		Grizzly

    Manufacturer's Warranty

    		1 year limited warranty

    Ship Weight

    		1362.0 LB

    Product Type

    		Disc Grinder

    Max. RPM

    		3,450

    Horsepower

    		2

    Volts

    		110

    Amps

    		18.8

    Wheel Diameter

    		6 in

    Spindle Size

    		1-1/4 in
    AttributeSpecification

    Arbor Size

    		7/8 in

    Motor Phase

    		Single-phase

    Grinding Wheel Grit

    		Coarse

    Cordless

    		No

    Power Cord Length

    		8 ft

    Variable Speed

    		No

    Housing Material

    		Cast Iron

    Wheel Included

    		Yes

    Lights Included

    		Yes

    Product Weight

    		1429.0000 lb

    Dimensions L x W x H (in.)

    		42.75 x 61.0 x 63.0 in
