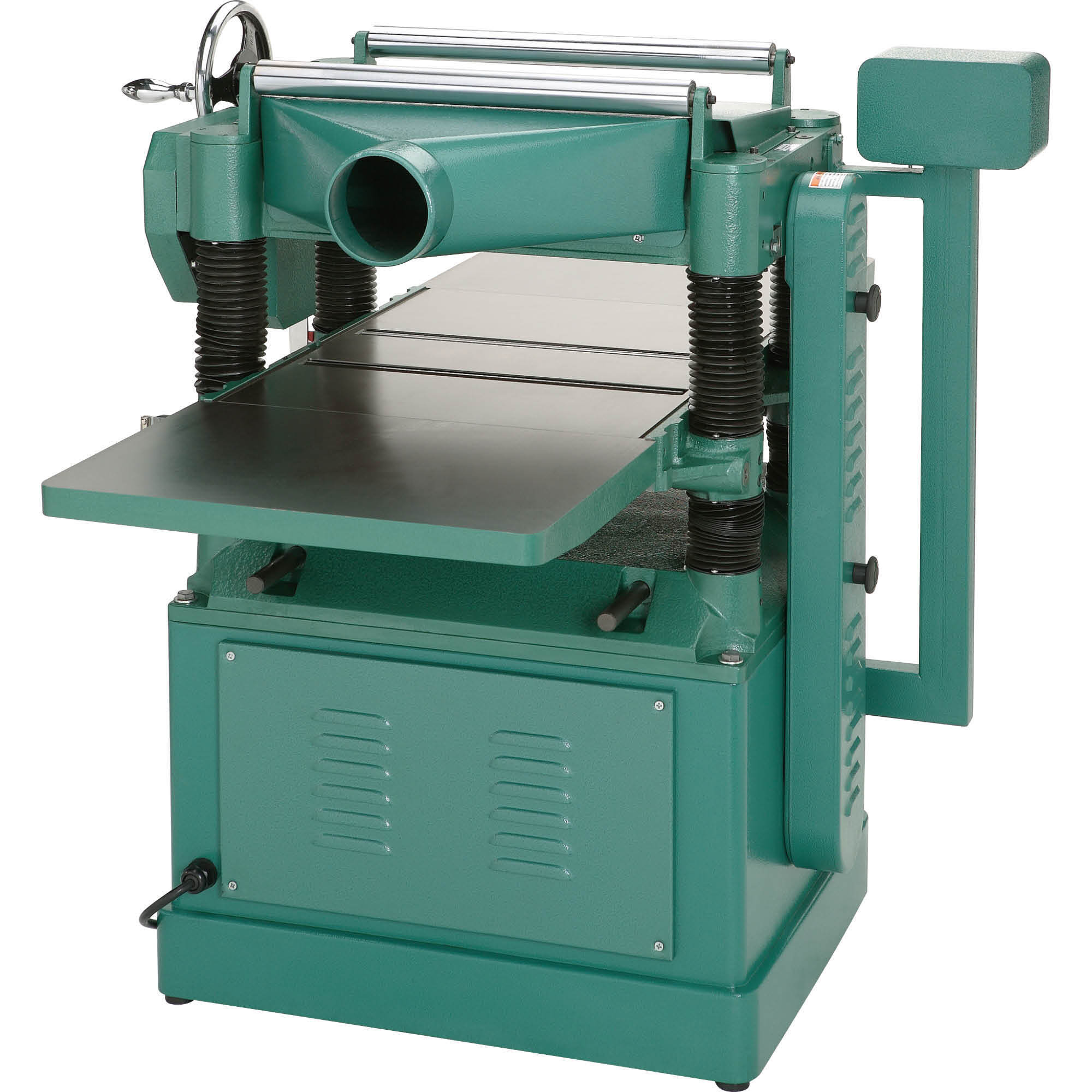

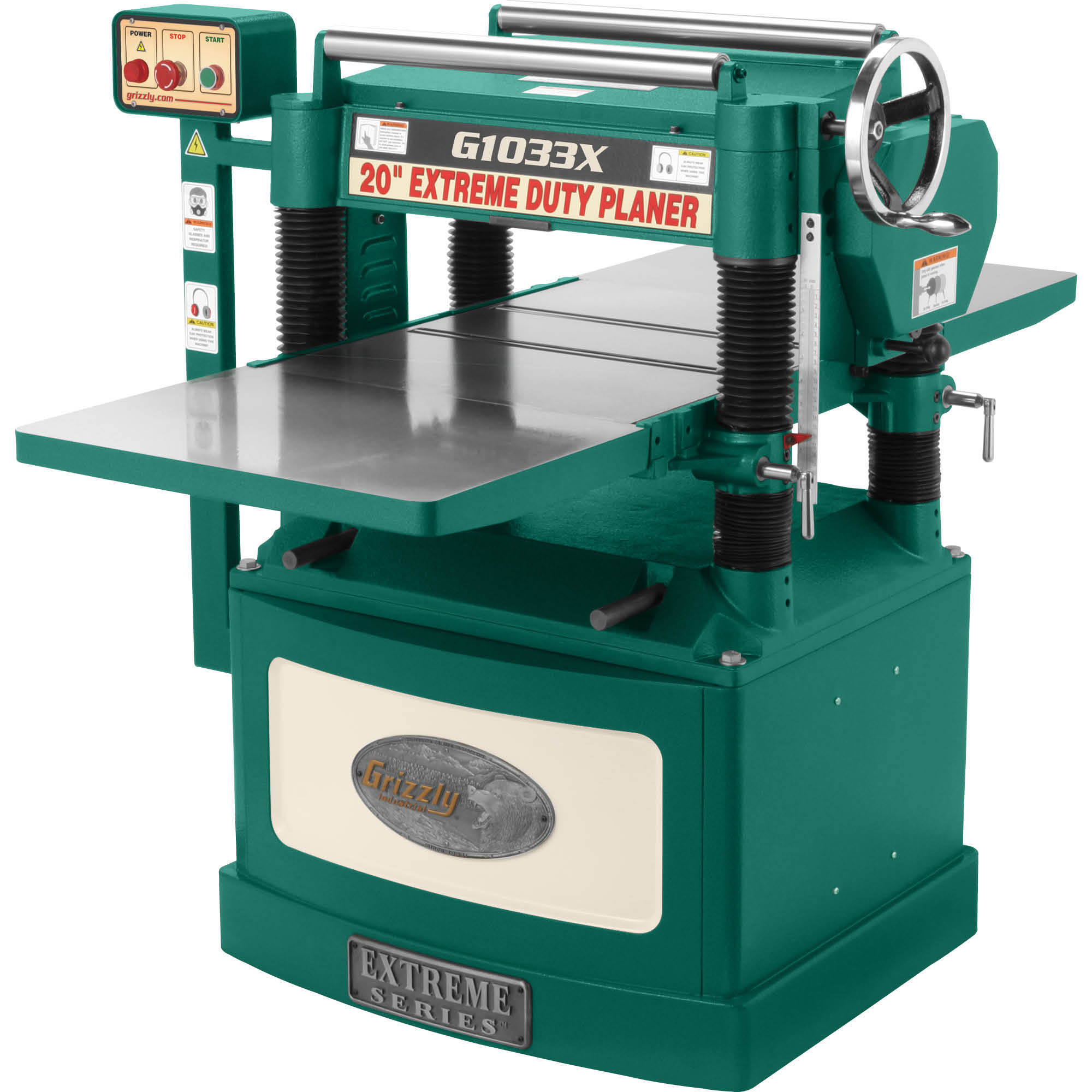

Grizzly G1033X - 20" 5 HP Helical Cutterhead Planer

Item# 7511671
New
Grizzly G1033X - 20" 5 HP Helical Cutterhead Planer

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Grizzly G1033X - 20" 5 HP Helical Cutterhead Planer

Click or Tap image to Zoom

$4499.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Extra-Large Ball Bearing Return Rollers
  • Cabinet-Style Stand

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

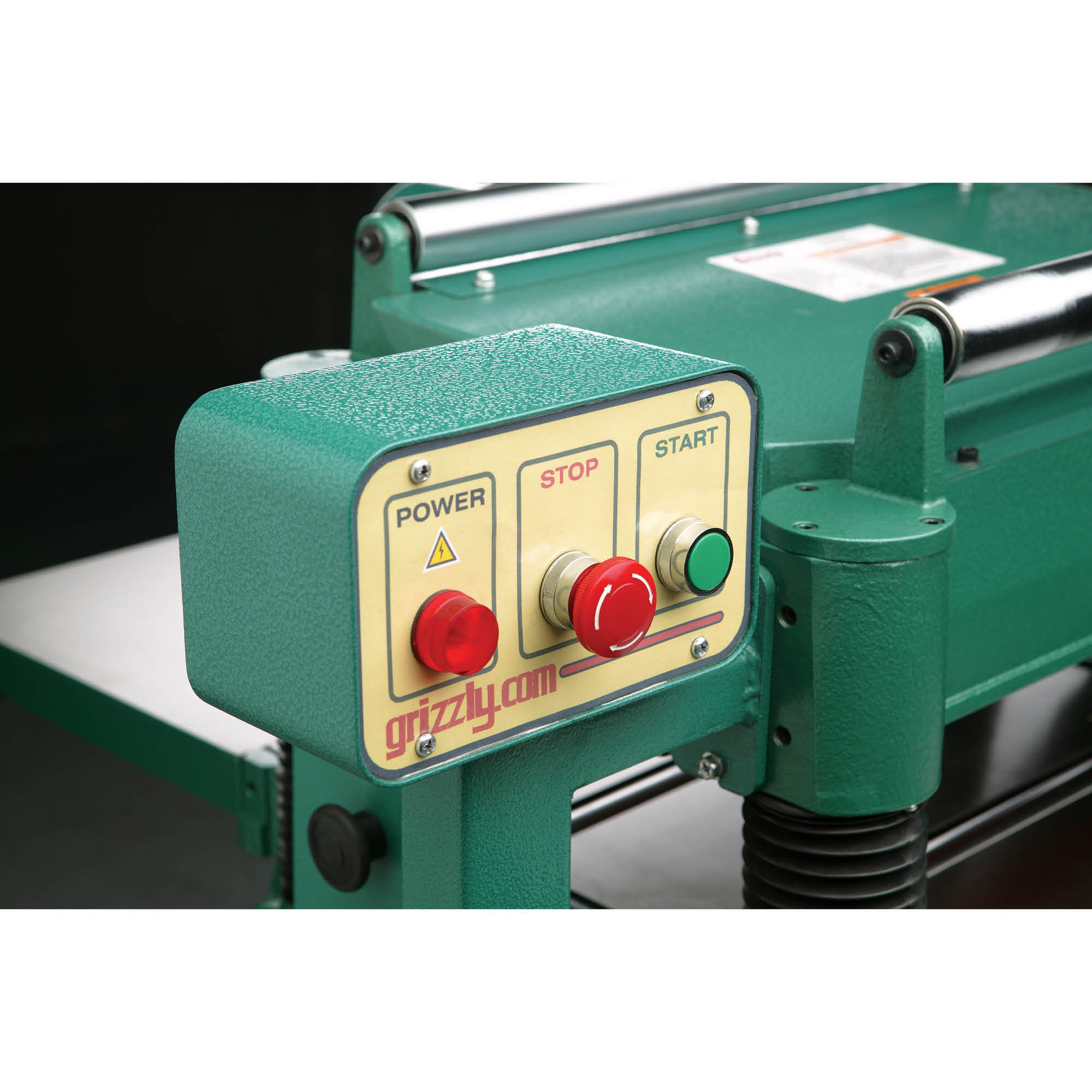

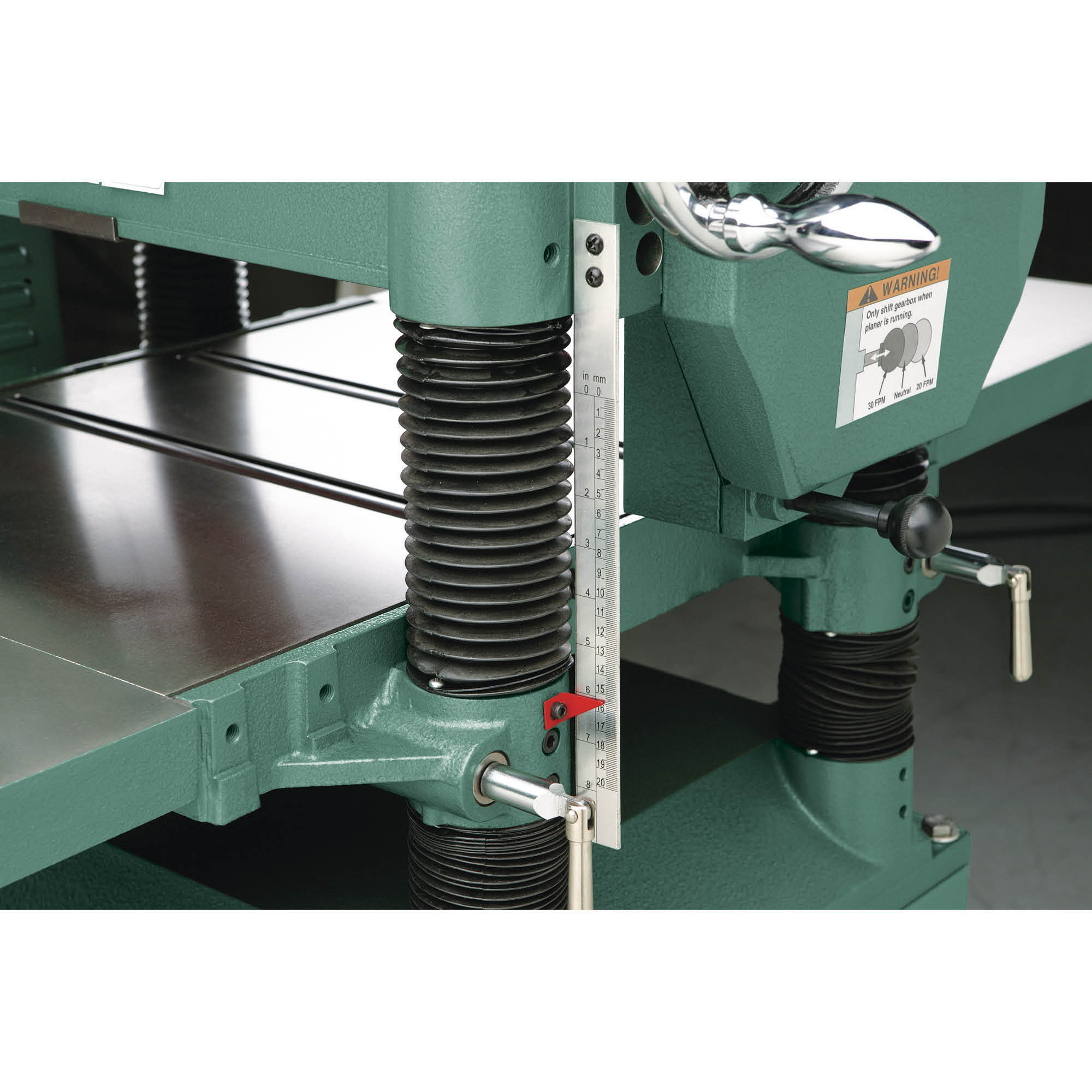

We've taken one of our most popular planers ever and built it into an Extreme Machine! Just look at the features on this monster. Solid cast-iron extension tables make this smooth precision-ground table almost 5ft. long! You can't get better support from a planer than that. The large, side-mounted handwheel makes table movement silky smooth, and the super-rigid pedestal holds the control panel at a convenient height. The extra heavy-duty welded steel base also makes for a very stable machine. Made in an ISO 9001 factory Certified to CSA UL standards Note on replacement inserts:
  • For models manufactured July, 2007 and later, use H9893 replacement inserts.
  • For models manufactured June, 2007 and earlier, use H7319 replacement inserts. SPECIFICATIONS:

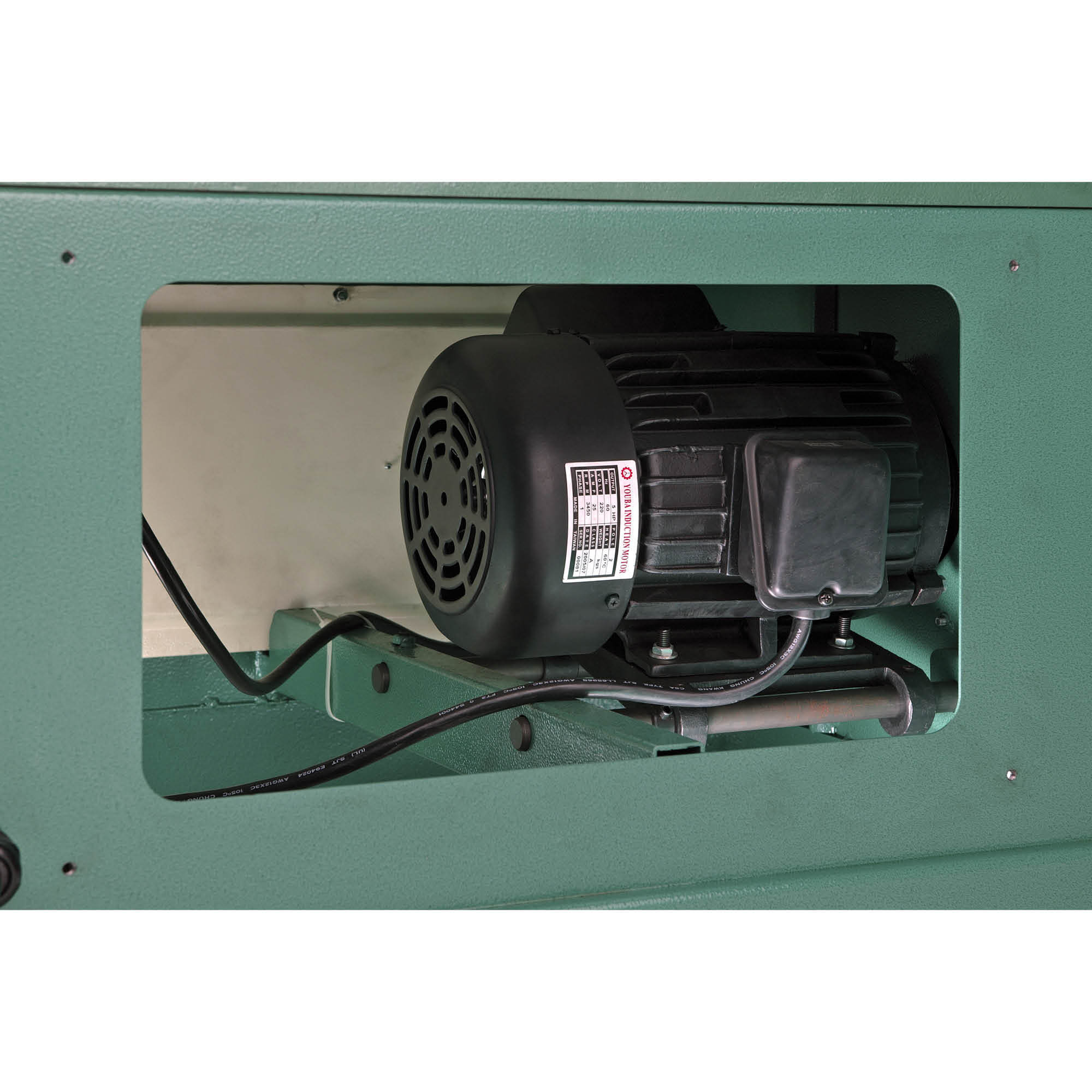

  • Motor: 5 HP, 220V, single-phase, 23A
  • Maximum stock width: 20in.
  • Maximum stock thickness: 8in.
  • Minimum stock thickness: 1/4in.
  • Minimum stock length: 7in.
  • Maximum cutting depth: 1/8in.
  • Cutterhead diameter: 31/4in.
  • Cutterhead type: 4-row helical, 96in.serts
  • Insert size type: 15mm x 15mm x 2.5mm, 30° indexable carbide
  • Cutterhead speed: 5000 RPM
  • Feed rate: 16 28 FPM
  • Table size with extensions: 20in. x 56in.
  • Dust port size: 5in.
  • Footprint: 22in. x 28in.
  • Overall dimensions: 39in.W x 56in.D x 41in.H
  • Approximate shipping weight: 909 lbs

    • What's Included

      (1) Planers

    Features + Benefits

    • Extra-Large Ball Bearing Return Rollers
    • Cabinet-Style Stand

    Key Specs

    AttributeSpecification

    item#

    		7511671

    Brand

    		Grizzly

    Manufacturer's Warranty

    		1 year limited warranty

    Ship Weight

    		811.0 LB

    Product Type

    		Planers

    Max. Cutting Depth

    		0.078 in

    Max. Cutting Width

    		20 in

    Cutters (qty.)

    		4

    Knives (qty.)

    		92
    AttributeSpecification

    Max. RPM

    		3,450

    Cutterhead Speed

    		5,000 rpm

    Material

    		Iron Carbide

    Volts

    		220

    Amps

    		23

    Helical Head

    		Yes

    Product Weight

    		811.0000 lb

    Dimensions L x W x H (in.)

    		56.0 x 39.0 x 41.0 in

    Reviews

    Questions & Answers

    Questions

    Warranty

    Manufacturer's Warranty

    1 year limited warranty
