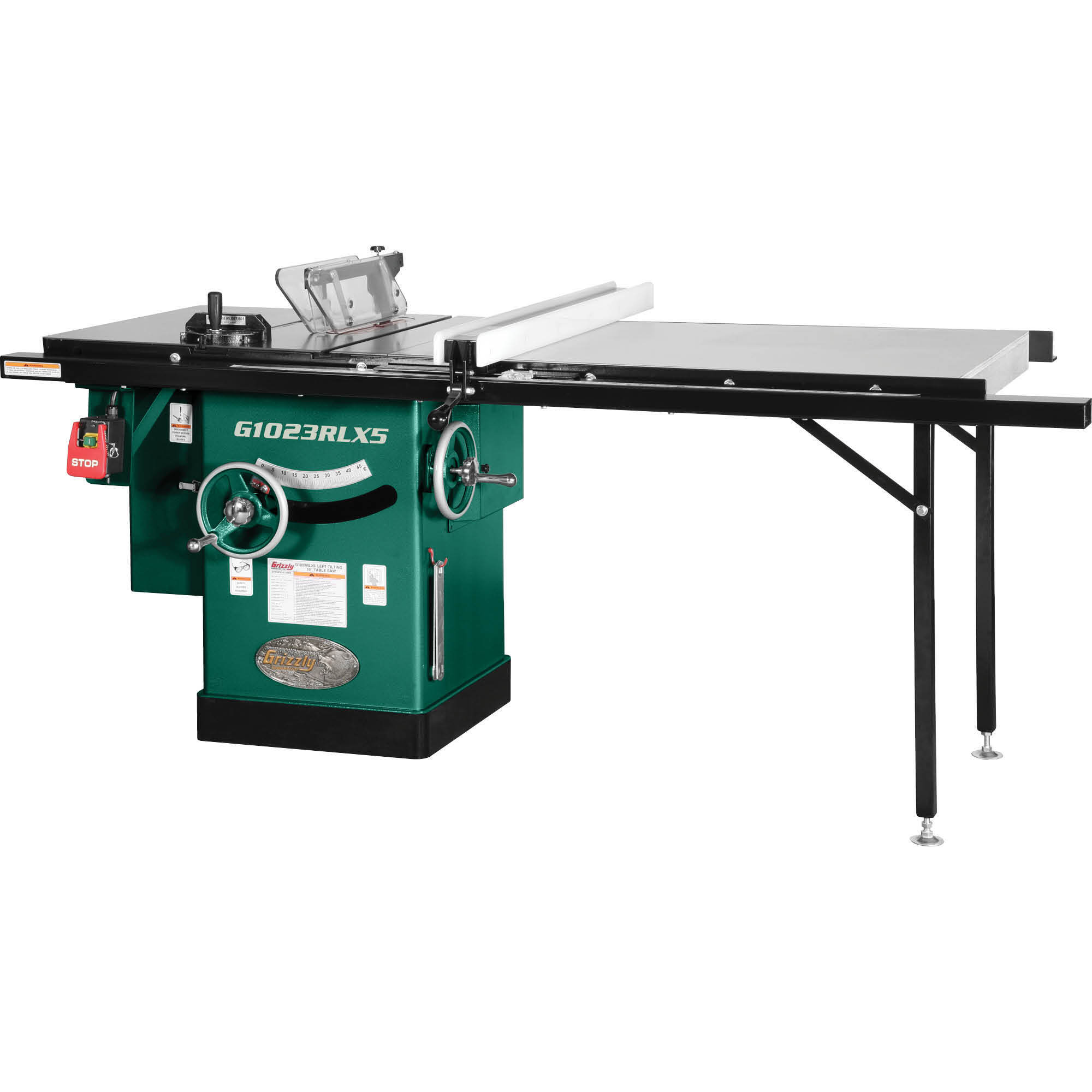

Grizzly G1023RLX5 - 10" 5 HP 240V Cabinet Table Saw with 7' Rails

Item# 7511532
NewTop Seller
Grizzly G1023RLX5 - 10" 5 HP 240V Cabinet Table Saw with 7' Rails

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Grizzly G1023RLX5 - 10" 5 HP 240V Cabinet Table Saw with 7' Rails

Click or Tap image to Zoom

$3199.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

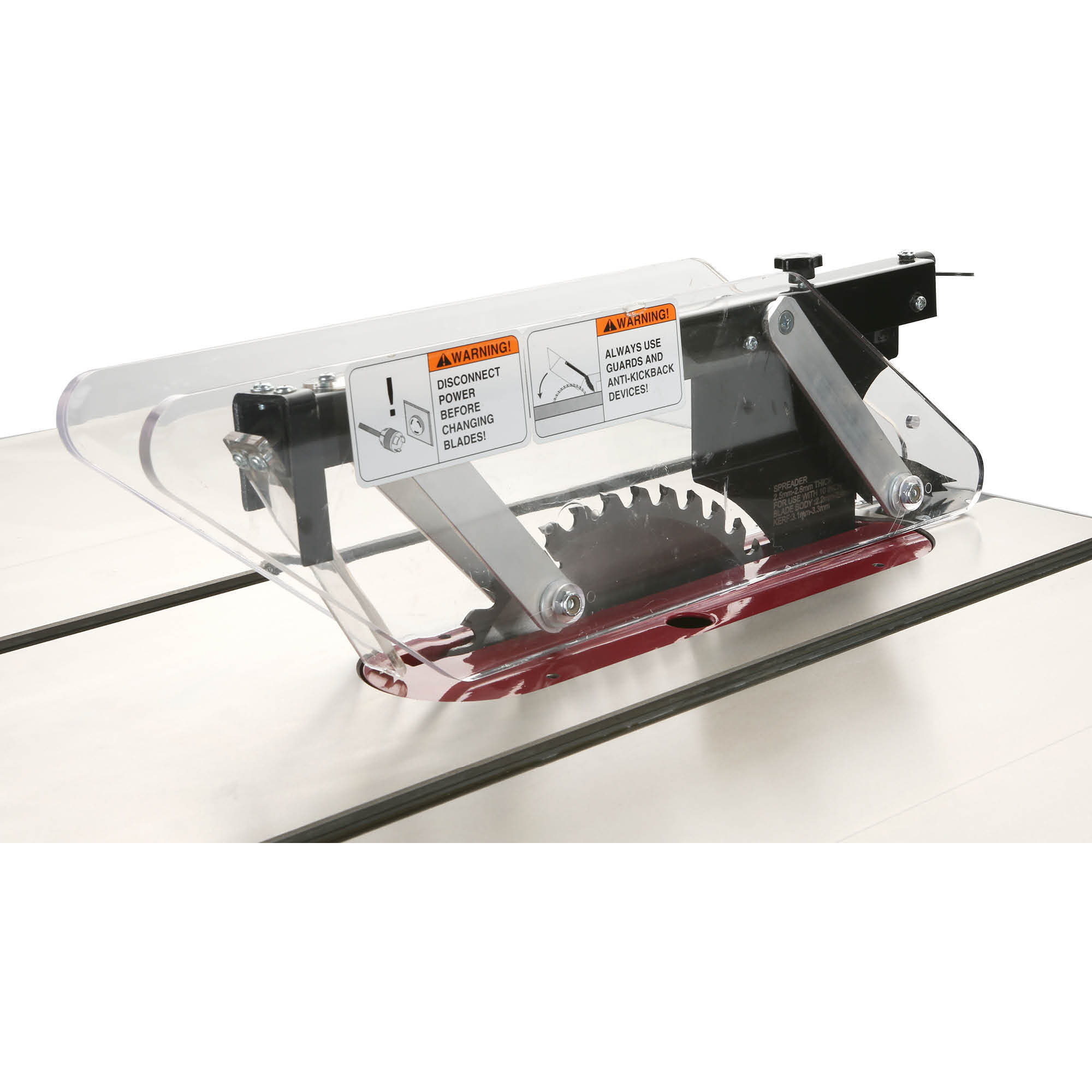

  • Quick-Release Blade Guard and Spreader

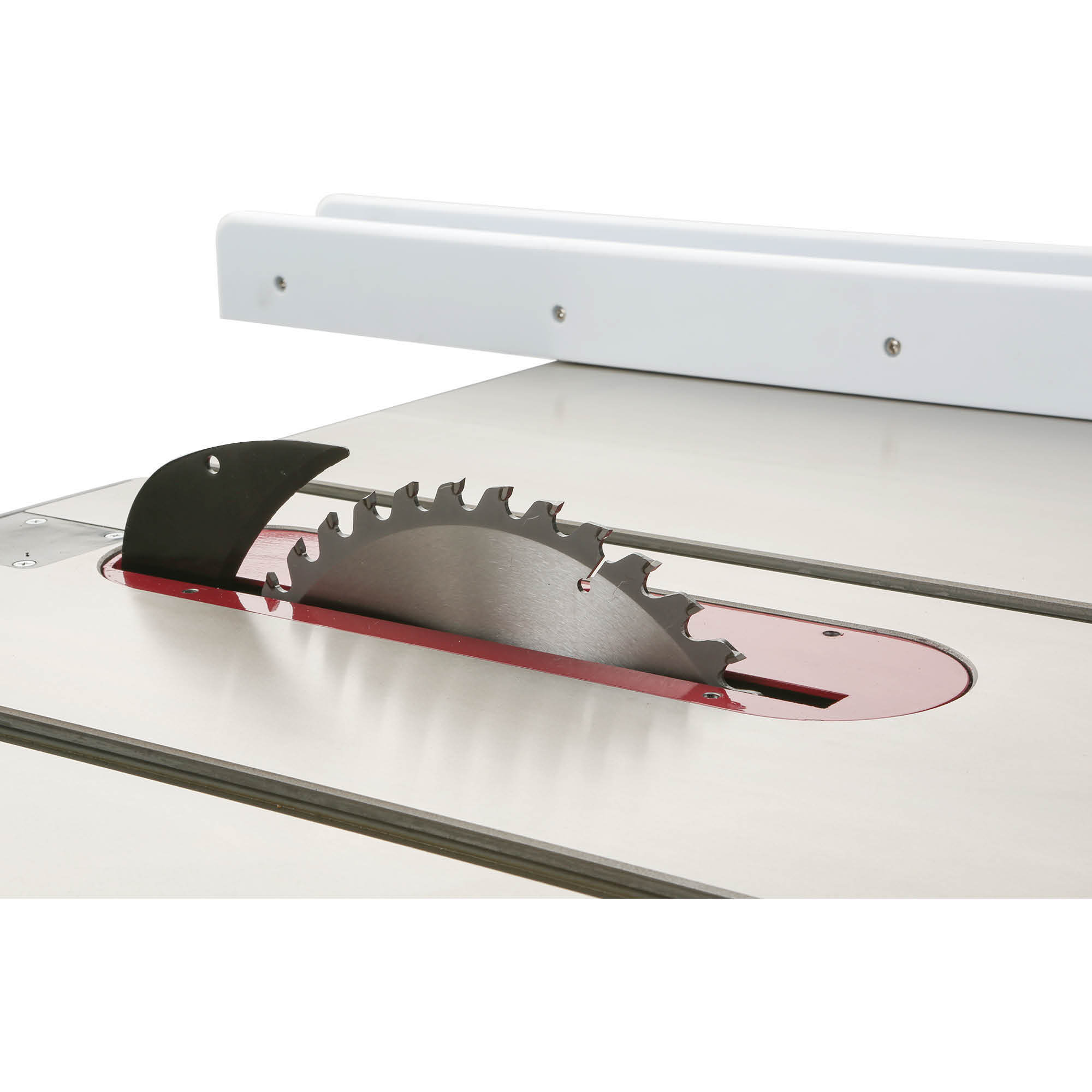

  • Riving Knife Included

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

A more powerful saw for maximum cutting capacity. The Grizzly G1023RLX has been upgraded to create the 10in. G1023RLX5 with a more powerful 5 HP motor. The machine will be recognized for its combination of features especially its large 60in. right and 14in. left of blade rip capacity. Additionally, the G1023RLX5 10in. 5 HP 240V Cabinet Table Saw features a quick-release blade guard, interchangeable riving knife, encapsulated-blade dust extraction and a highly efficient serpentine belt/pulley system that runs super quiet. CSA certified SPECIFICATIONS: Motor: 5 HP, 240V, single-phase, 23A Rip capacity: 60in. right, 14in. left of blade Max. depth of cut 90°: 3in. Max. depth of cut 45°: 2-1/8in. Table size with extension: 74in. W x 27in. D Distance from front of table to center of blade: 17in. Distance from front of table to blade at max. cut: 12in. Floor-to-table height: 34in. Arbor diameter: 5/8in. Arbor speed: 4200 RPM Max. width of dado: 13/16in. Dust port size: 4in. Overall dimensions: 84in. W x 47in. D x 39-3/4in. H Footprint: 20-1/2in. x 20-1/2in. Approximate shipping weight: 550 lbs.

What's Included

    (1) Table Saws

Features + Benefits

  • Quick-Release Blade Guard and Spreader
  • Riving Knife Included

Key Specs

AttributeSpecification

item#

7511532

Brand

Grizzly

Manufacturer's Warranty

1 year limited warranty
AttributeSpecification

Ship Weight

452.0 LB

Product Weight

558.0000 lb

Dimensions L x W x H (in.)

47.0 x 94.5 x 40.0 in

Reviews

Questions & Answers

8 Reviews This action will navigate to reviews.

Questions

1–10 of 14 Questions
Sort by:

  1. Grizzly G1023RLX5 10" 5 HP 240V Cabinet Table Saw with 7' Can I use a dado set on this saw

    1 answer
    Originally posted on grizzly.com

    1. We appreciate your inquiry. The G1023RLX5 can use a dado stack such as the H4756 (8" x 5/8", 24 teeth, 1/4"–29/32" groove) or the T23267 (8" x 5/8", 24 teeth, 3/16"–1/4" groove).

  2. what size hose is on the inside leading to the 4in outlet is it 1 1/2 in

    1 answer
    Originally posted on grizzly.com

    1. Thank you for your inquiry. The lower blade dust chute uses a 2″ diameter hose. For optimal dust collection, a 4″ hose is recommended for the dust collector connection, since the cabinet also includes a bottom chute that assists with debris collection.

  3. Considering the G1023RLX5 10" 5 HP 240V Cabinet Table Saw with 7' Rails. I do not have access to 240 volt at this time. Is the motor capable of being wired for 120 volt?

    1 answer
    Originally posted on grizzly.com

    1. We appreciate your inquiry. No, the entire G1023RL series operates exclusively on 240V. If you need a 110V alternative, the G0899 paired with the W2006, or the G0771Z with the T34287, are suitable options. However, please note that both substitutes are limited to 2 HP.

  4. can this saw accept a mobile base if you have the grizzly sliding cutoff table added on it

    1 answer
    Originally posted on grizzly.com

    1. Thank you for reaching out with your question. The table saw is compatible with mobile bases T31566 and T28347. If the slide attachment’s “feet” aren’t wider than those on the G1023RLX5, you would only need an additional T28347. Please note that the provided bars will need to be modified to the correct length. Please reach out to our Product Support team with additional questions.


      Amber

  5. What dose the plug look like?

    1 answer
    Originally posted on grizzly.com

    1. Thanks for reaching out. This machine has a NEMA L6-30 plug.

  6. can the extension be installed on the left side of the table?

    1 answer
    Originally posted on grizzly.com

    1. Thanks for reaching out. The extension is not intended to be installed on the left side of the table.

  7. When using the mobile base, does the saw sit on the ground when in use? Most mobile bases lift the saw off the ground to move, but the base drops to the ground when it’s running. The pics on this website suggest the saw runs with wheels on ground

    1 answer
    Originally posted on grizzly.com

    1. Thank you for reaching out. With all of the mobile bases we offer, the wheels remain in contact with the ground.

  8. Which way does the blade tilt left or right on 45%

    1 answer
    Originally posted on grizzly.com

    1. Thank you for reaching out. It is a left-tilt saw, meaning the blade tilts to the left side of the machine.

  9. Is the extention t28347 compatible with the g1023rlx5?

    1 answer
    Originally posted on grizzly.com

    1. Thank you for reaching out. Yes, the extension is compatible with the G1023RLX5 Table Saw.

  10. What model bear crawl is recommended for the g1023rlx5 table saw?

    1 answer
    Originally posted on grizzly.com

    1. We appreciate your question. The T31566 Mobile Base is compatible with the G1023RLX5 Table Saw.

Warranty

Manufacturer's Warranty

1 year limited warranty
