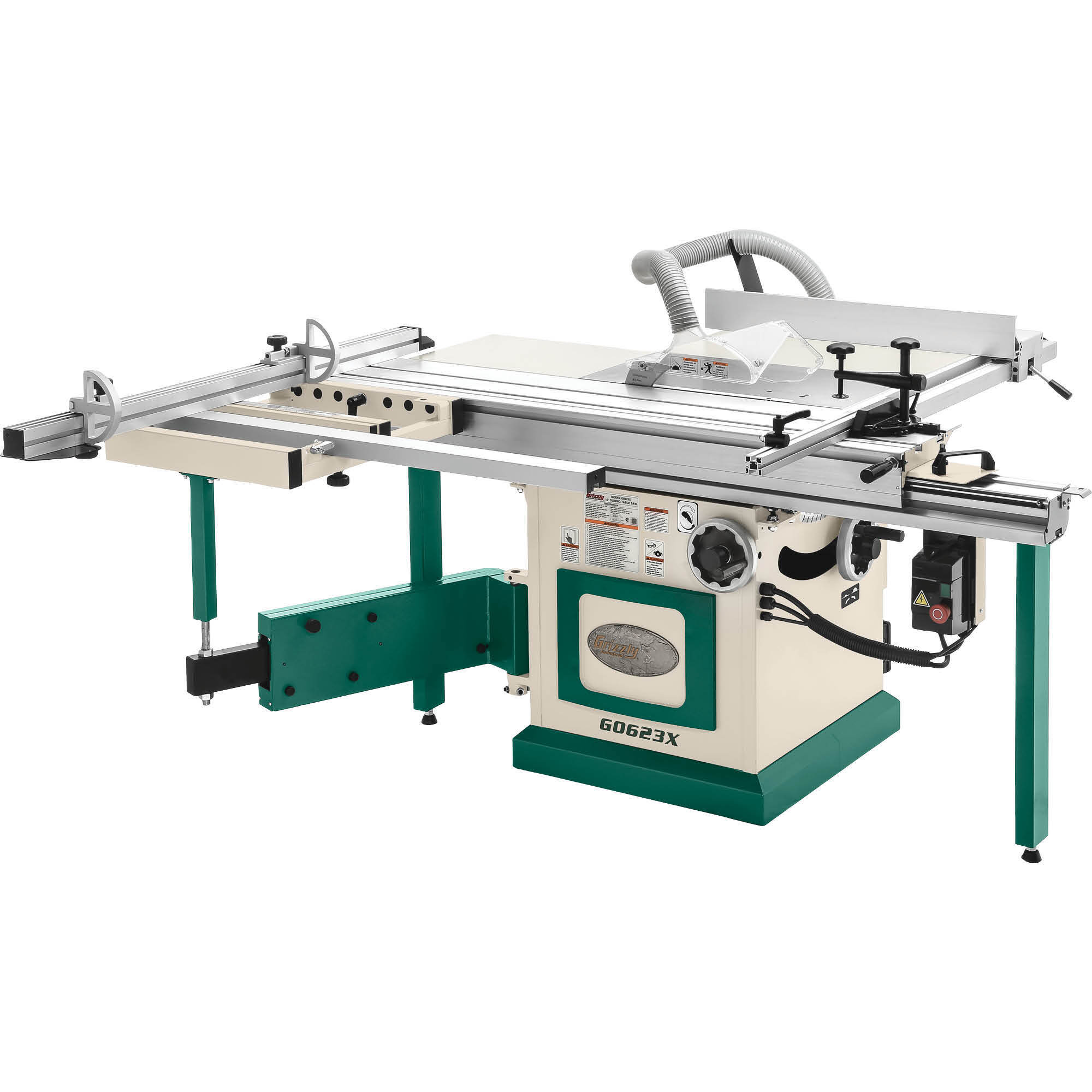

Grizzly G0623X - 10" 5 HP Sliding Table Saw

Item# 7511559
New
Grizzly G0623X - 10" 5 HP Sliding Table Saw

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Grizzly G0623X - 10" 5 HP Sliding Table Saw

Click or Tap image to Zoom

$4999.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 4" Main Dust Port
  • Adjustable Scoring Knife Kerf

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Get all of the benefits of a sliding table saw in a size that actually fits in your shop! Large panels are fully supported by the sliding table, making ripping and crosscutting almost effortless. The scoring blade eliminates tear-out for factory-fresh edges every time, and dust control is handled by the 4in. main port and 2-1/2 port on the blade guard. Easy to set up and operate, this 10in. Sliding Table Saw belongs in every production shop. 10in. blade sold separately. SPECIFICATIONS:
  • Main motor: 5 HP, 230V, single-phase,19A
  • Rip capacity: 33in.
  • Crosscut capacity: 63in.
  • Blade tilt: 0 - 45°
  • Max. depth of cut 90°: 3-1/8in.
  • Max. depth of cut 45°: 2-1/4in.
  • Main table size with extensions: 14-3/8in. x 27in.
  • Sliding table size: 12-1/4in. x 63in.
  • Floor-to-table height: 33-5/8in.
  • Main blade arbor: 5/8in.
  • Main blade speed: 4000 RPM

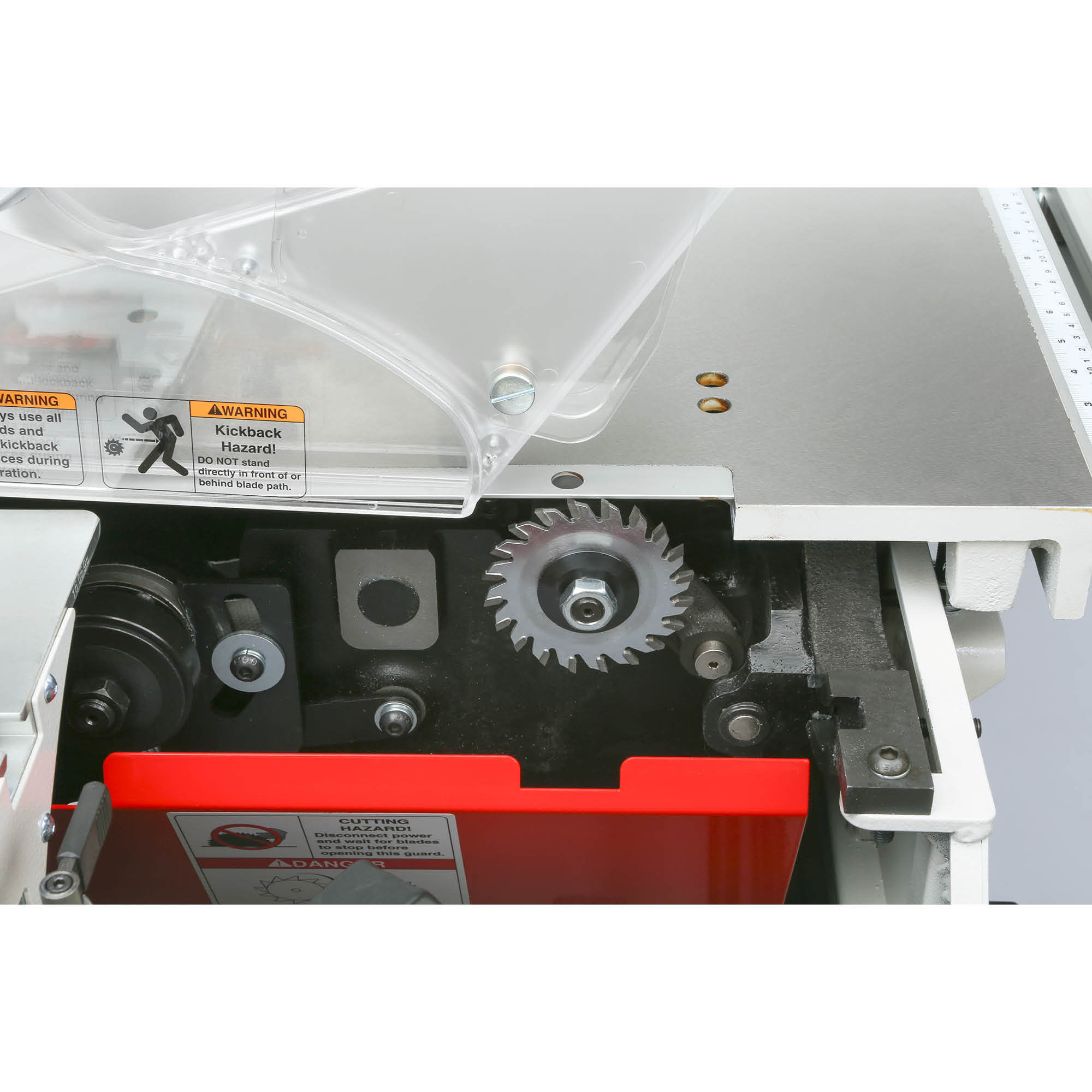

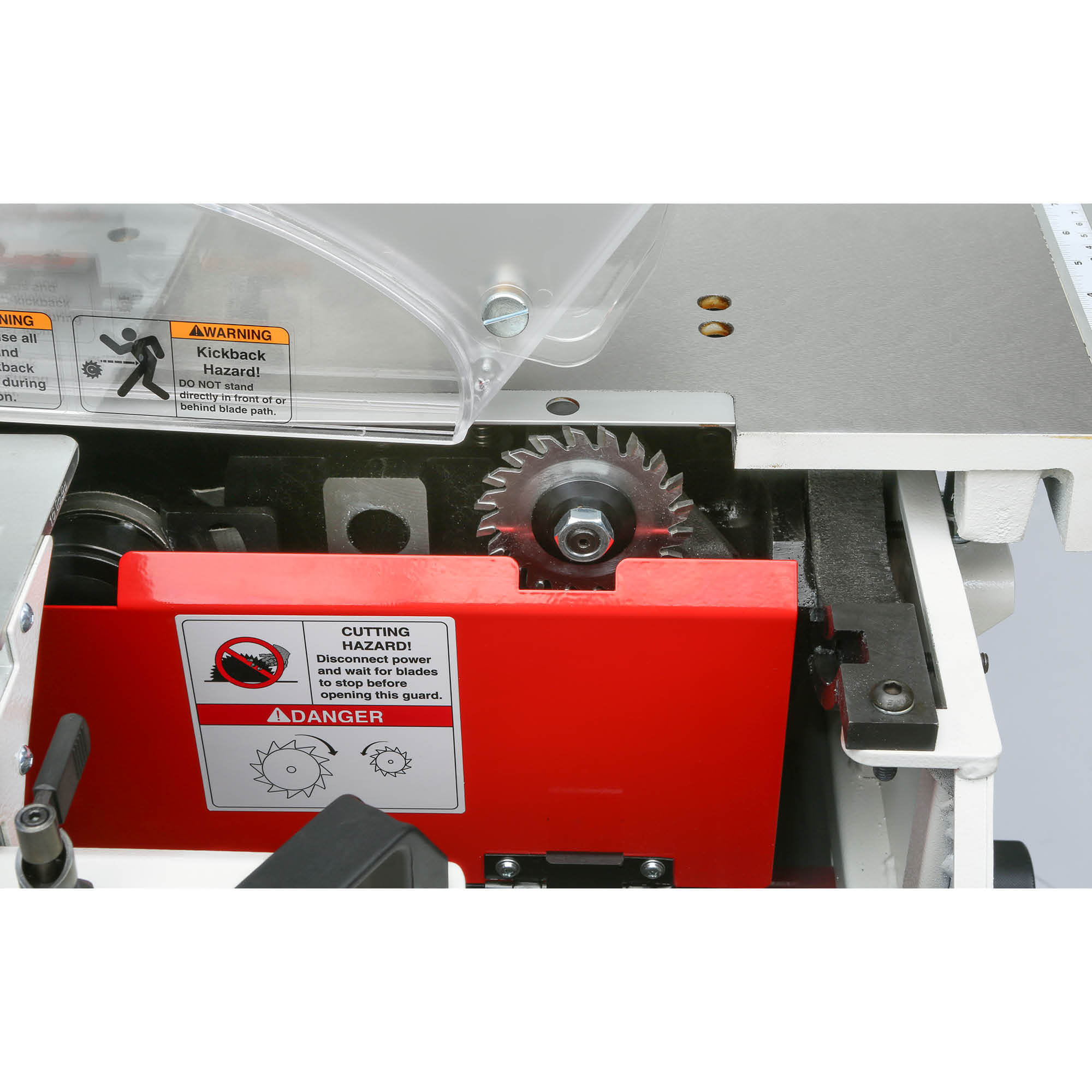

  • Scoring blade size: 3-1/8in. (80mm)
  • Scoring blade arbor: 22mm
  • Scoring blade speed: 8000 RPM
  • Max. width of dado: 1-3/16in.
  • Number of dust ports: 2
  • Dust port size: 4in. 2-1/2in.
  • Footprint: 25-1/2in. L x 28in. W
  • Overall dimensions: 76in. W x 125in. D x 46in. H
  • Approx. shipping weight: 688 lbs.

    • What's Included

      (1) Sliding Table Saws

    Features + Benefits

    • 4" Main Dust Port
    • Adjustable Scoring Knife Kerf

    Key Specs

    AttributeSpecification

    item#

    		7511559

    Brand

    		Grizzly

    Manufacturer's Warranty

    		1 year limited warranty
    AttributeSpecification

    Ship Weight

    		754.0 LB

    Product Weight

    		688.0000 lb

    Dimensions L x W x H (in.)

    		125.0 x 76.0 x 46.0 in

    Reviews

    Questions & Answers

    29 Reviews This action will navigate to reviews.

    Questions

    1–10 of 17 Questions
    Sort by:

    1. how do i align motor on my g0623x

      1 answer
      Originally posted on grizzly.com

      1. We appreciate you reaching out. Please reach out to our Product Support team at (570) 546-9663 for further assistance.

    2. What size wire and breaker is is recommended to supply the power? Also, is this hardwired or plugged into an outlet? If it is an outlet, what type of outlet?

      1 answer
      Originally posted on grizzly.com

      1. We appreciate your question. The recommended power cord is an ‘S’-Type, 3-wire, 12 AWG rated for 300 VAC. The connection type is cord and plug, and the suggested plug and outlet type is L6-30. The power supply should be 230V single phase, and the breaker size should be a 30A, 2-pole.

    3. How do I get a cord and plug for this saw?

      1 answer
      Originally posted on grizzly.com

      1. Thank you for reaching out. You’ll need an “S”-Type, 3-wire, 12 AWG cord rated for 300 VAC. While we don’t carry this cord, it should be available at most hardware stores. You’ll also need the T28429 Plug, which we currently have in stock.

    4. What diameter dado blade is suggested?

      1 answer
      Originally posted on grizzly.com

      1. Thank you for reaching out. The recommended dado blade for this machine is an 8", such as the T26696. Using a larger blade may result in reduced accuracy.


        Amber

    5. Can the saw be mounted on a mobile base? Are the two support posts for the slide rail and outfeed table long enough?

      1 answer
      Originally posted on grizzly.com

      1. We appreciate your question. The T28923 will accommodate the main footprint. You would then need to adjust the feet on each side to ensure the table is properly supported.

    6. Is there a CAD drawing available for this?

      1 answer
      Originally posted on grizzly.com

      1. We appreciate your interest. We do not offer CAD files or detailed engineering drawings for our machines. However, basic dimensions and specifications, such as footprint size, height, and key clearances, are provided on the product’s specification sheet. These should be sufficient for general planning and layout purposes.

    7. How do you rip full sheets with a 63 inch sliding table

      1 answer
      Originally posted on grizzly.com

      1. Thanks for reaching out. The sliding table has a max cut width of 78-1/2 inches with a max cut length of 63 inches.

    8. How long is the cord Does it come with a ripping blade

      1 answer
      Originally posted on grizzly.com

      1. Thank you for the question. The saw does not include a power cord or plug. The table saw includes a scoring blade. We recommend a S-Type, 3 Wire, 12 AWG, 300 VAC cord with a L6-30 plug. You can locate additional information about this machine by navigating to "Product Links" and selecting the "Specification Sheet."

    9. Can this be used in110 20 Amp outlet

      1 answer
      Originally posted on grizzly.com

      1. We appreciate your question. The G0623X has a 5 HP motor that operates on 230V, single phase power and will not operate on 110V. You can learn more about this machine by navigating to "Product Links" and selecting the "Specification Sheet."

    10. What are the front and right extension wings made of?

      1 answer
      Originally posted on grizzly.com

      1. We appreciate your question. The P0623X0401 Large Extension Table is made of precision-ground cast iron, while the P0623X0422 Small Extension Table is constructed from welded steel. The sliding table is aluminum, and the cross fence is made of steel tubing.

    Warranty

    Manufacturer's Warranty

    1 year limited warranty
