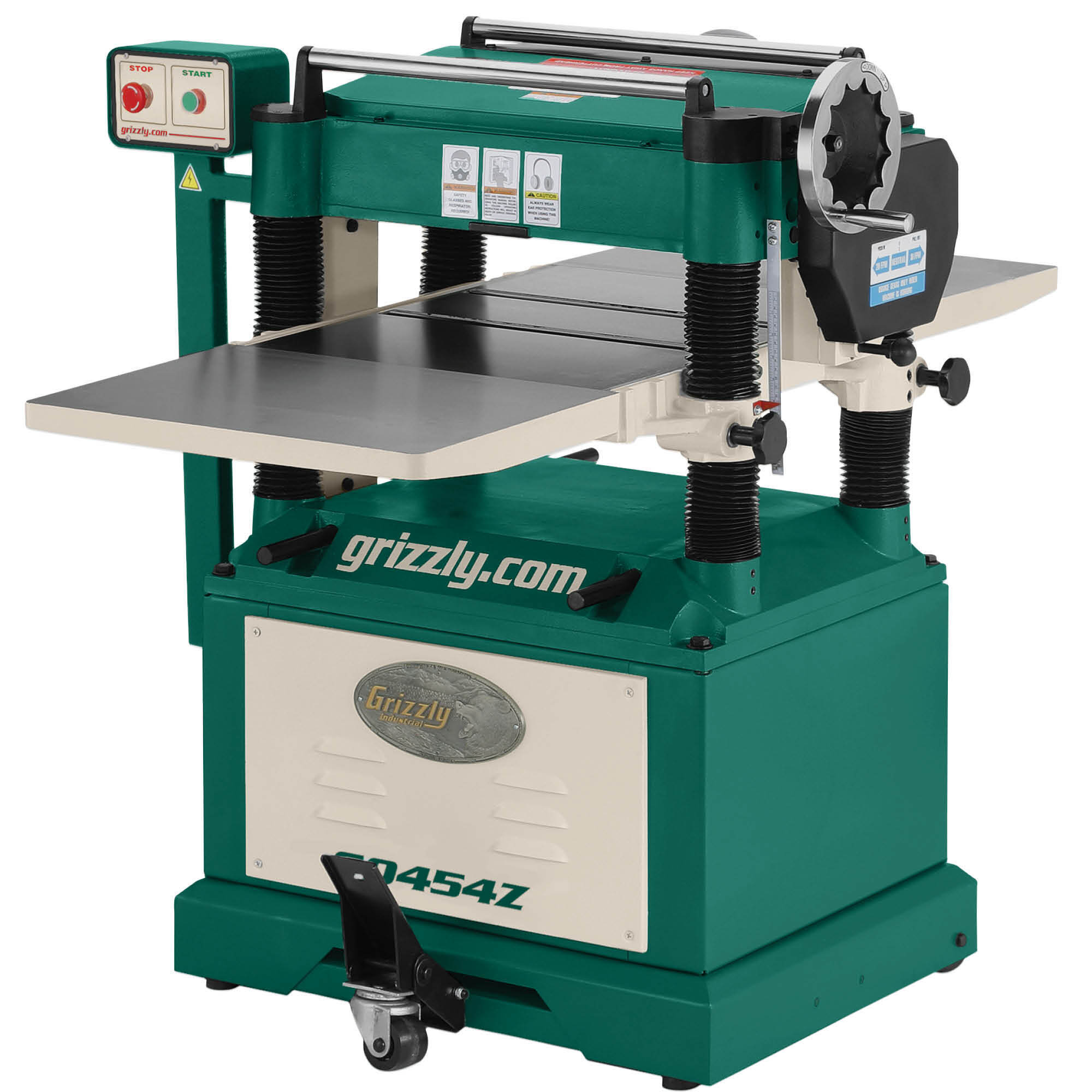

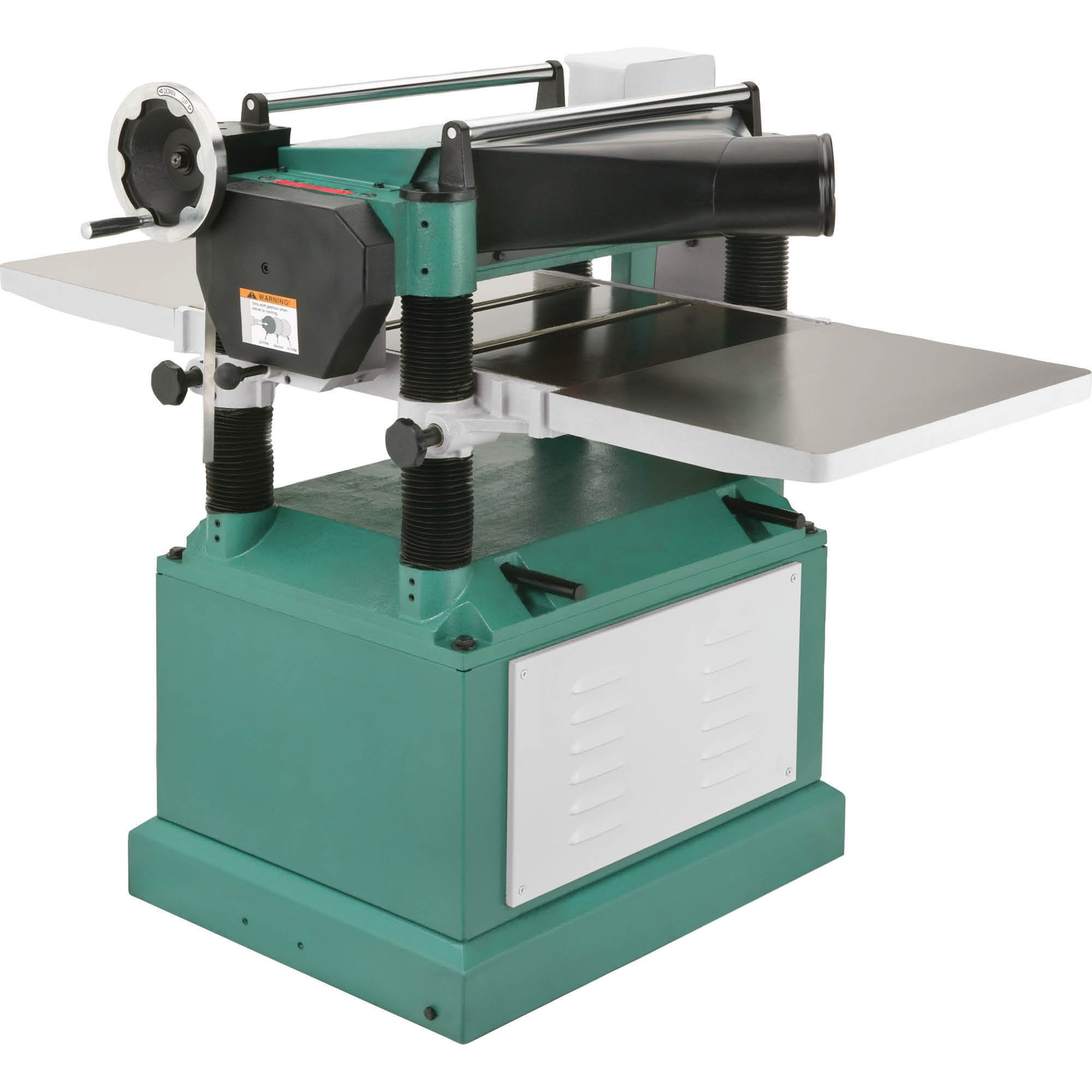

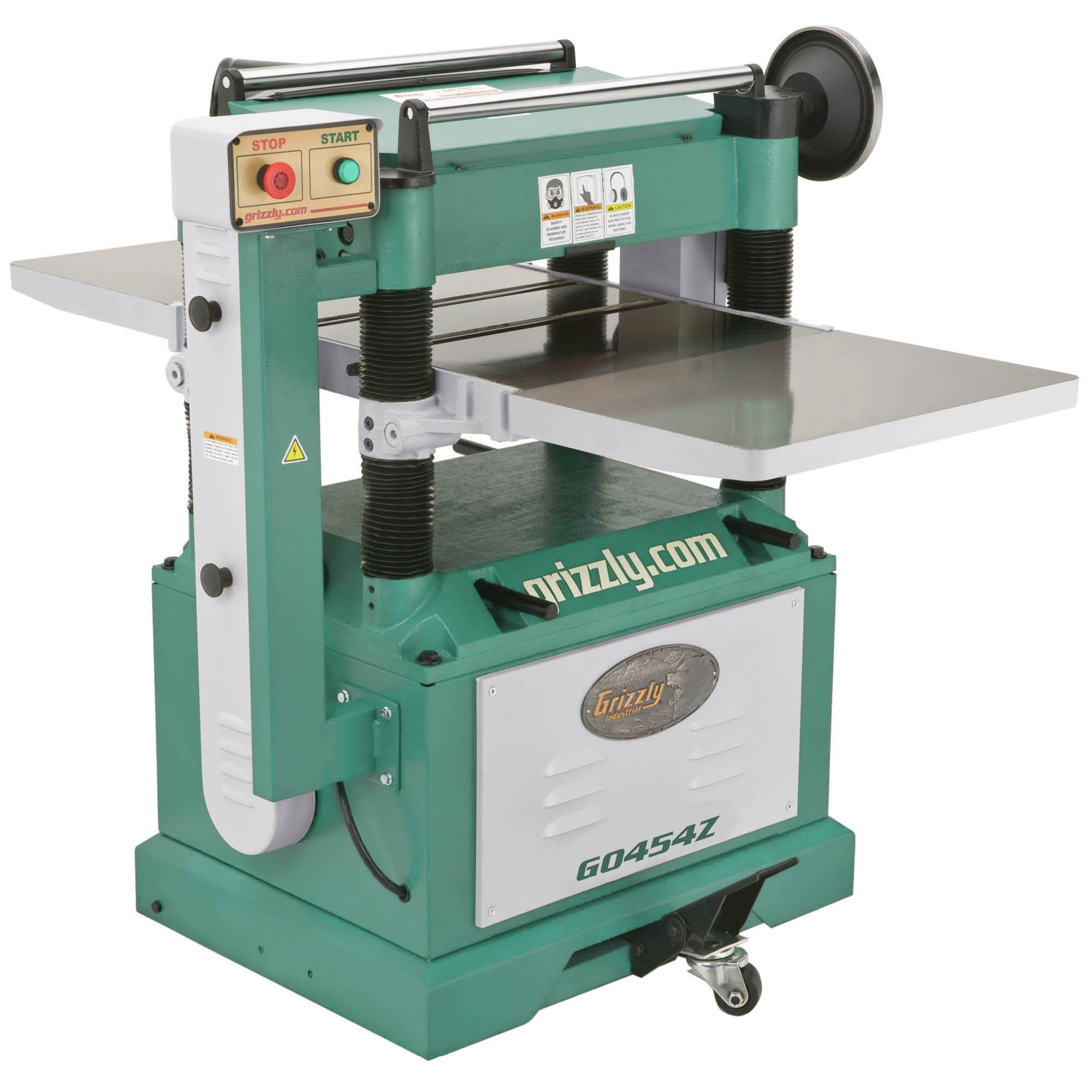

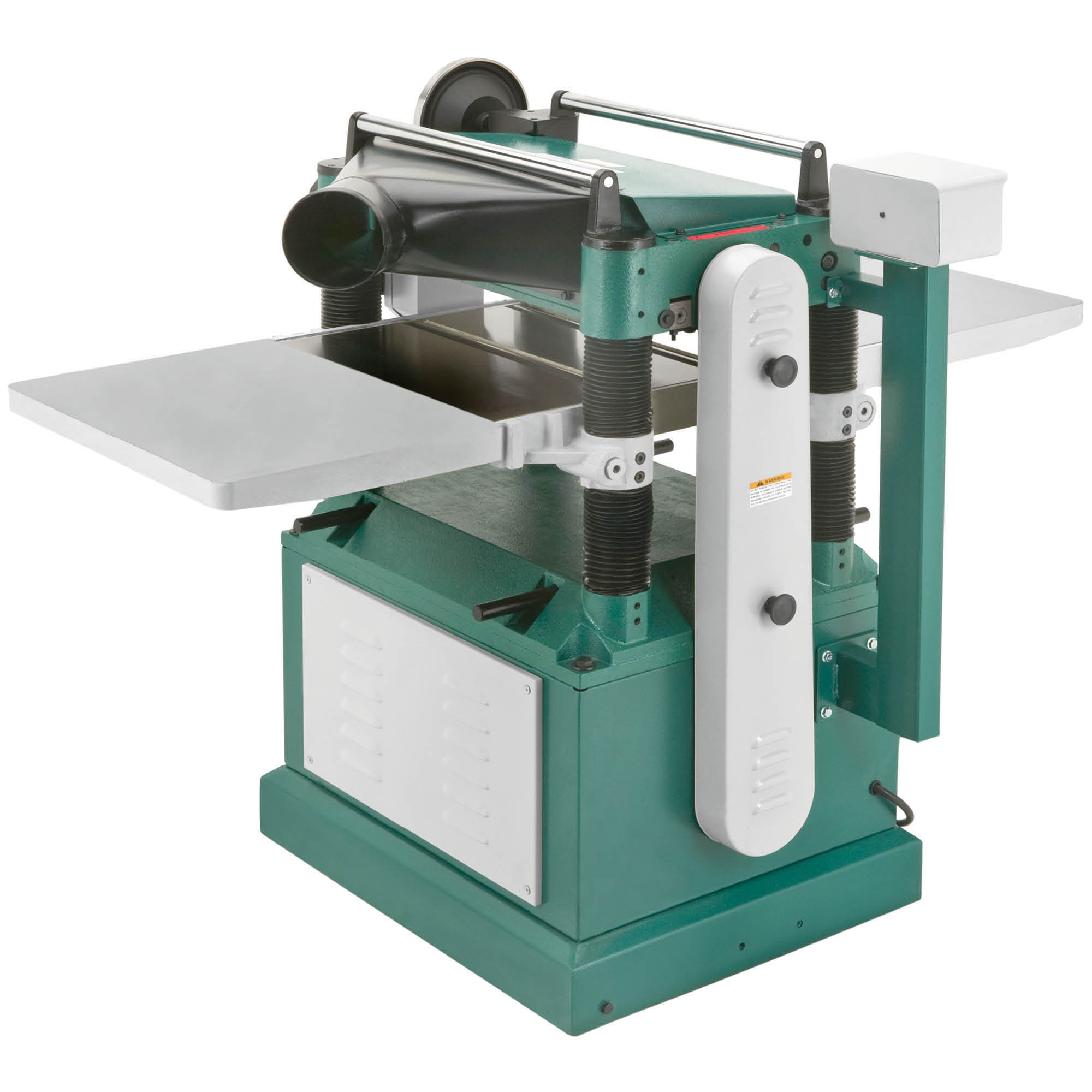

Grizzly G0454Z - 20" 5 HP Planer w/ Spiral Cutterhead

Item# 7511719
New
Grizzly G0454Z - 20" 5 HP Planer w/ Spiral Cutterhead

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Grizzly G0454Z - 20" 5 HP Planer w/ Spiral Cutterhead

Click or Tap image to Zoom

$3599.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

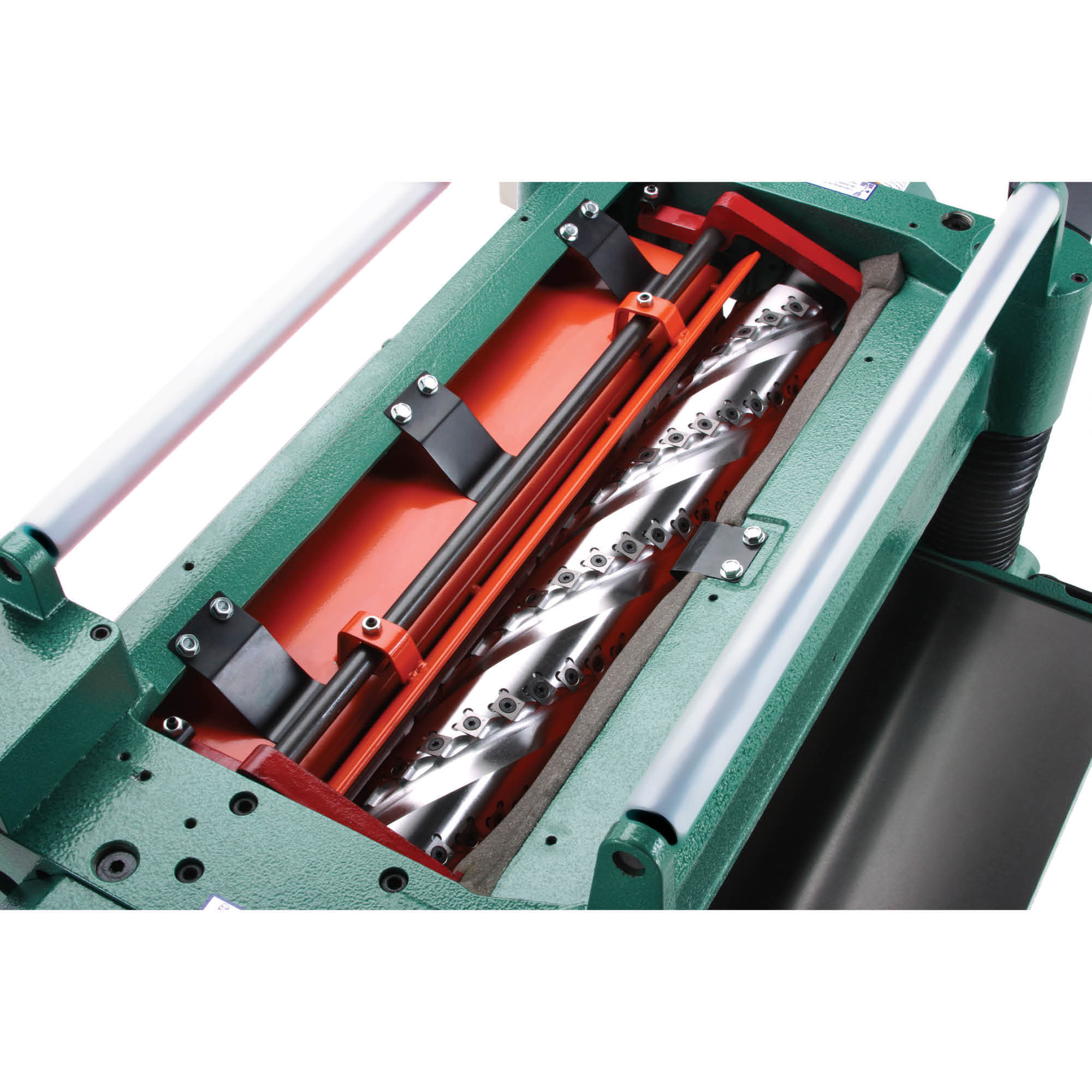

  • Spiral Cutterhead with 98 German-Made Indexable Carbide Inserts
  • Triple-V Belt Drive

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Solid cast iron and steel construction and large planing capacity make this planer a true heavyweight, though with a built-in mobile base making it easy to move around your shop. You'll also appreciate the 55-1/2in. long precision-ground table, 5 HP motor and the two-speed gear box for maximum versatility. The G0454Z has a spiral cutterhead with 4-sided German-made carbide inserts for ultra smooth surfaces. CSA certified meeting CSA UL standards! Note on replacement inserts:
  • For models manufactured April, 2015 and later, use H7319 replacement inserts.
  • For models manufactured March, 2015 and earlier, use T21348 replacement inserts. SPECIFICATIONS:
  • Motor: 5 HP, 240V, single-phase, 19A
  • Maximum stock width: 20in.
  • Maximum stock thickness: 8in.
  • Minimum stock thickness: 3/16in.
  • Minimum stock length: 8in.
  • Maximum cutting depth: 1/8in.
  • Cutterhead type: 4-row spiral, 98in.serts
  • Insert size type: 14mm x 14mm x 2mm, indexable carbide
  • Cutterhead speed: 4800 RPM
  • Feed rate: 16 FPM 20 FPM
  • Table size with extensions: 20in. x 55-1/2in.
  • Dust port size: 5in.
  • Overall dimensions: 55-1/2in. L x 39-1/2in. W x 45-7/8in. H
  • Approximate shipping weight: 932 lbs. FEATURES:
  • Built-in mobile base
  • Precision-ground cast-iron table w/extension wings
  • Board return rollers
  • Rubber-coated outfeed roller
  • Adjustable bed rollers
  • Magnetic switch with thermal overload protection
  • Four-column support with table locks

    • What's Included

      (1) Planers

    Features + Benefits

    • Spiral Cutterhead with 98 German-Made Indexable Carbide Inserts
    • Triple-V Belt Drive

    Key Specs

    AttributeSpecification

    item#

    		7511719

    Brand

    		Grizzly

    Manufacturer's Warranty

    		1 year limited warranty

    Ship Weight

    		932.0 LB

    Product Type

    		Planers

    Max. Cutting Depth

    		0.063 in

    Max. Cutting Width

    		20 in

    Cutters (qty.)

    		4

    Knives (qty.)

    		98
    AttributeSpecification

    Max. RPM

    		3,450

    Cutterhead Speed

    		4,800 rpm

    Material

    		Iron Carbide

    Volts

    		240

    Amps

    		25

    Helical Head

    		No

    Product Weight

    		932.0000 lb

    Dimensions L x W x H (in.)

    		55.625 x 39.0 x 45.875 in

    Reviews

    Questions & Answers

    Questions

    Warranty

    Manufacturer's Warranty

    1 year limited warranty
