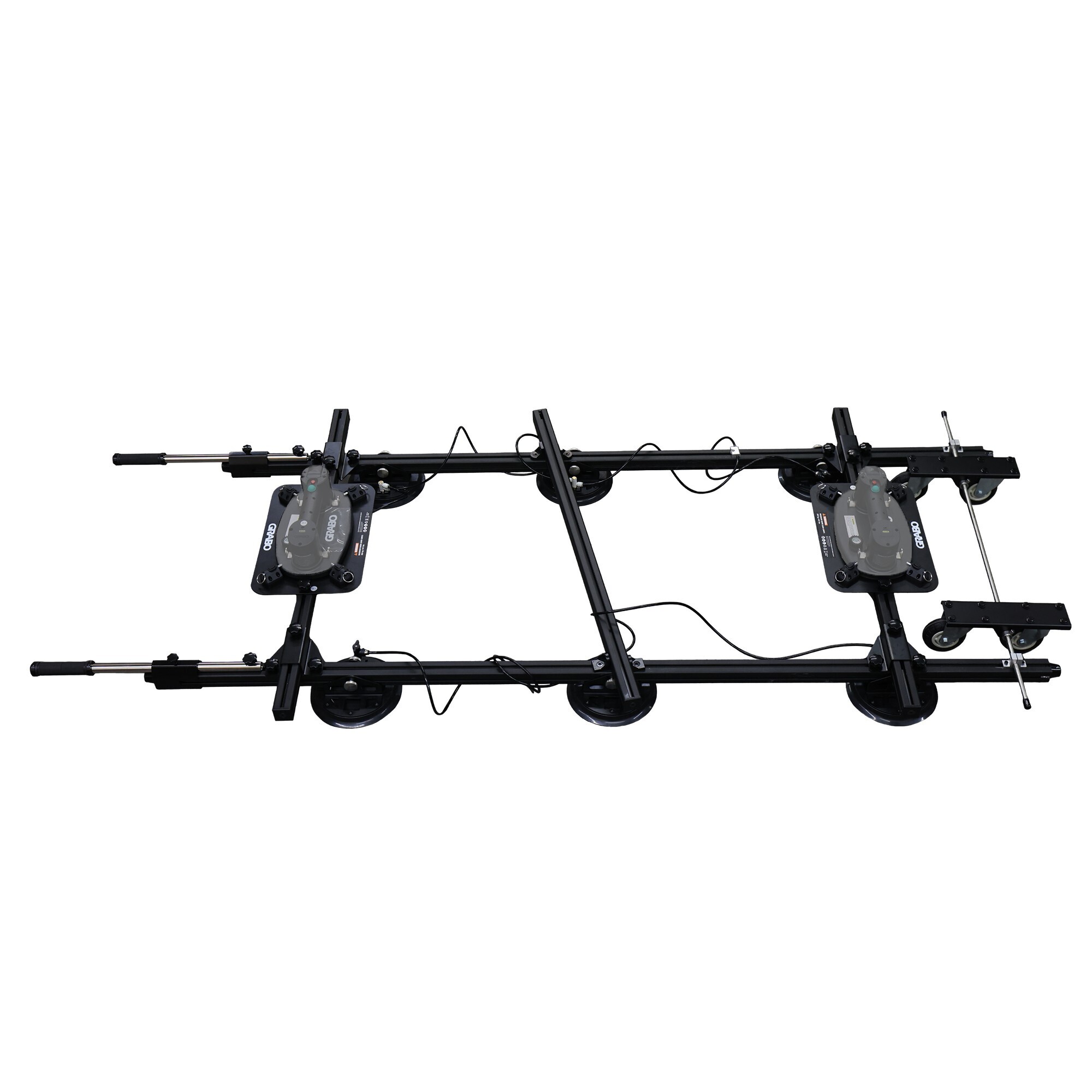

GRABO Panel Pro Modular Rail Suction Gripster System, Six 8 Inch Suction Cups, 441 Pound Holding Capacity, GPP-V1

Item# 7635615
New
GRABO Panel Pro Modular Rail Suction Gripster System, Six 8 Inch Suction Cups, 441 Pound Holding Capacity, GPP-V1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

GRABO Panel Pro Modular Rail Suction Gripster System, Six 8 Inch Suction Cups, 441 Pound Holding Capacity, GPP-V1

Click or Tap image to Zoom

$1000.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

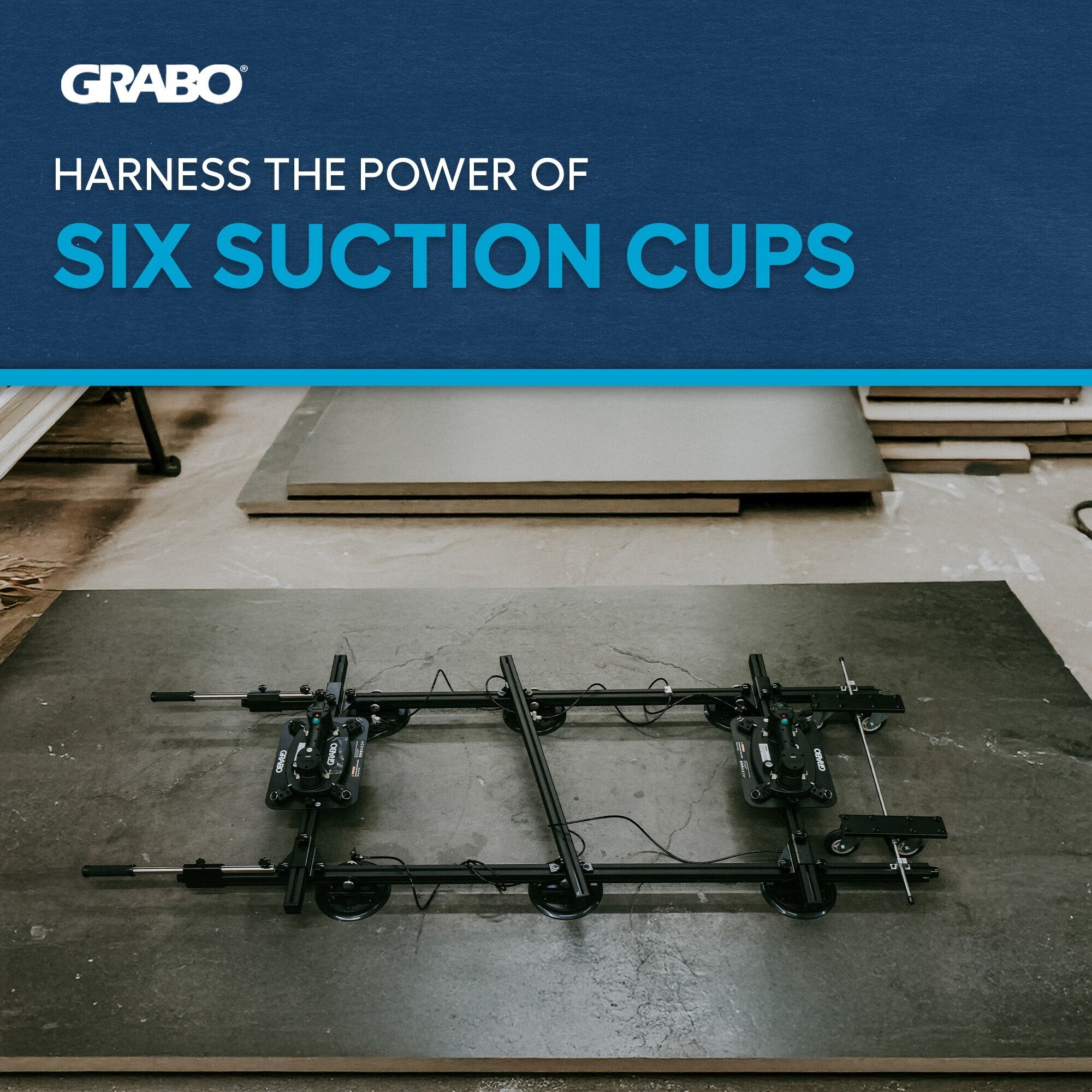

  • Multiplies one or two GRABO tools into up to six 8-inch suction cups

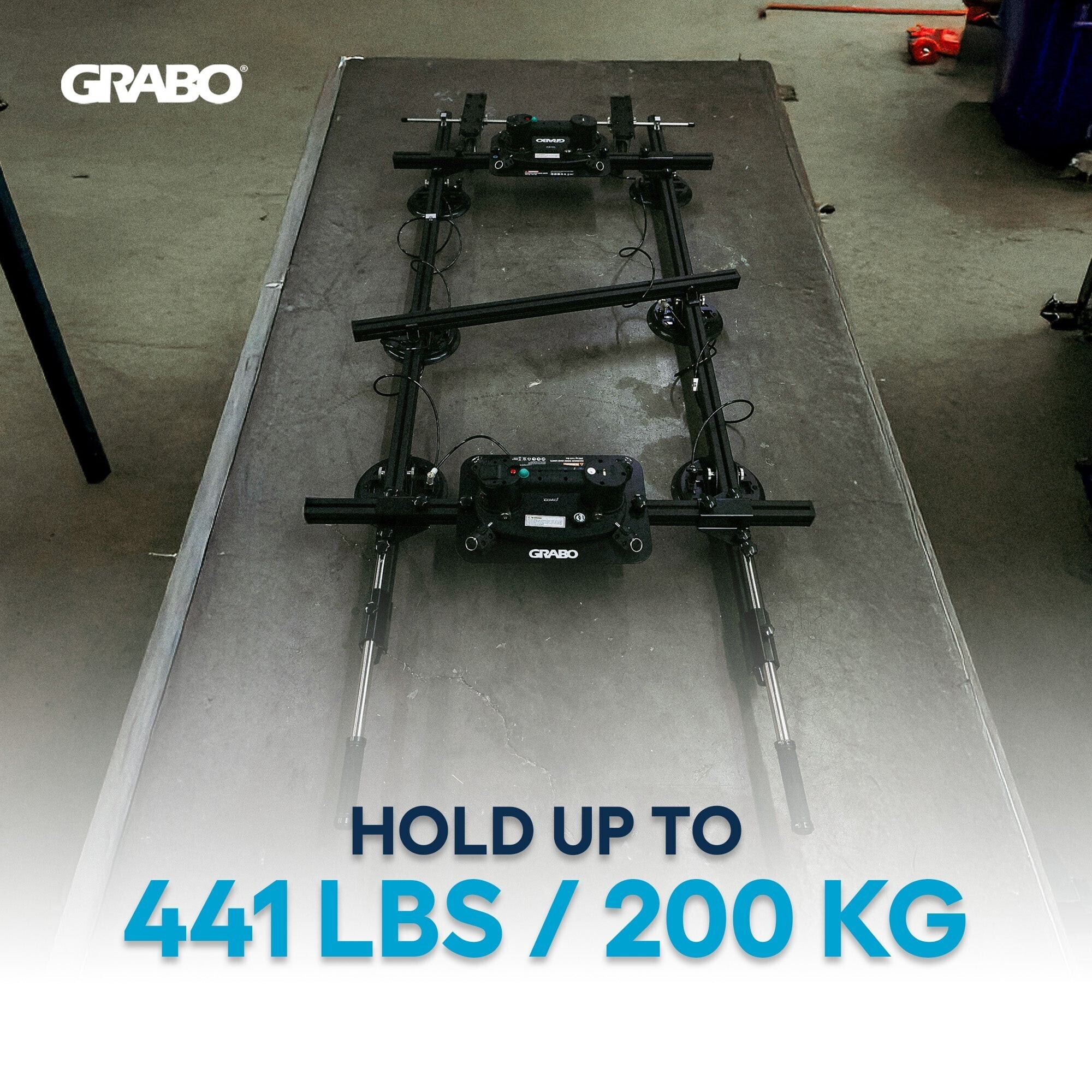

  • Up to 441 lbs (200 kg) of total holding force
  • Vacuum distributes through durable polyurethane air hoses to every cup

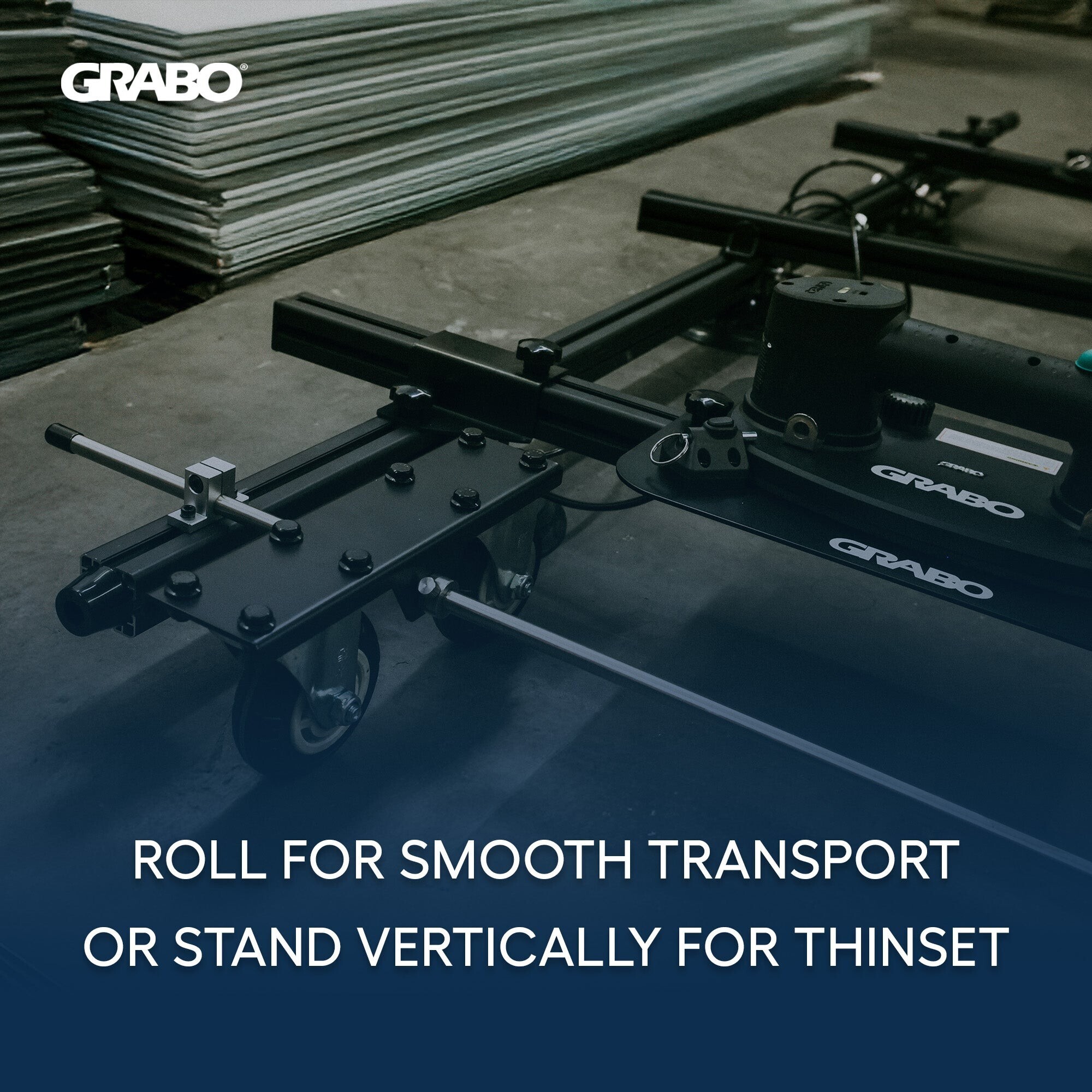

  • Four integrated handle grips and four rugged rubberized wheels to roll panels into position
  • Rubberized handles let you stand material upright for applying thinset

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

One suction gripper, six points of contact. The GRABO Panel Pro is a modular large-format rail system that multiplies a single tool into up to six 8in. suction cups, spreading the hold across a whole panel instead of concentrating it in one spot. Mount a GRABO to the control head and vacuum pressure distributes through durable polyurethane air hoses to every cup on the rail. Working together they deliver up to 441 lbs (200 kg) of total holding force, enough to move large-format tile, stone slabs, glass and countertops with confidence. Four integrated handle grips and four rugged rubberized wheels let you roll a panel into position rather than carry it, and the rubberized handles let you stand material upright safely for tasks like applying thinset. When it is time to let go, one GRABO gripster controls the vacuum across all six cups, so release is fast and even. This is what turns a handheld suction lifter into a large-format transport system. It runs on one or two GRABO tools: your grippers supply the vacuum, the cups supply the spread, and a panel no single gripster could hold moves like a much smaller piece. Note: the GRABO tool is not included in this set.

What's Included

    (1) GRABO Panel Pro modular rail system

Downloads

Product Manual

Features + Benefits

  • Multiplies one or two GRABO tools into up to six 8-inch suction cups
  • Up to 441 lbs (200 kg) of total holding force
  • Vacuum distributes through durable polyurethane air hoses to every cup
  • Four integrated handle grips and four rugged rubberized wheels to roll panels into position
  • Rubberized handles let you stand material upright for applying thinset
  • One GRABO gripster releases the vacuum across all six cups, fast and even

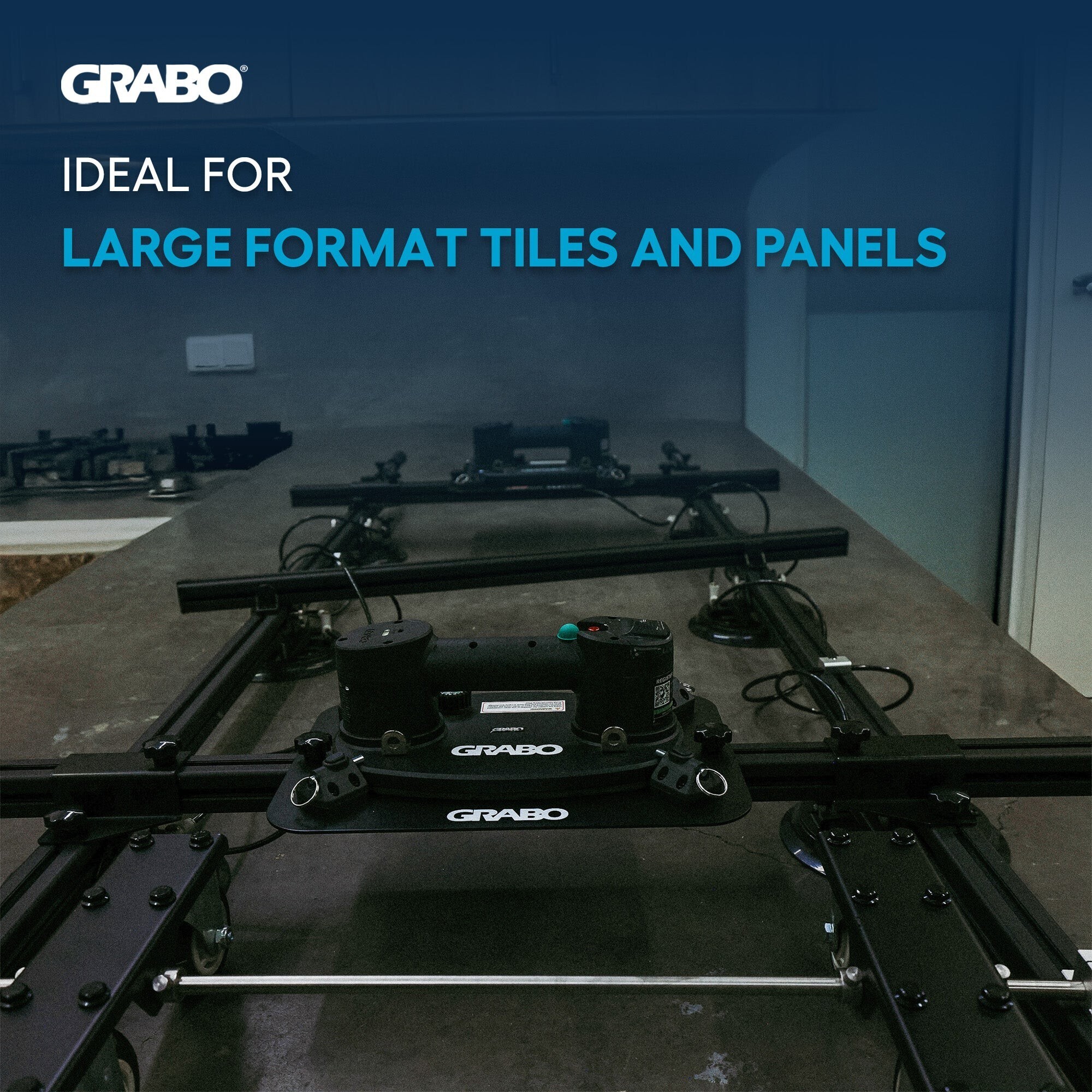

  • For large-format tile, stone slabs, glass and countertops

Key Specs

AttributeSpecification

item#

7635615

Brand

Grabo

Manufacturer's Warranty

1 year limited warranty

Ship Weight

69.0 LB

Product Type

Rails and Mounts
AttributeSpecification

Max. Lift Weight

441 lb

Number of Suction Cups

6

Product Weight

68.3400 lb

Dimensions L x W x H (in.)

104.96 x 39.76 x 6.61 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
