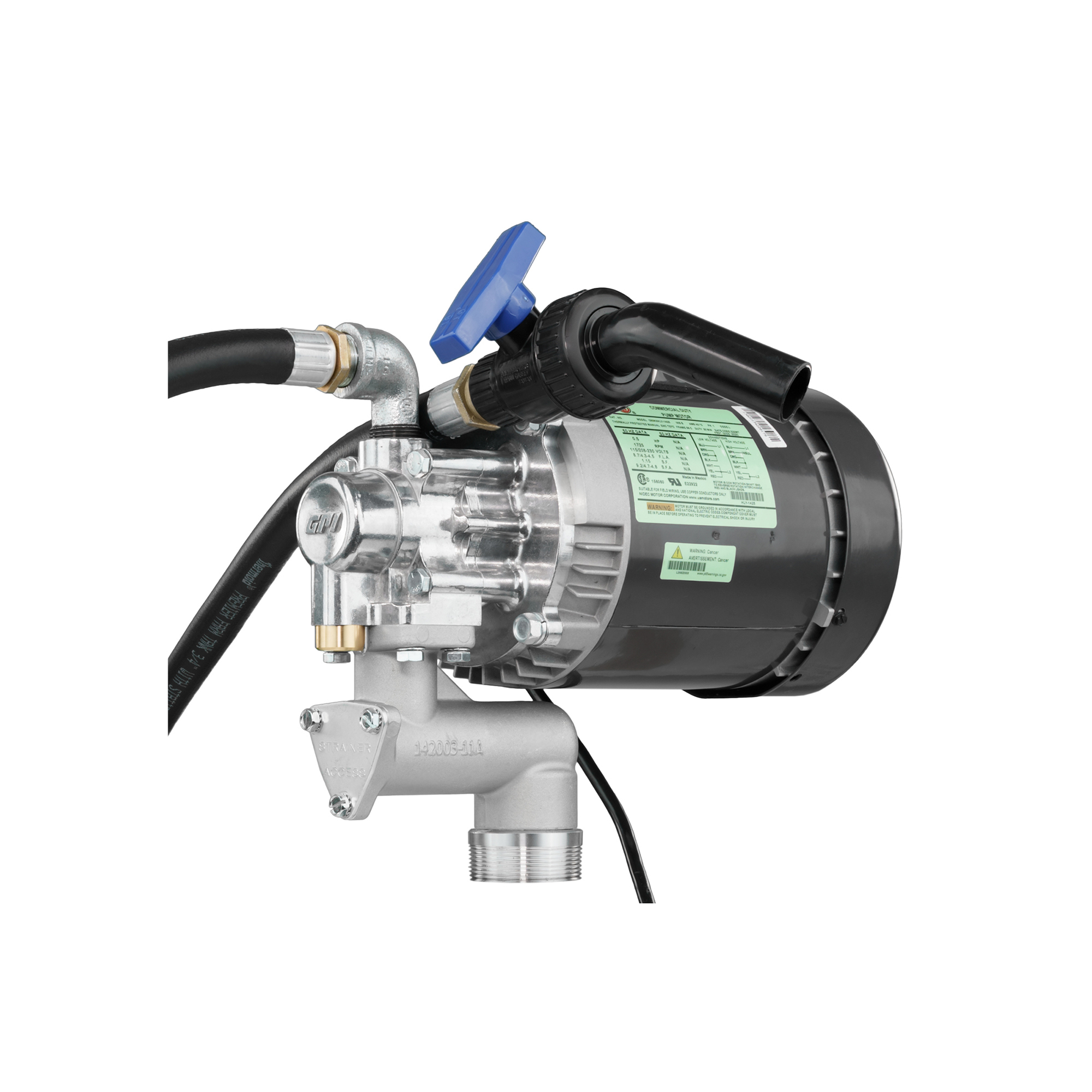

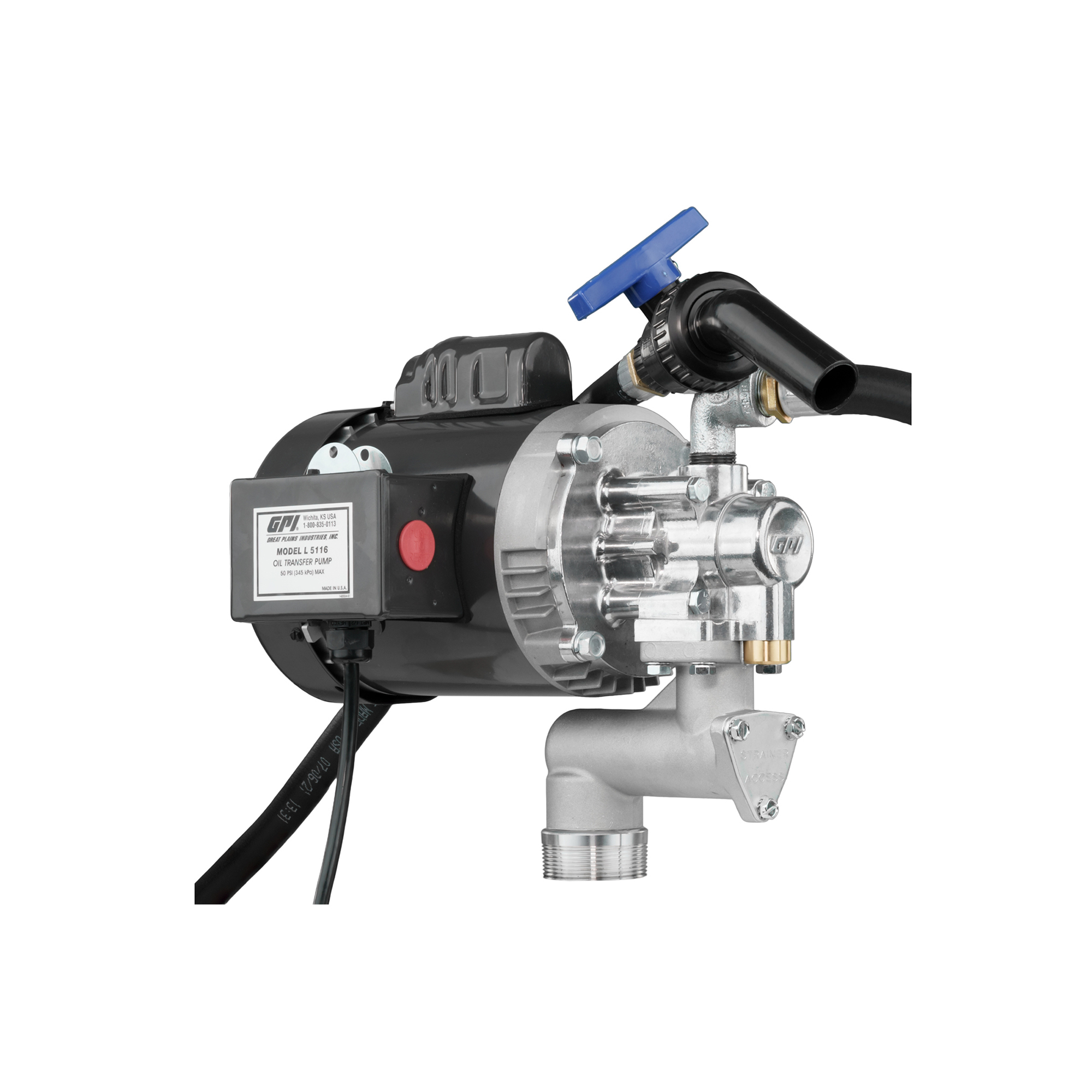

GPI Heavy-Duty Oil Transfer Pump — 16 QPM, 115V, Cast Aluminum, Model# L5116

Item# 360582
GPI Heavy Duty Oil Transfer Pump
GPI Heavy-Duty Oil Transfer Pump — 16 QPM, 115V, Cast Aluminum, Model# L5116

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

GPI Heavy-Duty Oil Transfer Pump — 16 QPM, 115V, Cast Aluminum, Model# L5116

Click or Tap image to Zoom

$789.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Comes complete with 3/4in. ball valve nozzle, 3/4in. x 8ft. hose, 3ft. power cord with 3-prong grounded plug, 15in.-40in. adjustable suction pipe and 90° street elbow
  • Rugged, weather-resistant, thermally protected 1/2 HP motor designed for long life and limited maintenance
  • Thermal limiting motor protection extends motor life
  • Specifically designed for use with high viscosity fluids
  • Weight centering inlet base includes pressure relief valve and provides easy strainer access

See full description

Complete Your Solution

  • GPI Heavy-Duty Oil Transfer Pump — 16 QPM, 115V, Cast Aluminum, Model# L5116
  • Fast Orange Pumice Hand Cleaner, Gallon
Price for all two:

$806.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This GPI Heavy-Duty Oil Pump features a gerotor gear design and durable, lightweight cast aluminum housing. The rugged 115-volt AC motor delivers flow rates up to 16 QPM (4 GPM) and is engineered for long life and limited maintenance. The GPI L5116 oil pump is ideal for use with new oil (up to 90 wt.), hydraulic fluid and antifreeze. Consider the viscosity of the fluid and temperature range when choosing the oil pump for your application.

What's Included

    (1) GPI Model L5116 oil pump (1) 3/4in. ball valve nozzle (1) 3/4in. x 8ft. hose (1) Adjustable suction pipe (1) 90° street elbow

Downloads

Product Manual

Features + Benefits

  • Comes complete with 3/4in. ball valve nozzle, 3/4in. x 8ft. hose, 3ft. power cord with 3-prong grounded plug, 15in.-40in. adjustable suction pipe and 90° street elbow
  • Rugged, weather-resistant, thermally protected 1/2 HP motor designed for long life and limited maintenance
  • Thermal limiting motor protection extends motor life
  • Specifically designed for use with high viscosity fluids
  • Weight centering inlet base includes pressure relief valve and provides easy strainer access
  • Pre-installed power cord greatly reduces assembly and installation time
  • Wetted materials: aluminum, stainless steel, brass, steel, nitrile rubber and zinc plated steel
  • Motor is UL listed and CSA certified

Key Specs

AttributeSpecification

item#

360582

Brand

GPI

Manufacturer's Warranty

2 year limited warranty

Ship Weight

33.0 LB

Flow Rate

4 GPM

Max. PSI

50

Speed

1,725 rpm

Volts

115

Watts

373
AttributeSpecification

Amps

75

Horsepower

0.5

Material

Aluminum

Fuel Type

Oil

Max. Total Head

125 ft

Max. Suction Lift

15 ft

Inlet Port

1 in

Outlet Port

0.75 in

Duty Cycle

30 min

Reviews

Questions & Answers

17 Reviews This action will navigate to reviews.

Questions

1–10 of 21 Questions
Sort by:

  1. Can this pump be used with DC or is there a DC version. manual shows in electrical specs a DC power specs as well as AC specs.

    1 answer

    1. The model L5116 can be wired for 115 volt, AC only.

      Helpful?

  2. Can I use this pump outdoor mounted on a truck?

    1 answer

    1. This pump can be used outdoors, however it cannot be permanently left outside. It should be protected from the elements.

      Helpful?

  3. will this work on 15/40 oil? And can a metered nozzle be added ?

    1 answer

    1. This pump is compatible with automotive oil up to 90wt. 15/40 oil can be used. Item 83741 can be added for a metered nozzle.

      Helpful?

  4. Would it be alright to restrict the flow by 50% ( 2 gpm) while adding up to 10 gallons of synthetic transmission fluid? Is there an inline meter that would work best for this application?

    1 answer

    1. We do not recommend restricting the flow rate for any application.

      Helpful?

  5. does this pump have a pressure switch to turn the motor off when the valve is closed?

    1 answer

    1. This pump will need to be shut off manually after the valve has been closed.

      Helpful?

  6. can you leave pump on and just use the control valve?

    trying to see whether you have to turn the pump on every time you want to use or if you can leave it on and just use the recommended control gun to basically turn it on and off

    1 answer

    1. It is recommended to turn the switch off and disconnect from power when the pump is not in use.

      Helpful?

  7. Can this pump diesel fuel?

    1 answer

    1. This pump is designed for use with motor oil, gear oil, hydraulic oil and waste oil. Please view item 57129 for a diesel pump.

      Helpful?

  8. I need to pump waste oil down to -20F. Suction up 5 feet and push about 20 feet. is this the pump or do you have another one that will do this?

    1 answer

    1. This model is designed to operate in temperatures rated from 20 degrees F to 125 degrees F, depending on the viscosity of the oil. The suction lift is 10 feet and 15 feet up from pump. At this time, we do not offer a pump for the application described.

      Helpful?

  9. What is the mesh size of the filter screen?

    1 answer

    1. The mesh size is approximately 100 mesh.

      Helpful?

  10. Does this pump have a National Stock Number?

    1 answer

    1. This pump does have a National Stock Number or UPC of 00031401000214.

      Helpful?
